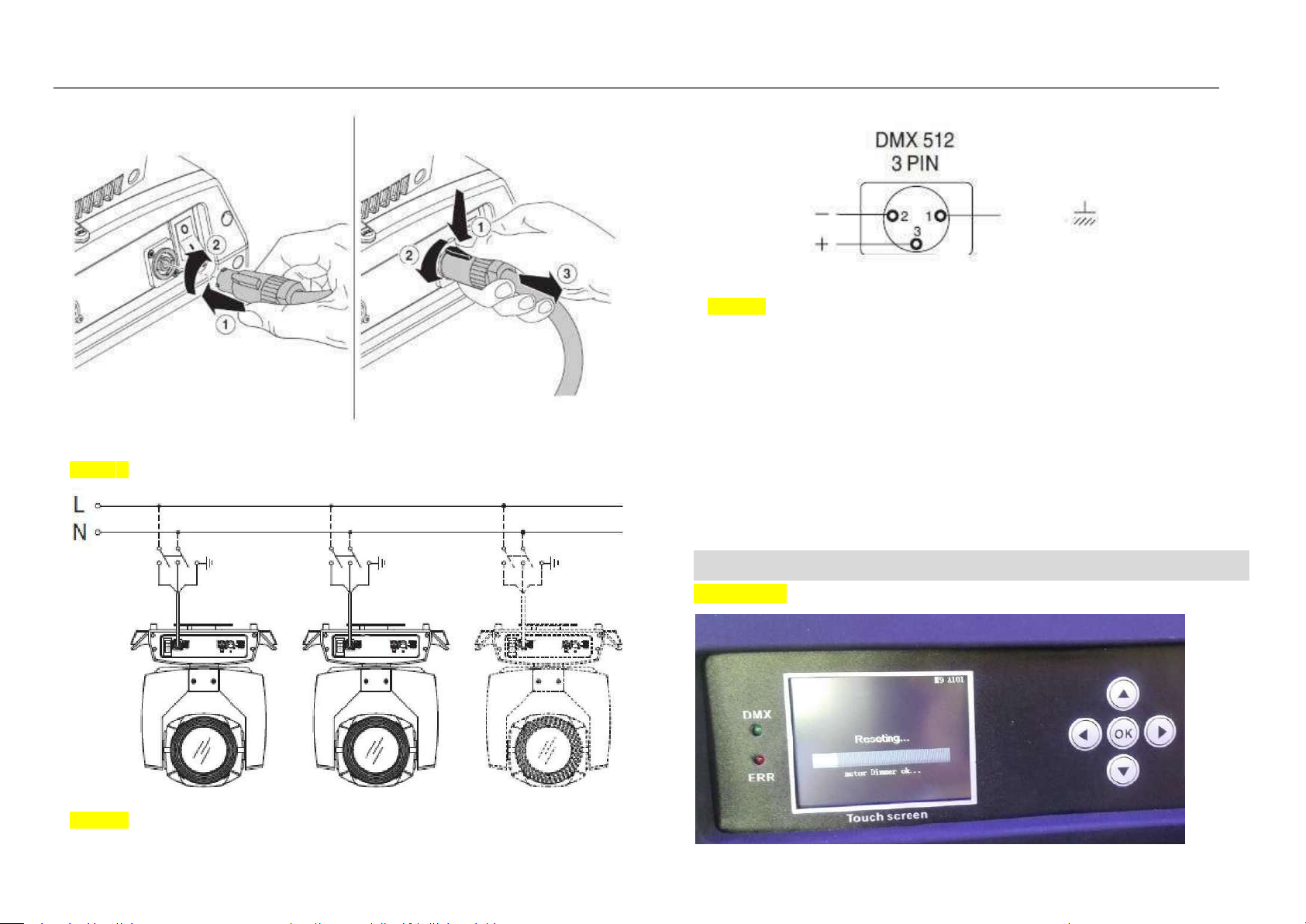

2. Advanced Interface
The password is "up and down up and down". Operation process is: press the "Up" key
(appear first "*"), click again "Down" key (appear the second "*"), then press the "Up" key
(appear third "*"), click again "Down" key (appear fourth "*"), and press the "ok" button to
verify password.
3. Setting Interface
4. Information Interface
Total usage time is accurate to minutes
Usage time of this time is accurate to
minutes
OK "button again, enter reset interface, all motor reset
Press the "OK" button to enter edit state. And it chosen the
hundred position, press the "Up" and "Down" button to
change address code. Press "OK" button once again to select
ten position editing. Click "OK" button twice again to select the
unit editing. Click again exit editing state.
CH17~20 control the speed（See the channel table）
Exchange XY channels(Included fine adjustment)
Use the coder(optocoupler) to judge whether out of step,
and correct position automatically
Don’t use the coder( optocoupler ) to correct position
According to the original state to continue running
Motors return, stop running
No operation for 30 seconds, the backlight will be off
The backlight will be on all the time
After power on reset directly, bulb doesn’t light up(need to
use the menu or controller to manual light bulb)
After power on, bubble light automatically, and to wait on
the bulb light successfully, then reset.
Click "OK" button, see the confirmation dialog box, click
"OK" button again to recover default Settings
Slave state: Receive the DMX signal from controller or the
host one
Master state: Auto run, and send DMX signal to slave one
Notice: If the lamp is off before, it can’t light the lamp by
itself. If you need the observe the lamp effect, please light
the lamp firs, then enter the auto state.
Press the "OK" button to enter edit state. And it chosen the
hundred position, press the "Up" and "Down" button to
change address code. Press "OK" button once again to
select ten position editing. Click "OK" button twice again to
select the unit editing. Click again exit editing state.
