NEUTRIK OpticalCON DUO LITE Manual de usuario

CAUTION: Laser radiation, do not stare into beam!

10.

11.

Disconnect both cable ends for safety reasons

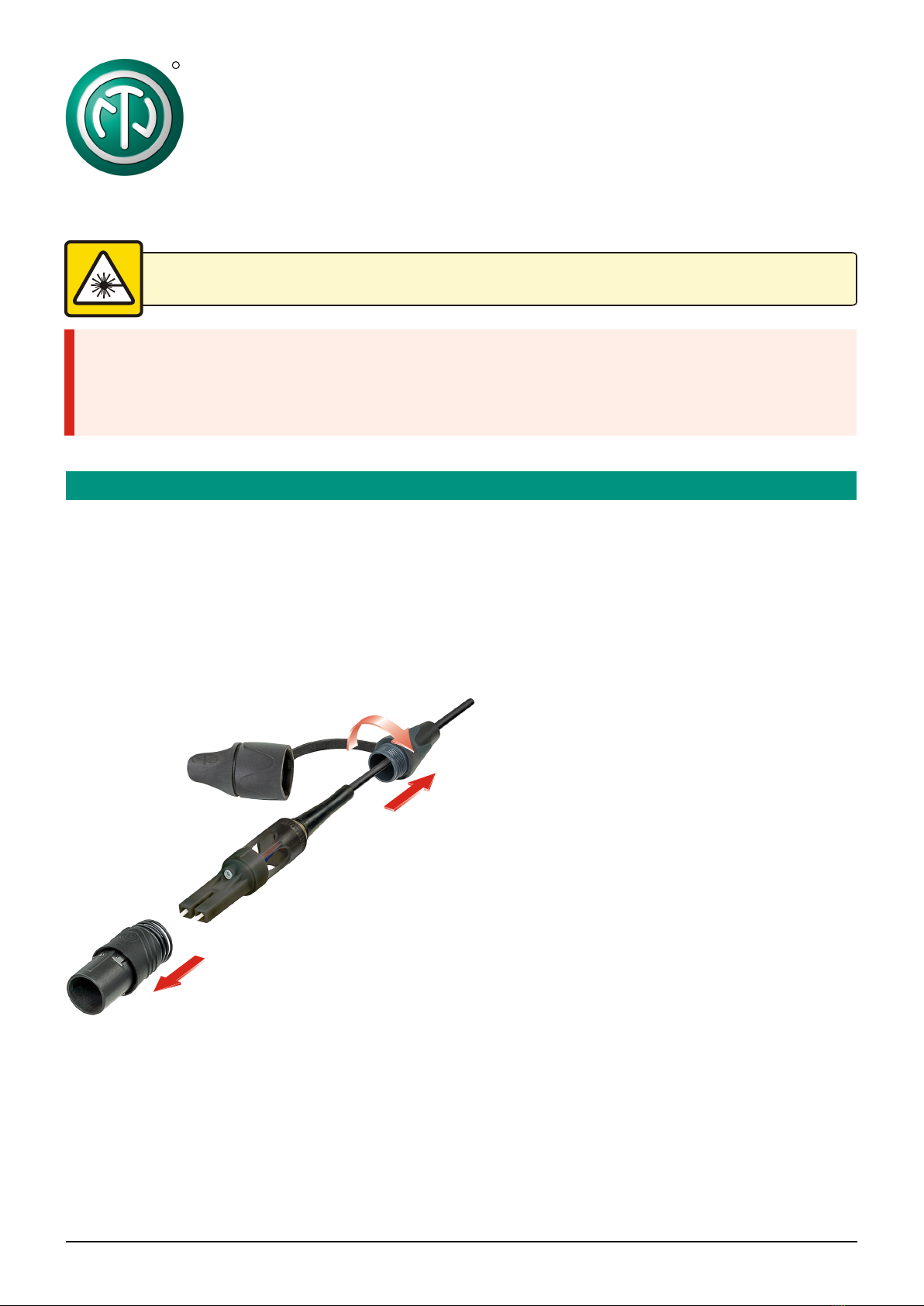

Untight the connector bushing and remove carefully

the insert of the connector housing.

Inspect the LC connectors with a fiberscope

(CAS-FOCD)

Fold a lint-free wipe FOCD-DW into a square.

Moisten one section of the wipe with one drop of the

alcohol. Be sure that a portion of the wipe remains dry.

Wipe lightly the ferrule tip in the alcohol moistened

portion of the wipe.

Immediately repeat this wiping action on the dry

section of the wipe to remove any residual alcohol.

Do not scrub the fiber against the wipe, doing so can

cause scratches.

Dispose the wipe, NEVER REUSE A WIPE.

Inspect the connector again with a fiberscope

(CAS-FOCD).

Repeat the process if necessary.

After the cleaning procedure slide the connector insert

back into the connector housing.

Align the key on the insert to the cutout of the metal

housing.

Invisible laser radiation may be emitted from

disconnected fibers or connectors. Do not stare into

beams or view directly with optical instruments.

Screw both connector parts tight together.

Do not disassemble the opticalCON DUO LITE cable connector if not necessary.

The automatic sealing shutter of the opticalCON avoids pollution of the inside located LC-

connectors.

The dust proof design reduces cleaning to a minimum, if nevertheless necessary be aware that

improper cleaning can cause damage to the equipment.

Tools: ?99% isopropyl alcohol (IPA) or cleaning fluid (FOCD-CF)

?Lint free wipes (FOCD-DW)

The primary concern with using IPA is that it be removed completely from the LC connector.

If the alcohol is allowed to evaporate slowly of the ferrule, it can leave residual material on the fiber core or cladding.

A. Cable Connector Cleaning

HANDLING INSTRUCTION

opticalCON Fiber Optic Connection System

®DUO LITE |

Page 1BDA 422

B. Chassis Connector Maintenance

Wet cleaning using lint-free wipes

Dry cleaning using FOCD-DC125

2.1

2.2

2.3

2.4

Remove LC connectors at the rear of the opticalCON

chassis and follow the instructions A. 3 to 9.

Remove Dust cap. Insert the stick of the cleaning

device.

Make sure that the insertion position is on the

bottom of the LC connector hole in order to hit the

sealing shutter release bar.

Push the outer shell to start cleaning the LC

connector end face.

A “pop” sound indicates end of cleaning process.

Remove the cleaning device and put dust cap over

the stick.

2.1

HANDLING INSTRUCTION I opticalCON DUO LITE

Cleaning Tool

opticalCONDUO

2.2

2.3

www.neutrik.com

NEUTRIK AG LI T: +423 /237 24 24 F: +423 /232 53 93

NEUTRIK USA Inc. USA T: +1 704 /972 3050 F: +1 704/438 9202

( )

NEUTRIK UK Ltd. UK T: +44 1983 /811 441 F: +44 1983 /811 439

NEUTRIK Vertriebs GmbH DE /NL /AT/DK T: +49 8131 /280 890 F: +49 8131 /280 830

NEUTRIK France FR T: +33 1/4131 6750 F: +33 1 /4131 0511

NEUTRIK Tokyo Ltd. JP T: +81 3/3663 4733 F: +81 3 /3663 4796

NEUTRIK Hong Kong Ltd. HK T: +852 /2687 6055 F: +852/2687 6052

NEUTRIK India Pvt. Ltd. IND T: +91/982 05 43 424 F: +91/22 26163 540

Draft. Nr.: BDA 422 Update: 02.09.2014

® ®
