AVATAR VR - QUICK START GUIDE
Quick Start Guide
BY NEURODIGITAL TECHNOLOGIES S.L.
DEVELOPMENT KIT - VERSION 1.1 - NOVEMBER 2017
AVATAR VR - QUICK START GUIDE
2
Minimum System Specs
Operating System Windows 8.1 or newer
Processor AMD Phenom™ II or Intel® Core™ i3 processor or greater
Memory 2GB + RAM
Input 1x USB 2.0 port for wired operation
Bluetooth 4.0 Dual Mode for wireless operation
Requires internet connection
Devices with a VR HMD requires a “VR Ready” system
Operating System Windows 8.1 or newer
Graphics Card NVIDIA GTX 970 / AMD R9 290 equivalent or greater
Processor Intel i5-4590 equivalent or greater
Memory 8GB + RAM
Input 3x USB 3.0 ports
Output Compatible HDMI 1.3 video output
Bluetooth 4.0 Dual Mode for wireless operation
3
AVATAR VR - QUICK START GUIDE
Content
01 Package contents
02 Avatar VR parts
03 Connecting the TrackBand
04 Calibrating the Gyroscopes
05 Put the glove on
06 Put the TrackBand on
07 Using Avatar VR by Bluetooth
08 Using Avatar VR by USB
09 Color code
10 Calibrating in demo
11 Removing the glove
AVATAR VR - QUICK START GUIDE
4
01 PACKAGE CONTENTS
Remove the contents from the box carefully. If any part is missing or
The kit contains the following:
Avatar VR (Le, right or both
depending on your order)
TrackBand3, TrackBand2 or both
depending on your order
USB Cable
5
AVATAR VR - QUICK START GUIDE
02 AVATR VR PARTS
1
2
3
4
5
5
5
5
6
The fabric composion is 80%
polyamide with 20% elastomer.
1
2
3
4
5
6
IMU Sensors
Actuators
Power Button
USB Port
Li-Po Battery
Breathable areas
Conductive zones
TrackBand
AVATAR VR - QUICK START GUIDE
6
03 CONNECTING THE TRACKBAND

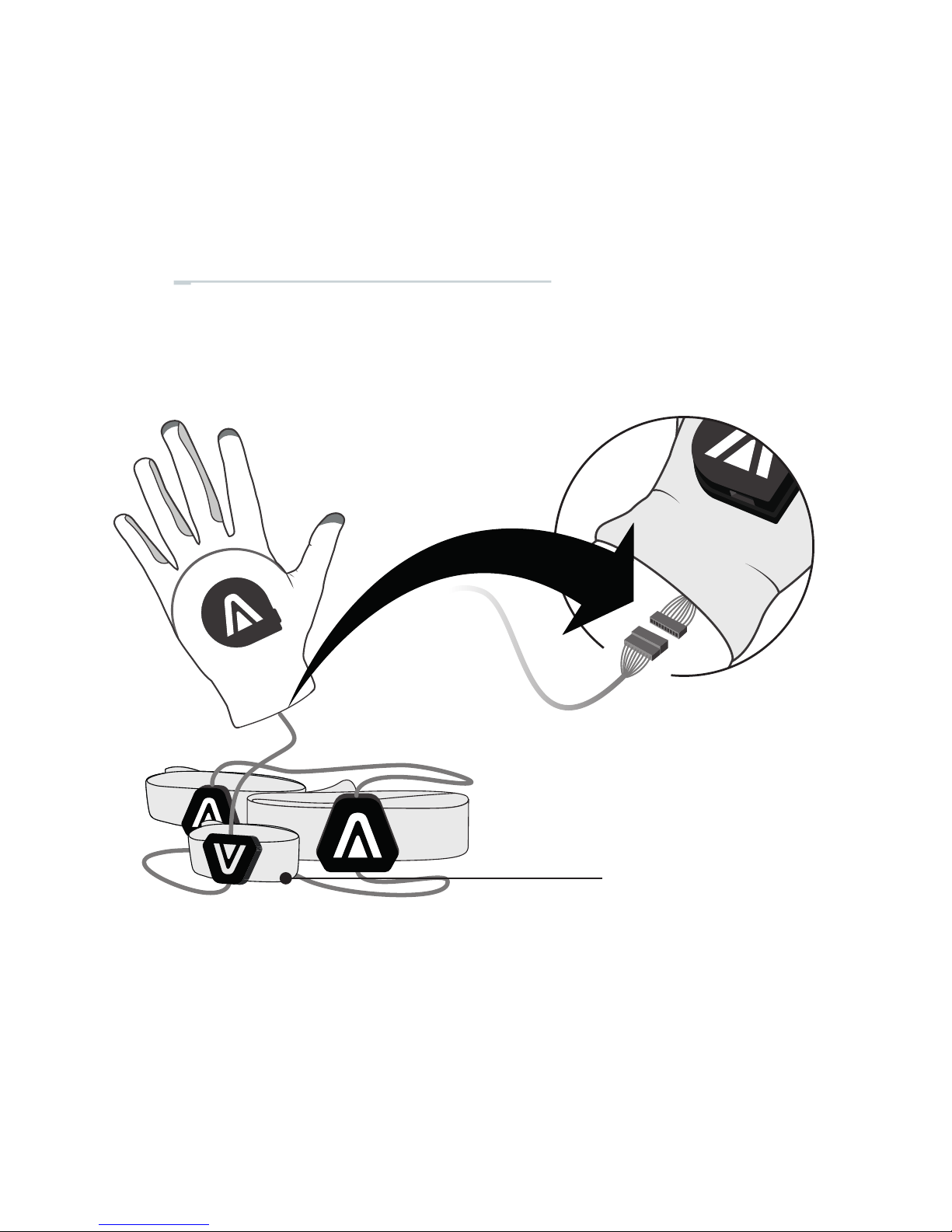

Link the TrackBand´s wrist connector to the glove as indicated.
Wrist Link
7
AVATAR VR - QUICK START GUIDE
First of all, you need to calibrate the gyroscopes.
In order to do that, please put the Glove/s and Trackbands in a at
surface.
Press the buon on the right side of the plasc cover to turn on
Avatar VR.
Aer that, you will see the LED blinking between blue-green colours.
Once this process has nished, the device is calibrated. Don’t move
anything ll the light changes to blinking blue.
04 CALIBRATING THE GYROSCOPES
Button
AVATAR VR - QUICK START GUIDE
8
03 PUT THE GLOVE ON
Please be careful during handling as there is wiring
inside the Avatar VR glove that needs to be
placed correctly and not damaged. Start pung
the glove on by gently looking for the nger
holes while keeping a straight and steady
hand and slowly introducing the glove.
11
2
3
In order to have the best t, gently
grab and pull between nger
spaces as demonstrated
on image 2 unl it feels
comfortable.
Buon the glove’s wrist.
9
AVATAR VR - QUICK START GUIDE
Test the t to make sure everything
feels as natural as possible. Gestures like
pinching or grabbing should feel natural
while allowing the respecve grey zones
(conducve fabric) to make contact.
4
5
6
“IMPORTANT” Make sure that each
actuator is well placed on the p of
each nger in order to have good hapc
feedback. This is crical in order to have
faithful hapc sensaons while using
Avatar VR.
“IMPORTANT” Make sure that each IMU
Sensor is well placed as indicated in the
image, centered on both falax for the
thumb and in the middle falax for the rest
of ngers. This is crical in order to have
a good nger tracking.
AVATAR VR - QUICK START GUIDE
10
06 PUT THE TRACKBAND ON

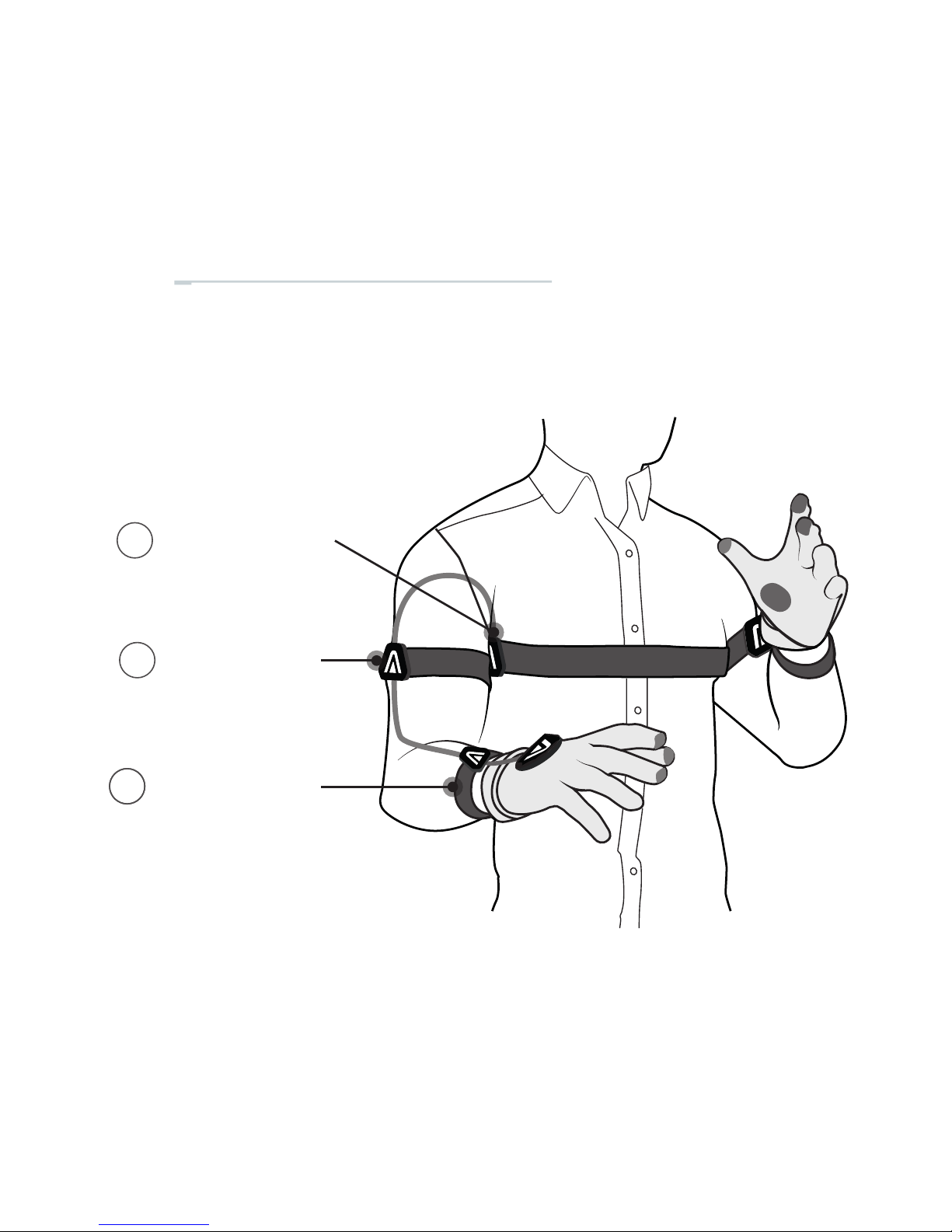

Colocate the TrackBand elements in order as shown in the
picture below.
Chest TrackBand
Arm TrackBand
Wrist TrackBand
11
2
3
