Network Technologies SE-DVI-2 Manual de usuario

MAN068 Rev Date 5/24/2006

SE-DVI-2

2 Port DVI Video Switch

Installation and Operation Manual

IDMUX

Series

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

NTI R

MAN0068 Rev Date5/24/2006

TRADEMARK

VIDMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the

right to make changes in the product design without reservation and without notification to its users.

MAN0068 Rev Date5/24/2006

TABLE OF CONTENTS

Introduction......................................................................................................................................................................1

Materials..........................................................................................................................................................................1

Features And Functions..................................................................................................................................................1

Installation .......................................................................................................................................................................2

Operation.........................................................................................................................................................................3

Troubleshooting...............................................................................................................................................................4

Product Specification.......................................................................................................................................................4

Warranty Information.......................................................................................................................................................4

NTI VIDMUX Series 2-Port DVI Video Switch

INTRODUCTION

The VIDMUX Series SE-DVI-2 (VIDMUX) is a 2-port DVI video switch that enables two video sources such as a PC or HDTV

tuner to share one DVI monitor using DVI-I or DVI-D single-link connectors. The DVI interface technology implements digital signal

transmission over the cable to eliminate noise and reduce undesired distortion.

See our catalog, visit our website at http://www.networktechinc.com, or contact an NTI sales representative at 800-742-8324 (800-

RGB TECH) or 330-562-7070 for more details.

MATERIALS

Materials Supplied with this kit:

•NTI SE-DVI-2 2 Port DVI Video Switch

•120VAC or 240VAC at 50 or 60Hz-5VDC/2.0A AC Adapter

•Line cord, country specific

•This owners manual

Materials Not Supplied, but REQUIRED:

Three DVI-I/DVI-D interface cables ARE REQUIRED but not supplied.

•DVI-I cable - VI-IS-xx-MM for video interface

Where:xx is the length of the cable in feet

MM indicates male-to-male connector

All cables can be purchased from Network Technologies Inc by calling 800-RGB-TECH (800-742-8324) or (330)-562-7070.

FEATURES AND FUNCTIONS

1. Input Select LEDs- for visual indication of the video input selected.

2. Input Select Switches- push to manually switch to a specific video input

3. 5VDC- 2.0A jack - connection jack for the AC adapter

4. MONITOR- DVI female connector for connection of the user monitor

5. Video Input-DVI female connectors for connecting video cables from DVI video sources

Front View of SE-DVI-2

NTI

Network Technologies Inc

VIDMUX

5VDC

Rear View of SE-DVI-2

Monitor Video 2 Video 1

NTI

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-70701275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

Tel:800-742-8324

NTI VIDMUX Series 2-Port DVI Video Switch

INSTALLATION

The VIDMUX is a Plug-and-Play device with no special configuration settings and easy installation steps:

1. Before connecting the VIDMUX to the video sources, make sure the video sources and the monitor are turned OFF.

WARNING! Damage may occur to the CPU if power is not disconnected before connecting or disconnecting

cables.

2. Connect the monitor to the DVI female port labeled “MONITOR” on the rear panel of the VIDMUX using a male-to-male DVI-I

cable.

Note: Some monitors need to have their video input type set manually. In this case, select “Digital DVI” as the input

type.

3. Connect the video sources to their corresponding DVI ports labeled “VIDEO 1" and/or "VIDEO 2" on the rear panel of the

VIDMUX using male-to-male DVI-I cables.

DVI Enabled

Monitor

Mating Face of

DVI Male

Mating Face of

DVI Female

5VDC

Rear View of SE-DVI-2

Monitor Video 2 Video 1

NTI

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-70701275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

Tel:800-742-8324

DVI-IS-xx-MM

Mating Face of

DVI Male

5VDC

Rear View of SE-DVI-2

Monitor Video 2 Video 1

HDTV Tuner

PCWITHDVI

VIDEOPORT

DVI-IS-xx-MM

NTI

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-70701275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

Tel:800-742-8324

NTI VIDMUX Series 2-Port DVI Video Switch

4. Plug the 5VDC AC adapter into the power jack on the rear panel.

5. Power up the VIDMUX first.

6. Power up the monitor.

7. Power up one or both of the video sources.

Note: If one or both of the video sources is a PC, make sure the LED associated with that source is illuminated while the

PC boots up. Otherwise the PC may not properly initialize with the connected monitor. See OPERATION below.

OPERATION

Press the input select buttons to switch between video sources. The LED above each button will illuminate to indicate which

source is connected to the monitor. Only one source can be connected at a time.

Note: While booting up a PC, it is recommended that the monitor be connected to the PC (corresponding LED should be

illuminated) in order for the PC to properly initialize with the connected monitor.

Barrel

(Inside

barrel)

(Outside

barrel)

Power Connector

2.1 mm x 5.5 mm Female

5VDC @ 2.0A OUTPUT

5VDC

Rear View of SE-DVI-2

Monitor Video 2 Video 1

5 VDC

ADAPTER

NTI

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-7070

1275 Danner Dr

Aurora, OH 44202

www.networktechinc.com

Tel:800-742-8324

Front View of SE-DVI-2

NTI

Network Technologies Inc

VIDMUX

LED indicates

Source at

VIDEO 1

is connected

NTI VIDMUX Series 2-Port DVI Video Switch

TROUBLESHOOTING

If the VIDMUX is not working properly, please look for a solution in the list below:

PROBLEM: No video at all

SOLUTION: Check cable connections on each video source, monitor and the VIDMUX. After reconnecting, if a CPU is the

video source, the CPU may need to be re-booted in order to sense the monitor connection.

PROBLEM: No video on one port

SOLUTION: Check cable connections on that port. Power cycle the corresponding video source while that port is connected

(the Input Select LED for that port should be illuminated)

PROBLEM: Some artifacts in the picture

SOLUTION: Check for any loose connection between cable and connectors. If loose, it may be necessary to reboot the CPU

to achieve a clear image.

If a solution was not found in the list above, answers may be found in the Frequently Ask Questions (FAQs) section of our

website at http://www.networktechinc.com or call us directly at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 and we will be

happy to assist in any way we can.

PRODUCT SPECIFICATION

Video Source Connector 2 x DVI-I Single Link (Digital Only)

Monitor Port Connector 1 x DVI-I Single Link (Digital Only)

Operating Temperature 0-45ºC

Maximum Display Resolution 1600x1200, 1080i

Power Supply 120VAC or 240VAC at 50 or 60Hz-5VDC/2.0A Positive-tip AC Adapter

Case Material Electro-galvanized steel black powdercoated

Dimension ( WxDxH) (In.) 5.7x4.5x1.8

WARRANTY INFORMATION

The warranty period on this product (parts and labor) is one (1) year from the date of purchase. Please contact Network

Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com

for information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.

SERIAL NO.:

DATE:

INSPECTED BY: _______

Man068 Rev 5/24/06

Tabla de contenidos

Otros manuales de Cambiar de Network Technologies

Network Technologies

Network Technologies NTI PRIMUX PRIMUx-UZR Manual de usuario

Network Technologies

Network Technologies UNIMUX-USBV-2 Manual de operación

Network Technologies

Network Technologies ST-nXm-U Manual de usuario

Network Technologies

Network Technologies KEEMUX-USBV-xU Manual de operación

Network Technologies

Network Technologies KEEMUX-P2 Manual de operación

Network Technologies

Network Technologies PRIMUX-16X64 Manual de usuario

Network Technologies

Network Technologies SERIMUX-CS-x Manual de usuario

Network Technologies

Network Technologies SM-nXm-C5AV-LCD Manual de usuario

Network Technologies

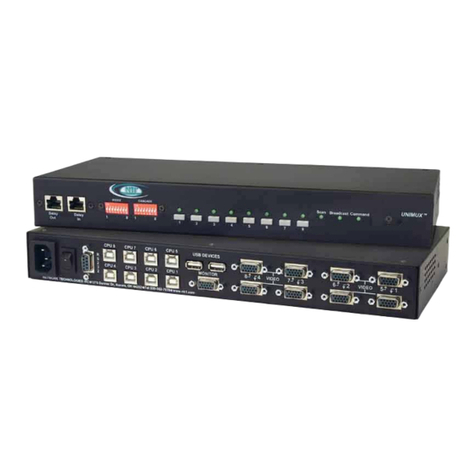

Network Technologies UNIMUX-USBV-xO Manual de usuario
