Dual High Definition Electrical
to Optical Converter
Rev. 3
Flashlink User Manual
HD-EO-2
HD-EO-2 Rev. 3
2
Network Electronics ASA
Thorøya
P.O. Box 1020
Sandefjord, Norway
Phone: +47 33 48 99 99
Fax: +47 33 48 99 98
E-mail: [email protected]
www.network-electronics.com
Service Phone: +47 90 60 99 99
Revision history
Current revision of this document is the uppermost in the table below.
Revision Replaces Date Change description
3 2 2007-10-26 New front page.
2 1 2007-10-05 Added Materials Declaration and EFUP
1 0 21/04/06 Updated with CWDM wavelengths.
0 A 30/08/05
First official release, including updated drawings
and text.
A - 01/06/04 Preliminary version.
HD-EO-2 Rev. 3
3
Contents
Revision history............................................................................... 2
1 Product overview......................................................................... 4
1.1 Product versions ..........................................................................................5
2 Specifications .............................................................................. 6
2.1 Optical output.............................................................................................6
2.2 Electrical ......................................................................................................6
2.3 Electrical input.............................................................................................6
2.4 Electrical output ..........................................................................................6
2.5 Standards ....................................................................................................7
3 Format configuration................................................................... 8
4 Connector module ...................................................................... 9
4.1 Mounting the connector module ................................................................9
4.2 Terminal format support............................................................................10
5 Module status............................................................................ 11
5.1 GPI Alarm – Module status outputs............................................................11
5.2 Front panel – Status monitoring ................................................................12
6 Laser safety precautions ............................................................. 13
General environmental requirements for flashlink®equipment ...... 14
Certificate of Conformity .............................................................. 15
Product Warranty ......................................................................... 16
Materials declaration and recycling information............................ 17
Materials declaration .................................................................... 17
Environmentally-friendly use period.............................................. 17
Recycling information................................................................... 18
HD-EO-2 Rev. 3
4
1Product overview
The flashlink®HD-EO-2 is a dual multi bit-rate electrical to optical converter
module providing high performance media conversion for various signal
formats from 19.4Mbps up to 1485Mbps. Unmatched signal accuracy, even
in critical applications with pathological signal patterns makes the HD-EO-2
the first choice for all optical transport demands.
The HD-EO-2 can transport all HD and SD signal formats in addition to DVB-
ASI and SMPTE 310. It performs electrical equalizing and signal reclocking,
both selectable on application. High quality optical transmitters using Fabry-
Perot lasers are suitable short and medium haul applications. The open system
platform of Network Electronics flashlink®system allows easy interoperability
with third party fiber optical systems.
The HD-EO-2 unit has also one electrical output for each channel, which
reduces the need for additional DA’s. The electrical input is equipped with a
multi rate cable equalizer providing an equalization of typically 100m of high
quality coax cable at 1485Mbps.
Figure 1: HD-EO-2 Dual High Definition E/O converter.
HD-EO-2 Rev. 3
5
1.1 Product versions
HD-EO-2 is available in the following versions:
HD-EO-2-13T -7.5dBm 1310±20nm -7.5 dBm F-P laser
HD-EO-2-15T 0 dBm 1550±6nm 0 dBm DFB laser
CWDM (DFB lasers)
HD-EO-2-C1470/1490 1470 ±6nm and 1490 ±6nm 0dBm
HD-EO-2-C1510/1530 1510 ±6nm and 1530 ±6nm 0dBm
HD-EO-2-C1550/1570 1550 ±6nm and 1570 ±6nm 0dBm
HD-EO-2-C1590/1610 1590 ±6nm and 1610 ±6nm 0dBm
HD-EO-2-C1270/1290 1270 ±6nm and 1290 ±6nm 0dBm
HD-EO-2-C1310/1330 1310 ±6nm and 1330 ±6nm 0dBm
HD-EO-2-C1350/1370 1350 ±6nm and 1370 ±6nm 0dBm
HD-EO-2-C1390/1410 1390 ±6nm and 1410 ±6nm 0dBm
HD-EO-2 Rev. 3
6
2Specifications
2.1 Optical output
Transmission circuit fiber: Single Mode.
Light source: F-P / DFB laser.
Optical power: -7.5dBM @ 1310nm (F-P laser),
0 dBm (DFB laser).
Optical centre wavelength: 1310nm ±20nm (F-P lasers) or 1550nm ±6nm (DFB lasers).
Optical wavelengths for
CWDM:
1270/1290, 1310/1330, 1350/1370, 1390/1410,
1470/1490, 1510/1530, 1550/1570 or 1590/1610 ±6nm
according to ITU-T G.694.2
Temperature range: 0 - +50 degC.
Jitter (UI = Unit Interval): Max. 0.135UI @ 270Mbps,
Max. 0.2UI @ 1485Mbps.
Connector return loss: >40dB w/ SM fiber.
Max. reflected power: 4%.
Connector: SC/UPC.
2.2 Electrical
Power: +5V DC / 3.5W Max.
Control: Control system for access to setup and module status
with BITE (Built-In Test Equipment).
2.3 Electrical input
Data rate NRZ: 19.4 – 1485 Mbps.
Equalisation: Automatic,
Cable equaliser and reclocker can be bypassed to
support bitrates down to 2Mbps.
Impedance: 75 ohm.
Return loss: >15dB @ 1485MHz.
Signal level: Nom. 800mV.
Connector: BNC.
2.4 Electrical output
Number of outputs: 1.
Connector: BNC.
Impedance: 75 ohm.
Return loss: >15dB @ 1485MHz.
Jitter (UI = Unit Interval): Max. 0.2UI.
Peak to peak signal level: 0.8V ±0.1V.
Signal polarity: Non-inverting.
HD-EO-2 Rev. 3
7
2.5 Standards
Supported standards for electrical and optical ports:
SMPTE: SMPTE 292, SMPTE 259M, SMPTE 297, SMPTE 305M,
SMPTE 310.
DVB-ASI: EN50083-9.
HD-EO-2 Rev. 3
8
3Format configuration
The HD-EO-2 can support a number of different broadcast formats. The
correct configuration can either be set with a DIP switch or with the GYDA
Control System. The layout of HD-EO-2 is shown in the drawing below with
the DIP switch to the upper left position.
Figure 2: HD-EO-2 board layout.
DIP switch configuration must be set according to the table below:
Switch # Label Function, DIP = ON Function, DIP = OFF Comment
1 RCL1 Reclocker 1 ON Reclocker 1 bypass Reclocker mode
2 EQ1 Automatic Cable
Equalizer ON
Automatic Cable
Equalizer OFF
Cable equalizer mode
3 ASI1 DVB-ASI Reclocker
support
SDI 177Mbps Reclocker
support
Select ASI or 177Mbps
support
4 RCL2 Reclocker 2 ON Reclocker 2 bypass Reclocker mode
5 EQ2 Automatic Cable
Equalizer ON
Automatic Cable
Equalizer OFF
Cable equalizer mode
6 ASI2 DVB-ASI Reclocker
support
SDI 177Mbps Reclocker
support
Select ASI or 177Mbps
support
7 SWP Normal operation Swap input 1 and input
2
8 OVR Override GYDA
control. Config.
with DIP switch
GYDA control. Config.
with GYDA
Select configuration
from GYDA
All DIP switches are off when pointing towards the release handle.
When a “Broadcast format support” is selected, all clock rates for HD-SDI, SDI
and DVB-ASI are automatically configured by the module itself.
HD-EO-2 Rev. 3
9
4Connector module
The HD-EO-2 has a dedicated connector module: HD-EO-2-C1. This module is
mounted at the rear of the sub-rack. The module is shown in the figure below.

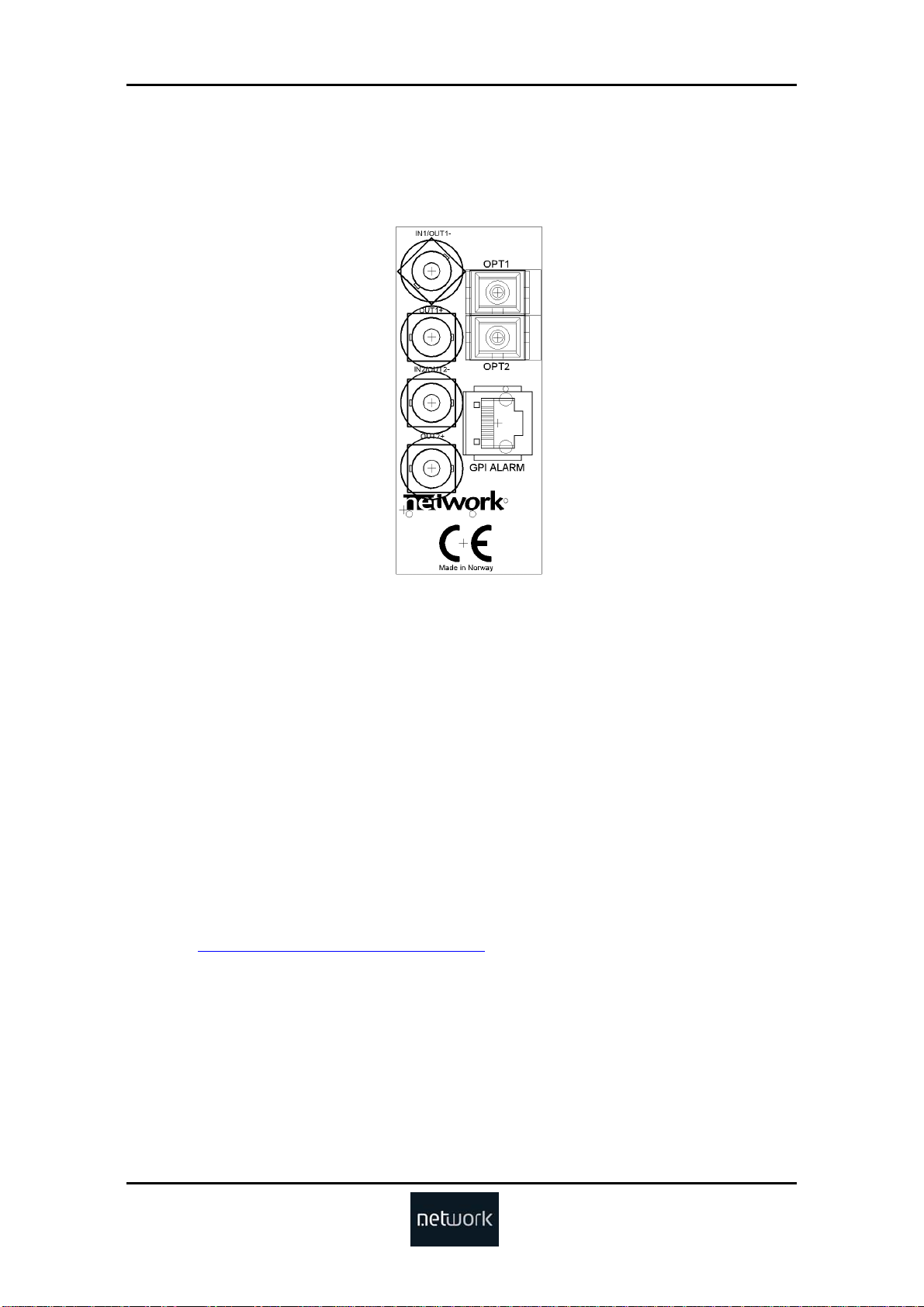

Figure 3: Connector module for HD-EO-2.
In typical use a HD-EO-2 / HD-OE-2 module at each end will be used. Two
channels simultaneously can be converted from optical to electrical channels.
The electrical input signal is connected to the INx input on the transmitting
HD-EO-2, and the electrical output is connected to the corresponding OUTx+
or OUTx- output BNC on the receiving HD-OE-2. The fiber cable is connected
to the corresponding optical port (OPT1 uses IN1/OUT1- and OUT1+ and
OPT2 uses IN2/OUT2- and OUT2+). Please note that OUT1- and OUT2- have
inverted signal versions, so formats like DVB-ASI can not use be used on this
output.
4.1 Mounting the connector module
The details of how the connector module is mounted, is found in the user
manual for the sub-rack frame FR-2RU-10-2.
This manual is also available from our web site:
http://www.network-electronics.com/.
HD-EO-2 Rev. 3
10
4.2 Terminal format support
The different input and output ports on HD-EO-2 can support a number of
formats. The table below shows which signal formats are supported on the
selected terminals.
Terminal format support:
Terminal Function Supported Format Mode
OPT1
OPT2
Optical output HD-SDI, SDI, DVB-ASI,
SMPTE310, Transparent∗
Output
IN1
IN2
Electrical Input HD-SDI, SDI, DVB-ASI,
SMPTE310, Transparent*
Input
OUT1+
OUT2+
Electrical Output –
Reclocked DA
output
HD-SDI, SDI, Transparent* Output
OUT1-
OUT2-
Electrical Output –
Reclocked DA
inverted output
HD-SDI, SDI, Transparent* Output
GPI ALARM Open Collector
Alarms
Wired alarms OC Output
∗HD-EO-2 has a “Transparent mode”. In this mode all reclockers are switched off and no jitter attenuation
will be performed. This mode may be used for non-standard or unsupported bit rates over shorter
distances and up to 1 Gbps.
