Netvox Z503 Manual de usuario

ZigBeeTM- Local Commander

User Manual

Local Commander

Model: Z503

Software: V4.1-4.2

Hardware：V1.5

Table of Contents

1. Introduction............................................................................................................................................................ 2

2. Product Appearance............................................................................................................................................ 3

3. Specification.......................................................................................................................................................... 4

4. Installation.............................................................................................................................................................. 5

5. Setting up Z503..................................................................................................................................................... 5

5-1. Join the ZigBee Network................................................................................................................................ 5

5-2. Binding............................................................................................................................................................7

5-3. Group Build up............................................................................................................................................... 8

5-4. Control the Devices Through Wireless...........................................................................................................8

5-5. Emergency...................................................................................................................................................... 9

5-6. Arm/Disarm Security...................................................................................................................................... 9

5-7. Store Scene......................................................................................................................................................9

5-8. Configure Scene and Get Scene Configuration............................................................................................10

5-9. Recall Scene..................................................................................................................................................10

5-10. Delete Stored Scene....................................................................................................................................10

5-11. Sleeping Mode............................................................................................................................................ 10

5-12. Wake up Z503............................................................................................................................................. 11

5-13. Battery.........................................................................................................................................................11

5-14. Restore to Factory Setting...........................................................................................................................11

6. Home Automation Clusters for Z503.............................................................................................................12

7. Netvox APP Control Interface......................................................................................................................... 14

8. Important Maintenance Instructions.............................................................................................................18

1. Introduction

Netvox Z503, a ZigBee local commander, can be bound with the lighting/ curtain/ dimmer devices for users to

control these devices wirelessly. It allows people to perform the scene controls, and each button is programmable.

Z503 also equipped with an emergency button. When users ask for urgent assistance, simply push the button, and it

will send the alarm message to the command center. The Warning Device will send out alarm sound or lighting

alert for immediate help.

What is ZigBee?

ZigBee is a short range wireless transmission technology based on IEEE802.15.4 standard and supports multiple

network topologies such as point-to-point, point-to-multipoint, and mesh networks. It is defined for a

general-purpose, cost-effective, low-power-consumption, low-data-rate, and easy-to-install wireless solution for

industrial control, embedded sensing, medical data collection, smoke and intruder warning, building automation

and home automation, etc.

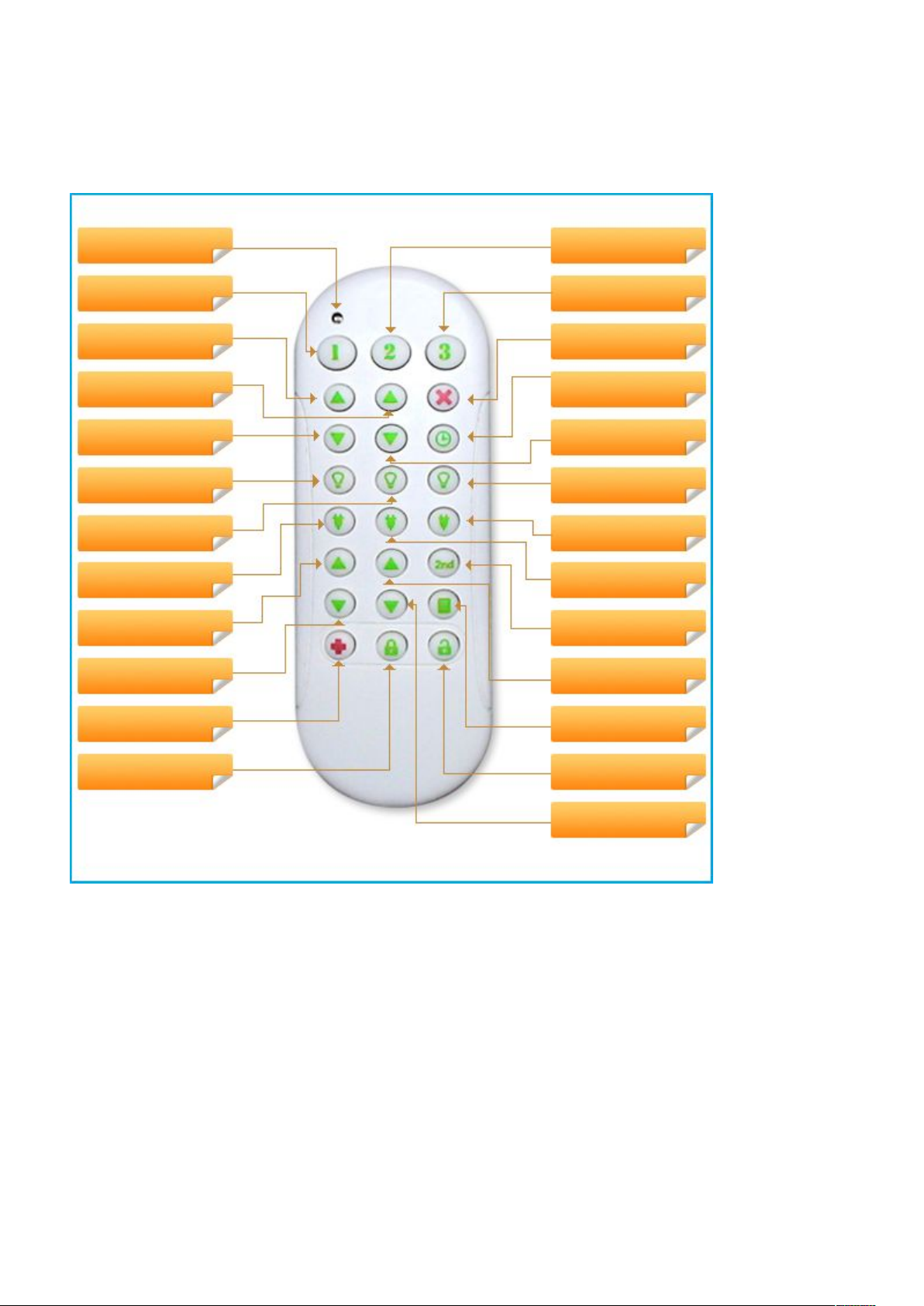

2. Product Appearance

Indicator

Curtain1 Up/ Shortcut7

Panic Button

Curtain1 Down

Arm Security

Scenario1

Dimmer1 Up

Dimmer1 Down

Light1/ Shortcut1

Light2/ Shortcut2

Outlet1/ Shortcut4

Scenario3

Scenario2

Dimmer2 Up

Dimmer2 Down

All Off

Timer

Light3/ Shortcut3

Outlet3/ Shortcut6

Outlet2/ Shortcut5

2nd Function/ Shortcut9

Curtain2 Up/ Shortcut8

Curtain2 Down/ Shortcut0

Disarm Security

Mode Key

3. Specification

Fully IEEE 802.15.4 compliant

Utilizes 2.4GHz ISM band; up to 16 channels

Power supply: 3V CR2032 battery

Operating consumption: Tx ≤ 43mA; Rx ≤ 28mA

Standby consumption: ≤ 1uA

Up to 70 meters wireless transmission range in non-obstacle space

Easy installation and configuration

4. Installation

This device is NOT truly waterproof/ resistant and is for indoor use.

5. Setting up Z503

5-1. Join the ZigBee Network

(1) While Z503 is under the coverage from a coordinator or a router whose permit-join feature is enabled,

Z503 will be permitted to join the network.

(2) Insert a set of 3V batteries (CR2032), the positive plate facing outside and cover the case as shown below.

The indicator will flash once to show powering on successfully.

(3) Join into HA network: press both 2nd function key and scene one key . The indicator flashes

once and start to search the network and request to join. Once joining into the network, Z503 will enroll to

CIE System ; the indicator flashes 6 times to show success; otherwise, it will flash 4 times to show fail.

(4) Join into ZLL network: press both 2nd function key and scene two key . The indicator

flashes once to start to search the network and request to join.

(5) The indicator will flash 5 times after it is joined successfully. Otherwise, the indicator will stay OFF.

(6) The default network for Z503 to join is HA network. Z503 will automatically request to join AH network

after 30 seconds of step (2) if users do not manually select network type as shown in step (3).

Left: Front view

Right: Back view

Open the

battery cover

Battery Holder

Insert the

battery

The battery is

installed

Install the

battery cover

5-2. Binding

Only in HA network, Z503 can be bound with the device which supports HA On/Off Output/ HA Level

Controllable Output/ HA Mains Power Outlet/ HA On/Off Light/ HA Dimmable Light/ HA Color Dimmable

Light/ HA Shade/ HA Heating Unit/ HA Cooling Unit/ HA Pump (such as Z800/ Z801RX/ ZC01/ Curtain

controller/ Dimmer Light).

[On/Off Control]:

Step1. Press and hold either of the three or for 3 seconds to broadcast the binding request.

The indicator will flash once.

Step2. Enable the binding feature of the device which supports On/Off Control cluster.

Step3. The indicator flashes 5 times after the binding is completed; otherwise, the indicator flashes 10

times.

Each button can be bound with up to 5 devices.

[Dimmer/Curtain Control]:

Step1. Press and hold both and (Dimmer/Curtain button set) to broadcast the binding

request. The indicator will flash once.

Step2. Enable the binding feature of the device which supports Dimmer/Curtain Control cluster.

Step3. The indicator flashes 5 times after the binding is completed; otherwise, the indicator flashes 10

times.

Each button set can be bound with up to 5 devices.

[The 3rd/4th Curtain Control]:

Step1. Press . The indicator will flash once.

Step2. Press and hold both and (Curtain button set) to broadcast the binding request. The

indicator flashes once.

Step3. Enable the binding feature of the device which supports Curtain Control cluster.

Step4. The indicator flashes 5 times after the binding is completed; otherwise, the indicator flashes 10

times.

Each button set can be bound with up to 5 devices.

[HA IAS Control]:

Step1. Press and hold one for 3 seconds to broadcast the binding request. The indicator will flash

once.

Step2. Enable the binding feature of the IAS device.

Step3. The indicator flashes 5 times after the binding is completed; otherwise, the indicator flashes 10

times.

Panic button only can be bound with 1 device.

5-3. Group Build up

In Zll network, Z503 is able to establish group, and control devices in the group. If users do not establish a

group, there are three corresponding methods to establish groups:

①Turn on the identify function of devices which will be in the group. Press and hold OR for more

than three seconds); the indicator flashes 5 times to show success.

②Turn on the identify function of devices which will be in the group. Press and (dimmer up

+ dimmer down ) (curtain up + curtain down ) at the same time; the indicator flashes

once and then the indicator flashes 5 times to show success.

③Press 2nd function key ; the indicator flashes once. At the same time press and

(curtain up + curtain down ). The indicator flashes one more time and Z503 immediately sends

“add group if identify” to build up the group corresponding to 3rd or 4th curtain. The indicator flashes 5 times

to show success.

5-4. Control the Devices Through Wireless

After binding with devices:

A. Press or to control the On/Off feature.

B. Press to control the Dimming-up/Rolling-curtain-up feature.

C. Press to control the Dimming-down/Rolling-curtain-down feature.

D. Press . The indicator flashes once. Then press Curtain or Curtain to control the 3rd/4th

Rolling-curtain feature.

E. Press All Off to turn off all the On/Off/Dimmer devices.

F. Press once, and then press to turn off all the On/Off/Dimmer devices in 5 minutes.

Press twice within 5 seconds, and then press to turn off all the On/Off/Dimmer devices in 15

minutes.

Press for 3 times within 5 seconds, and then press to turn off all the On/Off/Dimmer devices in 30

minutes.

5-5. Emergency

After binding with IAS devices, press to send emergency message to the network.

5-6. Arm/Disarm Security

After finding out CIE device (please refer to 5-1. Join the ZigBee Network), users area able to arm/disarm the

security through Z503.

Arm: While the security is disarmed, press and hold for 3 seconds to arm the security. The

indicator will flash once.

Disarm: While the security is armed, press and hold for 3 seconds to disarm the security. The

indicator will flash once.

5-7. Store Scene

1. Press and hold or or or for 5 seconds. The indicator flashes once and identify the

corresponding binding device for 120 seconds. Press and hold for 5 seconds to control curtain 1 and

curtain 2 to identify for 120 seconds. Press and hold for 5 seconds to control curtain 3 and curtain 4 to

identify for 120 seconds. As shown below:

2. Press and hold or or for more than 3 seconds; the indicator flashes once to store the

scene. Z503 will save the devices status of the network. The Indicator flashes 5 times after the setting is

completed; otherwise, it will not flash.
