Netstor NS722TB3 Manual de usuario
First edition, Oct. 2021
User Manual
NS722TB3
2-bay (5.25”) LTO Tape Drive to Thunderbolt™ 3 Desktop Enclosure
3Go Top ↑
1. Unpack the NS722TB3
2. Storage Enclosure Description
Panel Layout
The box contains the following items:
。Netstor NS722TB3 storage
。Thunderbolt 3 cable (1 meter) × 1
。Power cord × 1
1. Power-On Indicator LED
This power-on indicator LED only indicates power’s status.
When NS722TB3 is powered on, it shows blue light. When
storage enclosure is powered off, it shows no light.
4Go Top ↑
2. Power Cord Receptacle
3. PSU power switch
“I” for enable, “0” for disable.
4. Thunderbolt 3 Connectors
Connecting Thunderbolt 3 cables to upstream
computer and downstream device.
5. mini-SAS Port
This mini-SAS port is for connecting to device such as
external LTO or external HDD enclosure.
6. Cooling Fan
90 × 90 x 25 mm.
7. Thumbscrews to loosen/tighten
the side cover
5Go Top ↑
3. Desktop Storage Setup Procedure
1. By front, when Netstor unit is standing vertically, the left 5.25” slot is the first bay, and
the right 5.25” slot is the second bay. Put NS722TB3 storage horizontally on a level
surface on a stable table.
2. Loosen the two thumbscrews at rear of the enclosure, and open the side cover.
1st
2nd
7Go Top ↑
5. Insert the LTO tape drive into first 5.25” bay slot at drive metal cage. After the LTO tape
drive is inserted, use screws to fasten the LTO tape drive with the metal cage on both sides.
6. Connect the first SFF-8482 connector, labeled P1, to the rear of first LTO tape drive for
data signal and power source; also, the second SFF-8482 connector, labeled P2, to the
rear of second LTO tape drive.
* Repeat the above steps 4 and 5 for the installation of the second LTO tape drive within
the metal cage.
P1
1st LTO
8Go Top ↑
8. Put the side cover back to the storage, and tighten the two thumbscrews at rear
of the enclosure.
7. Restore drive metal cage back to its original position within the storage enclosure,
and use a screwdriver to tighten the six screws on the metal cage to allow the metal
cage to be securely fastened to the inside of the storage enclosure.
10 Go Top ↑
4. Power On/Off NS722TB3

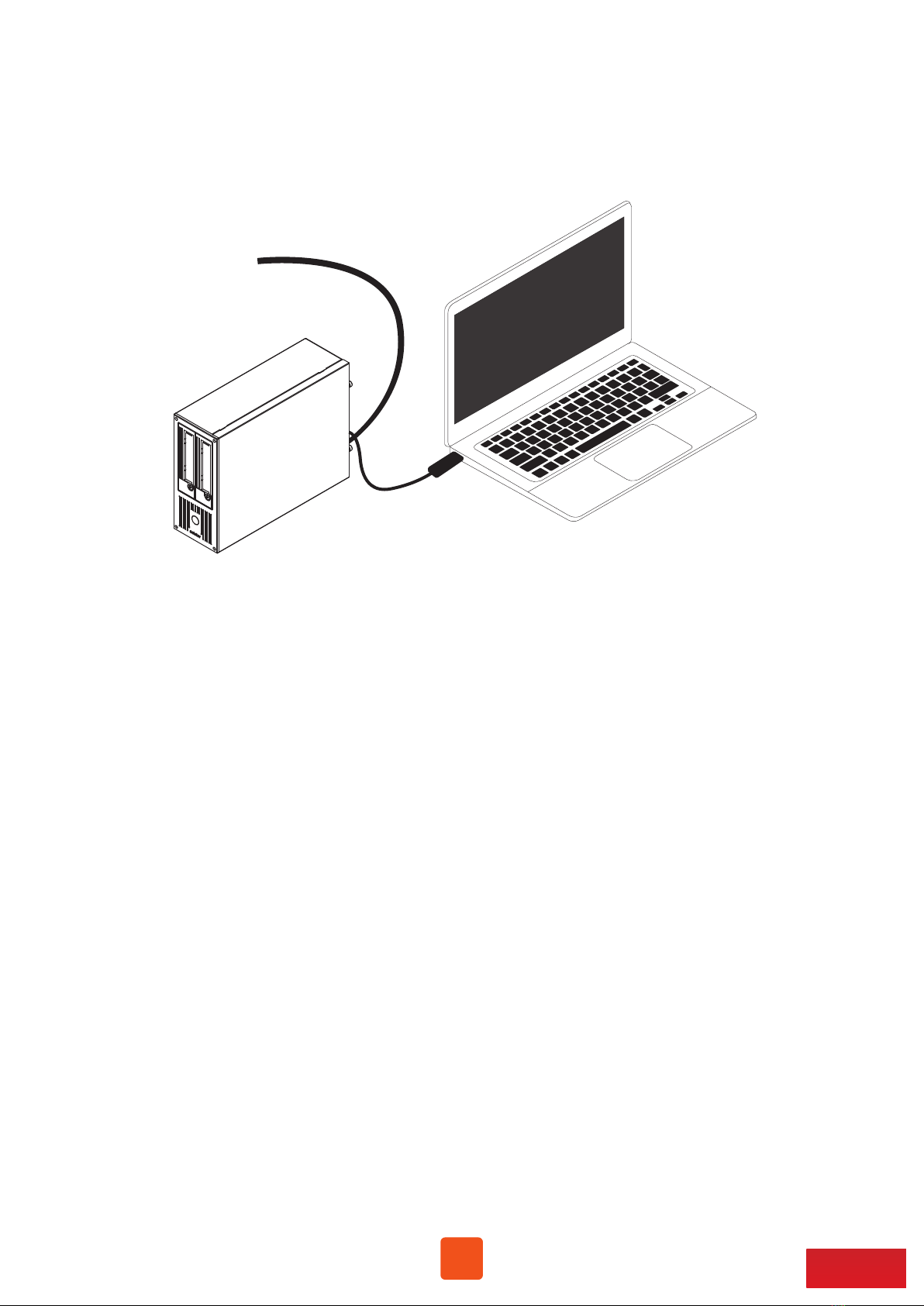

1. NS722TB3 storage is designed to be powered on/off simultaneously with the
Thunderbolt 3 host computer when Netstor unit is connected to computer by
Thunderbolt 3 cable. Therefore, first of all, turn NS722TB3 enclosure’s rear PSU
power switch to “I” position for enable. And then power on host computer, then
NS722TB3 will be powered on along automatically.
2. As NS722TB3 storage is connected to computer by Thunderbolt 3 cable, as shutting
down computer, the NS722TB3 will be shut down automatically as well.
* NS722TB3 supports hot-plug and hot-unplug for powering on and off.
switch to “I” position
for enable
