Netstor HercuLes HL23T-PRO Manual de usuario
1. Unpack the HL23T-PRO
3Go Top ↑
2. Panel Layout
2. Thunderbolt 3 Port
。The Thunderbolt 3 port on HL23T-PRO will be
connected to the host computer.
3. Graphics/GPU card slot
4. Thumbscrew for loosening/tightening
the top cover
5. Power cord receptacle
1. Power-On Indicator LED
。This power-on indicator LED only indicates power state.
When HL23T-PRO is powered on, it shows blue. When
enclosure is powered off, it shows no light.
1
2
5
3
4
The box contains the following items:
A. Enclosure × 1
B. Thunderbolt 3 cable (0.5 meter) × 1
C. Power cord × 1
4. Installation of Graphics/GPU Card
in HL23T-PRO
5Go Top ↑
Before proceeding to installation procedure, disconnect the HL23T-PRO from power
source for prevention of electric shock or damage to graphics/GPU card.
1. Loosen the thumbscrew and remove the top cover of the enclosure.
2. The PCIe slot at rear panel of HL23T-PRO is pre-covered by two removable
L-shape metal brackets. Loosen the screws of the removable L-shape
metal brackets for graphics card installation.
6Go Top ↑
3. Install graphics card in the PCIe slot within the enclosure and tighten it with
screw on graphics card’s bracket.
4. Based on the spec of graphics card used, connect the supplementary PCIe
power cable(s) from Netstor unit’s PSU to the GPU card for sufficient power.
※ Two PCIe 6+2 pin power cables are provided within the unit.
※Go To ”5. Fan Cooler Shift”
※Go To ”6. Fan Speed Adjustment”
5. Fan Cooler Shift
To adjust the position of the side movable 8x8 cm fan cooler on HL23T-PRO,
firstly loosen the four screws on the cooling fan, and shift cooler’s position to
graphics card’s blower location, and then tighten the four screws on cooling
fan to have the cooler fastened to the place.
5. Put the top cover back to enclosure and tighten the thumbscrew.
7Go Top ↑
※Return To P. 6

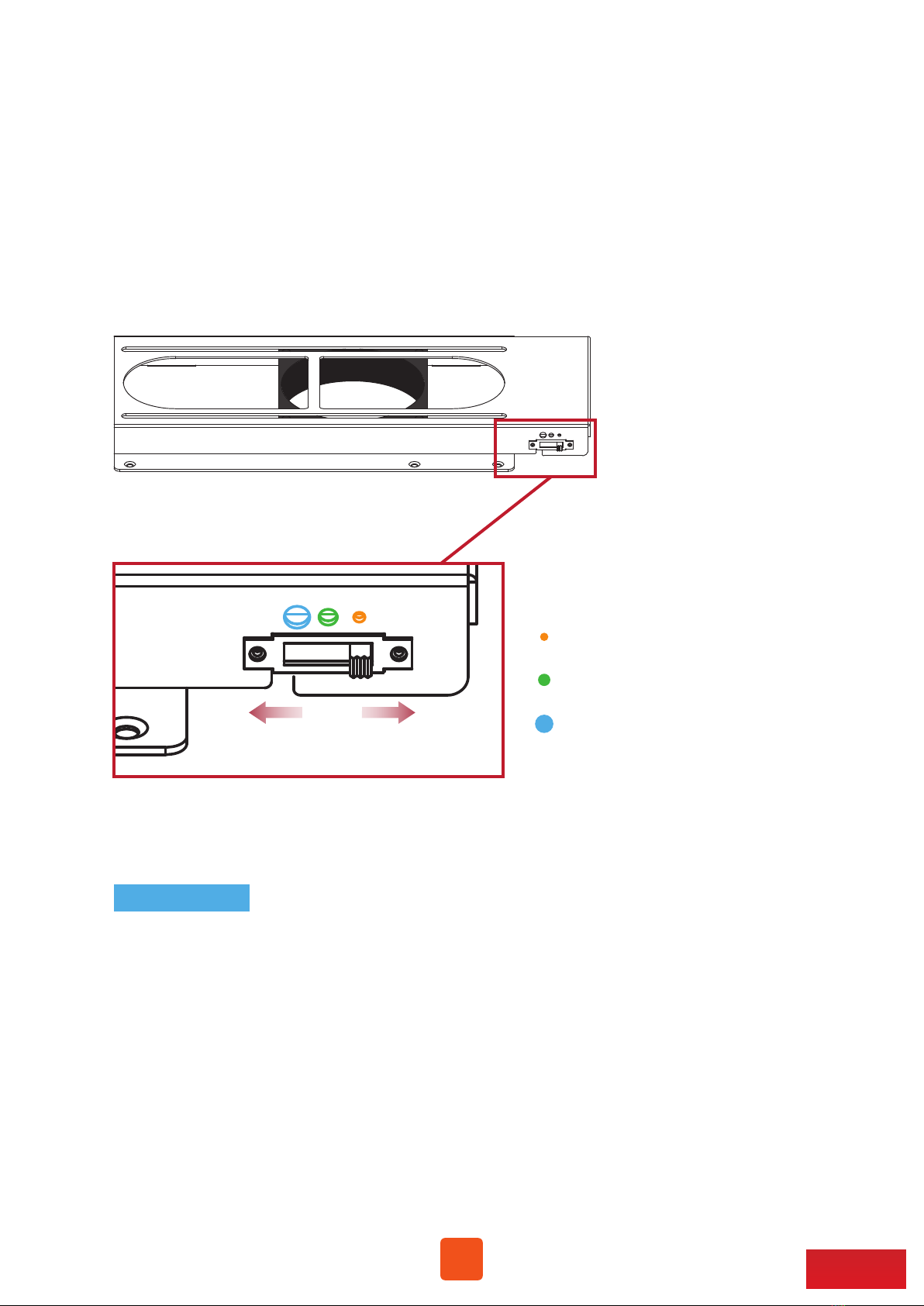

To adjust the fan speed of 8x8 cm cooler on HL23T-PRO, just fine-tune
the fan speed switch on top of the side fan rail bracket within the Netstor
enclosure. There are three levels for the cooling fan; the default setting is
set at the slowest speed.
8Go Top ↑
6. Fan Speed Adjustment
Slow (default)
Normal
Fast
※Return To P. 6
9Go Top ↑

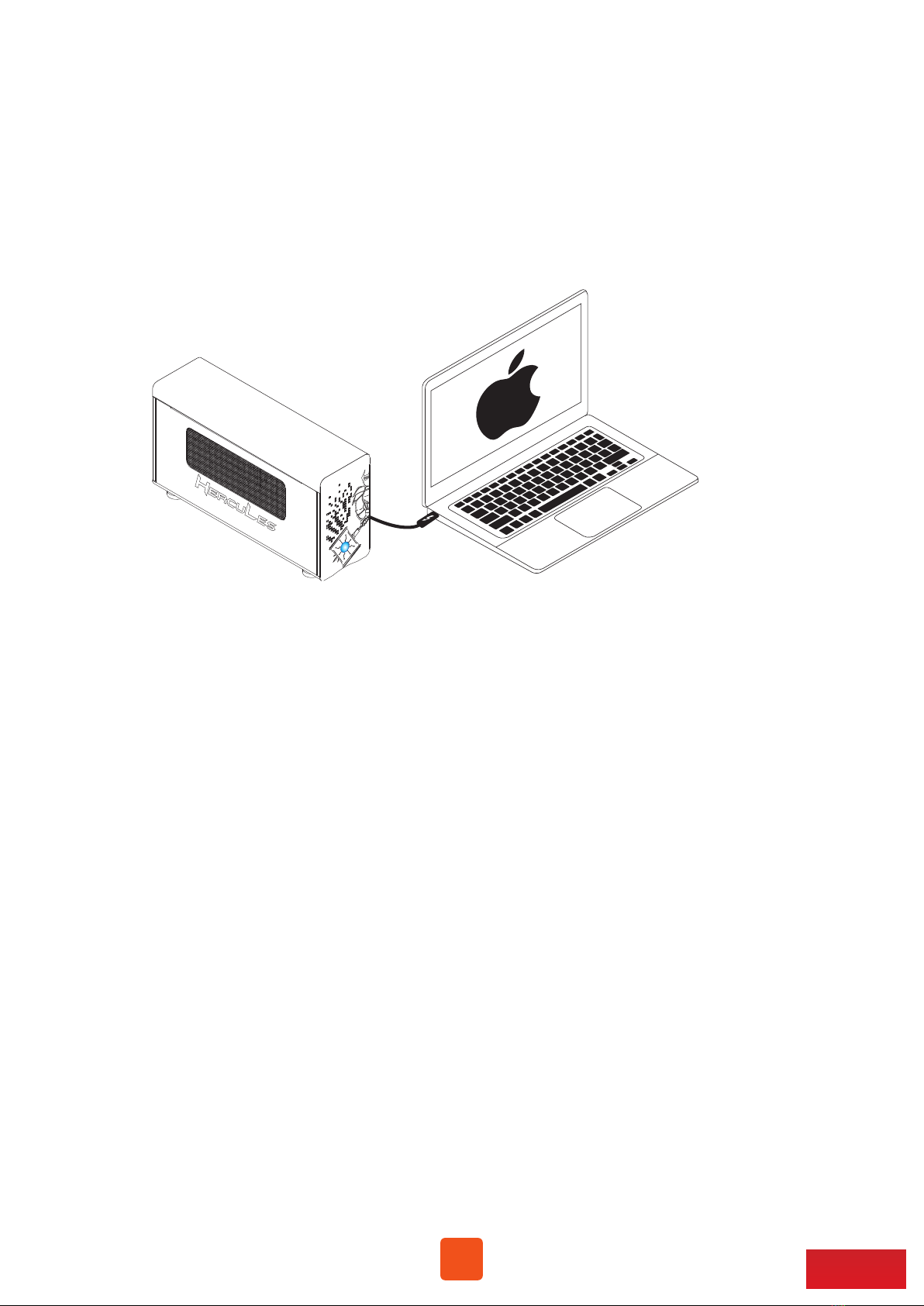

1. Connect HL23T-PRO chassis with power source, and then connect Netstor
chassis and Thunderbolt computer with Thunderbolt 3 cable.
2. The HL23T-PRO enclosure is designed to be powered on/off simultaneously
with Thunderbolt host computer when Netstor unit is connected to computer
by Thunderbolt cable. Therefore, power on computer first, and then Netstor
unit will be powered on automatically.
(HL23T-PRO also supports hot-plug and hot-unplug for powering on and off)
7. Operation and Verification
7.1 macOS
4. Verify the graphics/GPU card installed in HL23T-PRO. After the verification
of Netstor Thunderbolt 3 target card, click PCI at the left side of the pane,
and the graphics card installed in HL23T-PRO will be shown in the
information area within the pane.
10 Go Top ↑
3. Verify Netstor Thunderbolt 3 target card is recognized by computer. Click
the Apple icon on top left of the screen, select About This Mac, and click
System Report, and then System Information pane will pop up. Select
Thunderbolt at the left side of the pane; if HL23T-PRO can be selected to
see its information, the Netstor Thunderbolt 3 target card is recognized
correctly by computer.
