NETGEAR WNXR2000 Manual de usuario

Wireless N 300+ Powerline AV Router

WNXR2000

NETGEAR

Installation Guide

Technical Support

Thank you for selecting NETGEAR products.

Locate the serial number on the label of your product and use it to register

your product at http://www.NETGEAR.com/register. Registration is required

before you can use the telephone support service. Registration at the

NETGEAR website is strongly recommended.

Go to http://support.netgear.com for product updates and Web support.

For complete DoC please visit the NETGEAR EU Declarations of

Conformity website at: http://kb.netgear.com/app/answers/detail/a_id/

11621/

Trademarks

NETGEAR, the NETGEAR logo, ProSafe, Smart Wizard, and Auto Uplink

are trademarks or registered trademarks of NETGEAR, Inc. Microsoft,

Windows, Windows NT, and Vista are registered trademarks of Microsoft

Corporation. Other brand and product names are registered trademarks or

trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or

reliability, NETGEAR reserves the right to make changes to the products

described in this document without notice. NETGEAR does not assume

any liability that may occur due to the use or application of the product(s) or

circuit layout(s) described herein.

Package Contents

NETGEAR

N300 Wireless Router

Resource CD

Ethernet Cable

Wireless N 300+ Powerline AV Router

WNXR2000

XAVP1000 Y-Cable Adapter

About Your WNXR2000

The WNR2000 router works with the XAVP1000 Y-cable

adapter to help you create a Powerline and wireless network.

To set up your network, do the following:

• Set Up the XAVP1000 Adapter

• Connect the WNXR2000 Powerline AV Router

Set Up the XAVP1000 Adapter

Follow these steps to connect the XAVP1000 adapter to the

router:

1. Plug the network connector on the Y-cable adapter into one

of the orange Ethernet ports on the router.

2. Plug the Power connector on the Y-cable adapter into the

power inlet on the router.

3. Plug the XAVP1000 adapter into an electrical outlet.

Make sure that:

• You do NOT plug the adapter into a Power Strip.

• The electrical outlet is not controlled by a wall switch to

avoid someone unknowingly turning off the power to

the outlet.

4. Power on the router using the Power On/Off button on the

back of the router.

5. Check that the power lights on both the XAVP1000 adapter

and on the router are lit. For more information on the status

lights, see “WNXR2000 Router Status Lights” on page 15

and “XAVP1000 Adapter LEDs and Buttons” on page 17.

6. When the router indicates that the Ethernet port connected to

the Y-cable adapter is linked and active (the LED for the

Ethernet port on the front of the router will be solid

green), check that the Ethernet and Powerline LEDs

on the adapter are also on and blinking.

Connect the WNXR2000

Powerline AV Router

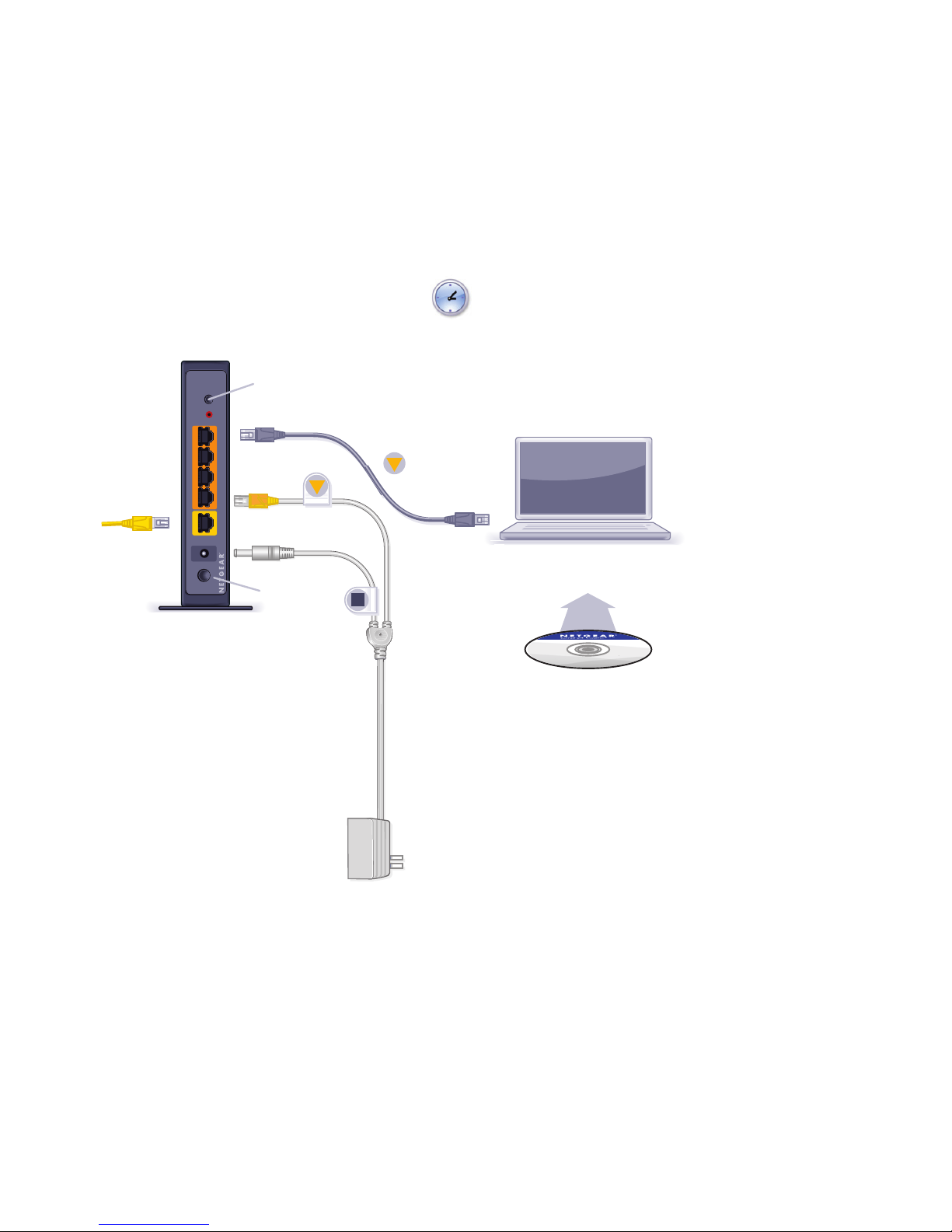

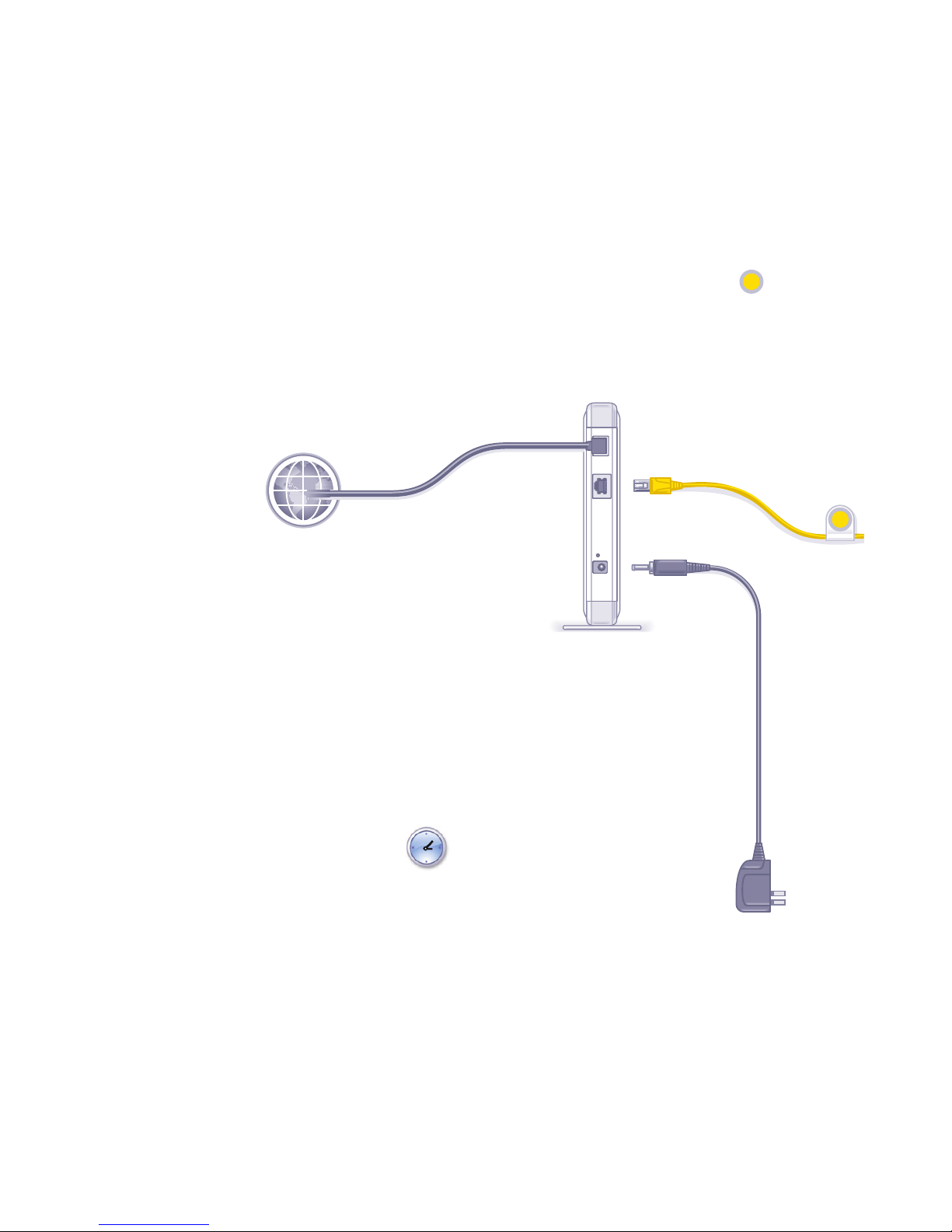

Follow the connection instructions as shown in the drawing on

the next page.

Step 4:

Modem

DSL

or Cable

Internet

Step 1:

Unplug the power

to turn off your modem.

Step 2:

Connect one end of the

yellow cable ( ) to your

modem, and connect the

other end to your router.

Power on your router.

Wait until the wireless LED

turns on.

Step 6:

Insert Your CD.

Click Router Setup and follow

the steps to set up a secure

wireless network.

Step 5:

N300 Wireless Router

(not included)

Power on/off

Resource CD

Laptop or Desktop

Computer

Wireless on/off

WirelessN 300+ Powerline AV Router

WNXR2000

Note: If your laptop does not have a

CD drive, see “No CD Drive” Installation

on the back to complete your router setup.

Step 7:

Connect your Powerline

devices. See next page.

Step 3:

Power on your modem.

Wait until your modem

cycles on (approximately

2 minutes).

Note: If you have a modem with a battery-backup,

remove and re-insert the battery before connecting

your modem to power.

Connect your computer.

Connect with a wired connection

(as shown in this diagram) or

connect wirelessly to the router

with these settings:

Wireless Network (SSID): ______________

Wireless Password: ___________________

Existing Powerline Network — Room 1 (example)

This drawing (Room 1) shows how the Y-cable Powerline

adapter and WNR2000 router might fit into an existing

Powerline network in your house.

Existing Powerline Network — Room 2 (example)

Reset

(additional Powerline

adapters not included)

Setting Up Internet Access

1. In the address field of your browser, type http://

www.routerlogin.net and click Enter.

2. Enter the router User Name

admin and default Password

password to open your

router’s main settings page.

3. When the main settings

page opens, you will be

asked if you want to “Check

for Update.” Click Cancel.You can always check for new

firmware later after you are connected to the Internet.

4. Select the first menu item on the left: Setup Wizard. Make

sure Yes is selected. Then click Next and follow the prompts

to complete the Setup Wizard.

When the Setup Wizard has completed detecting your

connection, the Basic Settings page displays showing your

settings. You are now connected to the Internet.
