NETGEAR WNR2200 - N300 Wireless Router Guía del usuario
July 2010
208-10641-01
v1.0
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
N300 Wireless Router
WNR2200 Setup Manual
2
Trademarks
NETGEAR and the NETGEAR logo are registered trademarks, and Smart Wizard is a trademark of NETGEAR. Inc.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product
names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Contents iii
Contents
N300 Wireless Router WNR2200 Setup Manual
Getting to Know Your Wireless Router................................................................................1
Unpacking Your New N300 Wireless Router .....................................................................1
Hardware Features ............................................................................................................2
Front Panel ..................................................................................................................3
Back Panel ..................................................................................................................5
Router Label ................................................................................................................5
Positioning Your Wireless Router ......................................................................................6
Installing Your N300 Wireless Router ................................................................................6
Updating Your Router Firmware ........................................................................................7
Installing Your Wireless Router Using
Smart Wizard...........................................................................................................................9
Installing Your Wireless Router Manually (Advanced and Linux Users)........................11
Connecting Your N300 Wireless Router ..........................................................................11
Verifying Your Connection ...............................................................................................14
Setting Up Your Router for Internet Access ....................................................................15
Configuring Your Wireless Network...................................................................................19
Accessing Your Router After Installation and Checking for New Firmware .....................19
Configuring Your Wireless Settings and Security Options ..............................................20
Setting Your SSID and Wireless Security Manually ..................................................20
Using Push 'N' Connect (WPS) to Configure Your Wireless Network .......................22
Testing Basic Wireless Connectivity ................................................................................23
Troubleshooting...................................................................................................................27
Basic Setup Checklist ......................................................................................................27
Checking Basic Router Functions ...................................................................................28
Troubleshooting Login Problems .....................................................................................30
Contents iv
Checking the Internet Service Connection ......................................................................31
Obtaining an Internet IP Address ..............................................................................31
Troubleshooting PPPoE ............................................................................................32
Troubleshooting Internet Browsing ...........................................................................33
Troubleshooting Connectivity Using the Ping Utility ........................................................33
Testing the Path from a PC to Your Router ..............................................................33
Testing the Path from a PC to the Internet ................................................................34
Technical Specifications.....................................................................................................37
Default Configuration Settings .........................................................................................37
Restoring the Default Password and Configuration Settings ...........................................40
Related Documents .............................................................................................................41
Registration and Certifications...........................................................................................43
Getting to Know Your Wireless Router 1
Getting to Know Your Wireless Router
Congratulations on your purchase of the NETGEAR® N300 Wireless Router WNR2200.
Before you begin installing your router, check the package contents (see “Unpacking Your New
N300 Wireless Router” on page 1). Become familiar with the front and back panels of your
router—especially the LEDs—and the important information on the router label (see “Hardware
Features” on page 2). Then, read the section on “Positioning Your Wireless Router” on page 6 to
ensure that you have selected the best location to install your router.
Unpacking Your New N300 Wireless Router
The product package should contain the following items:
• The N300 wireless router
• A slide-on stand for your N300 wireless router
• An AC power adapter (varies by region)
• A yellow Ethernet cable
• A stand for the N300 wireless router
• NETGEAR Installation Guide
• The Resource CD, which includes:
– The Smart Wizard™ Installation Assistant (Autorun.exe)
– A PDF version of this manual
– A link to the online User Manual
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product for repair.
Getting to Know Your Wireless Router 2
To prepare your router for installation:
1. Carefully remove the protective film from the top of your router.
2. Set up your N300 wireless router by aligning the arrow on the base with the arrow on the back
of the case, and sliding the router onto the base.
3. Place your router in an area suitable for installation (near an AC power outlet and accessible to
the Ethernet cables for your wired computers).
Hardware Features
Before you install and connect your router, take a moment to become familiar with the front and
back panels of the router—especially the LEDs on the front panel.
Figure 1
Reset
Factory
Settings
button
Getting to Know Your Wireless Router 3

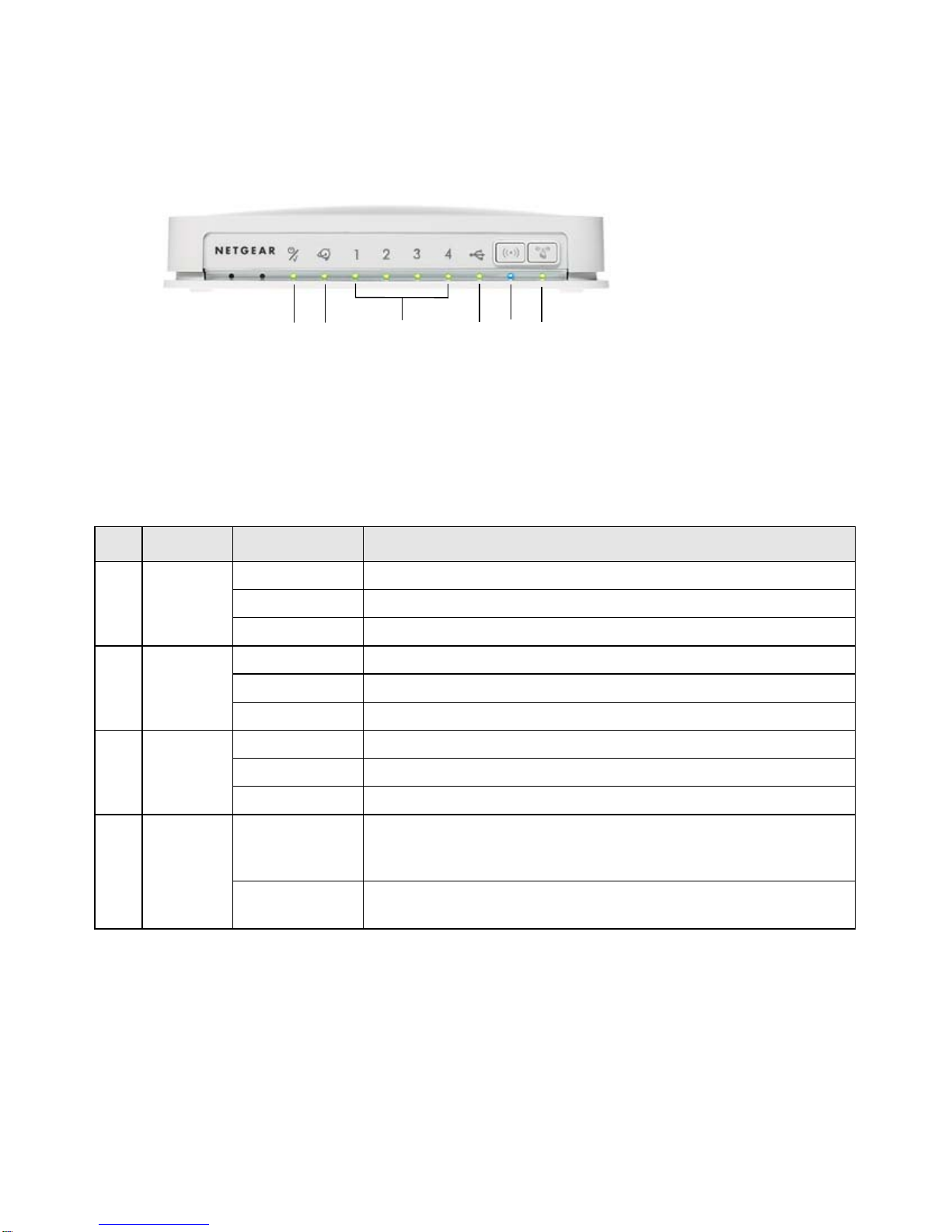

Front Panel
The front panel has seven status lights that you can use to monitor and verify various conditions.
There are also two switch buttons on the right (or at the top if the router is in its stand). The status
lights are described in Table 1, and the switch buttons in Table 2.
Figure 2
Table 1. Status Light Descriptions
Item Function Activity Description
1. Power/Test Solid Amber The unit is starting up after being powered on.
Solid Green The unit startup has completed; the unit is ready.
Off Power is not supplied to the router.
2. Internet Off No Ethernet cable is connected to the modem.
Solid Amber The Ethernet cable connection to the modem has been detected.
Solid Green An IP address has been received; ready to transmit data.
3. LAN
(Ports 1–4) Solid Green The LAN port has detected a 100 Mbps link with an attached device.
Solid Amber The LAN port has detected a 10 Mbps link with an attached device.
Off No link is detected on this port.
4. USB Off No USB device is connected, or the “Safely Remove Hardware”
button has been pressed and it is now safe to remove the attached
USB device.
Solid Green The USB device has been accepted by the Router and is ready to be
used.
123456
Getting to Know Your Wireless Router 4
The WLAN and WPS switch buttons toggle the WLAN and WPS functions on and off.

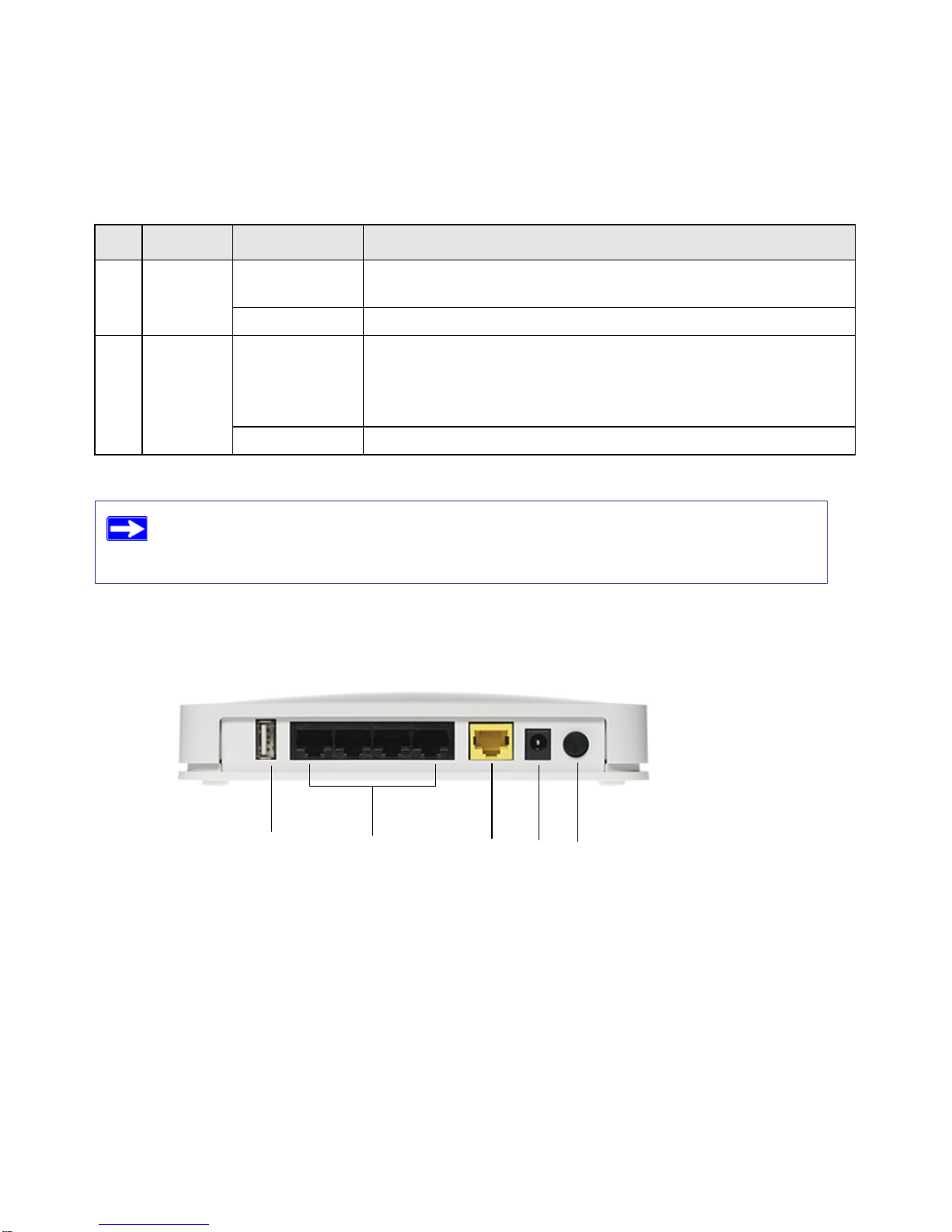

Back Panel
The rear panel of the WNR2200 router contains the items in the list that follows the figure.
The back of the N300 wireless router includes:
1. A USB 2.0 port (backward compatible to USB 1.0/1.1) for attaching a USB storage device
2. Four local (LAN) 10/100 Mbps Ethernet ports for connecting the router to local computers.
3. An Internet (WAN) 10/100 Mbps Ethernet port for connecting the router to a cable or DSL
modem.
Table 2. Switch Button Descriptions
Item Function Activity Description
5. WLAN
On/Off On Pressing the wireless LAN button turns on the 2.4 GHz wireless
radio, indicated by light below the wireless LAN being lit.
Off The 2.4 GHz wireless radio is off, and its LED is turned off.
6. WPS
On/Off On The WPS function is turned on, indicated by the light below the WPS
button being lit.
Before turning on the WPS button, be sure that the WLAN button is
on. If the wireless radio is off, the WPS will not work.
Off The WPS function is turned off.
For more information on modes, see “Configuring Your Wireless Settings and
Security Options” on page 20, and the online Reference Manual, available on the
Resource CD.
Figure 3
12345
Getting to Know Your Wireless Router 5
4. An AC power adapter outlet.
5. A Power On/Off button.

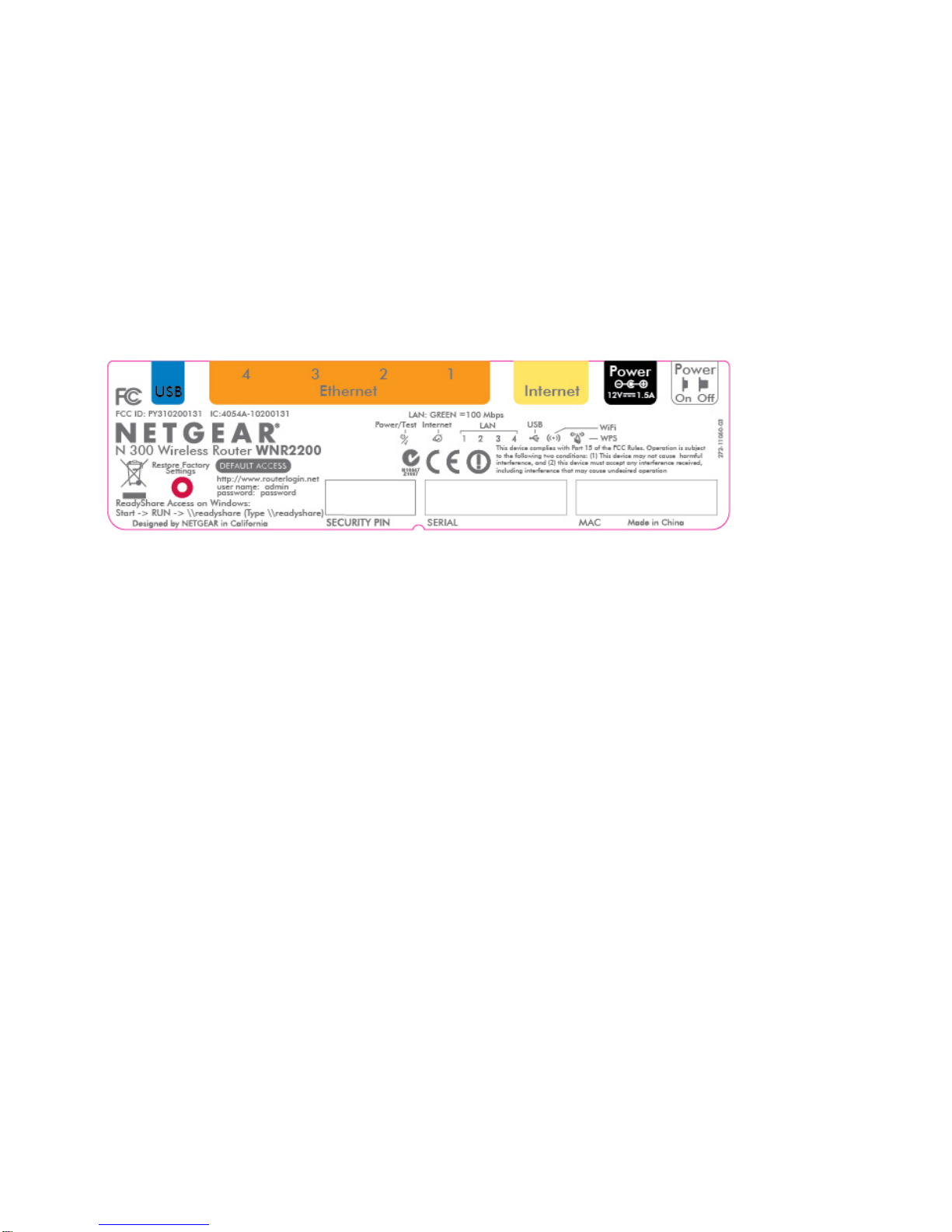

Router Label
View the label on the bottom of the N300 wireless router to identify the security PIN, serial
number, port connectors, status lights, and default login information.
Positioning Your Wireless Router
The N300 wireless router lets you access your network from virtually anywhere within the
operating range of your wireless network. However, the operating distance or range of your
wireless connection can vary significantly depending on the physical placement of your router. For
example, the thickness and number of walls the wireless signal must pass through may limit the
range. For best results, place your router:
• Near the center of the area where your computers and other devices will operate, preferably
within line of sight to your wireless devices.
• Accessible to an AC power outlet and near Ethernet cables for wired computers.
• In an elevated location such as a high shelf, keeping the number of walls and ceilings between
the N300 wireless router and your other devices to a minimum.
• Away from electrical devices which are potential sources of interference, such as ceiling fans,
home security systems, microwaves, or the base for a cordless phone.
Figure 4
Getting to Know Your Wireless Router 6
• Away from any large metal surfaces, such as a solid metal door or aluminum studs. Large
expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and
concrete can also affect your wireless signal.
Installing Your N300 Wireless Router
To help you set up your router and get on the Internet quickly, the Resource CD contains a Smart
Wizard™. The Smart Wizard walks you through the steps required to connect your router and
PC(s); configure your internet settings; configure your wireless settings; and enable wireless
security for your network. When you have finished, you will be Internet ready!
You can set up your N300 wireless router using one of two methods:
•Smart Wizard Setup: The Smart Wizard setup is available on your Resource CD. See
“Installing Your Wireless Router Using Smart Wizard” on page 9 to use the Smart Wizard.
– This is the easiest option. The wizard guides you through the setup process. It automates
many of the steps and verifies that the steps have been successfully completed.
– Smart Wizard requires a PC running Microsoft Windows.
•Manual Setup: If you cannot or prefer not to use the Smart Wizard, see “Installing Your
Wireless Router Manually (Advanced and Linux Users)” on page 11. For example, if you are
using a Linux operating system or are technically knowledgeable, select this option. If you
choose to use this option and install your router manually, for best results, install and set up
your router in this order:
Failure to follow these guidelines can result in significant performance degradation
or an inability to wirelessly connect to the Internet.
If you have a Linux system, you need to use the manual installation method (see
“Installing Your Wireless Router Manually (Advanced and Linux Users)” on
page 11).
Before running the Smart Wizard on a corporate PC to set up your home
router, check with your company’s network support staff. Corporate
network settings or Virtual Private Network (VPN) client software may
conflict with the default settings of a home router. If you are unsure about
whether there might be a conflict, use a different computer.
Otros manuales para WNR2200 - N300 Wireless Router
2
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Enrutador inalámbrico de NETGEAR
NETGEAR
NETGEAR NIGHTHAWK RAX120 Manual de usuario
NETGEAR
NETGEAR Nighthawk Pro XR1000 Manual de usuario
NETGEAR
NETGEAR WGU624 Manual de usuario
NETGEAR
NETGEAR DGND3700v1 Manual de usuario
NETGEAR
NETGEAR Verizon Jetpack AC791L Manual de usuario
NETGEAR
NETGEAR Nighthawk D7000 Manual de usuario
NETGEAR
NETGEAR WGT624v4 - 108 Mbps Wireless Firewall Router Manual de usuario
NETGEAR
NETGEAR WNR2200 - N300 Wireless Router Manual de usuario
NETGEAR
NETGEAR AX4200 Manual de usuario
NETGEAR
NETGEAR MBR1200 Manual de usuario
NETGEAR
NETGEAR WNDR4300 Manual de usuario
NETGEAR
NETGEAR WNR3500Lv2 Manual de usuario
NETGEAR
NETGEAR WGR826V Manual de usuario
NETGEAR
NETGEAR Orbi Pro SXS50 Manual de usuario
NETGEAR
NETGEAR WNR3500v1 - RangeMax Wireless N Gigabit... Manual de usuario
NETGEAR
NETGEAR WNDAP350 - ProSafe 802.11n Dual Band Wireless Access... Manual de usuario
NETGEAR
NETGEAR Nighthawk X4S R7800 Manual de usuario
NETGEAR
NETGEAR JWNR2000v2 Manual de usuario
NETGEAR
NETGEAR R7500 Manual de usuario
NETGEAR
NETGEAR WNDR4300 Manual de usuario
