Installation Guide

54 Mbps Cable/DSL 802.11a Wireless Router

MODEL HR314

with 4-port 10/100 Mbps switch

Introduction

Thank you for purchasing a NETGEAR HR314 54 Mbps 802.11a Wireless Router. The HR314

gives you the ultimate in office mobility with the freedom to roam throughout the workplace

while connected to the Internet at speeds up to 54 Mbps.

This installation guide shows you how to connect the router and configure it and your

computers for Internet access. Setup is easy—follow the instructions in this guide and your sys-

tem will be up and running quickly.

If you have problems, there is a troubleshooting section on page 13 to help you—or you can

get more detailed troubleshooting information from the Reference Manual on the CD, online

from www.NETGEAR.com or by phone.

Installation Overview

Estimated time: 15 to 30 minutes

1. Gather the configuration information you have for your working DSL or cable modem

connection to the Internet.

2. Install the router between the DSL or cable modem and one computer.

3. Configure that computer to work with the router and restart the computer and modem.

4. Configure the router and go online to test the connection.

5. Connect other computers, configure them and restart each. (optional)

On the HR314 Resource CD, you’ll find the HR314 Installation Assistant, which supplements

the instructions in this installation guide by animating the step-by-step procedures given here.

For more detailed information about installation, troubleshooting and configuration

procedures, see the Reference Manual on the CD.

802.11a Wireless Router

What’s in the Box

When you open the box, verify that you received everything.

The package includes:

• HR314 54 Mbps 802.11a Wireless Router

• AC power adapter

• Ethernet patch cable

• HR314 Resource CD, including a full Reference Manual and Installation Assistant

• HR314 Installation Guide (this document)

• Warranty and registration card

• Support information card

If you don’t have everything listed above, see the support information card for contact

information. If the support information card is missing, you can get contact information at

www.NETGEAR.com in the Customer Service area.

HR314 Resource CD,

installation guide, support

information card &

warranty/registration card

Power adapter

Category 5

100 Mbps

Ethernet cable

802.11a Wireless Router

Gather Configuration Information for

Your Working Connection to the Internet

Before installing the HR314 router, you

should have an external DSL or cable

modem with an Ethernet port set up and

working with one computer. You’ll be

installing the router between the modem

and the computer.

For each computer that you want to con-

nect to the router, you must have

• An available RJ-45 Ethernet port (or

adapter) — either built-in or from a

network interface card (NIC) installed

in the computer OR

an 802.11a-compliant wireless adapter.

• TCP/IP installed.

• If your computer is a Windows®

computer, it must have the Client

for Microsoft®Networks software installed.

Note: Please see the Reference Manual on the CD if you need help installing

TCP/IP software or the Client for Microsoft Networks software on any Windows

computer that hasn’t been networked previously.

• A Category 5 (Cat 5) Ethernet patch cable

Note: There is one cable in the box with the router.

DSL modem

Note: If you have a cable modem,

you will have a cable connection

between the modem and your

cable outlet.

Connection information

Later in the setup process you’ll need to configure the router to work with your network. A

Setup Wizard is available to help you through this procedure. You can configure the router

yourself using information that you can get from your computer or your ISP about your

current Internet connection.

The next page includes blanks for you to fill in and refer to later. To get the needed

information from your computer:

• (Windows 98/Me) Open the Network control panel, select the TCP/IP entry, and

click Properties.

• (Windows 2000/XP) Open Local Area Network Connection and click Properties.

• (Macintosh®) Open the TCP/IP (or Network) control panel.

Your ISP should have provided you with a summary sheet of all the information needed to connect

your computer to the Internet. If you cannot locate the information, you’ll have to contact your ISP.

An ISP Guide is included with your router’s documentation, either as a printed card or on the

Resource CD. The ISP Guide contains specific configuration guidelines for connecting to

many popular ISPs.

Host and Domain Names

Some ISPs use a specific host or domain name—like jsmith or earthlink.net. If you haven’t

been given specific information about host or domain names then use the following examples

as a guide:

• If your main e-mail account with your ISP is aaa@yyy.com, then use aaa as your host

name. (Your ISP might call this your account name, user name, or system name.)

• If your ISP’s mail server is mail.xxx.yyy.com, then use xxx.yyy.com as the domain name.

Host name:_____________________________________

Domain name: __________________________________

If your ISP requires a login name and password (possibly because you have a PPPoE account),

fill in the following:

(may be your full e-mail address)

Password:______________________________________

Note: The login name could be called a user name or account name by your ISP.

The login name is case sensitive. You must type it exactly as given by your ISP. For

example, c_jones is a different login name than C_Jones or cjones.

Fixed (or static) IP address

If you have a static IP address through your ISP, fill in the following information:

IP address: _____._____._____._____

Subnet mask: _____._____._____._____

Gateway IP address:_____._____._____._____

DNS server address information

If you were given specific Domain Name System (DNS) server addresses, fill in the following:

DNS Server IP address(es): _____._____._____._____

_____._____._____._____

Install the Router

After unpacking the box and locating the configu-

ration information, you’re ready to install the

router.

1. Determine a suitable location for your router.

The operating distance or range of your

wireless connection can vary significantly

based on the physical placement of the wire-

less router. For best results, place your

router:

• near the center of the area in which your

PCs will operate,

• in an elevated location such as a high

shelf,

• away from potential sources of interfer-

ence, such as PCs, microwaves, and

cordless phones,

• away from large metal surfaces.

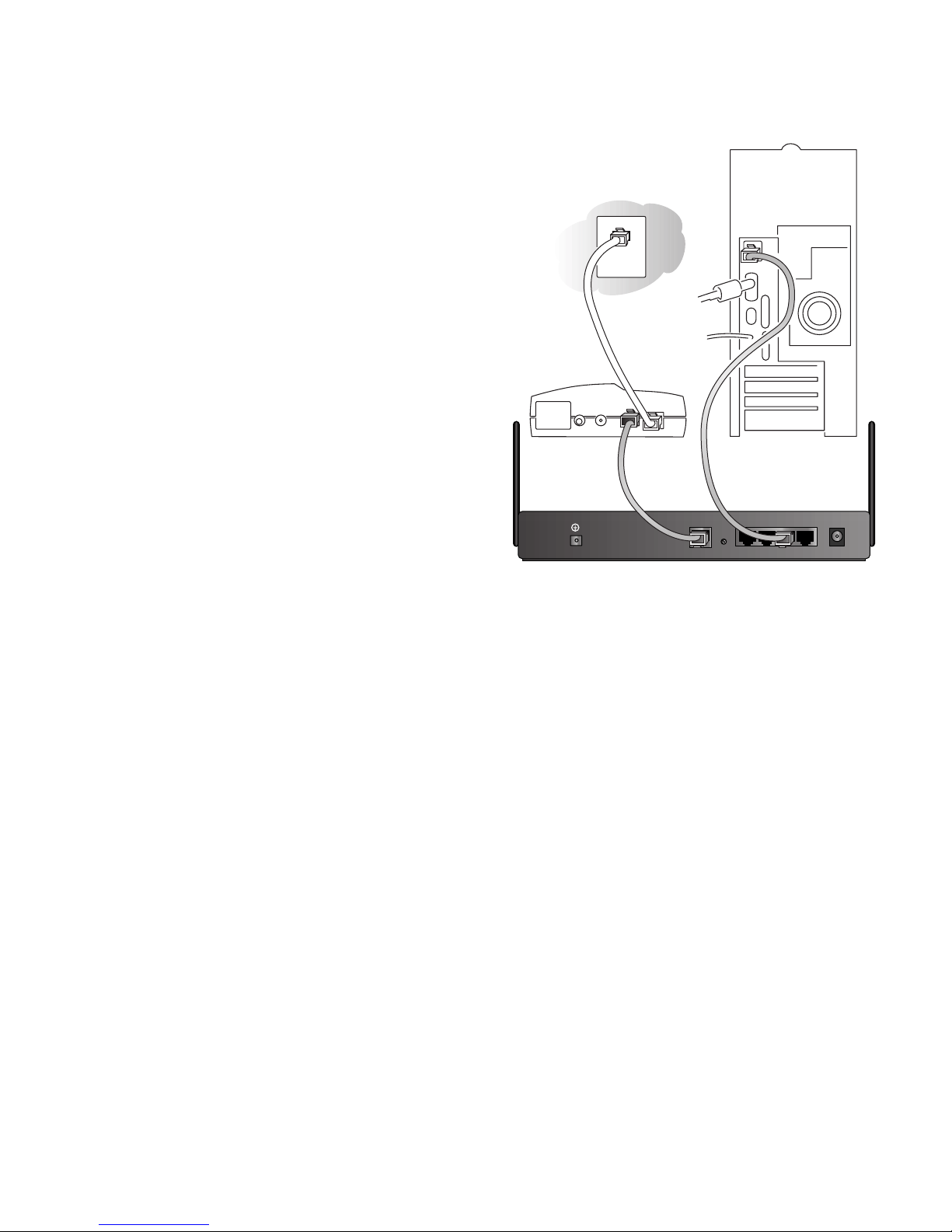

2. Locate the Ethernet cable currently going from the DSL or cable modem to the computer

that you use to access the Internet.

Note: You must use this cable to connect the DSL or cable modem to your router

since this may be a special cable even though it looks like other LAN cables.

3. Remove this cable from the computer and insert that end into the Internet port on the

rear panel of the router.

4. Use the Ethernet patch cable that came with the router to connect the computer to one of

the four numbered local Ethernet ports on the rear panel of the router.

5. Connect the power adapter’s cord into the back of the router and then plug the adapter

into a power source (such as a wall socket or power strip).

Note: If you want to connect other computers to the router, don’t connect them now.

Do that after you know that the modem/router setup works with one

computer.

12VDC 1.2A

4321

LOCAL

10/100M

INTERNET

DSL modem

802.11a Wireless Router

Check the setup

• The Test light turns on for a few seconds and then goes off.

Note: If the Test light remains on for more than one minute, go to Troubleshooting

on page 13.

• The Power and Internet Link lights should be lit.

• The Wireless Link light should be lit.

• If your computer is on, the Local Link light should be on for the port number that your

computer is connected to.

Note: If the port connection is a 100 Mbps connection, the 100 light should be on.

If either the Power, Internet Link, or Local port Link light isn’t lit, go to Troubleshooting on

page 13.

Configure the Computer to Work with the

Router and Restart the Network

Next, make sure that the computer can interact with the router. To do this, configure the

TCP/IP settings on the computer and then restart the network. How you do this depends on

your computer.

Windows Operating System

Normally, you can leave the TCP/IP setup parameters at their factory default settings unless

you have a specific reason to change them. You should verify that the computer is set to ‘obtain

an IP address automatically’ in the Network control panel.

Windows 98 or Me

1. Choose Settings>Control Panel from the Start menu.

2. Double-click the Network icon.

3. Click the Configuration tab.

4. In the list of installed network components, select the TCP/IP entry for the computer’s

Ethernet or wireless adapter.

5. Click Properties.

6. Click the IP Address tab.

7. Check that Obtain an IP Address Automatically is selected, select if not.

8. Click the Gateway tab.

9. Select and remove any IP Gateway addresses that are listed.

10. Click OK and click OK again to close the Network control panel.

11. Go to Restarting the Network on the next page.

Windows 2000 or XP

1. Right-click My Network Place and choose Properties.

2. Double-click Local Area Network Connection and

click Properties.

3. Select Internet Protocol (TCP/IP) and click Properties.

4. Select Obtain IP address automatically.

5. Click OK twice and click Close.

6. Go to Restarting the Network.

Windows 98/Me

Macintosh Operating System

Mac OS®8.6 or 9.x

1. Choose Control Panels >TCP/IP from the Apple

menu.

2. If not already selected, select Ethernet in the

Connect via list.

3. Select Using DHCP Server in the Configure list.

4. Click the close box.

5. If asked if you want to save this configuration,

click Save.

6. Go to Restarting the Network.

Mac OS X

1. Choose System Preferences from the Apple menu.

2. Double-click Network.

3. If not already selected, select Built-in Ethernet in the Configure list.

4. If not already selected, select Using DHCP in the TCP/IP tab.

5. Click Save.

6. Go to Restarting the Network.

Linux®or UNIX®Operating System

If you’re installing the router with a Linux-based or UNIX-based computer see your system

documentation for TCP/IP and networking setup information.

Restarting the Network

Once you’ve set up your computer to work with the router, you must reset the network for the

devices to be able to communicate correctly.

1. Turn off the DSL or cable modem, wait 15 seconds, and then turn it on again.

Note: If the modem doesn’t have an on/off switch, either pull the modem’s power

adapter out of the wall socket or power down the power strip.

2. If the router was powered down, power it up again and wait until the Test light turns off.

3. Restart the computer that is connected to the router.

Note: You may also configure the router from a wireless PC. In that case, set the

PC’s SSID to the router’s default SSID: Wireless and be sure to Disable WEP encryption. 9

Otros manuales para HR314 - Wireless Router

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de NETGEAR

NETGEAR

NETGEAR WNDAP360 Manual de usuario

NETGEAR

NETGEAR DGND3300 - RangeMax Dual Band Wireless-N DSL Gateway Wireless... Guía del usuario

NETGEAR

NETGEAR AC778AT Manual de usuario

NETGEAR

NETGEAR N600 DGND3700v2 Manual de usuario

NETGEAR

NETGEAR Nighthawk C6900 Manual de usuario

NETGEAR

NETGEAR WGR614v10 - 54 Mbps Wireless Router Guía del usuario

NETGEAR

NETGEAR MR814CN Manual de usuario

NETGEAR

NETGEAR N450 Manual de usuario

NETGEAR

NETGEAR DG834G Manual de usuario

NETGEAR

NETGEAR WNR2000 Manual de usuario

NETGEAR

NETGEAR RAX54S Manual de usuario

NETGEAR

NETGEAR MR814V2 - 802.11b Cable/DSL Wireless Router Manual de usuario

NETGEAR

NETGEAR R6300v2 Manual de usuario

NETGEAR

NETGEAR WNDR4500v3 Manual de usuario

NETGEAR

NETGEAR MR1100ATT Manual de usuario

NETGEAR

NETGEAR MBR1517v2 Manual de usuario

NETGEAR

NETGEAR WNDR3300v2 - N600 Wireless Dual Band Router Guía del usuario

NETGEAR

NETGEAR N300 Manual de usuario

NETGEAR

NETGEAR WNDR3300v1 - RangeMax Dual Band Wireless-N... Guía del usuario

NETGEAR

NETGEAR WNDAP350 - ProSafe 802.11n Dual Band Wireless Access... Manual de usuario

NETGEAR

NETGEAR DGND3700v1 Guía de referencia

NETGEAR

NETGEAR WNDAP360 Manual de servicio

NETGEAR

NETGEAR NIGHTHAWK C6230 Manual de usuario

NETGEAR

NETGEAR Nighthawk X6 R8000 Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

D-Link

D-Link DIR-506L Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario

Draytek

Draytek Vigor2120 Series Manual de usuario

Sitecom

Sitecom WLR-4000 Manual de usuario
