NETGEAR BB2WIFIROUTER Manual de usuario

BB2 WIFI ROUTER

SKU: BB2WIFIROUTER

THANK YOU FOR PURCHASING THE BB2 WIFI ROUTER

Please read this manual before operating the BB2 Wifi Router and

keep it handy.

The BB2 Wifi Router records WXGA quality (1280 x 960) video over a

wide viewing angle of 72°. Either record continuously, or use the

motion detection setting.

The handy auto-overwrite feature makes it easy to use on a daily

basis.

No need to worry about battery life since the camera is powered by

the same AC adapter that powers the router itself.

Your purchase should include:

1 x BB2 Wifi Router

1 x Router Stand

1 x Remote control

1 x Power cord

1 x Ethernet cable

1 x USB cable

1 x User Manual

GET FAMILIAR WITH YOUR BB2 WIFI ROUTER

OPERATING THE BB2 WIFI ROUTER

HOW TO SET UP YOUR WIFI ROUTER

1. Plug the power cord into a wall outlet and connect it to the

back of the router.

2. Insert the Ethernet cord into the wall outlet for the internet

and connect the other end into the Yellow Internet slot on the

back of the router.

3. Push in the Power Button on the back of the router.

4. Wait until the Power Light and Internet Light turns green.

5. Turn on the Wifi by pressing the Wireless Button on the back

of the router. (Once you press it the Blue wifi light will turn on

in the front of the router)

HOW TO TURN ON THE BB2 WIFI ROUTER

1. Point the Remote Control to the hole above “NETGEAR” in the

front of the router and press the “Power Button”. (The Green

Light will turn on in the back of the router)

2. The router’s camera is now in Standby Mode

Wifi Router

Ethernet Cable

USB Cable

Power Cord

Remote Control

HOW TO TURN OFF THE BB2 WIFI ROUTER

1. Point the Remote Control to the hole above “NETGEAR” in the

front of the router and press the “Power Button”. (The Green

Light will turn off in the back of the router)

2. The router’s camera is now off.

HOW TO RECORD VIDEO ON THE BB2 WIFI ROUTER

1. While the camera is in Standby Mode point the Remote

Control to the hole above “NETGEAR” in the front of the

router and press the “Video Button”. (The Green Light will

flash three times and then turn off.)

2. The camera is now recording video.

HOW TO STOP RECORDING VIDEO ON THE BB2 WIFI ROUTER

1. While the camera is recording point the Remote Control to the

hole above “NETGEAR” in the front of the router and press the

“Video Button”. (The Green Light will turn on in the back of

the router)

2. The camera is now in Standby Mode and has stopped

recording.

HOW TO TAKE PICTURES ON THE BB2 WIFI ROUTER

1. While the camera is in Standby Mode point the Remote

Control to the hole above “NETGEAR” in the front of the

router and press the “Photo Button”. (The Green Light will

flash one time in the back of the router)

2. After the green light flashes, the camera has taken a picture.

HOW TO USE THE MOTION DETECTION ON THE BB2 WIFI

ROUTER

1. While the camera is in Standby Mode point the Remote

Control to the hole above “NETGEAR” in the front of the

router and press the “Motion Detection Button”. (The Green

Light will flash several times in the back of the router then

turn off)

2. The camera is now recording motion detection.

HOW TO TURN OFF THE MOTION DETECTION ON THE BB2

WIFI ROUTER

1. While the camera is recording motion detection point the

Remote Control to the hole above “NETGEAR” in the front of

the router and press the “Motion Detection Button”. (The

Green Light will turn on in the back of the router)

2. The camera is now in Standby Mode and has stopped

recording motion detection.

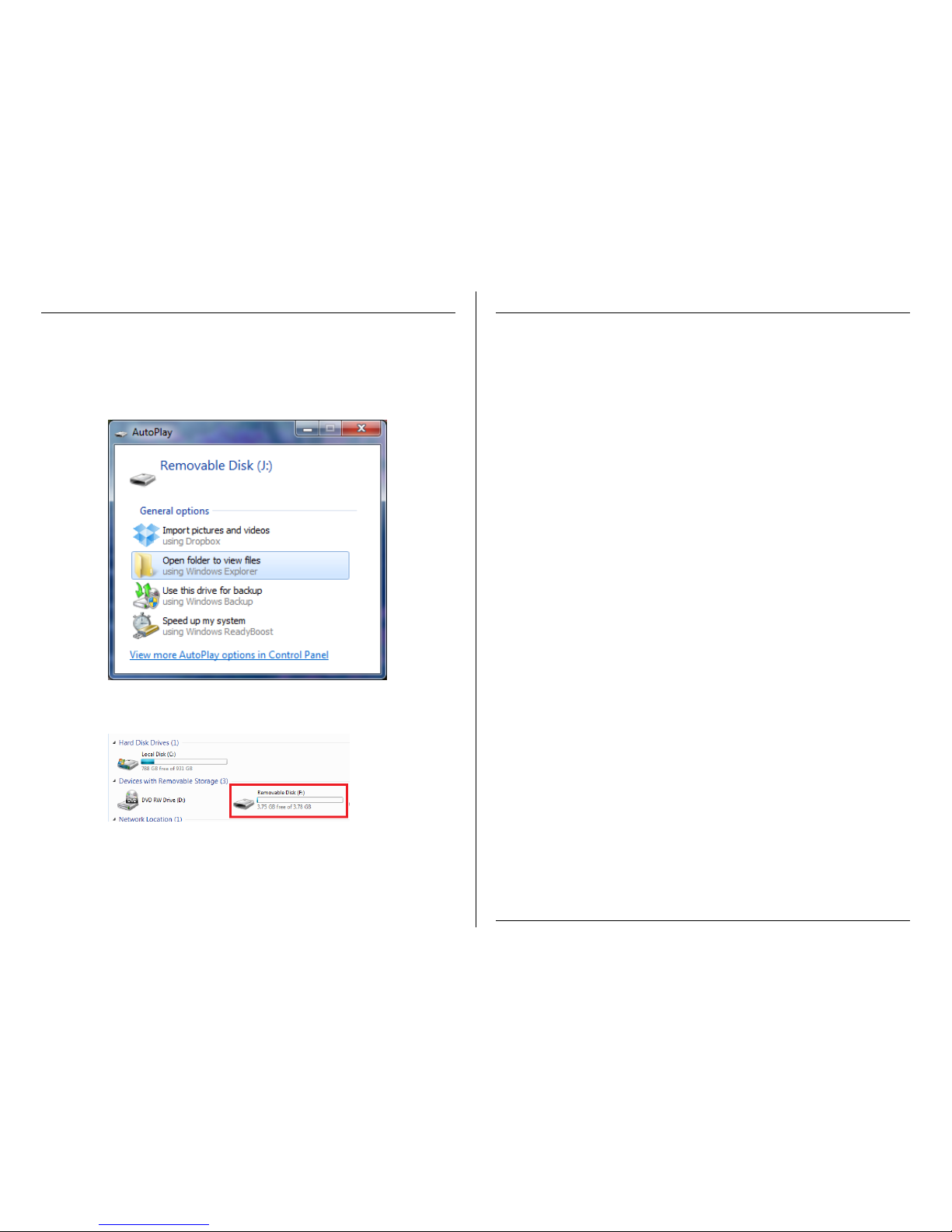

RETRIEVE THE FILES TO YOUR PC

1. Plug the device into your PC using the USB cable (The USB port

is on the bottom of the router)

2. Locate “Removable Disk” inside the (My) Computer folder

AutoPlay Removable Disk > Open folder to view files

Or… Go to Start > Computer > Removable Disk

3. Open the Removable Disk drive

4. Open the [folder name] folder

5. Double click the file you want to view

VLC Player is recommended for watching videos

TROUBLESHOOTING

THE DEVICE WON’T TURN ON

Make sure the power cable is securely inserted into the device

and into the power source

THE DEVICE HAS CRASHED

You need to reset the device

MY COMPUTER DOESN’T RECOGNIZE THE DEVICE

Make sure that you turned the device on using the Remote

Control

Unplug the device from your PC and reboot the device

Unplug the device from your PC and reboot your PC

Try using a different USB slot on your PC

Replace the USB cable

THE SOUND OR VIDEO IS UNCLEAR

The device needs charging

OTHER PROBLEMS

Call our technical support at 770–694–6923

SPECIFICATIONS

Video Resolution

Video Format

Frames per Second

Recording Time

Vision Angle

Motion Detection

Photo Resolution

Photo Format

Audio Quality

Audio Format

Water Resistant

Battery Life

Type of Memory

Memory Capacity

Recording Capacity

2GB ≈ 1 hour

4GB ≈ 2 hours

8GB ≈ 4 hours

16GB ≈ 8 hours

32GB ≈ 16 hours

USB Interface

2.0 USB

Player Software

VLC recommended

Operating Systems

Windows 2000

Windows Me

Windows XP

Windows Vista

Windows 7

Windows 8

Mac OSX

Linux
