NETGEAR MR814 - 802.11b Cable/DSL Wireless Router Guía del usuario

August 2007

208-10147-01

v1.0

NETGEAR, Inc.

4500 Great America Parkway

Wireless Router Setup

Manual

Trademarks

NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of

NETGEAR. Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other

brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to

make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit

layout(s) described herein.

Contents iii

Contents

Getting to Know Your Wireless Router................................................................................1

Unpacking Your New Router .............................................................................................1

What You Need Before You Begin .....................................................................................6

Updating Your Router Firmware ........................................................................................6

Two Setup Methods: Smart Wizard Setup or Manual Setup .............................................6

Smart Wizard Setup ..........................................................................................................7

Manual Setup ....................................................................................................................7

Product Registration, Support, and Documentation ........................................................12

Accessing the Wireless Router after Installation and Checking for New Firmware .........13

Setting Up and Testing Basic Wireless Connectivity .......................................................15

Implementing Appropriate Wireless Security ...................................................................16

Help with Troubleshooting..................................................................................................19

Basic Troubleshooting .....................................................................................................19

Troubleshooting Connectivity Using the Ping Utility ........................................................25

Technical Specifications .....................................................................................................27

Factory Default Settings ..................................................................................................27

Related Documents..............................................................................................................31

iv Contents

Getting to Know Your Wireless Router 1

v1.0, August 2007

Getting to Know Your Wireless Router

Congratulations on your purchase of a NETGEAR® high-speed wireless router, the Wireless

Router Model WPN824v3.

Before you begin installing your router, check the package contents (see Unpacking Your New

Router). Become familiar with the front and back panels of your router—especially the status

lights—and the important information on the router label (see “Bottom Label” on page 5).

Unpacking Your New Router

The product package should contain the following items:

• The wireless router

• A snap-on stand for your wireless router

• An AC power adapter (varies by region)

• A yellow Ethernet cable

•TheResource CD, which includes:

– The Smart Wizard Installation Assistant (Autorun.exe)

– A PDF version of this manual

– A link to the online User Manual

• Warranty and Support Information cards

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the product for repair.

To prepare your router for installation:

1. Carefully peel off the protective film covering the sides of your router.

Wireless Router Setup Manual

2 Getting to Know Your Wireless Router

v1.0, August 2007

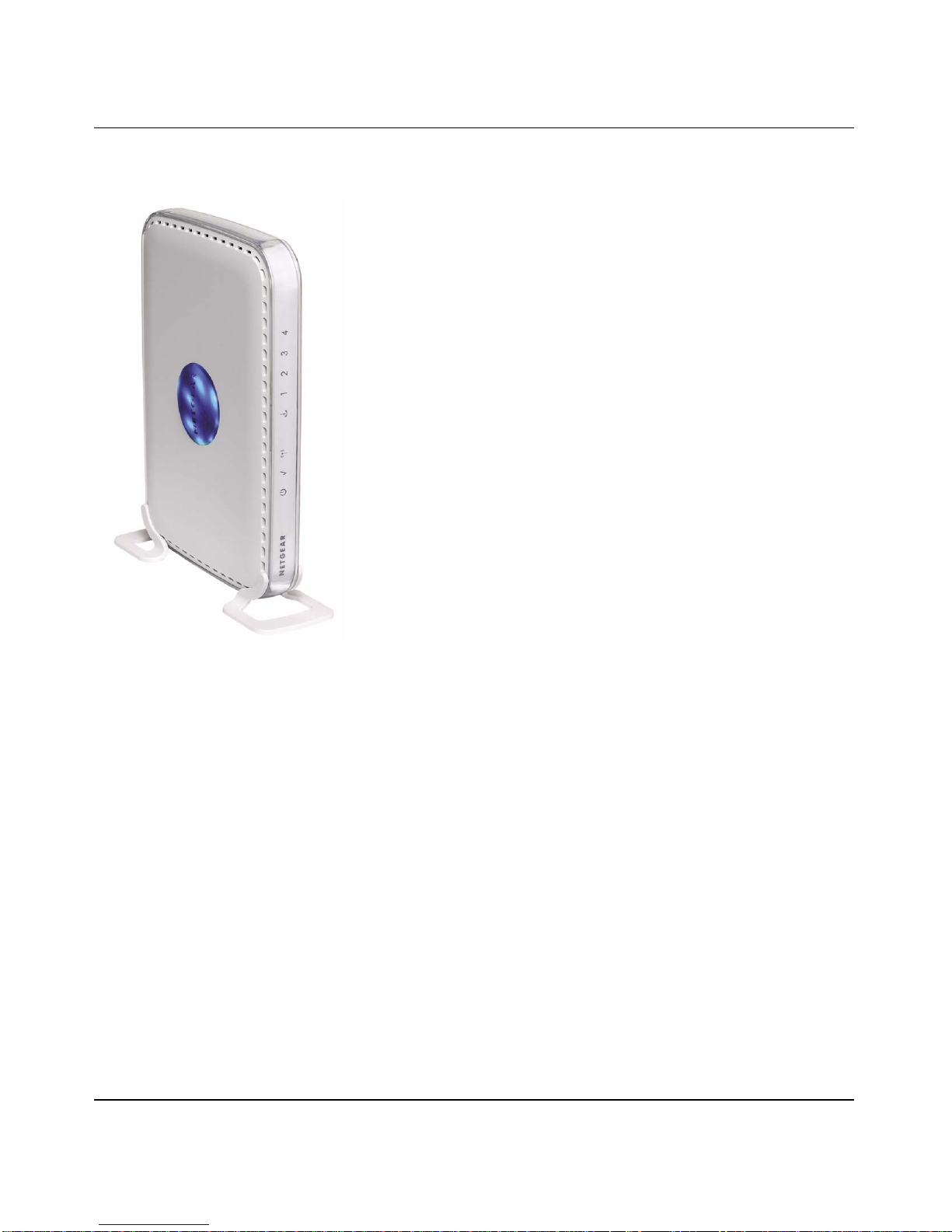

2. Set up your wireless router by inserting the router into the stand supplied with your router.

3. Place your router in an area suitable for installation (near an AC power outlet and accessible to

the Ethernet cables for your wired computers).

Figure 1

Wireless Router Setup Manual

Getting to Know Your Wireless Router 3

v1.0, August 2007

Router Front Panel

You can use the status lights on the front of the wireless router to verify various conditions.

Figure 2

Table 1-1. Status Light Descriptions

Item Function Activity Description

1Power On green solid

Off Power is supplied to the router.

Power is not supplied to the router.

Test On

Off

Slow blinking

The unit is performing the power-on self-test diagnostic.

The unit successfully completed the power-on self-test diagnostic.

The reset button is being pushed, restoring the factory default

settings.

Wireless On

Off

Blinking

The wireless interface is enabled.

The wireless interface is turned off.

Data is being communicated over the wireless network.

Internet Amber off

Amber on

Amber blinking

Green off

Blinking

No Ethernet cable is connected to the modem.

The Ethernet cable connection to the modem is good.

Packets are being transmitted and received from a modem or other

network device, but no IP address has been received.

No IP address has been received.

IP address has been received.

IP address received and data is being transmitted and received.

5LAN Green

Amber The LAN port has detected a 100 Mbps link with an attached device.

The LAN port has detected a 10 Mbps link with an attached device.







Wireless Router Setup Manual

4 Getting to Know Your Wireless Router

v1.0, August 2007

Router Back Panel

The rear panel of the WPN824v3 router contains the items in the list that follows the figure.

The back of the wireless router includes:

1. On/off switch for the antenna dome light

2. AC power adapter outlet

3. Four local (LAN) 10/100 Mbps Ethernet ports for connecting the router to the local computers

4. Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem

5. Factory default reset button

Figure 3

Wireless Router Setup Manual

Getting to Know Your Wireless Router 5

v1.0, August 2007

Top Panel

The top of the wireless router includes a dome with status lights that identify which of the seven

internal antennas are active. The lights flash according to the direction of the wireless signal.

These status lights are off by default but can be turned on using the on/off switch (see “Router

Back Panel” on page 4).

Bottom Label

View the label on the bottom of the wireless router to identify the serial number, port connectors,

status lights, and default login information.

Figure 4

Figure 5

Wireless Router Setup Manual

6 Getting to Know Your Wireless Router

v1.0, August 2007

What You Need Before You Begin

Prepare the following before you set up your router:

• Internet service.

• The configuration information your Internet Service Provider (ISP) gave you. Depending on

how your Internet account was set up, you might need one or more of these settings for the

wireless router to access the Internet:

— Host and domain names

— Internet login name and password (frequently an e-mail address and password)

— Domain Name Server (DNS) addresses

— Fixed or static IP address

Your ISP should have provided you with all the information needed to connect to the Internet.

If you cannot locate this information, you can ask your ISP to provide it.

• For cable modem service, use the computer you first used to set up your Internet service.

Updating Your Router Firmware

NETGEAR is always improving the operability and features included with your router. To make it

easy for you to receive the best, most up-to-date features of your router, NETGEAR provides a

variety of methods for updating your product.

• The Smart Wizard installation assistant lets you check for and install updates as part of the

setup activity.

• The router includes an update feature that lets you check for and install updates. You must be

logged in to the router to use this feature.

These options are discussed in “Accessing the Wireless Router after Installation and Checking for

New Firmware” on page 13.

Two Setup Methods: Smart Wizard Setup or Manual

Setup

You have two methods available for setting up your wireless router:
