NETGEAR DGFV338 - ProSafe Wireless ADSL Modem VPN Firewall... Guía rápida

Version 1.1

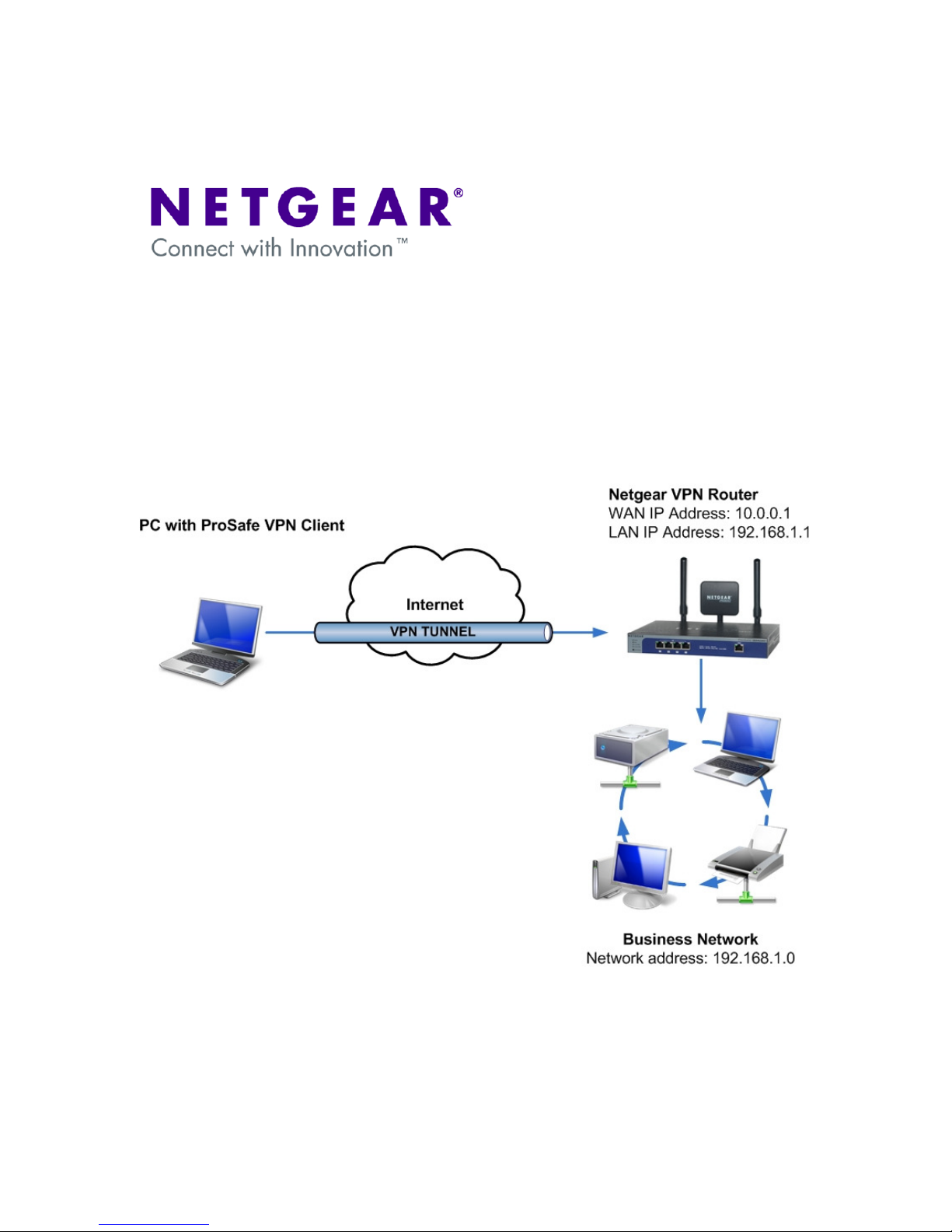

VPN Configuration of ProSafe Client and Netgear ProSafe Router:

This document will guide you on how to create IKE and auto-VPN policies for your ProSafe

Netgear Router, as well as how to configure the VPN Pro-Safe VPN client in order to allow a

Virtual Private Network to be established over the internet.

NOTE: This document assumes that your router is either receiving a public IP address on the

WAN interface or that the gateway device(s) have the correct port forwarding or DMZ configured

so that port 500 UDP is open for the router, these gateway devices must also allow VPN pass-

through.

Version 1.1

Router Settings:

As we configure the Netgear VPN Router, there will be information we’ll add which will later be

used in the configuration of the ProSafe Client Software. This information will be marked with red

numbered circles. You can print this form to help keep track of this information.

Pre-Shared Key: _____________________________________________________

Remote Identifier Information: ___________________________________________

Local Identifier Information: _____________________________________________

Router’s LAN Network IP Address: _______________________________________

Router’s LAN Network IP Mask: __________________________________________

Router’s WAN IP Address: _______________________________________________

➊

➊➊

➊

➋

➋➋

➋

➌

➌➌

➌

➍

➍➍

➍

➎

➎➎

➎

➏

➏➏

➏

Version 1.1

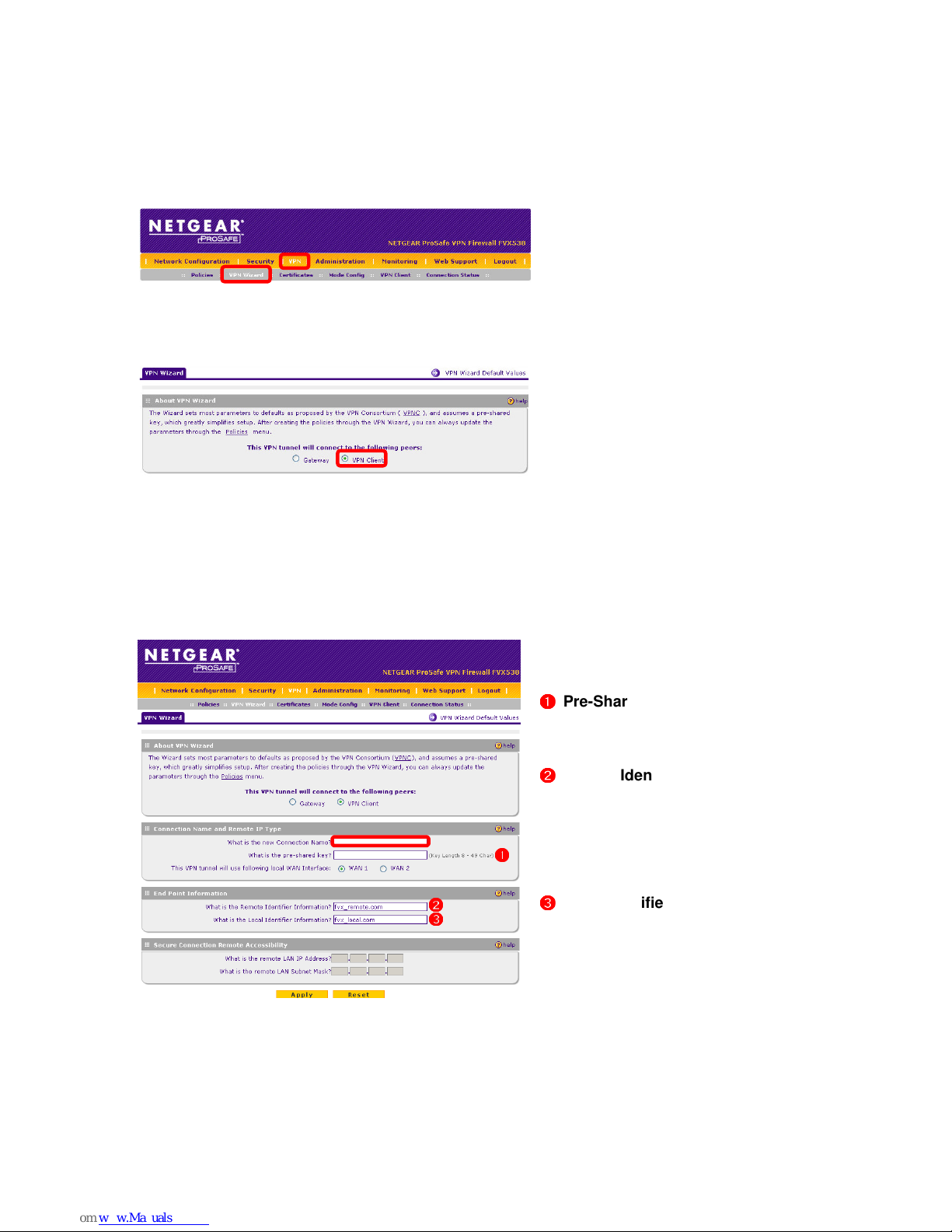

Creation of the VPN Policy on the ProSafe Router:

•From the Router’s GUI, go to the

VPN section and then select the

VPN wizard.

•There, select the option for VPN

Client.

Now you will have the following fields available:

•

Connection Name:

The name can

be any alphanumeric string. It

identifies your tunnel, but it bears no

relevance to the connection.

➊

➊➊

➊

Pre-Shared Key: The name can be

any alphanumeric string from 8 to

49 characters long.

➋

➋➋

➋

Remote Identifier Information:

The name can be any alphanumeric

string. It is a name that identifies the

remote peer in the VPN Connection

(Client). You can leave the default

or create your own identifier.

➌

➌➌

➌

Local Identifier Information: The

name can be any alphanumeric

string. It is a name that identifies the

local peer in the VPN Connection

(Router). You can leave the default

or create your own identifier.

•WAN Interface: If your router has

more than one WAN Interface, you’ll

be prompted to select which interface

to use for the VPN Tunnel.

➊

➊➊

➊

➋

➋➋

➋

➌

➌➌

➌

Version 1.1

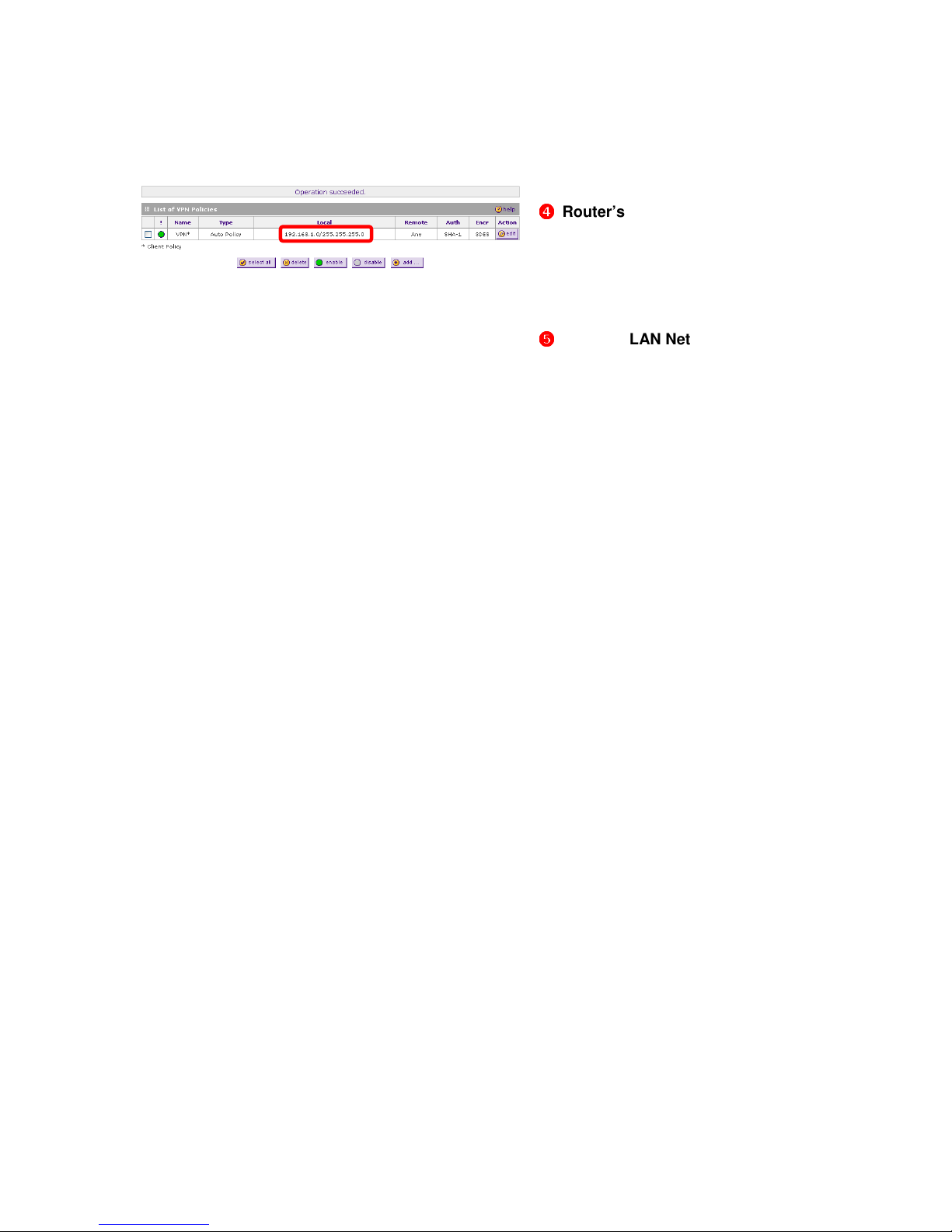

Once you apply, you will see the policy we created in the list of VPN Policies. Make note of the

following:

➍

➍➍

➍

Router’s LAN Network IP

Address: The firsts segment in the

“Local” box. In our screenshot

described as 192.168.1.0 – but may

change depending on the setup of

your router.

➎

➎➎

➎

Router’s LAN Network IP Mask:

The second segment in the “Local”

box. In our screenshot described as

255.255.255.0 – but may change

depending on the setup of your

router.

NOTE: The values you used for the fields marked with red circles will be referenced them with the

same circled numbers while configuring the ProSafe VPN Client software.

Version 1.1

Creation of the VPN Policy on the ProSafe Client:

Before you start configuring the VPN Client, go through the following checklist and make sure you

have all this information.

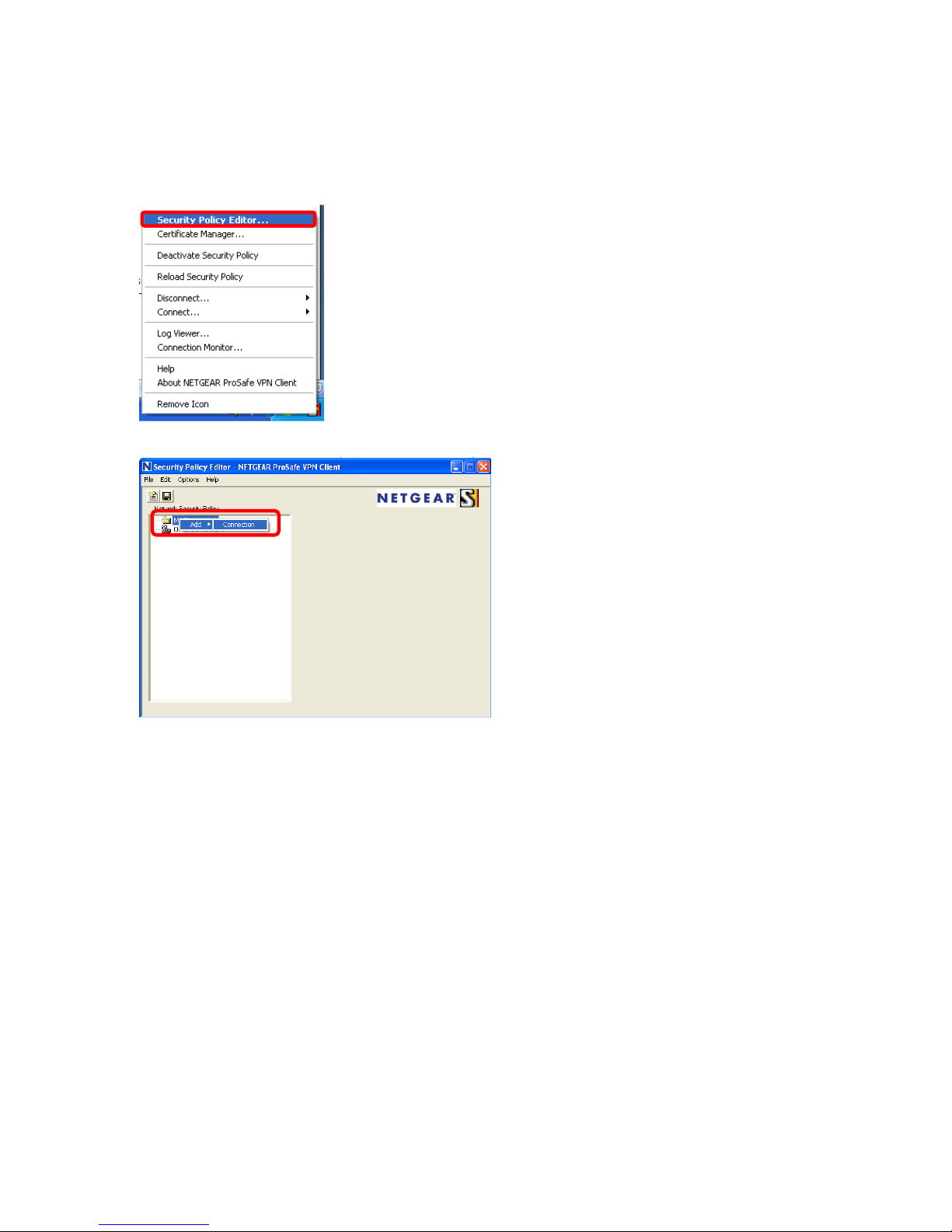

•After installing the VPN Client

Software, right click in the tray icon

for the VPN Client and select the

option Security Policy Editor.

•Right click on “My Connections”

and add a new connection. The

name does not have to be the same

one you used in your VPN Router,

but it is advised you use the same to

facilitate identification of relating

policies. In this example the name

will be “VPN”.

Version 1.1

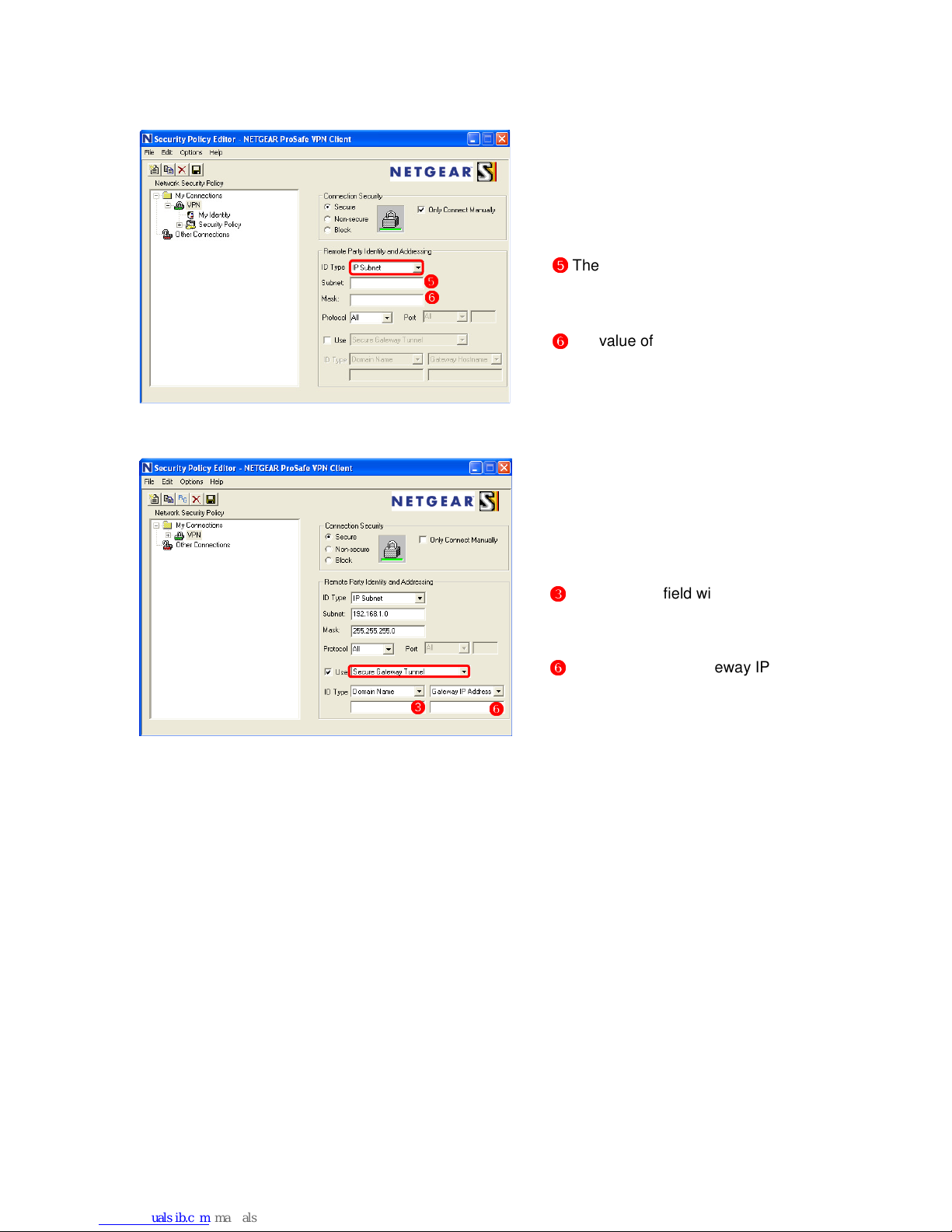

•Click on the name of your new

created policy and change the ID

Type field to IP Subnet

➎

➎➎

➎

The Subnet field will be the value

of your Router’s LAN Network IP

Address.

➏

➏➏

➏

The value of the Mask field will be

the value of your Router’s LAN

Network IP Mask.

•Next, tick the checkbox next to

Use: Secure Gateway Tunnel.

➌

➌➌

➌

The ID Type field will be the value

of your Local Identifier

Information.

➏

➏➏

➏

The value of the Gateway IP

Address will be the value of your

Router’s WAN IP Address.

➎

➎➎

➎

➏

➏➏

➏

➏➏

➏

➌

➌➌

➌

Version 1.1

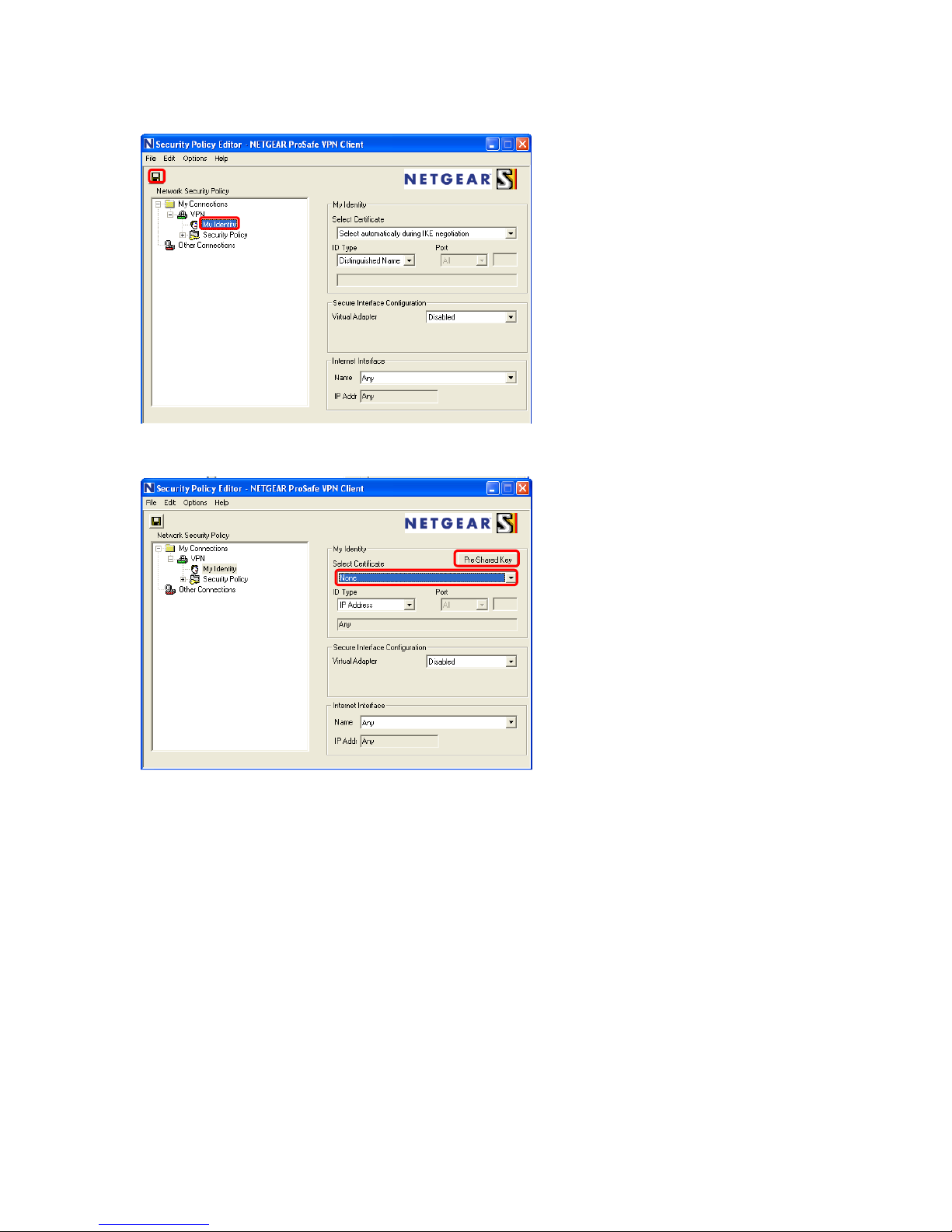

•Click on the plus sign next to your

policy name and then on My

Identity.

•Change the Select Certificate field

from “Automatically during IKE

Negotiation” to “None”, and click

on the Pre-Shared Key button that

will appear on the top right.

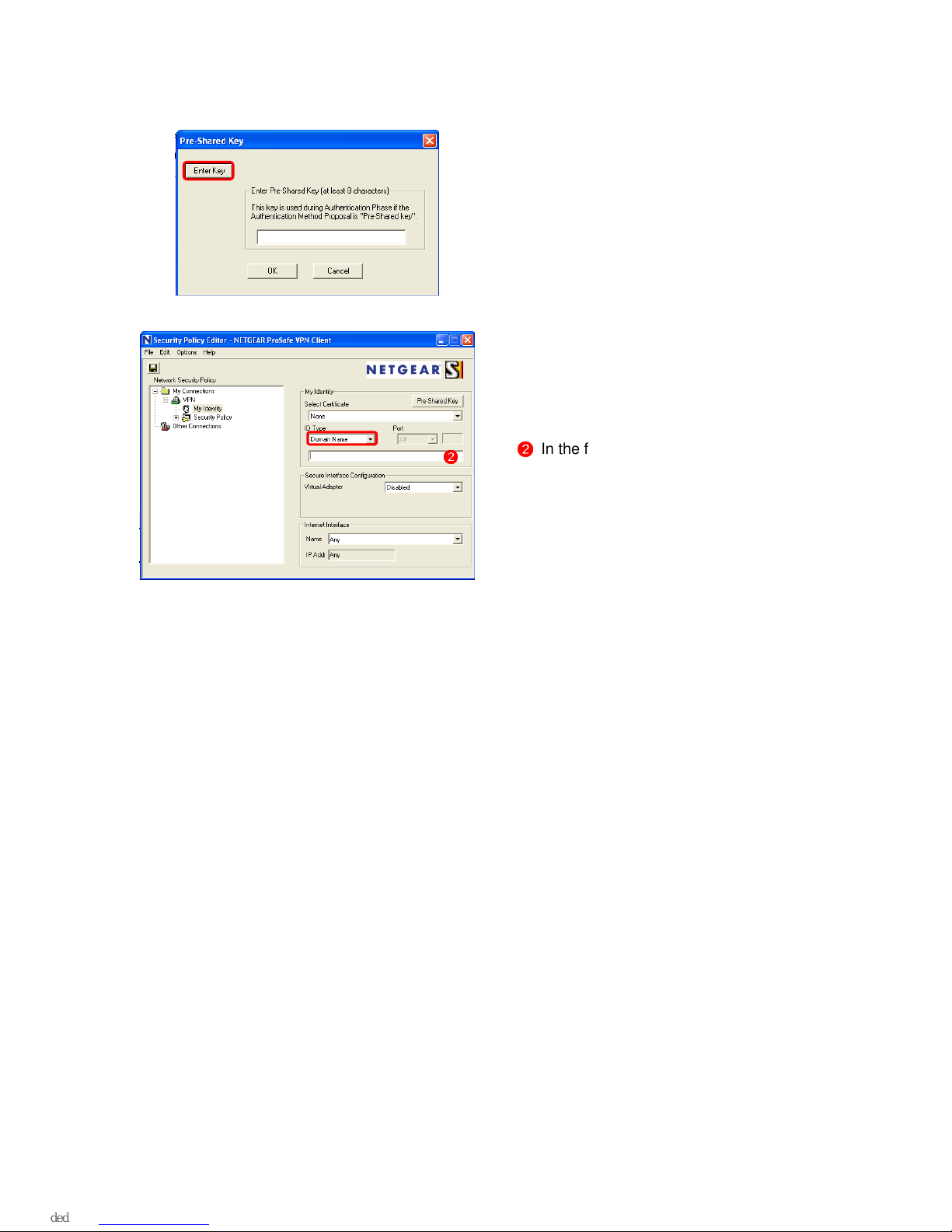

•On the box that will pop up, click

on the Enter Key button.

Version 1.1

•Input the Pre-Shared Key that you

have used when creating the VPN

Policy on the Router and click on the

OK Button.

•Next, change the ID Type to Domain

name.

➋

➋➋

➋

In the field that will open, add the value

of your Remote Identifier

Information.

➋

➋➋

➋

Version 1.1

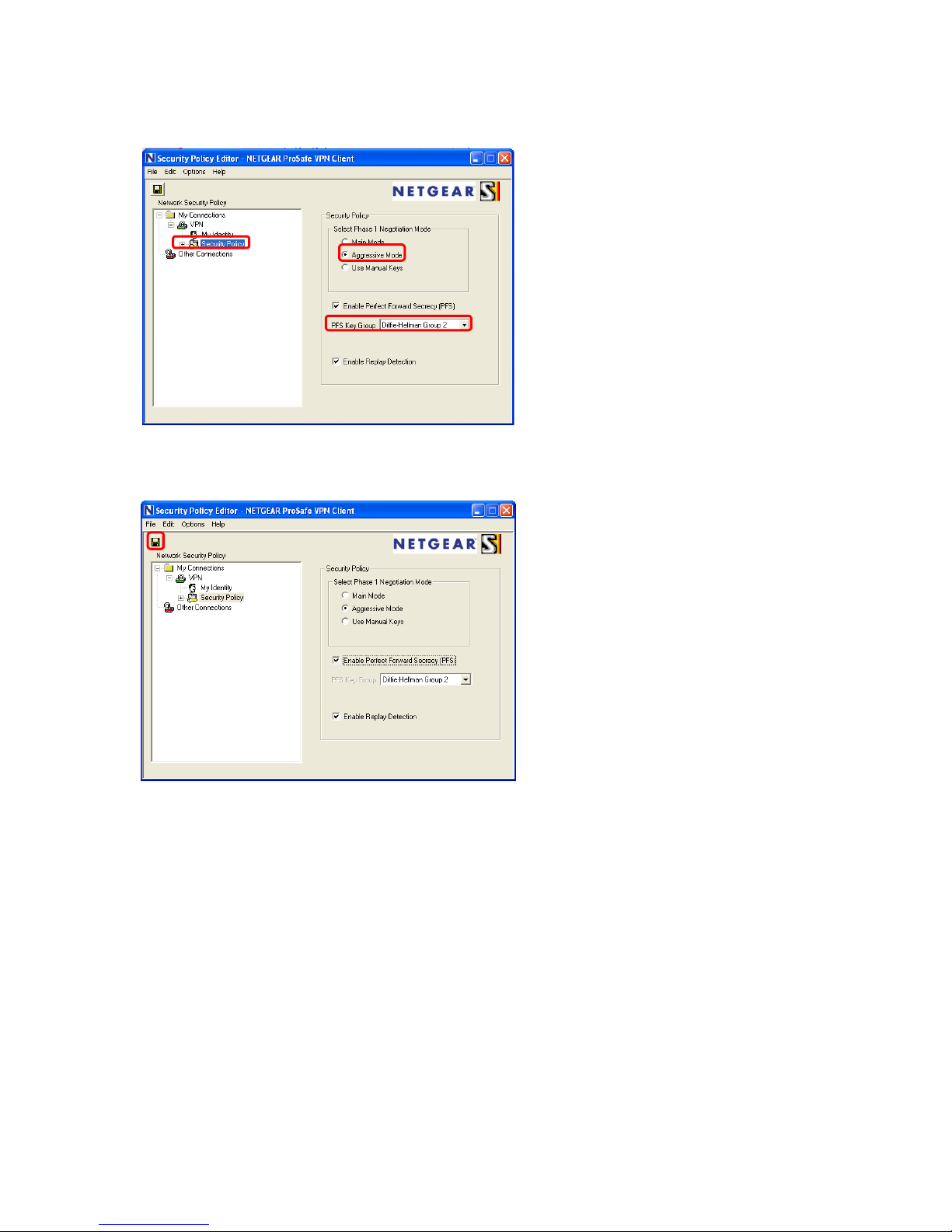

•In the left box, click now on

Security Policy.

•Select Aggressive Mode and tick

the Enable Perfect Forward

Secrecy (PFS) checkbox.

•Leave the PFS Key Group as

Diffie-Hellman Group 2.

•For last, click on the Save button

at the top left of the Security

Policy Editor:

Version 1.1

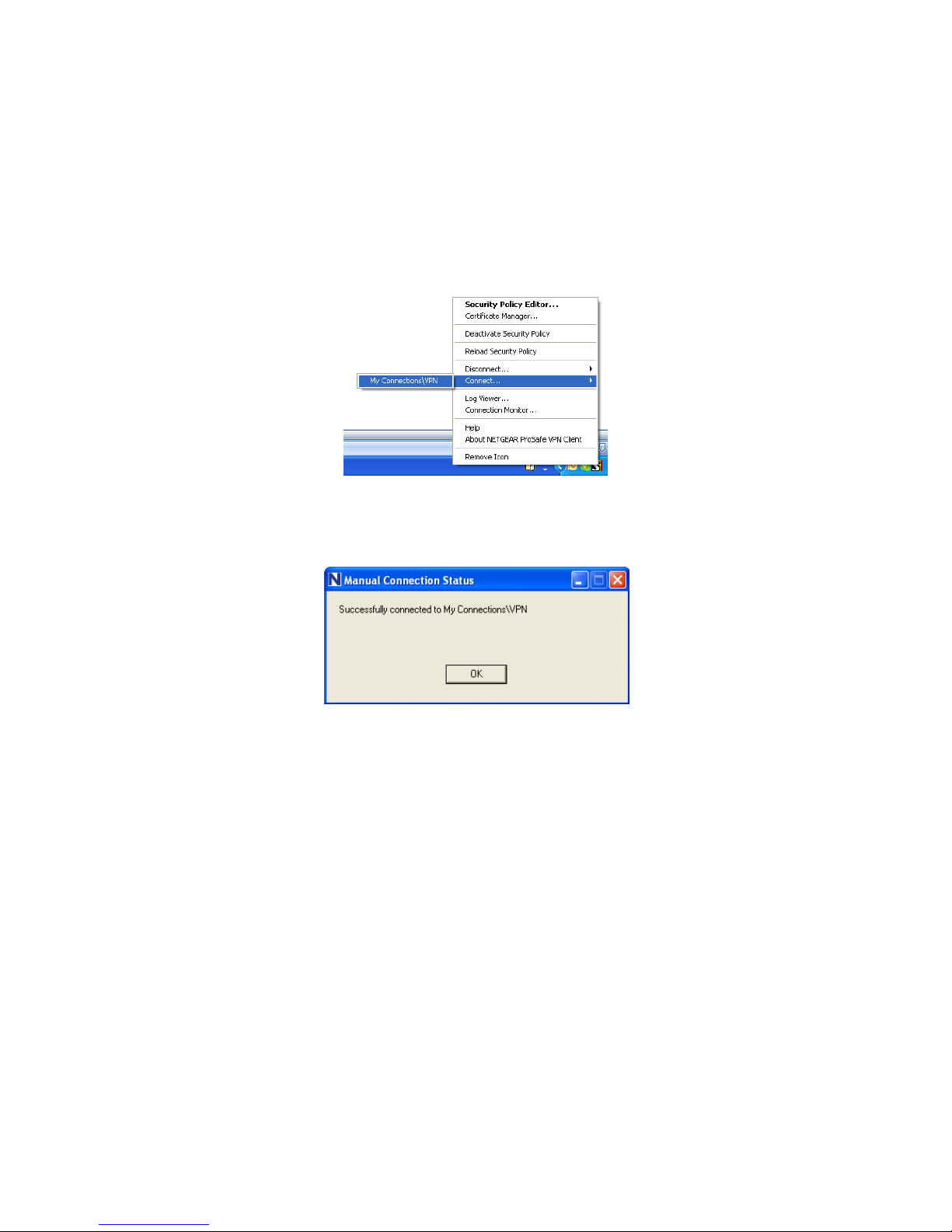

Connecting:

To connect, right click on the tray icon of the Netgear VPN client with your mouse, select connect

and select the connection you just created. If your settings are correct you’ll receive a message

confirming the connection.
