XWNB1601 Installation Guide

Support

Thank you for selecting NETGEAR products. 

After installing your device, locate the serial number on the label of your product

and use it to register your product at https://my.netgear.com.

You must register your product before you can use NETGEAR telephone support.

NETGEAR recommends registering your product through the NETGEAR website.

Phone (US only): 1-888-NETGEAR

Phone (Other Countries): 

Visit http://support.netgear.com/general/contact/default.aspx.

NETGEAR recommends that you use only the official NETGEAR support

resources.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks

and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the

United States and/or other countries. Information is subject to change without

Contents

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

LED Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Button Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Install the Adapters and Surf the Web with WiFi . . . . . . . . . . . . 6

Install NETGEAR genie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Compatible NETGEAR Powerline Devices . . . . . . . . . . . . . . . 20

NETGEAR recommends

that you do not plug a

Powerline device directly

into a powerstrip.

Package Contents

Ethernet cables (2)

XAV1601

XAVN2001

Hardware Features

Powerline AV 200 Adapter

(XAV1601)

Powerline

LED

Power

LED

Ethernet

LED

Power

LED

Wireless

LED

Powerline

LED

Ethernet

LED

Factory

Reset

button

Ethernet

port

Security

button

On/Off

switch

Powerline 200 WiFi Range Extender

(XAVN2001)

Security

button

Ethernet

port

LED Descriptions

The LEDs indicate the status of your Powerline devices.

• When you plug in the Powerline device, the Power LED

lights and turns green.

• The Ethernet LED lights and turns green when you connect

a powered-on Ethernet device to at least one Ethernet port. If the

LED is off, there is no Ethernet connection.

• The Wireless LED lights and turns green when the wireless

radio is on.

• The Powerline LED lights when the Powerline device detects at

least one other compatible Powerline device.

The Pick A Plug feature lets you pick the electrical outlet with the

fastest link rate.

- Green: Link rate > 80 Mbps (Fast)

- Amber: Link rate > 50 and < 80 Mbps (Medium)

- Red: Link rate < 50 Mbps (Slow)

Button Descriptions

The buttons on your Powerline devices let you do the following:

• Factory Reset button: Use the Factory Reset button to return your

Powerline device to its default factory settings. Press the Factory

Reset button for 2 seconds, and then release it.

• Power On/Off switch: Use the On/Off switch to turn the device on

and off.

• Security button: The Security button has three functions:

-Secure the Powerline network.

-Create a WiFi access point on the XAVN2001 that has the

same wireless settings as your router or gateway.

-Automatically connect your wireless client to the XAVN2001

WiFi access point.

Install the Adapters and Surf the Web with WiFi

1. Secure your Powerline network.

a. Make sure that the Power LED is solid green on each

Powerline device.

b. On the XAV1601 adapter, press its Security button for 2

seconds, and then release the button. The Power LED

blinks green while the adapter is setting up security.

c. Within 2 minutes, go to the XAVN2001 extender and press

its Security button for 2 seconds, and then release the

button.

d. After a few seconds, the security is set and the Power LED

turns solid green.

The Powerline devices can communicate over the Powerline

network in a secure way.

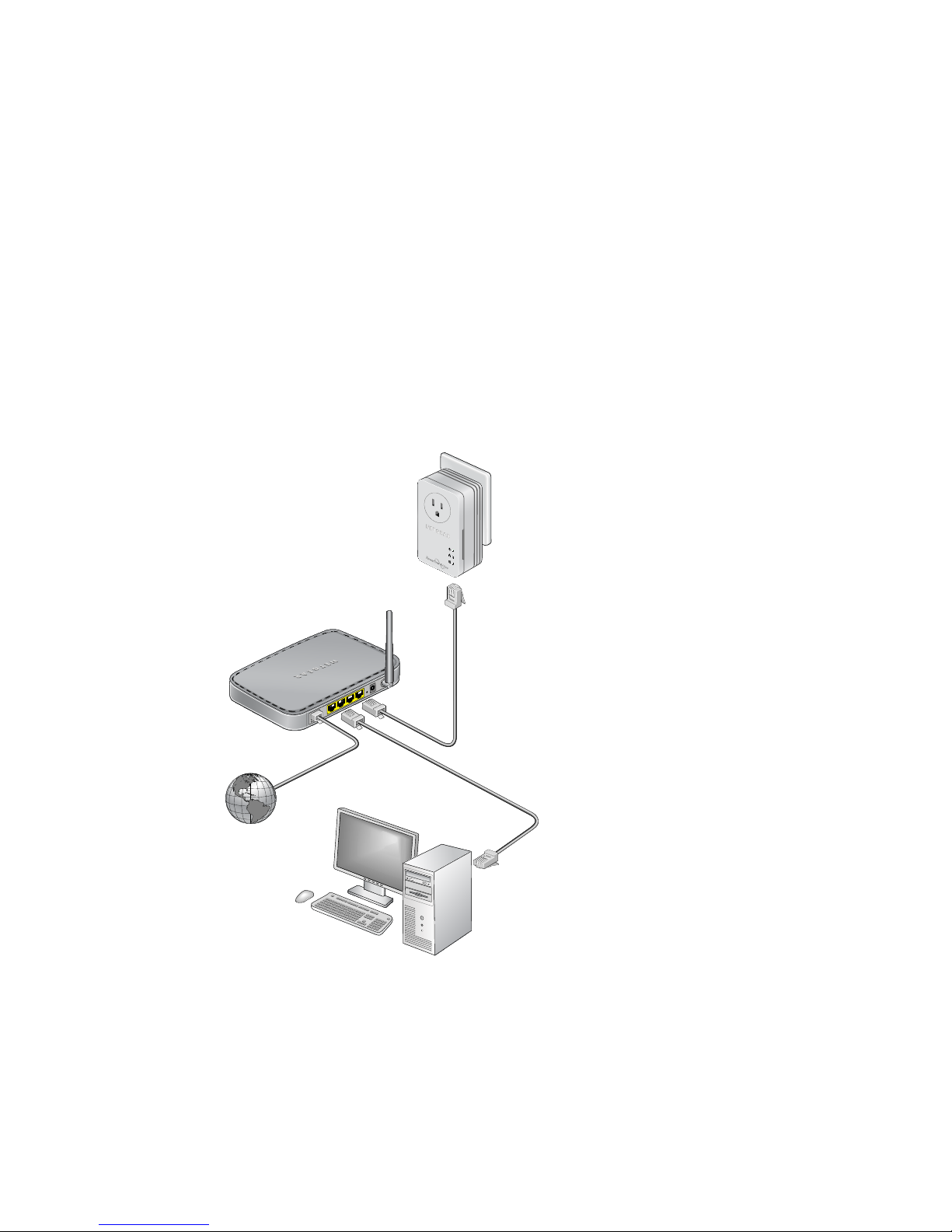

2. Plug the XAV1601 into a wall outlet near your router or gateway.

3. Connect the XAV1601 through the LAN port with an Ethernet

cable.

If you want to share Internet access across your home, make

sure to connect the XAV1601 to your Internet gateway with an

Ethernet cable.
