NetComm HS1100N Manual de usuario
Wireless N Hotspot
Quick Start Guide
2 HS1100N Quick Start Guide
YML-QSG-HS
Preface
Revision History
Document Revision Change List
1.0—May 2011 Initial Document Release
The feature-rich NetComm Wireless N Hotspot HS1100N enables any business or ofce environment
to set up a hotspot location offering a wireless Internet connection for up to 100 users at a time.
Package Contents
The following items should be included in your HS1100N package.
1. 1 x HS1100N
2. 1 x Quick Start Guide
3. 1 x Console cable
4. 1 x Ethernet cable
5. 1 x DC power adapter
6. 2 x WiFi antennas
7. 1 x Wall mounting kit
8. 1 x Ground cable
If any of the above items are missing, please contact NetComm immediately.
Please note: It is recommended to keep the original packaging materials in case repair or maintenance is necessary.
This will protect the HS1100N from damage during transport.
HS1100N Quick Start Guide 3
YML-QSG-HS
Wireless N Hotspot – HS1100N
System Overview
Front Panel
Item Description
Power Socket (12VDC / 1.5A) For connecting to an external power supply.
Reset Press once to restart the system.
WAN (PoE) For connecting to a wired external network. (The WAN port supports
powering the HS1100N via PoE)
LAN1 / LAN2 For connecting to a wired internal network.
LAN1 – Maps to the “Private Zone” and requires authentication.
LAN2 – Maps to the “Public Zone” and requires authentication.
Console For connecting an RS-232 console cable to perform system management.
WES Press to start the WES (WDS Easy Setup) process.
USB Reserved for future use.
Rear Panel
Item Description
Antenna Connectors Attach the included WiFi antennas here. (The HS1100N offers 1 WiFi
interface with 2 SMA connectors)
4 HS1100N Quick Start Guide
YML-QSG-HS
Top Panel
The following indicator lights (LEDs) provide a quick way to check the current status of the HS1100N.
Icon Item Description
Power LED on – Power is being supplied to the HS1100N
LED off – The HS1100N is not powered on
WAN LED on – The HS1100N is connected via the WAN port
LED ashing – Data is being transmitted through the WAN port
LED off – The HS1100N has no connection via the WAN port
/ LAN1 /
LAN2
LED on – The HS1100N is connected via the LAN port
LED ashing – Data is being transmitted through the LAN port
LED off – The HS1100N has no connection via the LAN port
WLAN LED on – The HS1100N is broadcasting wirelessly
LED off – The HS1100N is not broadcasting wirelessly
Internet LED on – The HS1100N is currently able to access the Internet
LED off – The HS1100N is not able to access the Internet
(The detection interval is 1 minute. Therefore this reects the connection status within the last minute)
Indicates the current WES (WDS Easy Setup) status during WES setup:
WES
Master Slave
WES Start LED Blinks Slowly LED blinks quickly
WES Negotiate LED Blinks Slowly LED blinks quickly
WES Fail (Negotiate Timeout) LED off LED off
WES Success LED on for over 5 seconds LED on for over 5
seconds (after master
displays ‘WES Success’)
USB Reserved for future use.
HS1100N Quick Start Guide 5
YML-QSG-HS
Wireless N Hotspot – HS1100N
Hardware Installation
Please follow the steps mentioned below to install the HS1100N.
1. Place the HS1100N in the best location possible.
The best location for the HS1100N is usually at the centre of your wireless network. This ensures it is
able to get a clear wireless signal.
2. Connect the HS1100N to your outbound network device.
Connect one end of the supplied Ethernet cable to the WAN port on the front of the HS1100N.
Connect the other end of the Ethernet cable to the device in use that will be used to provide access
to the Internet. This may be an ADSL Router, a cable modem or a switch/hub. The WAN LED should
light up to indicate a proper connection.
3. Connect the HS1100N to your network device.
Connect one end of an Ethernet cable to the LAN1 port on the front of the HS1100N. Connect the
other end of the cable to the Ethernet port on the computer being used to congure the HS1100N.
The LAN1 LED should light up to indicate a proper connection has been made.
Please note: The HS1100N has two virtual ‘zones’ (Private and Public). These zones are mapped to LAN1
(192.168.110.1) and LAN2 (192.168.11.254) respectively.
4. There are two ways to supply power to the HS1100N.
a) Connect the DC power adapter to the power socket on the front panel of the HS1100N.
Please note: Only use the power adapter supplied with the HS1100N. Using a different power adapter may
damage the system.
b) The HS1100N is capable of receiving DC current via the WAN PoE port. Connect an IEEE
802.3af-compliant PSE device (For example: A PoE-switch) to the WAN port of the HS1100N
with an Ethernet cable.
Please note: To verify the wired connection between the HS1100N and the switch/hub/router, you can also check
the LED status indicators of these network devices.
5. Thehardwareinstallationisnownished.
6 HS1100N Quick Start Guide
YML-QSG-HS
Getting Started
The HS1100N offers a web based conguration page. After completing the hardware installation
above, the HS1100N can be congured through a computer by utilising a web browser with
JavaScript enabled.
The default LAN IP addresses are:
1. LAN1: 192.168.110.1 – This is mapped to the Private Zone; User authentication is required to
access network resources.
2. LAN2: 192.168.11.254 – This is mapped to the Public Zone; user authentication is required to
access network resources.
Please note: The following instructions utilise the administration computer connected to the LAN1 port.
HS1100N Quick Start Guide 7
YML-QSG-HS
Wireless N Hotspot – HS1100N
Conguration Steps
1. Once the hardware installation steps are complete, please follow the appropriate setup steps for
using DHCP in your operating system. The HS1100N will then be able to automatically assign an
IP address to the computer or connected device.

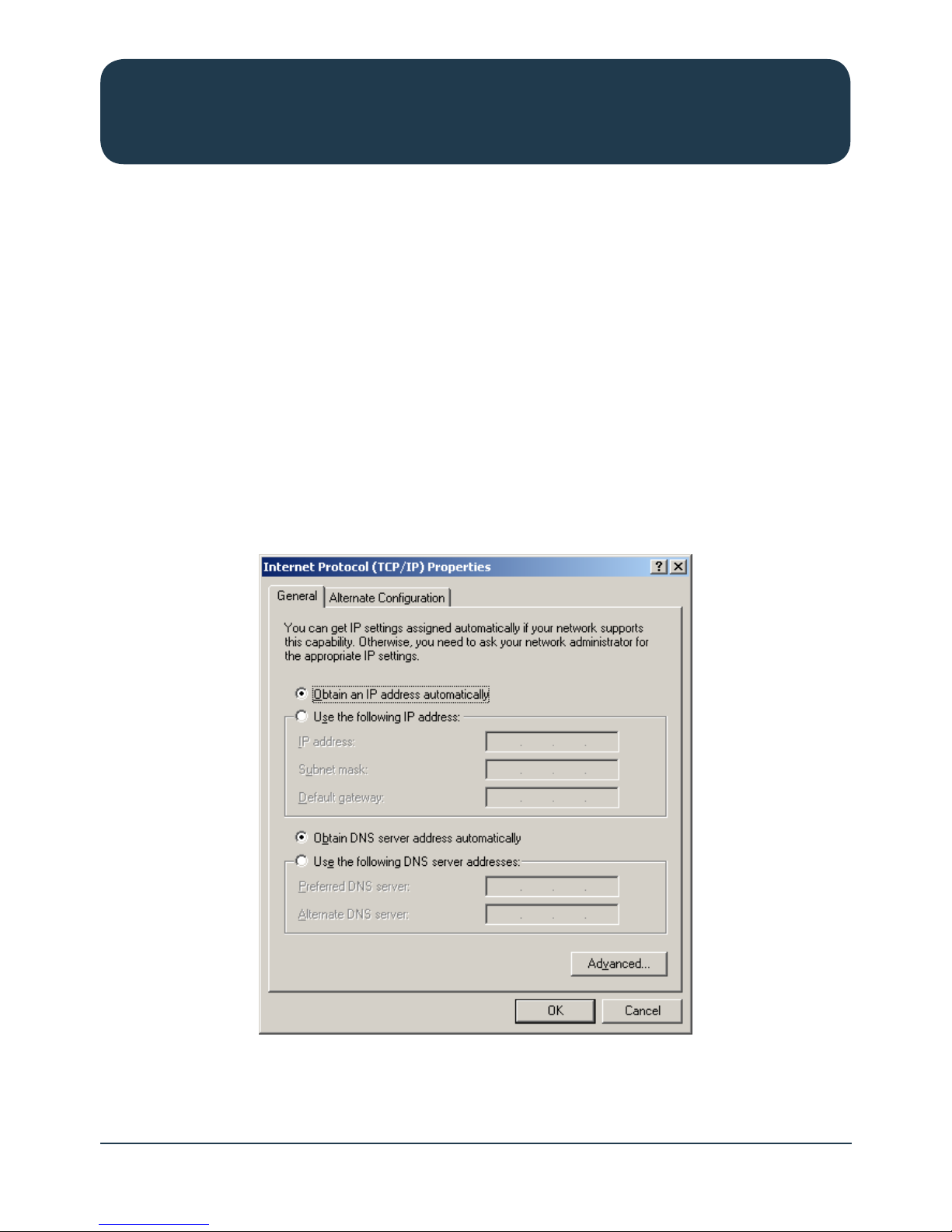

Windows XP
- Click on “Start” -> “Control Panel” (in Classic View). In the Control Panel; double click on
“Network Connections”.
- Right click on “Local Area connection”, and then left click on “Properties”.
- Double left click on “Internet Protocol (TCP/IP)”.
- Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then
click on “OK” to continue.
- Click “Show icon in notication area when connected” then click on “OK” to complete the
network conguration procedure.
8 HS1100N Quick Start Guide
YML-QSG-HS
Windows Vista
- Click on “Start” -> “Control Panel” (in Classic View) -> “Network and Sharing Center”.
- In the Manage network connections on the left hand side of the window, click on “Manage
network connections” to continue.
- Right click on “Local Area connection”, and then left click on “Properties”.
- The screen will display the information “User Account Control”. Click “Continue” to continue.
- Double click on “Internet Protocol Version 4 (TCP/IPv4)”.
- Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then
click on “OK” to continue.
- Click on “OK” to complete the network conguration procedure.
HS1100N Quick Start Guide 9
YML-QSG-HS
Wireless N Hotspot – HS1100N
Windows 7
- Click on “Start” -> “Control Panel” (in Category View) -> “View network status and tasks”.
- In the Control Panel Home, click on “Change adapter settings” on the left hand side of the
window to continue.
- Right click on “Local Area Connection”, and then left click on “Properties”.
- Double click on “Internet Protocol Version 4 (TCP/IPv4)”.
- Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then
click on “OK” to continue.
- Click on “OK” to complete the setup procedure.
10 HS1100N Quick Start Guide
YML-QSG-HS
Mac OS X
- Click on the Apple menu and click on “System Preferences”.
- Click on the “Network” icon.
- Set “Location” to Automatic.
- Click on the “Ethernet” item in the list on the left hand side.
- In the “Congure IPv4” section, choose “Using DHCP”
- Click on “Apply”.
