NETCOMM POWERLINETM SERIES

200Mbps Wireless N300

Powerline Adapter

NP202WN

1

Device Overview

1

5

6

7

2

3

4

Device Overview

1. Wireless LED - Lights up when a wireless signal is being transmitted

2. LAN LED - Lights up when either/both of the LAN ports are in use

3. Powerline LED - Changes colour depending on data transfer

4. Power LED - Shows when your Powerline Adapter is plugged into a wall socket

5. 2x LAN ports - To connect devices such as laptops, computers or a router

6. Reset button - This button restores factory default setting

7. Simple Connect button - Use this button to pair 2 or more Powerline Adapters

2

Pairing Powerline Devices

• ConnectthePowerlineAdapterstopoweroutletsclosetogethersoyoucan

observe the LED behaviour. Upon connection the power LED will remain on

• HoldtheSimple ConnectbuttondownontherstdeviceuntiltheLEDsash,

then hold the Simple Connect on the second device for 3secondsandnally

hold the Simple Connect buttonontherstdevicefor3seconds

• Toconrmtheconnectionwasmade,thepower and powerline LEDs on all

Adapters will be on

3

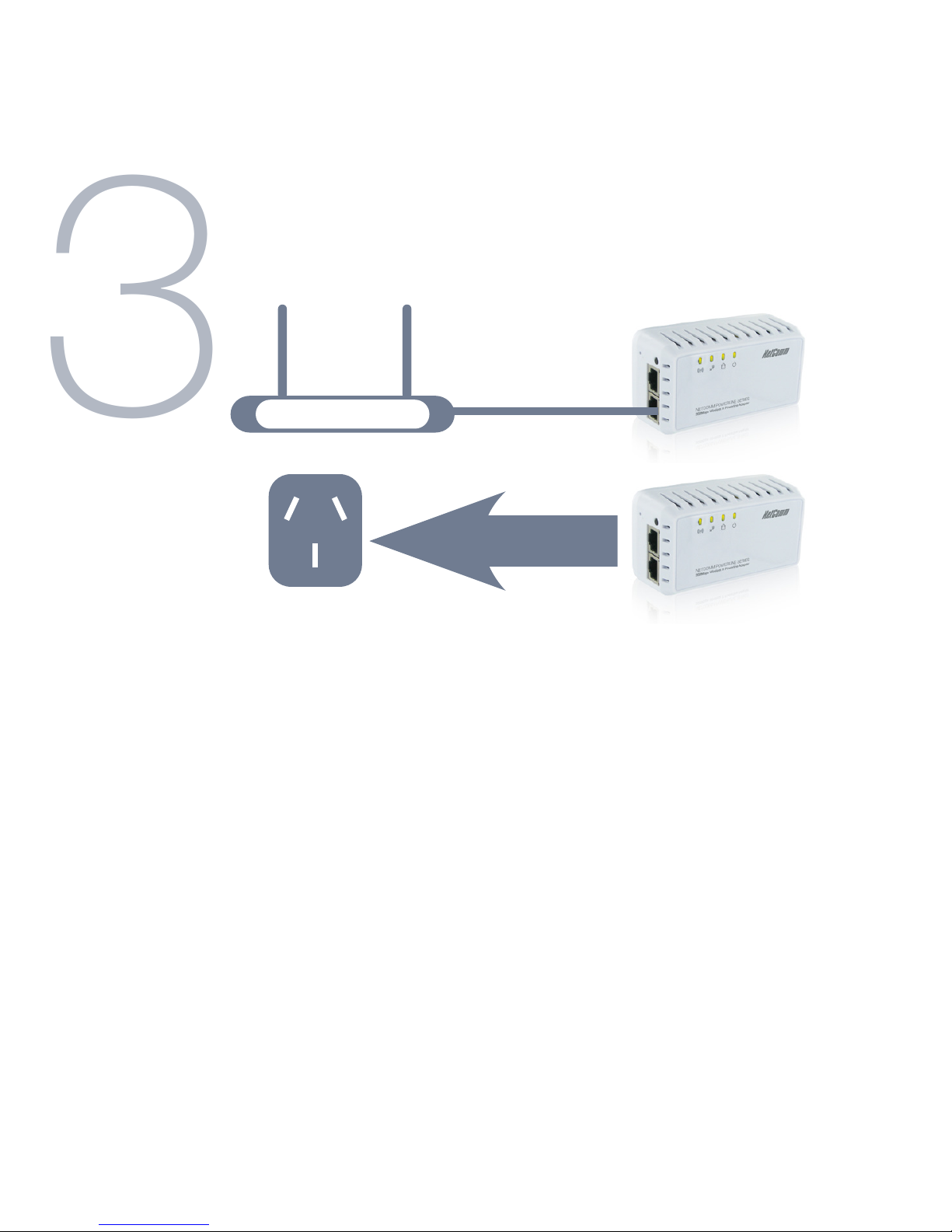

Creating a Powerline Network

NOTE: You will need at least one other 200Mbps Powerline Adapter to create a powerline network with the NP202WN. If you need another Powerline

Adapter, try another NP202WN or the NP201AV or NP204 (also available from NetComm).

You will need to connect one Powerline Adapter to your broadband modem/router.

It does not matter which powerline adapter you use to do this.

NOTE: We recommend you position the NP202WN closest to the point where you will access the Internet wirelessly. This will result in improved

performance.

Connect your other Powerline Adapter/s to any power point in your house to

complete your powerline network.

You will now be able to access the Internet with the NP202WN via the 2 LAN ports

or Wireless N.

You can connect multiple wireless devices, including laptops, desktops and PDA’s

to your NP202WN by following the 2 basic steps

1. Using your wireless device, scan the wireless networks in your area and select

the network that is the same as the Wireless SSID that is listed on the sticker

on the back of the device. Then click connect. The Wireless SSID will be in the

format NetComm_XXXXXX (where X can equal letters or numbers)

2. Enter the wireless security key for your device. The unique security key will be

4

Establishing Wireless Connection

64XXXXXX (Where the X’s are the same letters and/ or numbers in your

wireless SSID). Later releases of the NP202WN use the default wireless

security key of "a1b2c3d4e5" (no quotations).

5

Troubleshooting

WHAT CAN THE LEDS TELL ME?

The Powerline LED changes colour depending on the speed of your data transfer.

- Fastest - Faster - Fast

LED Off - Adapter not paired or wall socket not turned on.

MY POWERLINE ADAPTERS WILL NOT CONNECT TO EACH OTHER

• GetbothadaptersandconnectthemasdetailedinthisQSGbuttopower

sockets that are close to each other in the same room.

• HolddowntheSimple Connect button on device 1 for 15 seconds (or until the

LEDsash),thenholdtheSimple Connect on device 2 for 3secondsandnally

hold the Simple Connect button on the device 1 for 3seconds.

• Youcannowmovethepairedadapterstoanywherewithinyourhouse.

If problems persist, you may have an issue with your in-house wiring.
