Netcomm NB16WV-02

Quick Setup Guide

Welcome

This Netcomm NB16WV-02 modem router has

everything you’ll need to get online with ADSL

broadband or fibre internet.

Welcome

What are you setting up today?

You’ll need to plug in and set up your modem

a little differently depending on which type of

internet you have.

ADSL Broadband or Naked DSL

See page 6

NBN Fibre

See page 10

Netphone

See page 18

Need some

Wi-Fi tips?

To learn how to customise your

Netcomm’s default Wi-Fi networks,

turn to page 13.

For tips on how to connect your

computers and devices to the

Netcomm’s Wi-Fi, see page 20.

Get to know your Netcomm - Back Panel

Power Port

USB Storage

Plug in a USB

drive to make files

available on your

home network

WPS/Reset Button

Hold for 1-2 seconds

to turn on WPS

search mode (learn

more on page 20).

Hold for 10 seconds

to factory reset

Ethernet Ports

Plug in computers

or laptops with

Ethernet cable

WAN Port

For use with NBN

Fibre or other

fibre services

ADSL Port

For use with ADSL

or Naked DSL

services

VoIP Phone Port

Plug in a handset

for use with a

Netphone (VoIP)

phone service

Power Button

3G/4G USB Mobile

Broadband Port

Plug in a USB

modem to use

Netcomm as a

Wi-Fi router for

mobile broadband

Power

Flashes during

startup

www (Internet)

Shows active internet

connection. Flashes when

connection in use. Colour varies:

Red - 3G/4G Mobile broadband

Blue - ADSL/Naked broadband

Purple - NBN/Fibre internet

LAN (Ethernet)

Shows active

Ethernet

connection.

Flashes during

data transfer

WAN (Ethernet)

Shows active

connection to

fibre unit

VoIP (Netphone)

Shows VoIP

service is

configured.

Flashes during

connection

attempt

Wi-Fi

Shows Wi-Fi is

enabled. Flashes

when WPS Search

Mode is on

ADSL (Sync)

Shows ADSL

connection.

Flashes during

startup

3G/4G USB Mobile

Broadband

Shows 3G/4G USB

modem status.

Blue is connected.

Red is a

connection error.

Flashes during

connection

attempt

Get to know your Netcomm - Front Panel

ADSL

LINE

PHONE

Line Filter

You only need to use the line filter if

you have ADSL and you need to plug the

modem and a handset for Home Phone

into the same wall socket

Phone Cable

Power Button

Power Cable

Power Socket

Phone

Socket

Line Filter Cable

Phone Handset

Plug into your

computer’s

Ethernet Port

(optional)

Plugging in for ADSL Broadband or Naked DSL

1. Take the white phone cable and plug one end into the grey ADSL port on the back panel of your modem.

2. ADSL Modem and Home Phone in the same wall socket: Plug the other end of the phone cable into the ADSL

port on your line filter, and then plug the line filter into the telephony wall socket.

Naked DSL or ADSL only: Plug the other end of the phone cable directly into the telephony wall socket (do

not use the line filter).

3. Take your black power supply cable and plug the appropriate end into the Power port.

4. Plug the other end of the power supply cable into an electrical outlet and make sure it’s turned on. You can

then turn your modem on using the Power button on the back panel.

5. You can connect multiple Wi-Fi enabled computers, tablets or smartphones to one of your modem’s default

Wi-Fi networks. Just use the details on the Wireless Security Card found in the box – if you’re not sure which

network to use, go with the 2.4GHz one.

6. Alternatively you can connect a computer by plugging one end of the yellow Ethernet cable into any of the

yellow Ethernet ports and the other end into your computer’s Ethernet port.

7. Let your modem rest for 10-15 minutes. In most cases it will be able to retrieve your settings and connect

automatically. Try viewing a website – if it works, you can skip to page 20.

If you were unable to view a website, turn to the next page to continue with a manual setup.

Manual setup for ADSL Broadband or Naked DSL

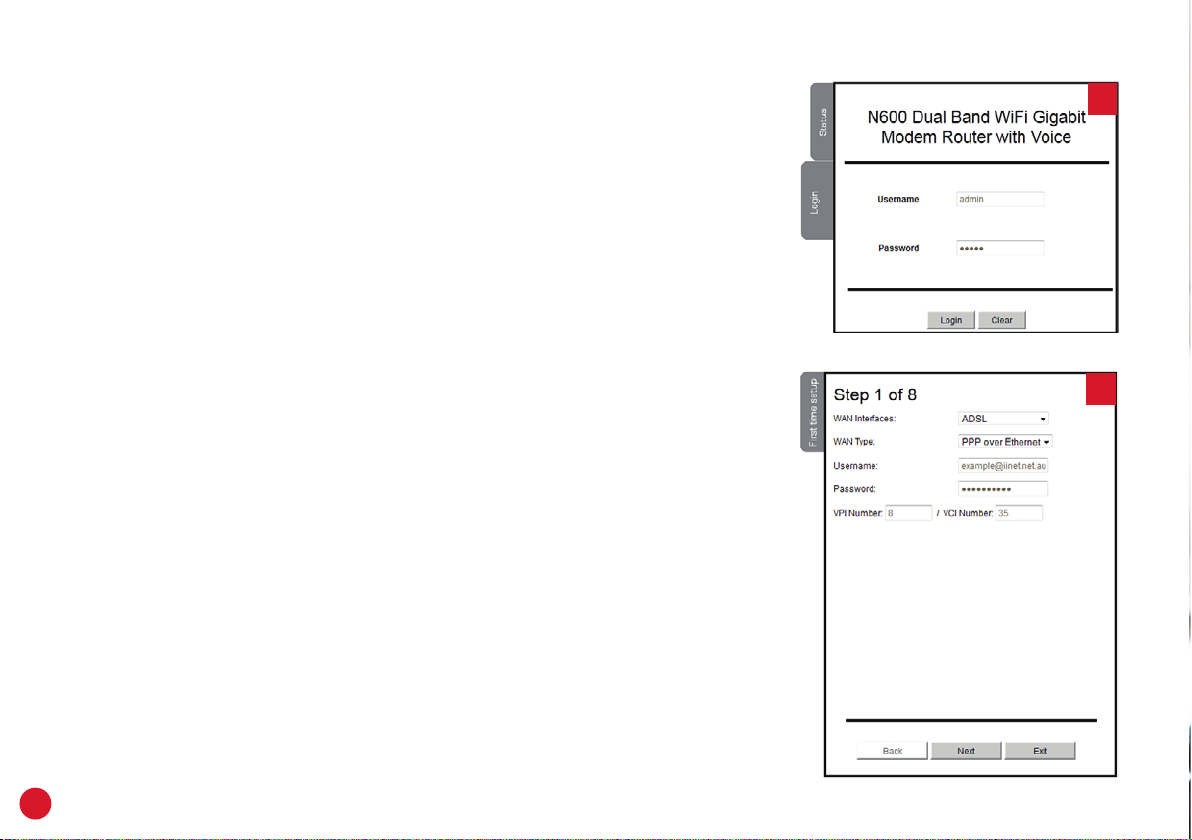

1. On your connected computer or Wi-Fi device, open your web

browser and go to: http://10.1.1.1

2. Log in with the default username admin and the default

password admin.

3. Select Yes, let’s get started with the wizard.

4. Select ADSL from the WAN Interfaces drop-down menu, and

then fill in the following details:

WAN Type: PPP over Ethernet

Username: Your full ADSL/Naked username

(include any “@domain.com.au”)

Password: Your ADSL/Naked password (case

sensitive)

VPI Number: 8

VCI Number: 35

5. If you have a VoIP (Netphone) service, enter your VoIP settings

on this page and then click Next. Advanced or third-party VoIP

setup can be found on page 18.

6. Click Next, and then turn to page 13 to continue with the

Wi-Fi setup.

If you ever need to run the Startup Wizard again,

you can select Startup Wizard from the Toolbox

drop-down menu in Advanced view.

Plugging in for NBN or Fibre

NBN Connection

Box/Fibre Unit

Ethernet Cable

Smart Wiring

Some homes may have internal smart wiring, allowing

your NBN Connection box to be plugged into a smart

panel in one room, and your Netcomm to be plugged

into the corresponding smart socket in another room

Power Button

Power Cable

Power Socket

Plug into your

computer’s

Ethernet Port

(optional)
