E-CODER®QUICK INSTALL GUIDE

E-CODER

Quick Install Guide

1 General Instructions

The E-CODER®is an electronic absolute encoder register

designed for use with Neptune’s Automatic Reading and Billing

(ARB®) System. This register operates with Neptune’s R900®

and R450™MIUs, providing advanced features such as leak,

backflow, and tamper detection.

With the E-CODER register, both the homeowner and the utility

can use the following features.

• Nine-digit display for visual reading

• Eight digits for billing

• Water flow indicators

• Intermittent leak detection icon on LCD panel

• Continuous leak detection icon on LCD panel

This guide can help you identify and read information displayed

on the E-CODER register. It can also help you recognize the

common causes of leaks and what to do if a leak is found. After

the leak is repaired, this guide also contains steps to determine

that the leak is no longer evident.

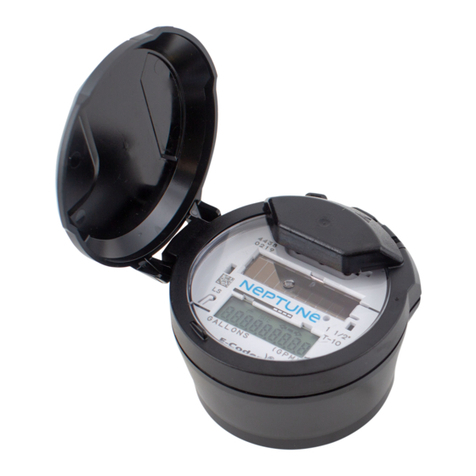

2 Product Description

The face of the E-CODER allows you to read various types of

information available. The face of the E-CODER is shown in

Figure 1.

Figure 1 E-CODER Coder Face

Solar panel

Nine-digit

meter reading

LCD

display

3 Wiring Inside Set Version

Run a three-conductor cable from the E-CODER register to the

MIU. Refer to the following steps.

1 Connect the three-conductor wire to the encoder register’s

terminals as described in the manufacturer’s instructions,

using the color code in Table 1.

2 Remove the terminal cover with a flat-head screw driver as

shown in Figure 2.

Figure 2 Removing the Terminal Cover

Figure 3 Wiring with Proper Color Wire

Table 1 Encoder Wiring

Neptune E-CODER Black/B Green/G Red/R

3 Wire the encoder register

with the proper colors. See

Figure 3.

4 Test the wiring to verify the

read.

Figure 4 Routing the Wire

Figure 5 Applying Compound

Figure 6 Placing Cover on Register

5 Route the wire as shown in

Figure 4.

6 Apply Novagard G661 or

Dow Corning®Compound

#4 to the terminal screws

and exposed bare wires.

See Figure 5.

Neptune recommends Novaguard G661 or Dow

Corning Compound #4.

Novagardmaycauseirritation toeyes andskin.

If swallowed, do not induce vomiting; dilute

with one to two glasses of water or milk and

seek medical attention. Please refer to:

• MSDS Novagard Silicone Compounds &

Grease Inc. 5109 Hamilton Ave. Cleveland,

OH 44114, 216-881-3890.

• For copies of MSDS sheets, please

call Neptune’s Customer Support

at (800) 647-4832.

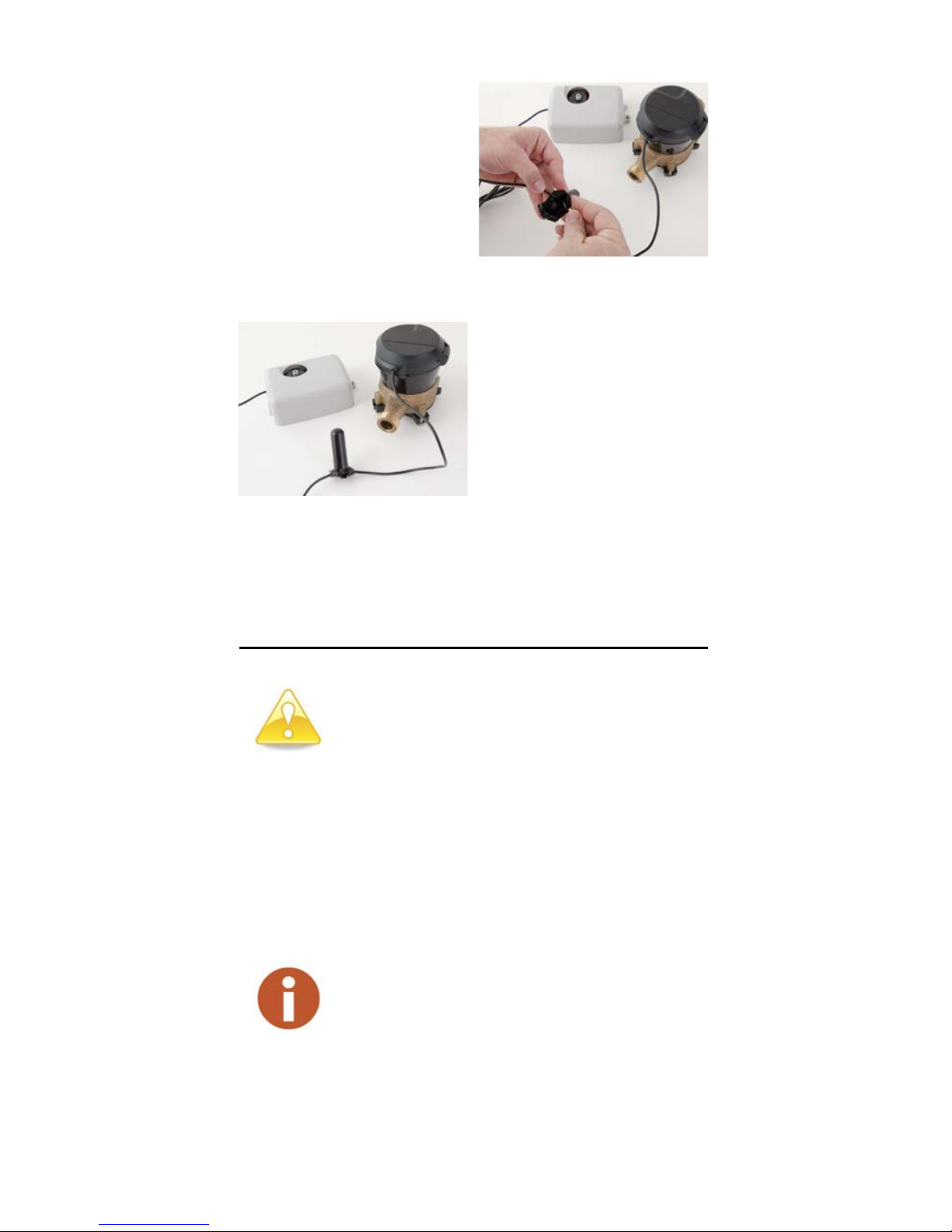

7 Place terminal cover on the

routed through strain relief.

See Figure 6.

Figure 7 Snapping Cover in Place

9 Proceed to “How to Activate” on page 10.

4 Wiring the Pit Set Version

Complete the steps to wire the pit set version.

Figure 8 Installation Components

Figure 9 Scotchlok Connector

8 Snap the terminal cover in

place by pressing on the

molded arrow as shown in

Figure 7.

Figure 8 shows the components required for

installation.

1 Hold the Scotchlok

between the index finger

andthumbwiththe red cap

facing down. See Figure 9.

Figure 10 Seating Connector Wires

Figure 11 UR Crimping Tool

Figure 12 Improper Connections

5 Squeeze the connector firmly with the proper crimping tool

until you hear a pop and gel oozes out the end of the

connector.

2 Takeonenon-strippedblack

wirefromthepigtailandone

from the receptacle/MIU by

inserting the wires into the

Scotchlok connector until

fully seated. See Figure 10.

Do not strip the colored insulation from the

wires or strip and twist the bare wires prior to

inserting in the connector. Insert the insulated

colored wires directly into the Scotchlok

connector.

3 Place the connector red

capsidedownbetweenthe

jaws of the UR crimping

tool as shown in Figure 11.

Refer to Table 3 on

page 10 for part numbers.

4 Check to ensure that the

wires are still fully seated

in the connector before

crimping the connector.

Figure 12 illustrates

improper connections

due to wires not being

fully seated.

Red and green wires not fully seated

6 Repeat steps one through five for each color wire. See

Table 2forthewiringconfigurationtoconnectNeptuneMIUs

or competitive MIUs to the E-CODER.

Figure 13 Three Color Wires Connected

Figure 14 Splice Tube

Table 2 Color Codes for Wires

MIU Wire Color / Encoder Terminal MIU Type

Black/B Green/G Red/R R900

Black/B Green/G Red/R R450

Black/G Green/R Red/B Sensus

Black/B White/G Red/R Itron

Black/G White/R Red/B Aclara

Black/G Green/B Red/R Elster

Black/G Green/R Red/B Badger

7 After all three color wires

have been connected, read

the encoder register to

ensure proper connections,

and the receptacle/MIU is

functioning properly. See

Figure 13.

8 Take all three connected

Scotchloks and push into

the splice tube until fully

covered by the silicone

grease. See Figure 14.

Figure 15 Gray Wires in Slot

Figure 16 Cover in Place

11 Proceed to “How to Activate” on page 10.

5 Installation Instructions for Networked

Receptacle/Dual Port MIUs

The Dual Port R900 and R450 MIUs work only with Neptune

ProRead™ or E-CODER registers. Each register must be

programmed in “RF Network” mode prior to installation.

9 Separate the gray wires,

and place in the slots on

each side of the splice tube

as shown in Figure 15.

10 Snap the cover closed to

finish the installation as

shown in Figure 16.

Enhanced R900 v4 MIUs are not Dual Port

capable. These instructions only apply to v3

MIUs.

• E-CODER registers cannot be programmed

while connected together in a network. Each

prior to making the network connection.

• The designations HI and LO are

Neptune's designations for the high (HI) flow

or turbine side of the compound, and the low

(LO) flow or disc side of the compound.

• The settings can also be used to designate

the primary (HI) and secondary (LO) meters

in a dual set application

Programming the HI Register

To complete the following steps, use the Neptune field

programmer to select the ProRead Program tab for

programming.

Figure 17 HI Register

Programming the LO Register

To complete the following steps, use the Neptune field

programmer to select the ProRead Program tab for

programming.

Figure 18 LO Register

1 Select RF Compound HI

format.

2 Match the Connectivity

2W.

3 Match the Dial Code 65.

4 Type the appropriate

5 Program the register.

6 Readorquerytheregisterto

confirm correct

programming. See

Figure 17.

1 Select RF Compound LO

format.

2 MatchtheConnectivity2W.

3 Match the Dial Code 65.

4 Typetheappropriateregister

ID.

5 Program the register.

6 Readorquery theregisterto

confirm correct

programming. See

Figure 18.
