Neptronic TM200N Manual de usuario

Actuator

Specification & Installation Instructions

TM2N-RM2N_211215 1

Technical Data

TM200N

TM220N

TM260N

RM200N

RM220N

RM260N

RM280N

Auxiliary switches

Yes (2)

Fail safe - Enerdrive

Yes

Power consumption

20 VA

45 VA Peak,

20 VA

30 VA

50 VA Peak, 30 VA

Torque

180 in.lb. [20 Nm] at rated voltage

360 in.lb. [40 Nm] at rated voltage

Running time

through 90º

40 to 50 sec torque dependant

Power supply

28 to 32 Vdc or 22 to 26 Vac, 220 to 250 Vac 50/60Hz

Feedback

4 to 20 mA or 2 to 10 Vdc adjustable

Electrical connection

18 AWG [0.8 mm2] minimum

Inlet bushing

2 inlet bushing of 7/8 in [22.2 mm]

Control signal

Analog, Digital or PWM programmable (factory set with analog control signal)

Angle of rotation

0 to 90 degrees, electronically adjustable (factory set with 90º stroke)

Direction of rotation

Reversible, Clockwise (CW) or Counterclockwise (CCW) (factory set with CW direction)

Operating

temperature

0ºF to 122ºF [-18ºC to 50ºC]

Storage temperature

-22ºF to 122ºF [-30ºC to 50ºC]

Relative Humidity

5 to 95 % non condensing.

Weight

5 lbs. [2.3 kg]

8 lbs. [3.5 kg]

Warning: Do not press the clutch when actuator is powered

Dimensions

Dimension

Imperial (in)

Metric (mm)

5.20

132.1

1.33

33.8

9.13

231.9

3.55

90.2

Caution

We strongly recommend that all Neptronic®products be wired to a separate transformer and that transformer shall service only Neptronic®products. This precaution will

prevent interference with, and/or possible damage to incompatible equipment.

When multiple actuators are wired on a single transformer, polarity must be observed. Long wiring runs create voltage drop which may affect the actuator performance.

Enerdrive System U.S.A. Patent #5,278,454

Features:

•Clutch for manual adjustments.

•Maintenance free.

•Position indicator.

•Control signal fully programmable.

•Brushless DC driven motor.

•Fail safe by Enerdrive System1

(on model 260 & 280).

•Auxiliary switches

(on model 260 & 280).

TM200N

TM220N

TM260N

RM200N

RM220N

RM260N

RM280N

TM200/220/260N

RM200/220/260/280N

Specification & Installation Instruction

Mechanical Installation

1. Manually close the damper blades and positioned the

actuator at 0º or 90º.

2. Slide the actuator onto the shaft.

3. Tighten the nuts on the “U” bolt to the shaft with a 10mm

wrench to a torque of 150 in.lb. [17 Nm].

4. Slide the mounting bracket under the actuator. Ensure free

movement of the slot at the base of the actuator. The

bracket pin must be placed in the mid distance of the slot.

5. Fix the bracket to the ductwork with #8 self-tapping screws.

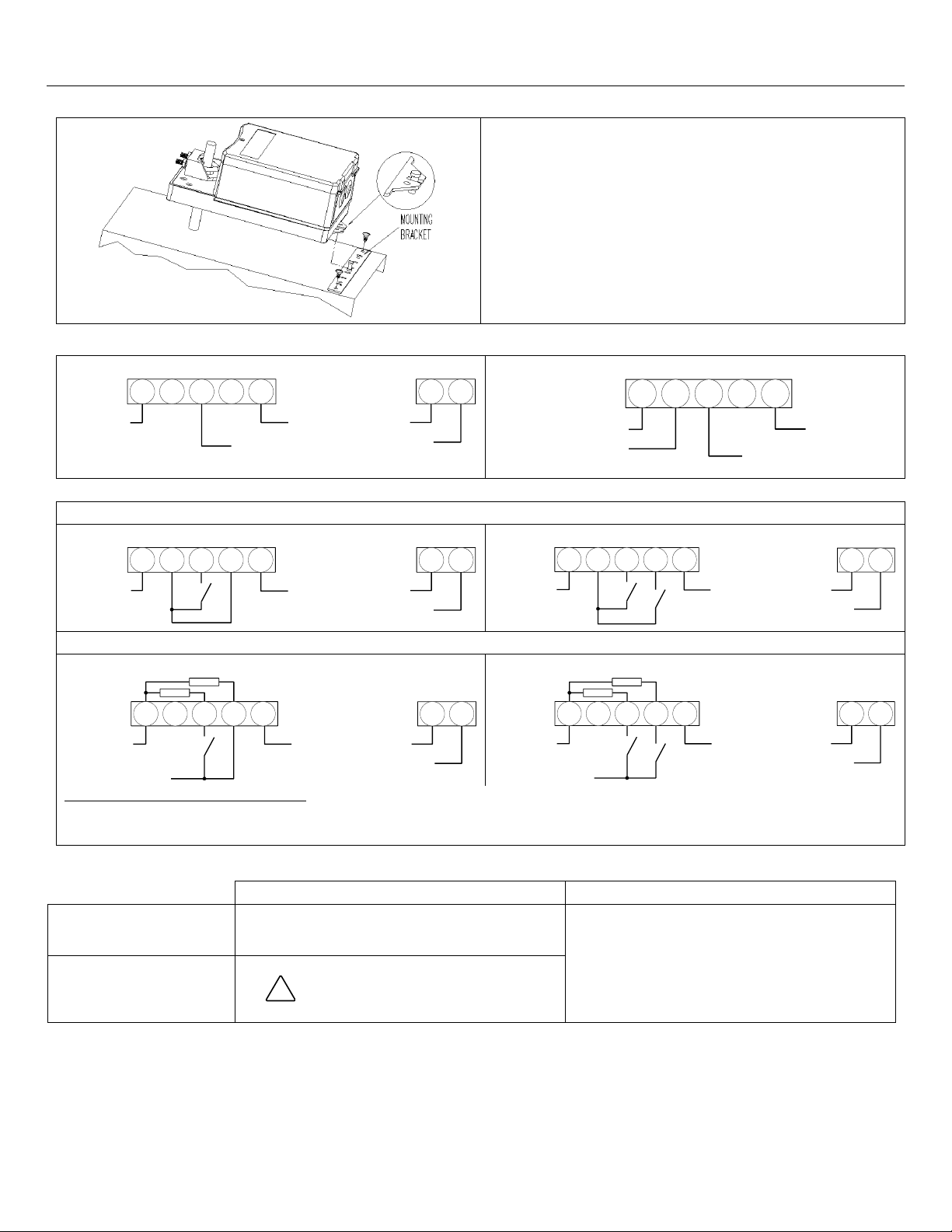

Wiring Diagrams

Analog line voltage

1 2 3 4 5

COMMON (-)

TB11 2

NEUTRAL

LINE

TB5

INPUT SIGNAL

FEEDBACK

Analog low voltage

1 2 3 4 5

COMMON (-)

TB1

24 Vac or 30 Vdc (+) INPUT SIGNAL

FEEDBACK

Digital signal from internal source

Digital –3 wire / 2 position

1 2 34 5

DRIVE CW

COMMON (-)

DRIVE CCW

1 2

NEUTRAL

LINE

TB5

TB1FEEDBACK

Digital –4 wire / 3 point floating

1 2 3 4 5

DRIVE CW

DRIVE CCW

1 2

NEUTRAL

LINE

TB5

TB1

COMMON (-) FEEDBACK

Digital signal

Digital –3 wire / 2 position

2.2 K

1 2

NEUTRAL

LINE

TB5

1 2 3 4 5

DRIVE CW DRIVE CCW

24 Vac (+)

TB1

COMMON (-) FEEDBACK

Digital –4 wire / 3 point floating

2.2 K

1 2

NEUTRAL

LINE

TB5

1 2 3 4 5

DRIVE CW DRIVE CCW

COMMON (-)

24 VAC (+)

TB1FEEDBACK

Special consideration for Digital control

In this mode, the actuator is sensitive to induced electrical voltages from external sources. To prevent such interference, if the signal on pins 4 and 3

on TB1 are from an external 24 Vac source, install a resistor 2.2kohm, 0.5W between pins 4 and 1 and another of 2.2kohms, 0.5W between pins 3

and 1 of TB1. These resistors are included.

Input Signal and Feedback setup

Input Signal

Feedback

Analog Mode

Input Signal is set with Dipswitch # 3

DS1-3 at OFF = 2 –10Vdc (default setting)

DS1-3 at ON = 4 –20mA

Feedback is set with Dipswitch #4

DS1-4 at OFF = 4 –20mA (default setting)

DS1-4 at ON = 2 –10Vdc

Digital & PWM

Mode

No Input Signal Setting

DS1-3 MUST be at OFF

TM200/220/260N

RM200/220/260/280N

Specification & Installation Instruction

1 2 3 4

Rotation: CCW

Input in mA Feedback in Vdc

Fail safe return at 90º

1 2 3 4

Rotation: CW

Input in Vdc Feedback in mA

Fail safe return at 0º

PC Board

Potentiometer

Dip switch

Reset button LED

Clutch

1 2 3 4 5

TB1

1 2 3 4

DS1

PB1LD1

Microcontroller

Terminal

TB51 2

N L

Line voltage terminal

Pins for PWM selection

Transformer cut out

Fuse

Dip switch settings

Default Setting = All dipswitches at OFF

Stroke adjustment –No control signal change

1. Apply power and, WAIT FOR LED TO BE OFF (around 10 seconds).

2. Press and release the reset button to start the auto-stroke process.

The LED should be illuminated.

•First option:

The actuator will then travel in both directions to find its limit and position itself according to the demand.

The LED will extinguish, the process is complete.

•Second option:

When the desired start position is reached, press and release the reset button. The actuator will now go the end

position. (you can also press and release the reset button when It's reaches the end position)

The LED will extinguish, the process is complete.

Programming –Change of control signal & PWM pulse setting

1. Remove power and put all dip switches "OFF". (factory preset).

2. Apply power and, within 10 seconds, press and release the reset button. The LED should be blinking.

3. Select the control signal with dip switches:

Digital or Analog Modes

PWM Mode

Move switch No1 "ON” and then “OFF”.

Digital (On/Off or 3 point floating)

5 sec. pulse (factory preset)

Move switch No2 "ON” and then “OFF”.

Analog (Default)

25 sec. pulse

4. Stroke adjustment

see the stroke adjustment section above.

TM200/220/260N

RM200/220/260/280N

Specification & Installation Instruction

Enabling or disabling PWM mode

1. Remove power supply to actuator

2. Install jumper between pin 3 & 4 of J3

3. Select the desired action using the dipswitches (DS1):

DS1-1

DS1-2

Action

OFF

Enable PWM Mode

OFF

Disable PWM Mode

4. Re-apply power supply to actuator

5. Wait 5 seconds

6. Remove power supply to actuator

7. Remove jumper between pin 3 & 4 of J3, re-install it between pin 4 & 5.

8. Re-apply power supply to actuator

PWM is factory preset at 5 sec. pulse,

refer to programming section above to change pulse setting.

Pin #1

Pin #5

Pin #4

Pin #3

Pin #2

When not used for programming,

jumper is placed between pin 4 & 5

Zero and span calibration

This feature is applicable to analog control signal only.

1. Remove power and put all dip switches "OFF". (factory preset).

2. Apply power and, within 10 seconds press and hold the reset button until the LED blinks once.

The Zero and span calibration process then start.

3. Release the reset button. The LED is now constantly illuminated.

4. Apply new minimum voltage.

It can be any value between 0 to 7 Vdc, with an external 0 to 10 volt supply (ex: MEP).

5. Press and release the reset button to memorize the new minimum voltage. The LED blinks.

6. Apply new maximum voltage.

It can be any value between 3 to 10 Vdc, this value should be greater than the new minimum value.

7. Press and release the reset button to memorize the new maximum voltage. The LED blinks.

The Zero and span calibration process is complete.

Note: To reset zero and span to 2 to 10 Vdc (factory value). You just have to re-select the analog control signal mode, see

Programming.

Wiring Diagrams for auxiliary switches (on model 220 & 280)

BLACK

RED

GREEN

BROWN

WHITE

BLUE

LOWER COMMON

LOWER CLOSED 10-90º

LOWER CLOSED 0-10º

UPPER COMMON

UPPER CLOSED 0-80º

UPPER CLOSED 80-90º

Auxiliary switch rating:

5 Amp resistive, 250 Vac
