NEC Solutions (America), Inc.

VisualSystems

VT46/460/465/560/660/660K Installation Guide

Desktop and Ceiling Mounted v2.0

Contents

Product Description, Lens Specs, Notes and Formulas Page 1

Diagrams and Distance Charts

Ceiling Mounted Installation Page 2

DesktopSetup Page 3

Cabinet Dimensions

Top, Front and Right Side Page 4

Bottom, Back and Left Side Page 5

Ceiling Mount Dimensions Page 6

Control Codes Page 7

ProductDescription

Type: 3 panel LCD projector Brightness: VT46: 1200 ANSI Lumens

VT46/460/465/560: 0.7” p-Si TFT VT460: 1500 ANSI Lumens

VT660/660K: 0.7” p-Si TFT wMLA VT465: 1800 ANSI Lumens

Resolution: VT46/460/465: 800x600 (SVGA) VT560: 1300 ANSI Lumens

VT560/660/660K: 1024 x 768 (XGA) VT660: 1700 ANSI Lumens

Dimensions: 12.2”(W) x 3.9”(H) x 9.6”(D) VT660K: 2000 ANSI Lumens

Weight: 6.5 lbs

Lens Specifications

Throw Ratio: 1.5 - 1.8:1(for 100” diagonal) Focal Length: 21.6mm – 25.9mm

Offset Angle: 9.5°-11.4° (for 100” diagonal) F/#: 1.7 – 2.0

Screen Sizes: 21”-300” Manual Zoom / Manual Focus

Notes

 For screen sizes not indicated on the projection charts, use the formulas below.

 If a value in a chart does not match the results of the formulas, use the values in the chart.

 The ceiling must be strong enough to support the projector and the installation must be in accordance with any local

building codes.

 All formulas are based on a 4:3 aspect ratio and screen.

 4:3 sources can be displayed on a 16:9 screen without vertical “squeezing”, see “Aspect Ratio” in the user manual.

 Distances are in inches, for millimeters multiply by 25.4.

 Distances may vary ±5%.

Formulas (for a 4:3 screen)

units: inches (for millimeters multiply final number by 25.4)

Calculate projection values by plugging the screen width (H) into the projection formulas.

Projection Formulas: Definitions:

B= 0.3023H H= Horizontal Screen Width (4:3)

C(wide) = 1.5165H – 1.357 V= Vertical Screen Height (4:3)

C(tele) = 1.8197H – 1.629 B= Vertical distance between lens center and screen center

D= 0.0727H C= Throw distance

α(wide) = tan-1 (B/C(wide)) α= Throw Angle

α(tele) = tan-1 (B/C(tele))

Screen Formulas (4:3):

H= V x 4/3

V= H x 3/4

Screen Diagonal = H x 5/4

www.necvisualsystems.com Page 1 of 7

Ceiling Mounted Installation

The following diagram shows the relationship between projector position and the screen. Refer to the chart below for data.

Distances are in inches. For millimeters multiply by 25.4.

Screen Ctr

Screen Top

Lens Ctr

Lens Offset from

Mount Pipe

2.8"

Throw Distance

*6.5" w/pipe connector

*5.6" w/ceiling plate

*See page 6 for mount details

4.9"

Distance Chart (for popular screen sizes)

Diagonal Width(H) Height(V) wide - tele wide - tele

inches inches inches inches inches

21 16.8 12.6 5.1 NA - 28.9 1.2 NA - 10.0

40 32 24 9.7 47.2 - 56.6 2.3 11.6 - 9.7

60 48 36 14.5 71.4 - 85.7 3.5 11.5 - 9.6

67 53.6 40.2 16.2 79.9 - 95.9 3.9 11.5 - 9.6

72 57.6 43.2 17.4 86.0 - 103.2 4.2 11.4 - 9.6

84 67.2 50.4 20.3 100.6 - 120.7 4.9 11.4 - 9.6

90 72 54 21.8 107.8 - 129.4 5.2 11.4 - 9.5

100 80 60 24.2 120.0 - 143.9 5.8 11.4 - 9.5

120 96 72 29.0 144.2 - 173.1 7.0 11.4 - 9.5

150 120 90 36.3 180.6 - 216.7 8.7 11.4 - 9.5

180 144 108 43.5 217.0 - 260.4 10.5 11.3 - 9.5

210 168 126 50.8 253.4 - 304.1 12.2 11.3 - 9.5

240 192 144 58.0 289.8 - 347.8 14.0 11.3 - 9.5

270 216 162 65.3 326.2 - 391.4 15.7 11.3 - 9.5

300 240 180 72.6 362.6 - 435.1 17.4 11.3 - 9.5

Screen Size (4:3) C

inches

degrees

Note:For screen sizes not indicated on the chart, use the formulas on page 1.

www.necvisualsystems.com Page 2 of 7

Desktop Setup

The following diagram shows the relationship between projector position and the screen. Refer to the chart below for data.

Distances are in inches. For millimeters multiply by 25.4.

Screen Ctr

Scrn Bottom

Lens Ctr

Throw Distance

2.3"

Projector Feet

Distance Chart (for popular screen sizes)

Diagonal Width(H) Height(V) wide - tele wide - tele

inches inches inches inches inches

21 16.8 12.6 5.1 NA - 28.9 1.2 NA - 10.0

40 32 24 9.7 47.2 - 56.6 2.3 11.6 - 9.7

60 48 36 14.5 71.4 - 85.7 3.5 11.5 - 9.6

67 53.6 40.2 16.2 79.9 - 95.9 3.9 11.5 - 9.6

72 57.6 43.2 17.4 86.0 - 103.2 4.2 11.4 - 9.6

84 67.2 50.4 20.3 100.6 - 120.7 4.9 11.4 - 9.6

90 72 54 21.8 107.8 - 129.4 5.2 11.4 - 9.5

100 80 60 24.2 120.0 - 143.9 5.8 11.4 - 9.5

120 96 72 29.0 144.2 - 173.1 7.0 11.4 - 9.5

150 120 90 36.3 180.6 - 216.7 8.7 11.4 - 9.5

180 144 108 43.5 217.0 - 260.4 10.5 11.3 - 9.5

210 168 126 50.8 253.4 - 304.1 12.2 11.3 - 9.5

240 192 144 58.0 289.8 - 347.8 14.0 11.3 - 9.5

270 216 162 65.3 326.2 - 391.4 15.7 11.3 - 9.5

300 240 180 72.6 362.6 - 435.1 17.4 11.3 - 9.5

Screen Size (4:3) C

inches

degrees

Note: For screen sizes not indicated on the chart, use the formulas on page 1.

www.necvisualsystems.com Page 3 of 7

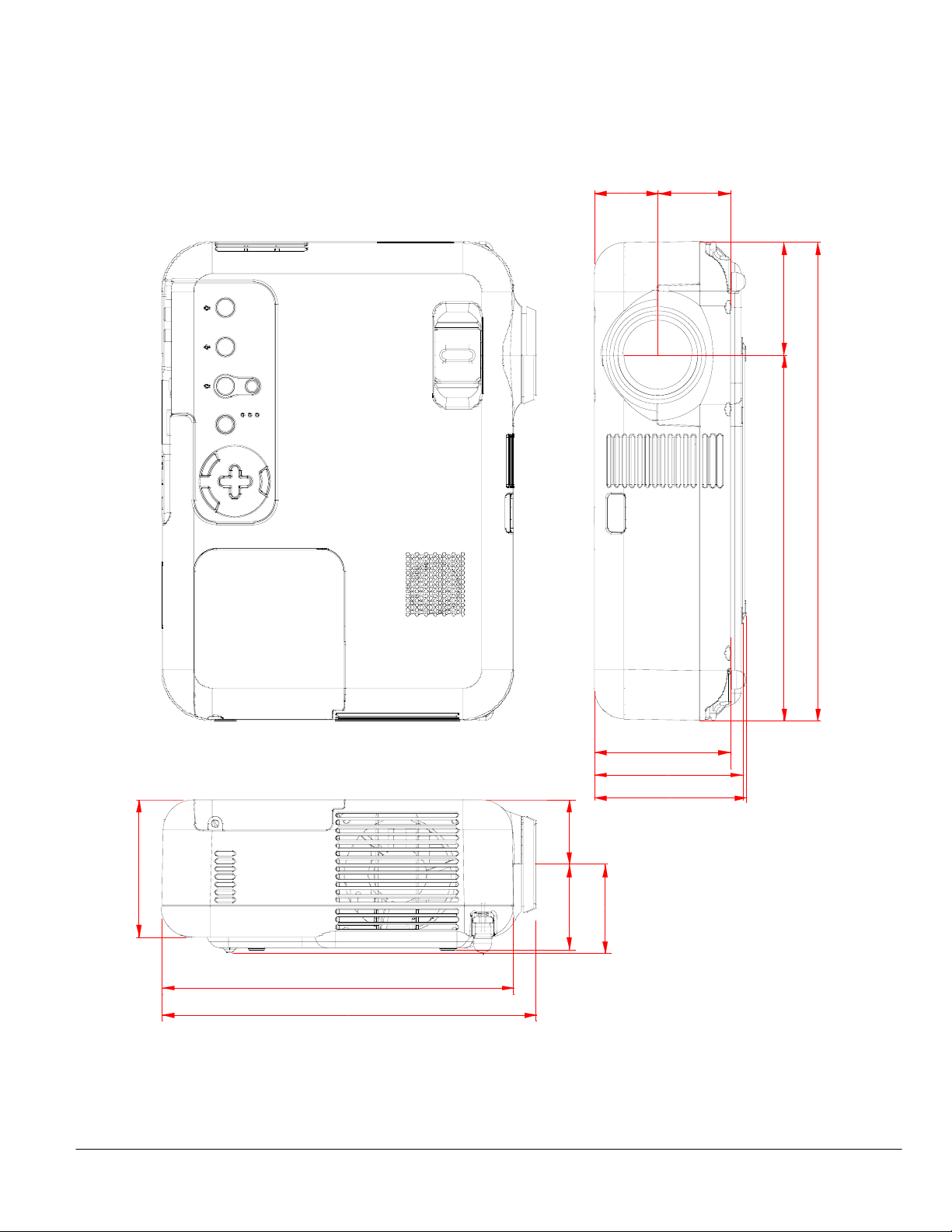

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

9.312.89

12.21

3.50

3.82

3.91

3.50

2.26

1.64

2.18

1.64 1.86

9.64

9.06

www.necvisualsystems.com Page 4 of 7

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

ACIN`

VIDEO

S-VIDEO

£

L/MONO

AUDIO

RGBIN

PCCONTROL

NEC

1.694.92

5.121.77

1.54

M4*MAX8

For Mount

Rear View

(VT46)

(VT460/465/560/660/660K)

www.necvisualsystems.com Page 5 of 7

Optional Ceiling Mount Dimensions (Model #: VT60CM)

The following drawings show ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

The VT60CM comes with a threaded pipe connector and a ceiling plate for flush mounting and minimal height.

7.56

4.28

5.81

Pipe Connector

3.40

7.565.81

Ceiling Plate

www.necvisualsystems.com Page 6 of 7

Control Codes

Function CodeData

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT RGB 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

Cable Connection

Communication Protocol:

Baud Rate: 19200 bps

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

PC Control Connector (DIN-8P)

To RxD of PC

345

678

To TxD of PC

To GND of PC

NOTE 1: Pins 2, 3, 5, 6 and 8 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps.

www.necvisualsystems.com Page 7 of 7
