NEC MultiSync MT840 Instrucciones de montaje

Quick Connect Guide

MultiSync MT Series LCD Projectors

Step1

SELECT

SOURCE AUTO ADJUST

USB

AC IN

Connect the supplied power cable.

Connect the supplied 15pin-15pin signal cable.

Always power down

before you hook up.

PC CONTROL REMOTE

CONTROL

INPUT

MOUSE

OUT

S-VIDEO VIDEO

AUDIO RGB INPUT 2

AUDIO RGB INPUT 1

MONO R

For Mac, use the supplied

pinadaptertoconnecttothe

computer 's video port.

Step2

Step3 Turn on the projector.

SELECT

POWER

STATUS ON

OFF

SOURCE AUTO ADJUST

SELECT

POWER

STATUS ON

OFF

SOURCE AUTO ADJUST

NOTE:Toturn off the projector,pressand

hold the POWER button for a minimum

of two seconds.

Power button

Step4 Set up the Projector

AC IN

Zoom ring

Focus ring

To adjust the projector' s focus or to zoom in and out, use

the Focus/Zoom ring on the lens.

If necessary, adjust the front foot to properly

position the projected image on the screen.

If the projected image does not appear

squaretothescreenthenusekeystone cor-

rection for proper adjustment.

SELECT

POWER

STATUS ON

OFF

SOURCE AUTO ADJUST

AC IN

SELECT

POWER

STATUS ON

OFF

SOURCE AUTO ADJUST

ACIN

Printed in Japan

78038451

Remote Control Features

1SOURCE Selects video source from VCR, laserdisc, computer, DVD player or PC card. (RGB-

VIDEO-S-VIDEO-VIEWER).

2AUTO ADJUST

Press to adjust H/V position, Pixel and resolution of the current image for the optimal.

3MENU Calls up On-Screen Menu so you can adjust and set the image.

4SELECT Selects an item or option.

MOUSE PAD for full function remote Works as a mouse to select sub menus, adjust levels. Left click (under-

neath) works as “ENTER”.

5CANCEL/R-CLICK Use to exit menus or adjustment.

6ENTER/ Left Click Press to execute selected items.The Left Click button is underneath.

7MAGNIFY Use to magnify image up to 400%.

8POINTER Points to an area on screen to be magnified.

9PICTURE MUTE Turns off the image and the sound for a short period of time. Press again to

restore the image and sound.

10 HELP Displays information for the current menu or how to use the menu.

11 POWER ON/OFF Turns the projector on or off.

12 LED Flashes when any button is pressed.

13 COMPUTER/PJ SELECT Select COMPUTER if you want to use the remote mouse pad as your

PC’ s mouse.

14 LASER Press and hold to activate red laser pointer.

* Some buttons on the remote control perform the same functions as the corresponding but-

tons on the projector cabinet.The remaining buttons are on the remote control unit only.

See your User's Manual for more information on features and operation.

Full Function Remote Control

R-CLICK

HELP

PIC-MUTEPOINTER

MAGNIFY

SOURCE

AUTO ADJ.

COMPUTER PROJECTOR

POWER

OFF ON

LASER

CANCEL

PC CONTROL REMOTE

CONTROL

INPUT

MOUSE

OUT

S-VIDEO VIDEO

AUDIO RGB INPUT 2

AUDIO RGB INPUT 1

MONO R

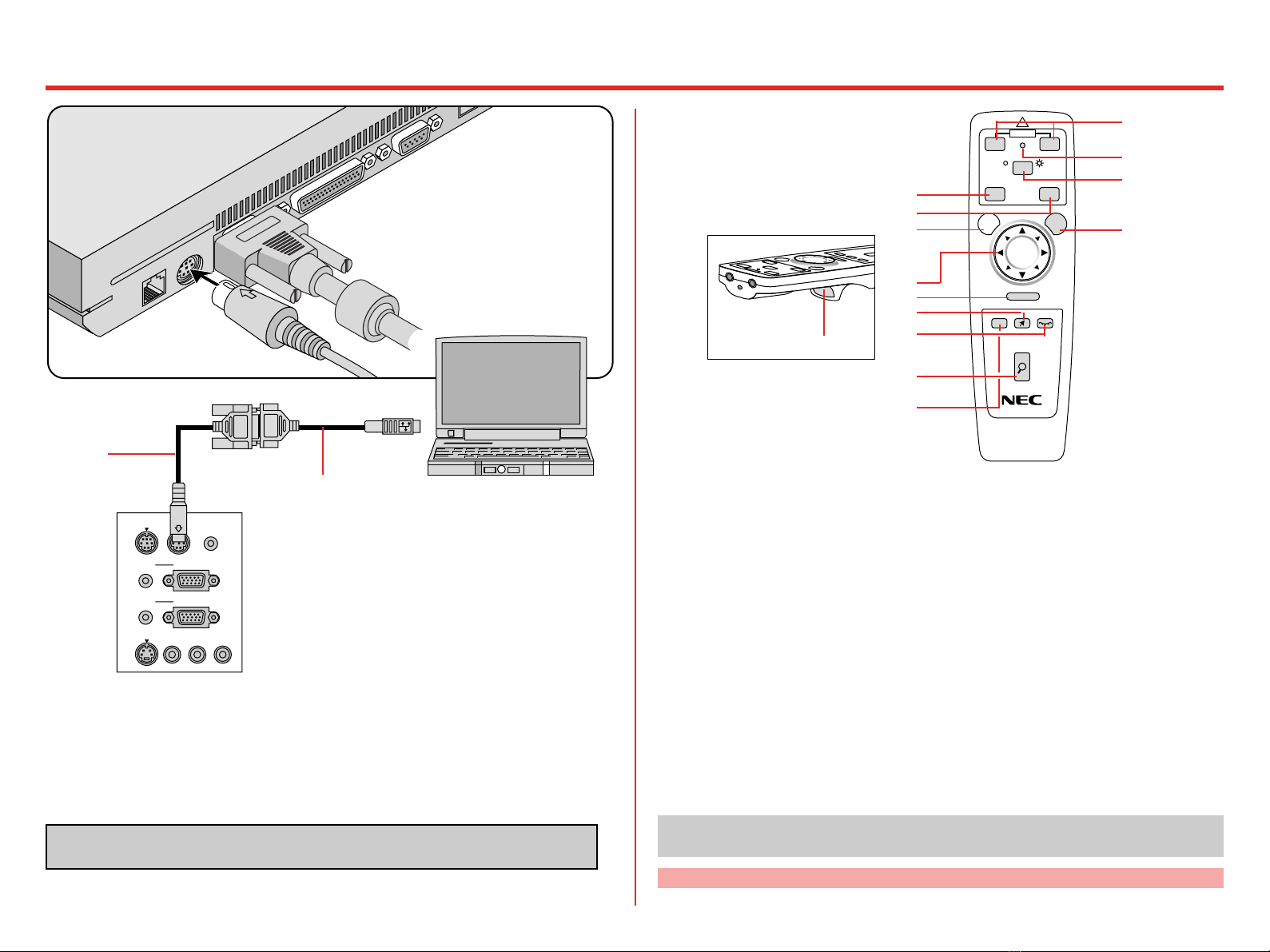

Connect the Remote Mouse

The MOUSE OUT port allows you to

remotely operate your PC's mouse.

It makes clicking through your com-

puter-generated presentations easy.

Serial cable

(supplied) Mouse adapter for IBM PS/2 or

Macintosh (supplied)

1. Make sure that both the computer and projector are turned off.

2. Connect the cables as shown in the illustration.

3.Turn on the projector.

4.Turn on the computer.

NOTE: To reactivate your computer's on-board mouse control, power the computer

down and unplug the serial cable.
