NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 1 of 11

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes and Formulas Pg. 1

Distance Charts and Formulas Pg. 2

Ceiling Mount/Desktop Installation Pg. 3

Lens Shift Adjustable Range Pg. 4

Cabinet Dimensions Pg. 5-8

Lens Dimensions (Optional) Pg. 9

Ceiling Mount Dimensions and Input Panel Pg. 10

Control Codes Pg. 11

Product Description

Type: 3 panel LCD projector, Dimensions: 22.8”(W) x 8.2”(H) x 19.3”(D)

0.76 p-Si TFT w/MLA Weight: 40.1 lbs

Resolution: 1920 x 1200 (16:10) Brightness: PA653UL: 6500 Lumens

PA803UL: 8000 Lumens

Fan Noise: 39 dB / 33dB @ 1 meter

Power Consumption: PA653UL: 627W (max) BTU’s: PA653UL: 2131 BTU/hour

PA803UL: 798W (max) PA803UL: 2713 BTU/hour

Network Ready, integrated wired and wireless adapter

Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP40ZL: Throw Ratio: 0.79 –1.11:1 Focal Length: 13.3 –18.6mm NP43ZL: Throw Ratio: 2.99 –5.93:1 Focal Length: 49.7 –99.8mm

Screen Sizes: 50”-500”F/#:2.0 - 2.5 Screen Sizes: 50” - 500” F/#:2.2 -2.6

NP41ZL: Throw Ratio: 1.30 –3.02:1 Focal Length: 21.8 –49.8mm

Screen Sizes: 50” - 500” F/#:1.7 –2.0

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed

scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 2 of 11

Formulas: 16:10 Aspect Ratio (WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:10 Screen Formulas

NP40ZL: C(Wide) = 0.807W –1.535 ------ C(Tele) = 1.131W –1.632 W = Image Width W = H x 16/10

NP41ZL: C(Wide) = 1.323W –1.763 ------ C(Tele) = 3.034W –1.539 H = Image Height (size) H = W x 10/16

NP43ZL: C(Wide) = 2.929W + 5.143 ------ C(Tele) = 5.878W + 4.320 C = Throw distance Screen Diagonal = W x 18.868/16

Horizontal Lens Shift Max (Right) = 0.15W

Horizontal Lens Shift Max (Left) = 0.-15W

Distance Chart for popular 16:10 Screens (WUXGA)

Note: For screen sizes not indicated in projection tables, refer to formulas above respective charts.

Diagonal

Width(W)

Height (H)

Max

(Right)

Max

(Left)

Max

(Right)

Max

(Left)

inches inches inches

60 51 32 39.6 - 56.0 65.7 - 153.2 10.2 - -10.2 154.5 - 304.1 16.3 - -16.3

67 57 36 44.5 - 62.8 73.6 - 171.4 11.4 - -11.4 172.1 - 339.4 18.2 - -18.2

72 61 38 47.7 - 67.4 78.9 - 183.5 12.2 - -12.2 183.8 - 362.9 19.5 - -19.5

84 71 44 55.8 - 78.7 92.2 - 213.9 14.2 - -14.2 213.1 - 421.7 22.7 - -22.7

90 76 48 59.8 - 84.3 98.8 - 229.0 15.2 - -15.2 227.7 - 451.0 24.3 - -24.3

100 85 53 67.1 - 94.5 110.7 - 256.4 17.0 - -17.0 254.1 - 504.0 27.2 - -27.2

120 102 64 80.8 - 113.7 133.2 - 307.9 20.4 - -20.4 303.9 - 603.9 32.6 - -32.6

150 127 79 101.0 - 142.0 166.3 - 383.8 25.4 - -25.4 377.1 - 750.8 40.6 - -40.6

180 153 96 121.9 - 171.4 200.7 - 462.7 30.6 - -30.6 453.3 - 903.7 49.0 - -49.0

210 178 111 142.1 - 199.7 233.7 - 538.5 35.6 - -35.6 526.5 - 1050.6 57.0 - -57.0

241 204 128 163.1 - 229.1 268.1 - 617.4 40.8 - -40.8 602.7 - 1203.4 65.3 - -65.3

270 229 143 183.3 - 257.4 301.2 - 693.2 45.8 - -45.8 675.9 - 1350.4 73.3 - -73.3

300 254 159 203.4 - 285.6 334.3 - 769.1 50.8 - -50.8 749.1 - 1497.3 81.3 - -81.3

400 339 212 272.0 - 381.8 446.7 - 1027.0 67.8 - -67.8 998.1 - 1997.0 108.5 - -108.5

500 424 265 340.6 - 477.9 559.2 - 1284.9 84.8 - -84.8 1247.0 - 2496.6 135.7 - -135.7

NP43ZL

2.99 - 5.93:1

inches

Screen Size (16:10)

NP40ZL

0.79 - 1.11:1

NP41ZL

Horizontal Lens

Shift

(NP40ZL/NP41ZL)

ZoomLenses

1.30 - 3.02:1

Horizontal Lens

Shift (NP43ZL)

inches

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 3 of 11

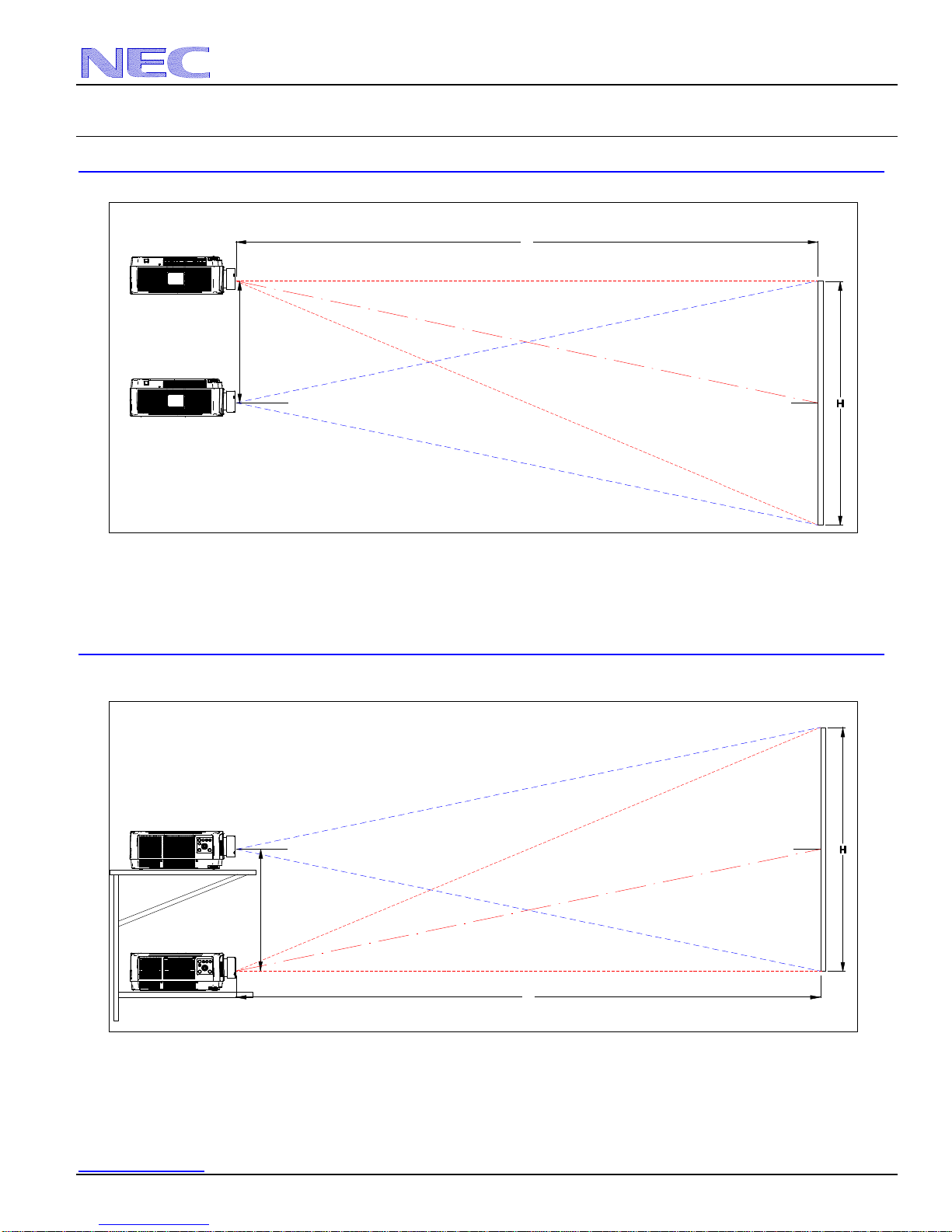

Ceiling Mount Installation

Desktop Installation

Screen Center

Screen Top

Shift Range

Screen Center

Shift Range

Screen Bottom

ONLYFORNP40ZL,NP41ZLandNP43ZLLENSES

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 4 of 11

Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount

Application

The diagram below shows the location of the image

position in the lens. The lens can be shifted within

the shaded area as shown using the normal

projection position as a starting point.

Maximum Possible Range for NP40ZL, NP41ZL,

NP43ZL:

Towards ceiling/floor: 0.5H

Away from ceiling/floor: 0.1H

Right: 0.3W

Left: 0.3W

(W: width of projected image, H: height of projected

image)

Note: Horizontal lens shift range is 0.15W at a

200” projected image with NP41ZL

0.3W 0.3WW

0.6H

0.5HH0.1H

0.3W0.3W W

0.6H

0.5H H 0.1H

CEILINGFRONT

DESKTOP FRONT

VERTICAL

HORIZONTAL

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 5 of 11

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the PA653UL/PA803UL.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown with the NP41ZL lens

22.83

8.09

8.18

4.93

19.45

Intake Filter

Exhaust

AC Inlet

NP41ZL

2.29

2.57

11.46

1.56 19.71

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 6 of 11

Cabinet Dimensions

2.22 7.87

9.84

FOR CEILING MOUNT

4-M4(Max.M4 x 8)

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 7 of 11

Cabinet Dimensions with Cable Cover

The following diagrams show the cabinet dimensions for the PA653UL/PA803UL.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown with the NP41ZL lens

22.83

8.09

8.18

4.93

62\U+FF5E56.5 24.41

Intake

Exhaust

1.57 19.71

NP41ZL

11.41

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 8 of 11

Cabinet Dimensions with Cable Cover

2.22 7.87

9.84

For Ceiling Mount

4-M4(Max.M4 x 8)

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 9 of 11

Optional Lens Dimensions (NP40ZL and NP43ZL)

2.90

NP43ZL

2.09

NP40ZL

NEC Display Solutions of America, Inc.

PA653UL & PA803UL Installation Guide

Desktop and Ceiling Mount Rev 1.3

www.necdisplay.com PA653UL/PA803UL Page 10 of 11

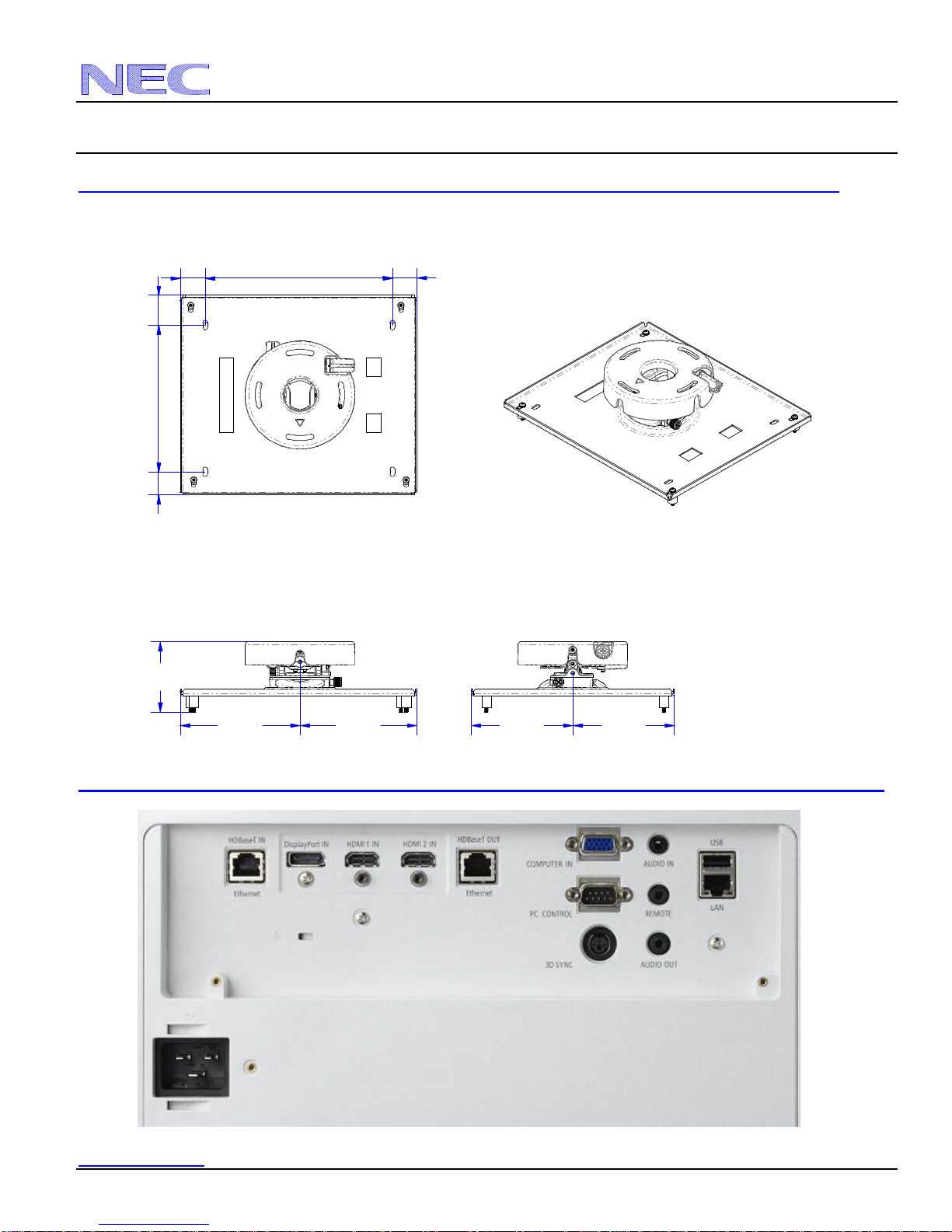

Optional Ceiling Mount Dimensions (Part #: NP600CM)

The following diagrams show ceiling mount dimensions for the NP600CM.

Dimensions are in inches. For millimeters multiply by 25.4.

Input Panel

1.31 1.28

9.88

1.601.22 7.88

3.77

6.31 6.16 5.35 5.35
