NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 1 of 9

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes and Formulas Pg 1

Diagrams & Distance Charts; 4:3 Pg 2

16:9___ Pg 3

Lens Shift Adjustable Range Pg 4

CabinetDimensions Pg 5

LensDimensions Pg 6

Ceiling Mount Dimensions Pg 7

Ceiling Mount Dimensions (continued) Pg 8

Input Panel and Control Codes Pg 9

Product Description

Type: 3 panel LCD projector, Dimensions: 399mm(W) x 150mm(H) x 358mm(D)

0.74p-SiTFTw/MLA Weight: 7,5kg

Resolution: 1280 x 800 (16:10) Brightness: 4000 Lumens

Fan Noise: 38 dB / 31dB @ 1 meter

Power Consumption: 490W (max) BTU’s: 1672 BTU/hour

Network Ready, integrated wired and wireless adapter Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

LensSpecifications

NP01FL: Throw Ratio: ~ 0.8:1 Focal Length: 13.2mm NP03FL: Throw Ratio: 1.94 - 3.07:1 Focal Length: 31.6 – 50.2mm

Screen Sizes: 38”-143” F/#:2.3 Screen Sizes: 38” - 476” F/#:2.2

NP02FL: Throw Ratio: 1.18 - 1.54:1 Focal Length: 19.42 - 25.26mm NP04FL: Throw Ratio: 2.98 -4.77:1 Focal Length: 48.8 - 77.6mm

Screen Sizes: 29” - 476” F/#:2.2 _________ Screen Sizes: 57” - 476” F/#:2.2

Standard: Throw Ratio: 1.5 - 2.0:1 Focal Length: 24.4 - 32.5mm NP05FL: Throw Ratio: 4.62 - 7.02:1 Focal Length: 76.6 - 116.5mm

Screen Sizes: 29” – 476” F/#:1.7 Screen Sizes: 57” - 476” F/#:2.2

Screen/AspectRatio

16:10, 16:9 and 4:3 screens are fully supported with proper aspect ratio control for both type sources using NEC developed

scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

•All calculations are based on 4:3 aspect ratio.

•Distances may vary ±5%.

Formulas

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions:

NP01FL: C = 0.8325W – 1.33 W = Image Width

NP02ZL: C(Wide) = 1.2220W – 1.798 ----- C(Tele) = 1.5894W – 1.795 H = Image Height (size)

Standard: C(Wide) = 1.5455W – 2.022 ------ C(Tele) = 2.0555W – 2.015 C = Throw distance

NP03ZL: C(Wide) = 2.0069W – 2.830 ------ C(Tele) = 3.1710W – 2.840

NP04ZL: C(Wide) = 3.0537W – 4.830 ------ C(Tele) = 4.8860W – 4.850 4:3 Screen Formulas: 16:9 Screen Formulas:

NP05ZL: C(Wide) = 4.8275W – 7.625 ------ C(Tele) = 7.3379W – 7.645 W = H x 4/3 W = H x 16/9

H = W x 3/4 H = W x 9/16

Diagonal = W x 5/4 Screen Diagonal = W x 18.358/16

Note: Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 2 of 9

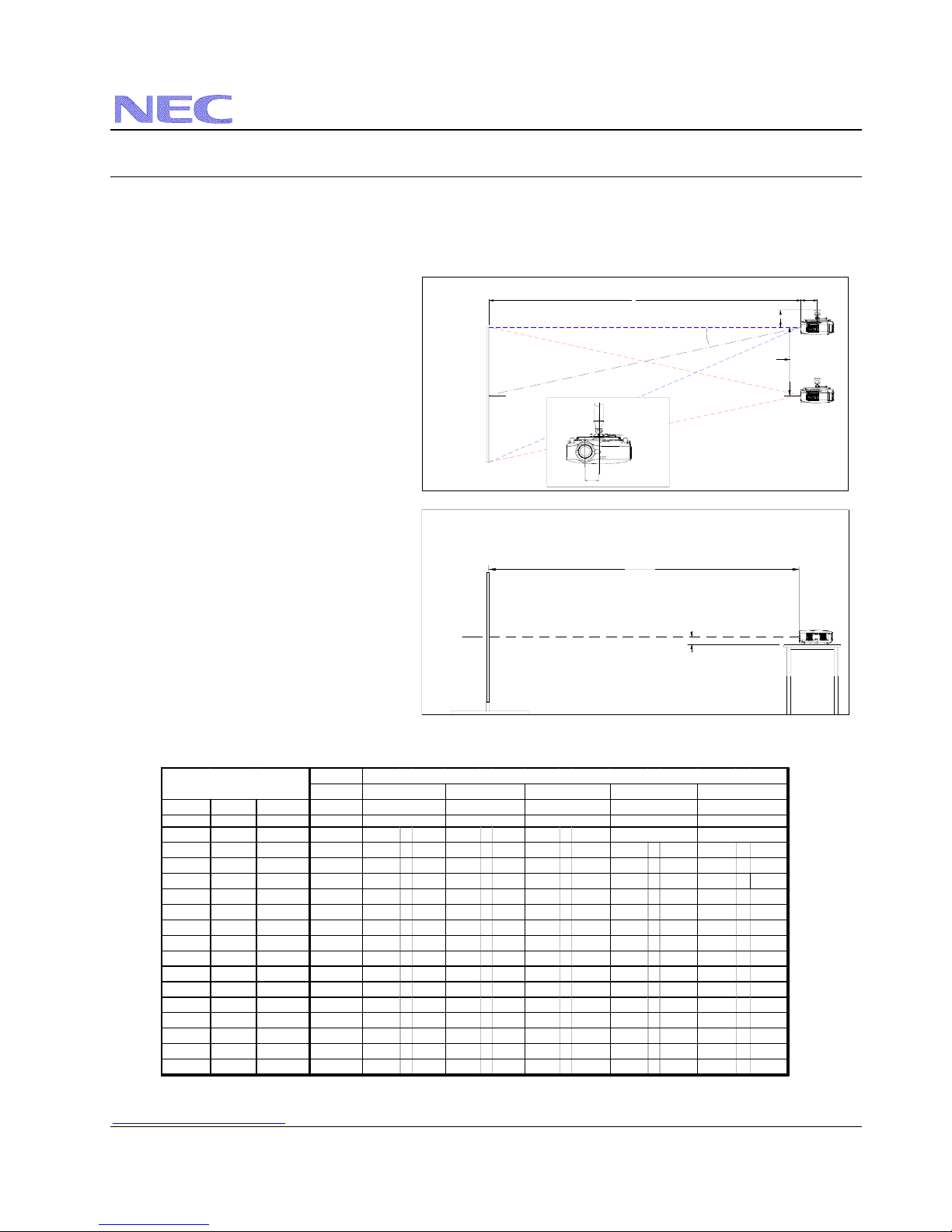

Projection Distance and Screen Size for Ceiling Mount

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4. (Åbitte löschen, wenn Bemaßung in “mm” geändert ist)

Ceiling Mount Installation

Desktop Installation

Note: Lens shift feature is not available with NP01FL

(rear lens) NP01FL should be used only for

“zero degree” / “no-offset” applications.

Distance Chart for popular 4:3 screens

Note: For screen sizes not indicated on the projection tables, use the formulas on page 1.

Rear Lens

NP01FL

Diagonal Width(W) Height (H) 0.8:1

inches inches inches inches

40 32 24 25.38 47.37 - 63.8 37.3 - 49.07 61.4 98.6

60 48 36 38.7 72.11 - 96.6 56.9 - 74.5 93.5 - 149.4 141.7 - 229.7 NA - NA

67 53.6 40.2 43.3 80.8 - 108.2 63.7 - 83.4 104.7 - 167.1 158.8 - 257.0 NA - NA

72 57.6 43.2 46.6 86.9 - 116.4 68.6 - 89.8 112.8 - 179.8 171.1 - 276.6 NA - NA

84 67.2 50.4 54.6 101.8 - 136.1 80.3 - 105.0 132.0 - 210.3 200.4 - 323.5 316.8 - 485.5

90 72 54 58.6 109.2 - 146.0 86.2 - 112.6 141.7 - 225.5 215.0 - 346.9 340.0 - 520.7

100 80 60 65.2 121.6 - 162.4 95.96 - 125.4 157.7 - 250.8 239.5 - 386.0 378.6 - 579.4

120 96 72 78.5 146.3 - 195.3 115.5 - 150.8 189.8 - 301.6 288.3 - 464.2 455.8 - 696.8

150 120 90 98.46 183.4 - 244.6 144.8 - 188.9 238.0 - 377.7 361.6 - 581.5 571.7 - 872.9

180 144 108 NA 220.5 - 294.0 174.2 - 227.1 286.2 - 453.8 434.9 - 698.7 687.5 - 1049.0

210 168 126 NA 257.6 - 343.3 203.5 - 265.2 334.3 - 529.9 508.2 - 816.0 803.4 - 1225.1

240 192 144 NA 294.7 - 392.6 232.8 - 303.4 382.5 - 606.0 581.5 - 933.3 919.3 - 1401.2

270 216 162 NA 331.8 - 442.0 262.2 - 341.5 430.7 - 682.1 654.8 - 1050.5 1035.1 - 1577.3

300 240 180 NA 368.9 - 491.3 291.5 - 379.7 478.8 - 758.2 728.1 - 1167.8 1151.0 - 1753.5

400 320 240 NA 492.6 - 655.7 389.2 - 506.8 639.4 - 1011.9 972.4 - 1558.7 1537.2 - 2340.5

500 400 300 NA 616.30 - 820.2 487.0 - 634.0 799.9 1265.6 1216.7 - 1949.6 1923.4 - 2927.5

inches

inches inches

1.5 - 2.0:1 1.18 - 1.54:1

inchesinches

Screen Size (4:3)

2.98 - 4.77:1

Standard NP02ZL NP03ZL NP04ZL

1.94 - 3.07:1

ZoomLenses NP05ZL

4.62 - 7.02:1

Screen Ctr

Throw Distance

Screen Bottom

3.45"

Screen Ctr

Throw Distance

Screen Top

7.72"

Shift Range

X=Distance from lens to mount ctr

NP01FL: X=7.99"

Standard: X=7.03"

NP03ZL: X=7.83"

NP04ZL: X=7.43"

NP05ZL: X=7.41"

Lens Offset From

Mount Pipe

3.30"

NP02ZL: X=7.78"

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 3 of 9

Projection Distance and Screen Size for Ceiling Mount

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4. (Åbitte löschen, wenn Bemaßung in “mm” geändert ist)

Ceiling Mount Installation

Desktop Installation

Note: Lens shift feature is not available with NP01FL

(rear lens) NP01FL should be used only for

“zero degree” / “no-offset” applications.

Distance Chart for popular 16:9 screens

Note: For screen sizes not indicated on the projection tables, use the formulas on page 1.

Rear Lens

NP01FL

Diagonal Width(W) Height (H) 0.8:1

inches inches inches inches

92 80 45 65,24 121,6 - 162,4 96,0 - 125,4 157,7 250,8 239,5 386,0 366,4 579,4

100 87 49 71,1 132,4 - 176,8 104,5 - 136,5 171,8 - 273,0 260,8 420,2 399,5 630,8

106 92 52 75,2 140,1 - 187,1 110,6 - 144,4 181,8 - 288,9 276,1 444,7 423,1 667,4

110 96 54 78,5 146,3 - 195,3 115,5 - 150,8 189,8 - 301,6 288,3 464,2 442,0 696,8

119 104 58,8 85,2 158,7 - 211,8 125,3 - 163,5 205,9 - 326,9 312,8 - 503,3 494,4 - 755,5

123 107 60 87,7 163,3 - 217,9 129,0 - 168,3 211,9 - 336,5 321,9 - 518,0 508,9 - 777,5

133 116 65 95,1 177,2 - 236,4 140,0 - 182,6 230,0 - 365,0 349,4 - 561,9 552,4 - 843,6

135 118 66 96,8 180,3 - 240,5 142,4 - 185,8 234,0 - 371,3 355,5 - 571,7 562,0 - 858,2

159 139 78 NA 212,8 - 283,7 168,1 - 219,1 276,1 - 437,9 419,6 - 674,3 663,4 - 1012,3

161 140 79 NA 214,3 - 285,8 169,3 - 220,7 278,1 - 441,1 422,7 - 679,2 668,2 - 1019,7

229 200 113 NA 307,1 - 409,1 242,6 - 316,1 398,6 - 631,4 605,9 - 972,4 957,9 - 1459,9

275 240 135 NA 368,9 - 491,3 291,5 - 379,7 478,8 - 758,2 728,1 - 1167,8 1151,0 - 1753,5

367 320 180 NA 492,6 - 655,7 389,2 - 506,8 639,4 - 1011,9 972,4 - 1558,7 1537,2 - 2340,5

459 400 225 NA 616,3 - 820,2 487,0 - 634,0 799,9 - 1265,6 1216,7 - 1949,6 1923,4 - 2927,5

Screen Size (16:9)

2.98 - 4.77:1

Standard NP02ZL NP03ZL NP04ZL

1.94 - 3.07:1 NP05ZL

4.62 - 7.02:1

ZoomLenses

1.5 - 2.0:1 1.18 - 1.54:1

Screen Ctr

Throw Distance

Screen Bottom

3.45"

Screen Ctr

Throw Distance

Screen Top

7.72"

Lens Offset From

Mount Pipe

3.30"

Shift Range

X=Distance from lens to mount ctr

Standard: X=7.03"

NP01FL: X=7.99"

NP02FL: X=7.78"

NP03FL: X=7.83"

NP04FL: X=7.43"

NP05FL: X=7.41"

~5.40"

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 4 of 9

Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount

Application

The diagram below shows the location of the image position

in the lens. The lens can be shifted within the shaded area as

shown using the normal projection position as a starting

point.

Note: Lens shift feature is not available with NP01FL (rear

lens). NP01FL should be used only for “zero degree” / “no-

offset” applications.

Maximum Possible Range

for Standard Lens/NP02ZL/NP03ZL/NP04ZL/NP05ZL:

Up: 0.5V

Right: 0.10H

Left: 0.10H

(H: width of projected image, V: height of projected image)

Normal Position

0.5H

Normal Position

0.5H

Ceiling Front

Vertical

Desktop Front

Vertical

Normal Position

0.1W

Horizontal

0.1W

Normal Projection Position

Ceiling Front

Desktop Front

0.5H

0.1W 0.1W

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 5 of 9

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the NP3150.

Dimensions are in inches. For millimeters multiply by 25.4. (Åbitte löschen, wenn Bemaßung in “mm” geändert ist)

14.09

15.70

0.02 .28

.16

15.70 4.59

2.33 9.37

2.20

.16 10.93

11.20

3.46

5.93

6.63

Lens Shift Control

Speakers

Air Filters Lamp Cover Air Exhaust

For Mount

M4*8 Max

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 6 of 9

Lens Dimensions

The following drawings show the added dimensions for the optional lenses

Dimensions are in inches. For millimeters multiply by 25.4. (Åbitte löschen, wenn Bemaßung in “mm” geändert ist)

14.09

NP01FL

.96

3.385

14.09

NP w Standard Lens

14.09

NP02ZL

.75

3.81

14.09

NP03ZL

.80

3.385

NP04ZL

14.09

.40

3.25

14.09

NP05ZL

.38

3.25

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 7 of 9

Optional Ceiling Mount Dimensions (Model #: NP05CM)

The following diagrams show ceiling mount dimensions for the NP3150.

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 8 of 9

Optional Ceiling Mount Dimensions (Model #: NP05CM) (continued)

The following diagrams show ceiling mount dimensions for the NP3150.

For further information, please read the “Installation and Adjustment Manual” of NP05CM

NEC Display Solutions Europe GmbH

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.6

www.nec-display-solutions.com NP3151W Page 9 of 9

Input / Output Panel

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT RGB 1 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT RGB 2 02H 03H 00H 00H 02H 01H 02H 0AH

INPUT SELECT VIDEO 1 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT VIDEO 2 02H 03H 00H 00H 02H 01H 07H 0FH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT DVI (ANALOG) 02H 03H 00H 00H 02H 01H 03H 0BH

INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 1FH 27H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H

ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

PC Control Connector (D-Sub 9P)

NOTE:Pins 1, 4, 6, and 9 are used inside the projector.

Jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

12345

6789

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

Otros manuales para NP3151W WXGA

Tabla de contenidos

Otros manuales de Proyector de NEC

NEC

NEC MultiSync VT540 Manual de usuario

NEC

NEC WT610 Series Manual de usuario

NEC

NEC WT600 - XGA DLP Projector Manual de usuario

NEC

NEC MT Series Instrucciones de montaje

NEC

NEC DLP CINEMA NC1600C Manual de usuario

NEC

NEC Nighthawk SX 4000D Manual de usuario

NEC

NEC LT260 Series Manual de usuario

NEC

NEC PA600X Series Manual de usuario

NEC

NEC PX750U Series Manual de usuario

NEC

NEC PH1202HL1 Manual de usuario

NEC

NEC NP-M300W Manual de usuario

NEC

NEC NP2150 Series Manual de usuario

NEC

NEC Showcase Series HT1100 Manual de usuario

NEC

NEC MultiSync LT 80 Manual de usuario

NEC

NEC MultiSync LT140 Manual de usuario

NEC

NEC Nighthawk XT9000 Manual de usuario

NEC

NEC NP-PA1004UL-W Manual de usuario

NEC

NEC VT46 Manual de usuario

NEC

NEC V230X Manual de usuario

NEC

NEC PE401H Manual de usuario

NEC

NEC M260X Series Manual de usuario

NEC

NEC NC900C Manual de usuario

NEC

NEC NP410 EDU Manual de usuario

NEC

NEC M332XS Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
