NEC MultiSync V463-TM Manual de usuario

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 1 of 10

Contents

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Recommendations, Touch Driver Setup Page 2

Display Dimensions

Front, Top, Right, Left, Bottom Page 3

Rear Page 4

With stand Page 5

Table Top Stand Dimensions Page 6

Optional Speaker Dimensions Page 7

Optional Speaker Dimensions Page 8

Optional Wall Mount Dimensions (WMK-3255S) Page 9

Input Panel, Control Codes Page 10

Product Description

Type: LCD Display Screen Surface: Anti-Reflective Protective Glass

Resolution: 1920 x 1080 Dimensions without stand: 43.1”(W) x 25.6”(H) x 3.2”(D)

Aspect Ratio: 16:9 Dimensions with stand: 43.1”(W) x 27.0”(H) x 13.8”(D)

FCC: Class B Weight without stand: 62.0 lbs

Power Consumption: 85W (typ) Weight with stand: 66.1 lbs

BTU’s: 290.03 BTU/hour (typical)

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in either landscape or portrait orientation.

CLOCKWISE ROTATION ONLY MAXIMUM TILT ANGLE

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 2 of 10

Ventilation Recommendations (all models)

Dimensions below are minimum recommended for proper ventilation.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

Touch Driver installation

oIn order for the touchscreen to properly work, the source computer needs to be connected to the

display via provided USB A to B cable. This connection on the screen is on the upper back right

side. See image to the right.

oWhen plugging in the USB A to B cable from a Windows 7 or XP source computer to

V463-TM, touch screen should react and act as a HID device,

automatically downloading all touch driver information.

oUSB plug-in is located on the upper portion of the left side of the display.

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 3 of 10

Display dimensions

-C- -C-

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 4 of 10

Display dimensions (cont.)

-C--C-

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 5 of 10

Dimensions with Optional Stand (ST-4620)

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 6 of 10

Table Top Stand Dimensions (ST-4620)

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 7 of 10

Optional Rear-Mounted Speaker Dimensions (SP-RM1)

Note: External speakers are optional. The unit already contains 10W internal speakers

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 8 of 10

Optional Side Mounted Speaker (ST-TF1)

Back Attachment Side Attachment

Note: External speakers are optional. The unit already contains 10W internal speakers.

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 9 of 10

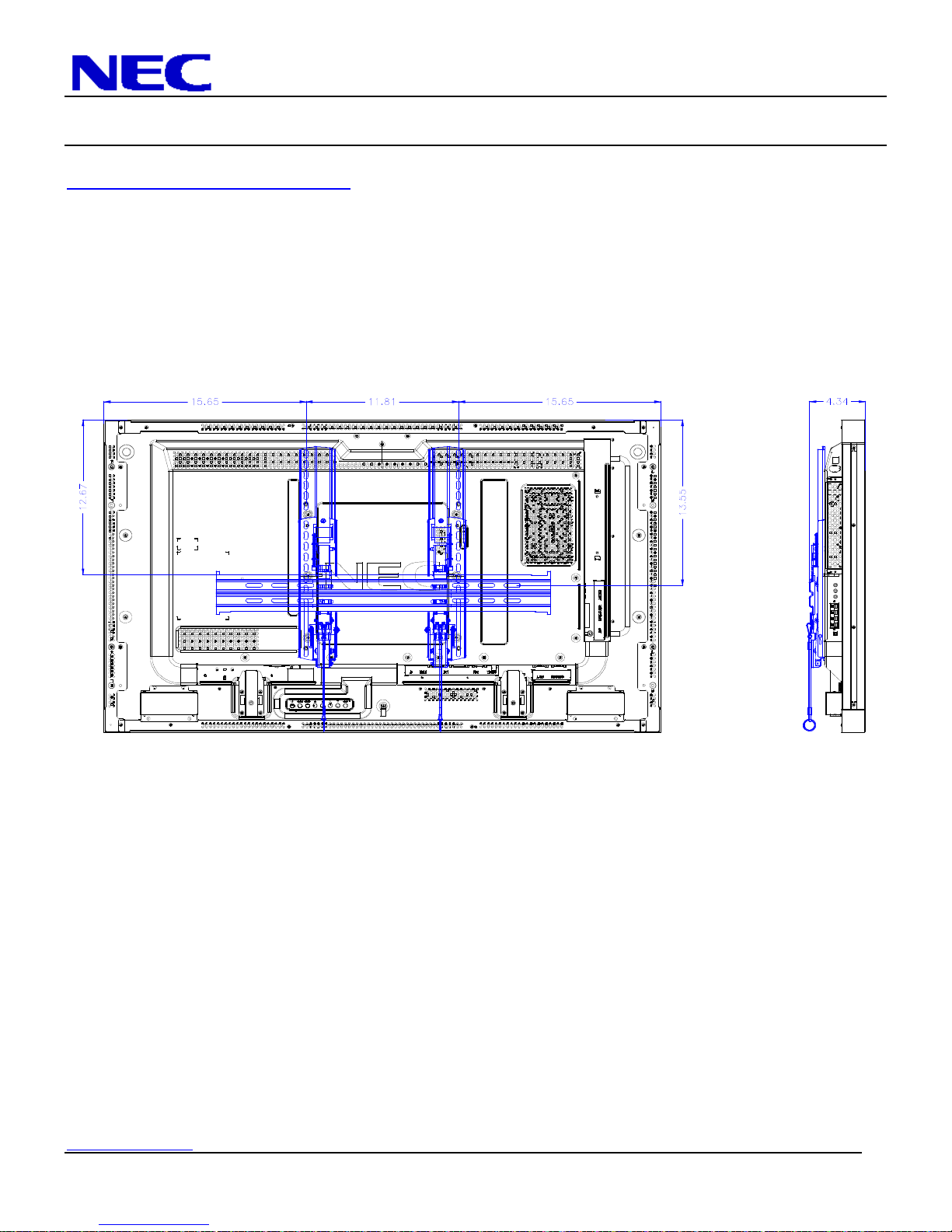

Optional Mount (WMK-3255S)

Note: Mount can vary in position on display

-C--C- -C- -C-

NEC Display Solutions of America, Inc.

V463-TM Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com V463-TM Page 10 of 10

Input Panel

Bottom:

Side:

Control Codes

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C Parity: None

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits

Note:

If so desired, jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These

connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).
