MultiSync LCD1850X

User’s Manual

English-1

English

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN

EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS

CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE

COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have

sufficient magnitude to cause electric shock. Therefore, it is dangerous to make

any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation

and maintenance of this unit has been included. Therefore, it should be read

carefully in order to avoid any problems.

CAUTION

WARNING

RISK OF ELECTRIC SHOCK •DO NOT OPEN

Caution:

When operating the MultiSync LCD1850X (LH-18S02-1 and LH-18S02-BK1) with a

220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse

installed for use with this equipment. If a power cord is not supplied with this equipment

please contact your supplier.

When operating the MultiSync LCD1850X with a 220-240V AC power source in

Australia, use the power cord provided with the monitor.

For all other cases, use a power cord that matches the AC voltage of the power outlet

and has been approved by and complies with the safety standard of your particular

country.

ENERGYSTA R is a U.S. trademark.

As an ENERGYSTAR®Partner, NEC-Mitsubishi Electronics Display of America, Inc. has

determined that this product meets the ENERGYSTA R guidelines for energy efficiency. The

ENERGYSTA R emblem does not represent EPA endorsement of any product or service.

IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of

International Business Machines Corporation.

Apple and Macintosh are registered trademarks of Apple Computer Inc.

Microsoft and Windows are registered trademarks of the Microsoft Corporation.

NEC is a registered trademark of NEC Corporation.

All other trademarks or registered trademarks are property of their respective owners.

English-2

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD1850X (LH-18S02-1)

MultiSync LCD1850X (LH-18S02-BK1)

is in compliance with

Council Directive 73/23/EEC:

–EN 60950

Council Directive 89/336/EEC:

–EN 55022

–EN 61000-3-2

–EN 61000-3-3

–EN 55024

and marked with

NEC-Mitsubishi Electric Visual Systems, Corp.

MS Shibaura Bldg., 13-23,

Shibaura 4-chome,

Minato-Ku, Tokyo 108-0023, Japan

Power consumption of the monitor is less

than 3 W when in power-saving mode.

English-3

English

For the Customer to use in

U.S.A. or Canada

Canadian Department of Communications

Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du

Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety

Regulations according to CSA C22.2 #950.

Ce produit porte la marque ‘C-UL’et se conforme aux règlements de

sûrele Canadiens selon CAN/CSA C22.2 No. 950.

FCC Information

1. Use the attached specified cables with the MultiSync LCD1850X

colour monitor so as not to interfere with radio and television

reception.

(1)The power supply cord you use must have been approved by and

comply with the safety standards of U.S.A., and meet the following

condition.

Power supply cord Non shield type, 3-conductor

Length 1.8 m

Plug shape

(2)Shielded video signal cable. Use of other cables and adapters

may cause interference with radio and television reception.

English-4

2. This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy, and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced

radio/television technician for additional suggestions. The user may

find the following booklet, prepared by the Federal Communications

Commission, helpful: “How to Identify and Resolve Radio-TV

Interference Problems.”This booklet is available from the U.S.

Government Printing Office, Washington, D.C., 20402,

Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two

conditions. (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

U.S. Responsible party: NEC-Mitsubishi Electronics

Display of America, Inc.

Address: 1250 N. Arlington Heights Road

Itasca, Illinois 60143-1248

Tel. No.: (630)467-3000

Type of Product: Computer Monitor

Equipment Classification: Class B Peripheral

Models: MultiSync LCD1850X

We hereby declare that the equipment specified above conforms to the technical

standards as specified in the FCC Rules.

English-5

English

Contents

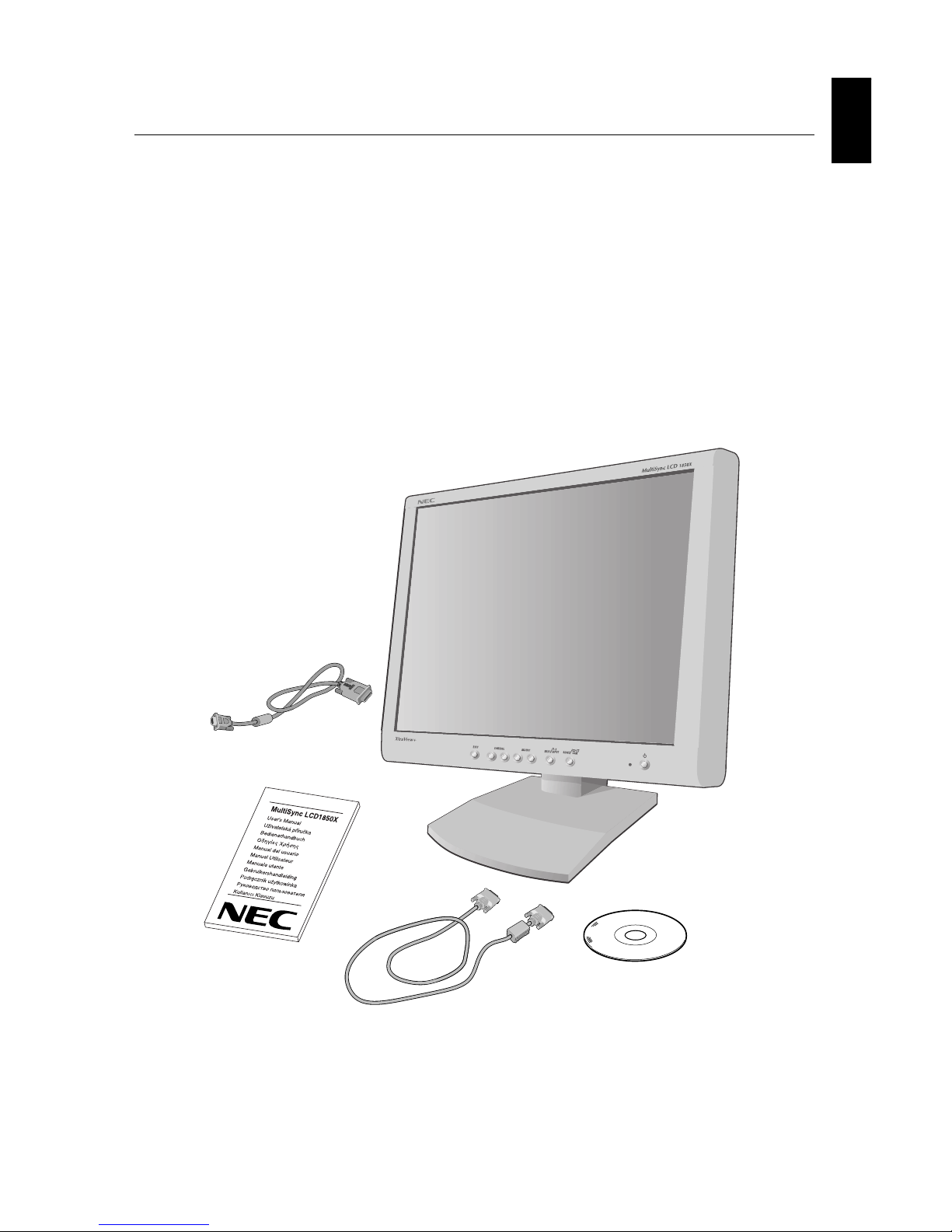

Your new NEC MultiSync LCD monitor box* should contain the following:

•MultiSync LCD1850X monitor with tilt base

•Power Cords

•Video Signal Cable (15-pin mini D-SUB male to DVI-A)

•Video Signal Cable (DVI-D to DVI-D Cable)

•User’s Manual

•NEC LCD Setup Software, Pivot Software, User’s Manual and other

helpful files. To see the User‘s Manual, Acrobat Reader 4.0 must be

installed on your PC.

* Remember to save your original box and packing material to transport

or ship the monitor.

English-6

Quick Start

To attach the MultiSync LCD monitor to your system, follow these

instructions:

1. Turn off the power to your computer.

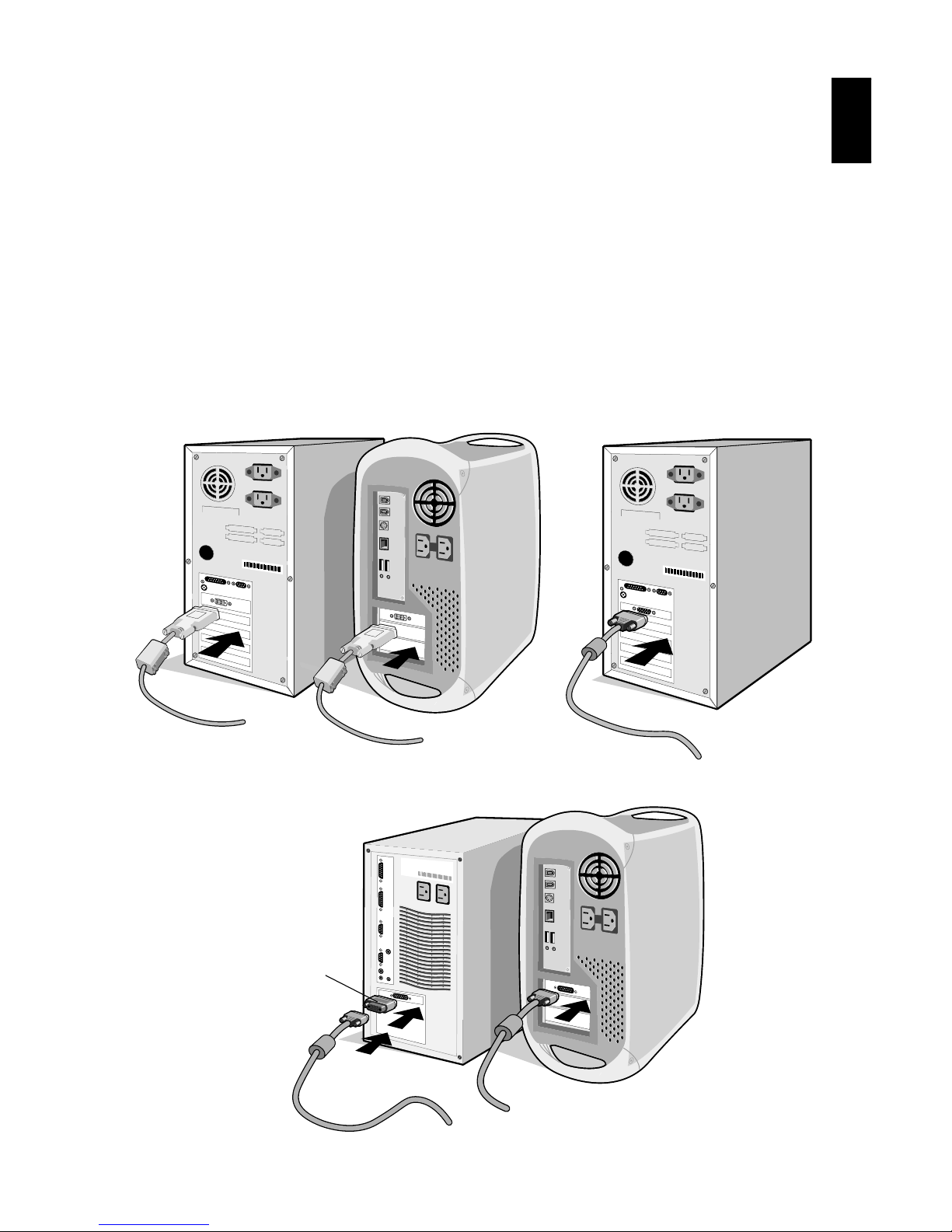

2. For the PC or Mac with DVI digital output: Connect the DVI-D to

DVI-D signal cable to the connector of the display card in your

system (Figure A.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB to

DVI-A signal cable to the connector of the display card in your system

(Figure A.2).

For the Mac: Connect the MultiSync Macintosh cable adapter to the

computer (Figure B.1). Attach the 15-pin mini D-SUB signal cable to

the MultiSync Macintosh cable adapter (Figure B.1).

NOTE: Some Macintosh systems do not require a Macintosh cable

adapter.

3. Remove connector cover. Connect the DVI signal cable to the

connector on the back of the monitor. Place the video signal cable

(Figure C.1).

Replace connector cover.

NOTE: Incorrect cable connections may result in irregular operation,

damage display quality/components of LCD module and/or

shorten the module’s life.

4. Connect one end of the power cord to the AC inlet on the back of the

monitor and the other end to the power outlet (Figure D.1).

NOTE: Please refer to Caution section of this manual for proper

selection of AC power cord.

5. Check the Vacation Switch on the right hand side of the monitor is in

the ON position. Turn on the monitor with the Power Button

(Figure E.1) and the computer.

NOTE: There are two switches: one on the right side and one on the

front side of the monitor. DO NOT switch on/off quickly.

English-7

English

6. To complete the setup of your MultiSync LCD monitor, use the

following OSM controls:

•Auto Adjust Contrast (Analog input only)

•Auto Adjust (Analog input only)

Refer to the Controls section of this User’s Manual for a full description

of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting

section of this User’s Manual.

NOTE: Refer to User’s Manual in the NEC LCD Setup Software CD

case for installation and operation of this software.

Figure B.1

Macintosh Cable

Adapter (not included)

Macintosh G3 and G4 do not

need a Macintosh cable adapter

Figure A.1 Figure A.2

English-8

Figure D.1

Figure E.1

Figure C.1

Input1 Input2

Vacation Switch

Power Button

English-9

English

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or

Landscape mode.

To raise or lower screen, place hands on each side of the monitor and

lift or lower to the desired height (Figure RL.1).

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid

knocking the screen on the desk or pinching your fingers.

To raise the screen, place hands on each side of the monitor and lift up

to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and

turn clockwise from Landscape to Portrait or counter-clockwise from

Portrait to Landscape (Figure R.1).

To toggle the orientation of the OSM menu between Landscape and

Portrait modes, press the RESET button while OSM menu is off.

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the

tilt and swivel as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of the monitor and lift up to the

highest position (Figure RL.1).

3. Place monitor face down on a non-abrasive surface (Place the

screen on a 50 mm platform so that the stand is parallel with the

surface.) (Figure S.1).

4. Press the “”portion with your index finger and at the

same time slide the lower stand cover. (Figure S.2)

Next, lift up the stand, remove the lower stand cover, then go on to

remove the upper stand cover. (Figure S.3)

Return the stand to its original position, remove the 4 screws that

connect the monitor to the stand, and lift off the stand assembly.

(Figure S.4)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de NEC

NEC

NEC PlasmaSync 42XM4 PX-42XM4G Manual de usuario

NEC

NEC NEC MultiSync LCD1830 LCD1830 LCD1830 Manual de lista de piezas

NEC

NEC LCD1855NX - MultiSync - 18.1" LCD Monitor Manual de usuario

NEC

NEC PLASMA50USER Manual de usuario

NEC

NEC MultiSync E233WM Manual de usuario

NEC

NEC MultiSync LCD1970V Manual de usuario

NEC

NEC LCD4020-BK-AV - 40IN LCD 1200:1 1366X768 60HZ Dvi-d... Manual de usuario

NEC

NEC MultiSync EX341R Manual de usuario

NEC

NEC LCD2070NX - MultiSync - 20" LCD Monitor Manual de usuario

NEC

NEC MultiSync FP1375X Manual de usuario

NEC

NEC MDview 243 Manual de usuario

NEC

NEC MultiSync P553 Manual de usuario

NEC

NEC LCD8205 - MultiSync - 82" LCD Flat Panel... Manual de usuario

NEC

NEC MultiSync FE791SB Manual de usuario

NEC

NEC NEC MultiSync LCD1525V LCD1525V LCD1525V Manual de usuario

NEC

NEC MultiSync P521 Manual de lista de piezas

NEC

NEC PlasmaSync 4205W Manual de usuario

NEC

NEC LCD1770VX - MultiSync - 17" LCD Monitor Manual de usuario

NEC

NEC MultiSync FP912SB Manual de usuario

NEC

NEC MultiSync EA245WMi-BK Manual de usuario

NEC

NEC EA223WM-BK Manual de usuario

NEC

NEC MultiSync LCD2690WUXi Manual de usuario

NEC

NEC MD211G3 Instrucciones de funcionamiento y seguridad

NEC

NEC PlasmaSync 50XM4 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

LG M1950D-PZ Manual de usuario
