User’s Guide

750246-0

Document Revision 1

Dterm Headset Cordless

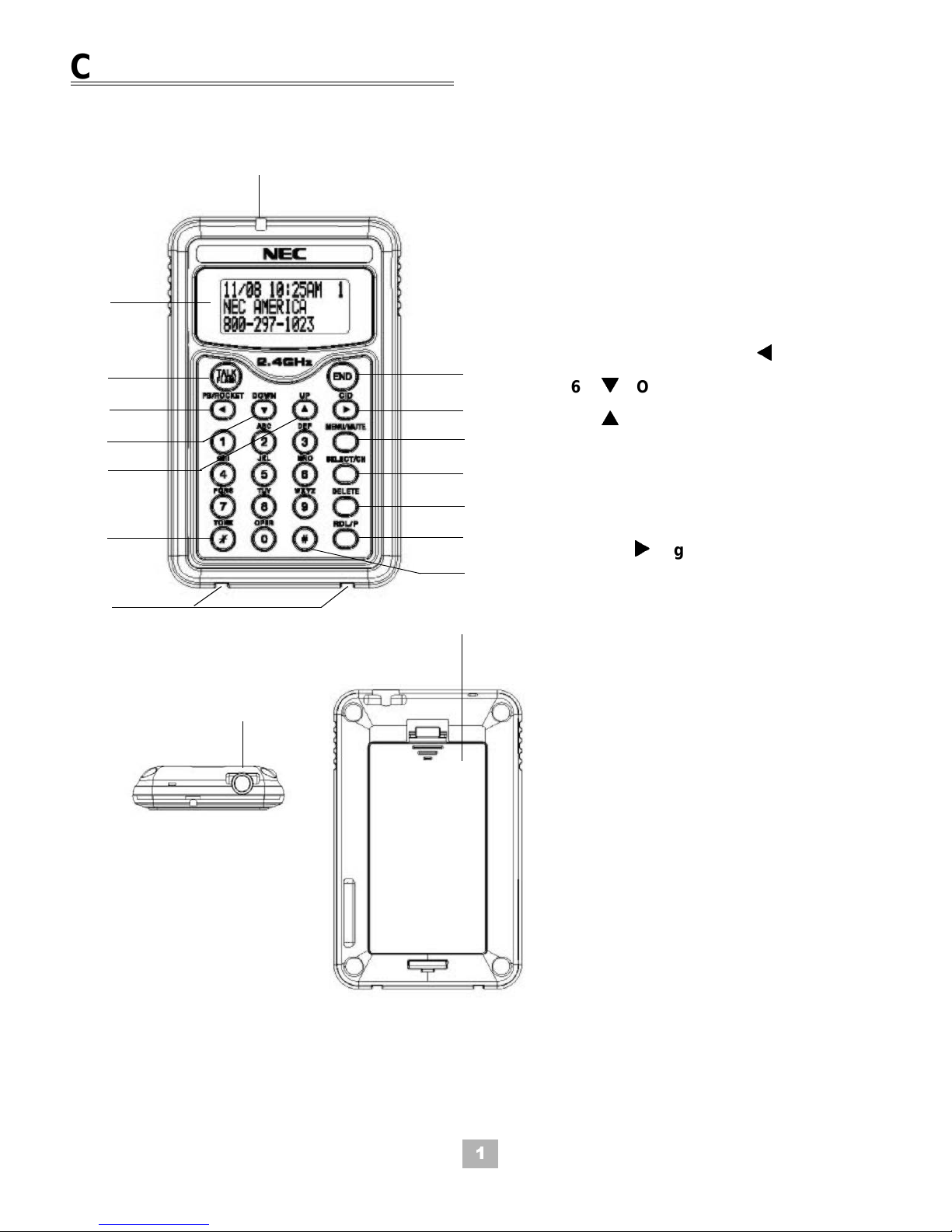

Controls and Functions

1 Incoming Call LED

2 Headset Jack

3 LCD Display

4 TALK/FLASH Key

5 PB/ROCKET (Phone-

book)/(RocketDail)





DOWN Key



UP Key

8*/TONE Key

9 Handset Charging Key

10 END Key .

11 CID/



(right cursor)

Key (not supported

12 MENU/MUTE Key

13 SELECT/CH (channel)

Key

14 DEL (Delete) Key

15 RDL/P (Redail/Pause)

Key

16 # Key

17 Handset Battery Com-

partment

Handset Top View

Handset Top End View

Handset Bottom View

18 Base Antenna

19 PAGE Key

20 STATUS Key

21 DC Power Input

22 Telephone Line Jack

Base Top View

Base Side View

Base End View

2221

Base Bottom View

Base

AC Adapter

Handset

Rechargeable Battery

Beltclip

Telephone Cords

Features

The following features are provided on the Dterm Headset Cordless telephone:

• 2.4 GHz Digital Spread Spectrum Technology

• Phonebook Locations (up to 100 numbers in total)

• Trilingual Language Option

• 8-Day Standby Battery Life

• 5-Hour Talk Time

• Tone/Pulse Dialing

• Handset Earpiece and Ringer Volume Control

• 32-Digit Redial / 3 Last Number Redial Locations

• 3-Line, 16-Character Backlit Handset Display

• One Touch Dialing

• Mute Feature

• Flash and Pause

• Find Handset

• Call Timer

• Vibrator Mode

• AutoTalk™

AutoTalk allows you to answer calls by removing the handset from the base.

• AutoStandby™

AutoStandby allows you to hang up by simply returning the handset to the base.

• Random Code™

Random Code protects you against misbilled calls which might result from your telephone being

activated by other equipment. The Dterm Headset Cordless has digital security which automatically

selects one of over 65,000 digital security codes for the handset and base.

• RocketDial™

RocketDial is a one-touch speed dial key that automatically dials your most important or frequently

called number. The number dialed is a preset number stored by the user.

• Two headsets included

• Beltclip

• Charging Base with an AC Adapter included

Connecting the Base Unit

1. Connect the AC adapter to the DC IN 9 V jack and to a standard 120V AC wall outlet.

2. Set the base on a desk or tabletop, and place the handset in the

base unit as shown.

3. Raise the antenna to a vertical position.

4. Make sure the status LED illuminates. If the LED does not

illuminate, check to see that the AC adapter is plugged in and that

the handset makes good contact with the base charging contacts.

•Use only the supplied AC adapter (730627). Do not use any other AC

adapter.

• Connect the AC adapter to a continuous power supply.

• Place the base unit close to the AC outlet so that you can unplug the AC adapter easily.

• After installing the battery pack in the handset, charge the handset at least three ~ five hours

before plugging it into the telephone line.

5. Connect the telephone line cord to the TEL LINE jack and the other end into the AP(R)-R

Unit.

Figure 1 Connecting the Base to the Adapter

To DC IN 9V

AC Adapter

(supplied)

To AC Outlet

Route the cord



Place the power cord so that it does not create a trip hazard or where it could become chafed

and create a fire or electrical hazard.

Making and Receiving Calls

To make or receive a call, you need to install one of the supplied headsets. (Refer to Headset

Installation on page 13.)

Figure 2 Connecting the Telephone Cord to the AP(R)-R Unit

At the start, wear the headset.

Handset On Base Handset Off Base

To answer a

call Pick up the handset (AutoTalk) to test or pick

up the handset and press TALK/FLASH.Press any number key, Q/TONE,or # (Any key

Answer), or press TALK/FLASH.

To make a

call

1. Pick up the handset.

2. Press TALK/FLASH.

3. Listen for the dial tone.

4. Dial the number.

- OR -

Pick up the handset.

Dial the number, then press TALK/

FLASH.

1. Press TALK/FLASH.

2. Listen for the dial tone.

3. Dial the number.

- OR -

Dial the number and then press TALK/

FLASH.

To hang up Press END, or return the handset to the base (AutoStandby).

To enter a

pause within

the dialing

sequence

When you dial the number, press RDL/P.

Pappears in the display which represents a pause.

Refer to the Dterm Headset Cordless Owner’s Guide for the AutoTalk Option section to turn the AutoTalk feature

On if desired. Any key answer can be used only when AutoTalk is set to On.

Telephone Line Cord

(supplied)

AP(R)-R Unit

To TEL LINE

Ringer

There are several items to setup for the ringer. These must be done in order to hear a ring when

receiving a call.

Ringer Tone Setting



If you set the ringer to Off, the ringer tone will not sound.

Setting the ringer tone on the Dterm Headset Cordless telephone is done

manually by following these steps.

1. When the telephone is in the standby mode, press MENU/MUTE. The

display then shows the telephone menu in standby mode.

2. Press



UP or



DOWN to move the pointer to Ringer Tones, then

press SELECT/CH.

•Ringers



Flicker



Clatter



Leap Frog



Ping Ball



Reminder



Soft Alert

• Melodies



Beethoven_9



For Elise (ELise)



MerryChristmas (Merry-Xmas)



Home Sweet Home (Hm Swt Hm)

3. Press



UP or



DOWN to move the pointer. You will hear a ringer or melody as you scroll

through the options.

4. Press SELECT/CH,and you will hear a confirmation tone.

5. Press END to exit.



Ringer Volume

Ringer Tones

Distinct. Ring

Ringer Volume



Ringer Tones

Distinct. Ring



Flicker

Clatter

Leap Frog
