NCR 7895 RS232 Configuration Setup Guide Rev. B Page 1 of 12
PSO Atlanta
NCR 7895 RS232 Configuration
Setup Guide
The electronic version of this document is the revision-controlled copy.
All printed copies are considered uncontrolled copies.
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 2 of 12
DOCUMENT REVISION HISTORY
Revision
Date
Description of Change
A
2/14/2022
Initial release
B
8/09/2022
Updated setup procedures in Sections 3.1 and 3.2.
Added and updated screenshots of 123Scan utility.
Added Reference section
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 3 of 12
TABLE OF CONTENTS
1INTRODUCTION......................................................................................................4
2SOFTWARE REQUIREMENTS..................................................................................4
2.1 NCR 123Scan Configuration Utility ........................................................................................................4
2.2 NCR 7895 RS-232 Programming Barcodes...........................................................................................4
3RS232 CONFIGURATION PROCEDURES ................................................................4
3.1 Configuration via NCR 123Scan Utility..................................................................................................5
3.2 Configuration via Programming Barcodes .........................................................................................10
4REFERENCES..........................................................................................................12
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 4 of 12
1INTRODUCTION
This document describes how to configure NCR 7895 scanner with RS232 communication
interface and its parameters.
2SOFTWARE REQUIREMENTS
2.1 NCR 123Scan Configuration Utility
Latest version: v5.04.0006
Download location: Latest Firmware, Utilities and Tools for the 7895 Scanner
(ncr.com)
Setup Guide: NCR Online Information Product - 123Scan Software Tool
2.2 NCR 7895 RS-232 Programming Barcodes
Document Location: NCR 7895 Scanner/Scale Bar Code Programming Guide
(BCC5-0000-5516)
3RS232 CONFIGURATION PROCEDURES
There are two ways to configure the 7895 scanner with RS232 interface:
(A) via NCR 123Scan Configuration Utility
(B) via 7895 Programming barcodes
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 5 of 12
3.1 Configuration via NCR 123Scan Utility
PRECONDITION:
➢Latest NCR 123Scan Configuration Utility is pre-installed in PC/POS
terminal.
STEPS:
1. Using a USB communication cable, connect the NCR 7895 scanner to a
computer or POS terminal and boot up the scanner. The scanner produces three
incrementing beeps after booting up.
2. Launch NCR 123Scan Configuration Utility.
3. To create configuration file with default settings,
a. Click “Create new configuration file” menu (new Untitled tab will be
created)
b. Select “My scanner is connected via USB cable” option.
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 6 of 12
c. Select 7895 latest Firmware Plug-in (Configuration wizard will
automatically show)
d. Set Configuration name following the naming convention below.
•Configuration name MUST start with NCR7895
•Configuration name MUST end with CFG
Example: NCR7895_DF_CFG
e. Add Notes for brief description of the configuration file (optional).
f. Proceed to step 5.
4. To create configuration file based on the scanner’s current settings,
a. Click “Clone/modify my connected scanner settings” menu. Scanner’s
current configuration file summary will show.
b. Click “Start configuration wizard >>”.
c. Proceed to step 5.
5. On the left menu, click “2. Cable connection”. USB options will be shown on
the right by default.
6. Click “+add cable” then select “Single RS232C”.
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 7 of 12
7. On Single RS232C tab, set the following configurations:
(*) Default values
a. Basic Settings:
•Set as reboot default: Enabled (tick the checkbox to enable)
•RS232 Host Type: NCR Host
•Baud Rate: 9600 *
•Parity: Odd *
•Stop Bits: One Stop Bit *
•Data Bits: Seven Bits *
b. NCR Host settings:
•NCR Use Prefix: Enable *
Note: If customer doesn’t use prefix, disable this setting.
•NCR Use BCC: Enable *
Note: If NCR Interface is Scanner Only, disable BCC, if
Scanner/Scale, enable BCC.
•NCR Interface: Scanner Only or Scanner/Scale *
•NCR Prefix: 1002 *(prefix 02)
Note: Set parameter to blank if customer doesn’t use prefix.
•NCR Suffix: 1003 *(terminator byte 03)
•NCR Label ID mode: NCR Mode *
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 8 of 12
8. Select other menu options on the left to set other needed configurations (e.g.
symbologies, scale parameters, etc.), else proceed to step 9.
9. Load new configurations to the scanner. Select “9. Load and print” (left
menu) then click Load to scanner (right menu, either of the menu buttons
below).
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 9 of 12
Note: To save configuration file, click Save to PC.

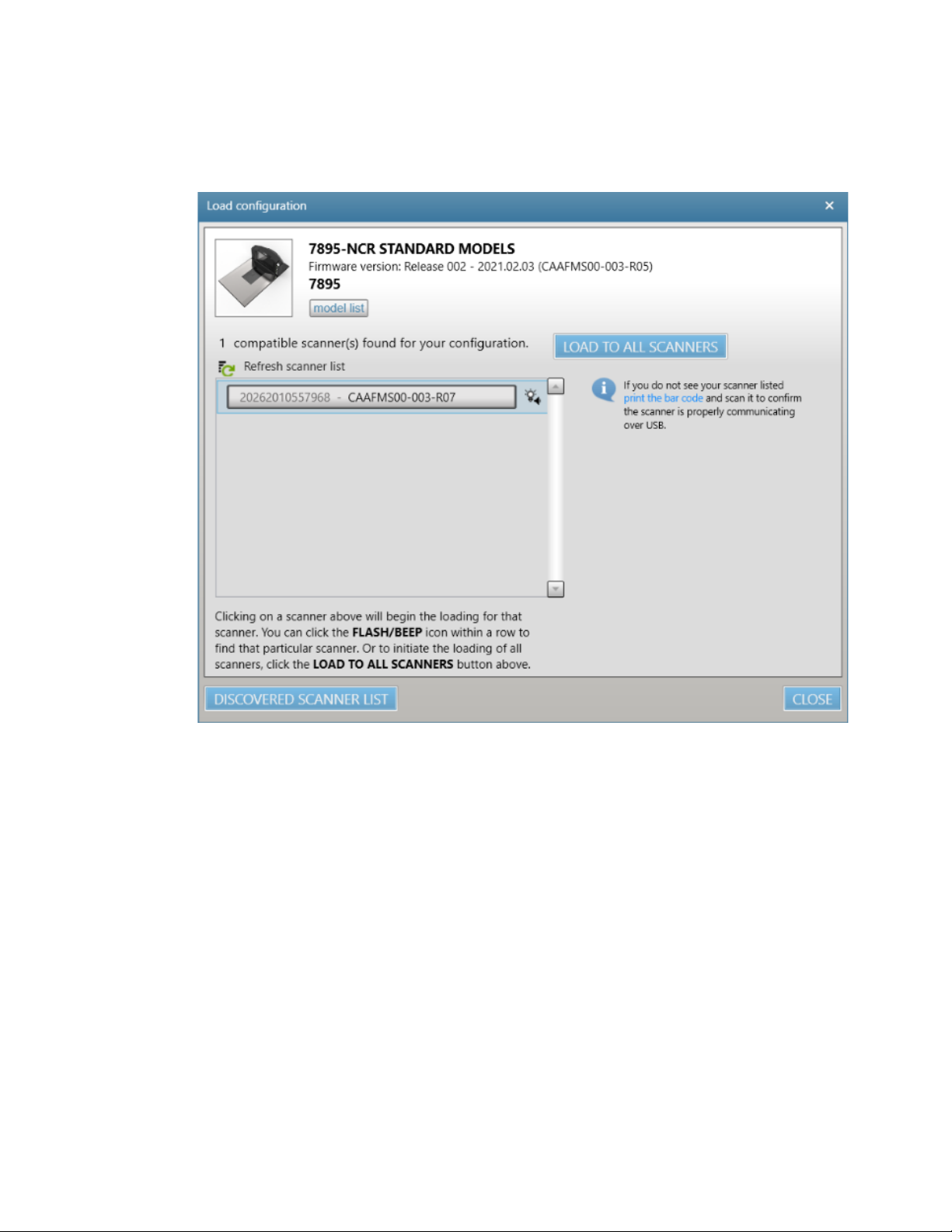

10. Select scanner to load and configuration upload will start automatically.
11. Once configuration upload is completed, click Close button.
12. Close the NCR 123Scan Configuration Utility (scanner automatically reboots)
13. Remove power from the 7895 scanner then connect it to the POS with RS232
cable (replacing USB cable).
14. Supply power to the 7895 scanner device. The scanner produces three
incrementing beeps after booting up.
15. Launch any Serial application with correct com port settings then perform
tests on the 7895 scanner (ex. barcode scanning, commands sending, etc.).
NCR 7895 RS232 Configuration Setup Guide Rev. B Page 10 of 12
3.2 Configuration via Programming Barcodes
PRECONDITION:
➢Print the 7895 programming barcodes in this section.
STEPS:
1. Using a RS232/Serial communication cable, connect the NCR 7895 scanner to
a computer or POS terminal and boot up the scanner. The scanner produces
three incrementing beeps after booting up.
2. Scan the following barcode to set RS232 Host Type to “NCR Host” interface
and activate RS232 driver.
3. Set the RS232 parameters for NCR Host:
(*) Default values; no need to change unless needed
•Baud Rate: 9600 *
•Parity: Odd *
•Stop Bits: One Stop Bit *
•Data Bits: Seven Bits *
•NCR Use Prefix: Enable *
Note: If customer doesn’t use prefix, disable this setting. Scan the
following barcodes to enable/disable NCR Prefix.
