Nauticam NA-A6700 Manual de usuario
NA - A6700
For Sony A6700 Mirrorless Camera
User Manual
Housing
APS-C- MIL
PN 17435
Introduction 2
2
3
4
7
8
Package Contents
Important Instructions
Part Names and Functions
Housing Mount
Opening the housing
9Closing the housing
10
15
Preparation for Use
Optional Accessories
16
17
18
Care/Storage
Warranty
Specications
September, 2023
2
INTRODUCTION
PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
After purchase, we suggest that
you reuse all packaging materials
for future travelling.
Panasonic CR2032 Battery
(Pre-installed for Moisture Alarm)
Spare Main O-ring
#90133
Padded Travel Case
#36333
Allen key set
O-ring Remover Manual Instruction Card
NA-6700
(2x Plugs for Optical Fiber Cable Mount, 1 x Housing Cap,
2x Handles with Mounting Balls ,2x Handle Brackets)
Lubricant
3
IMPORTANT INSTRUCTIONS
Water-tight test of the housing (without
camera inside) before usage is recom-
mended as well as any O-ring renewal
and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intended for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories specied by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.
4
PART NAMES AND FUNCTIONS
Viewnder Moisture alarm windo
Menu button REC button
C1 button
Exposure compensation button Delete/C3 button
Playback button
Display button
Housing unlock button
ISO button
Quick control dial 1
Self-timer/Drive mode button
Fn button
1 2
3 4
5
7
9
11
13
6
8
10
12
14
Rear View
4
6
89
Menu/Set buttonA
11
7
5
3
2
1012
13
14
A
1
5
PART NAMES AND FUNCTIONS
M24 Accessory port
Mode dial
Lens release button
M14 Accessory port
Rear dial
Port index mark
Main switch
Still/Movie/S&Q lever
M10 Accessory port
Accessory mounting ball
C2 button
1
5
9
2
6
10
3
7
11
4
8
Top + Front Views
11
9
10
1
2
4
6
8
3
5
7
6
PART NAMES AND FUNCTIONS
Back + Side Views
Zoom/Focus knob release
Shutter release lever
Front dial
1/4” Threaded tripod holes
Port lock safety button
Housing unlock button
Port lock lever
Sacricial zinc anodes
AF-ON/Enlarge lever
3
7
9
1
4
8
5
2
6
7
9
6
8
2
3
4
5
1
HOUSING MOUNT
Cold Shoe
M10 Accessory port
1
2
3
Compatible accessoriesHousing mount
25221
25624
25086
25xxx
25081
25032
25046
25028
HDMI 1.4
HDMI 2.0
25311
25312
25321
25322
M10 Strobe Mounting Ball
M14 Vacuum Valve II
M24 Adaptor for HDMI 2.0 Cable
M24D2R200-M28A1R170 HDMI 2.0 Cable ( TBC )
M24 to M16 Step Down Adaptor
Custom HDMI Bulkhead to use with Socket Extension
HDMI (D-D) Cable in 200mm Length
Socket Extension for 25032 HDMI Bulkhead
with M16 Thread
Strobe Mounting Ball for Cold Shoe
Light Mounting Stem for Cold Shoe
Long Strobe Mounting Ball for Cold Shoe
Long Light Mounting Stem for Cold Shoe
M14 Accessory port
M24 Accessory port
4
17954
17960 Universal Tripod Plate
Universal Quadra-pod Plate
1/4” -20 Mounting threads5
4
3
2
1
5
7
8
OPENING THE HOUSING
* drawings as illustrations only
1
2
3
depress housing unlock button
turn housing lock latch
anti-clockwise to open the
housing
ip open the back housing
when lock latch is aligned to
‘open’ position
9

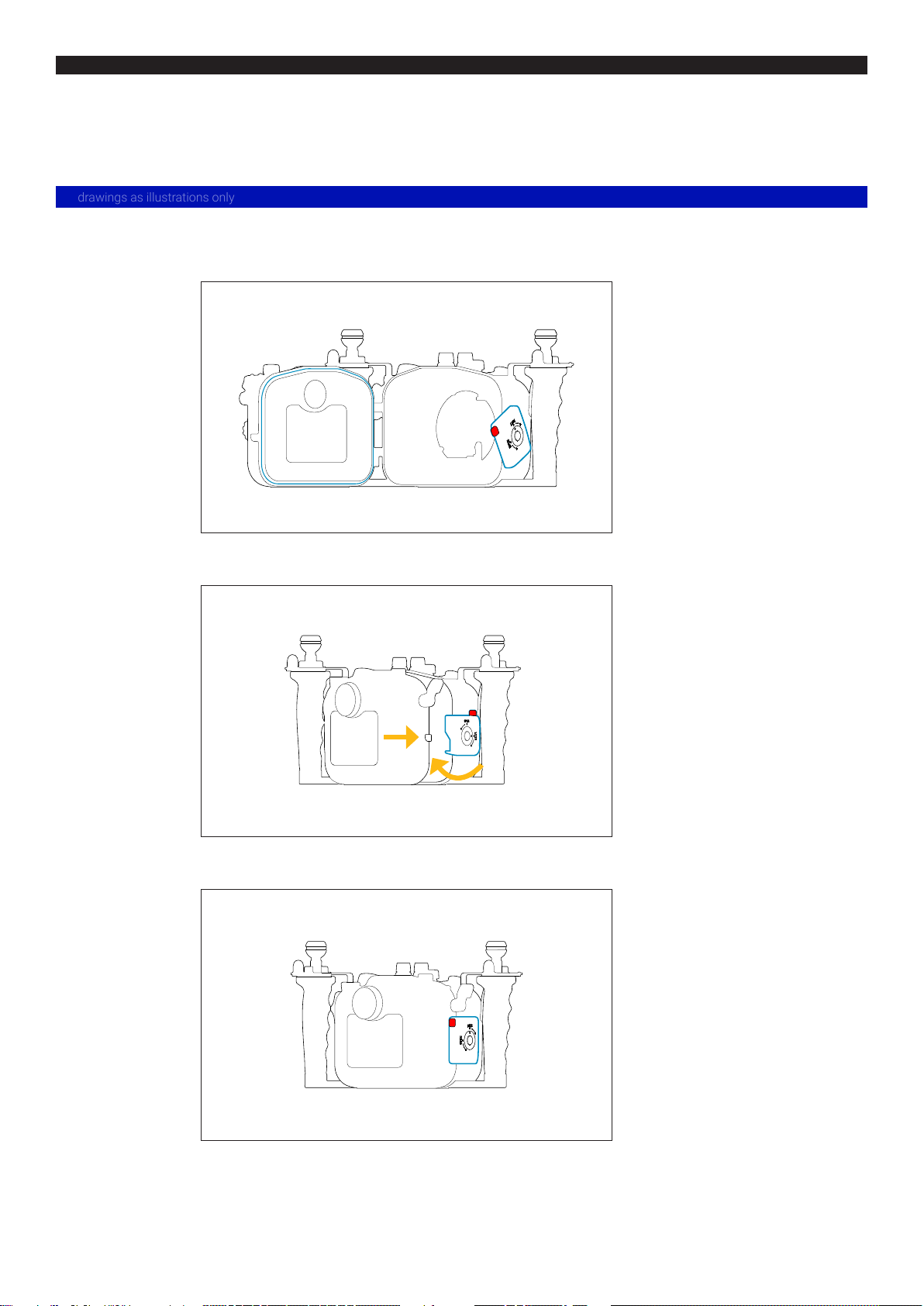

CLOSING THE HOUSING
* drawings as illustrations only
1
2
3
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
main O-ring
insert the housing shaft into the
shaft hole and then rotate the lock
latch clockwise until you hear and
feel it click into place
housing locked in place securely
10
PREPARATION FOR USE
Installing the Camera - housing tray attachment
1
4
2
3
unlock camera tray lever and
remove the tray from the housing
lock camera tray
*gently push the Mode dial and ON/OFF
lever downwards to make sure it is engaged
with the lever on the camera
remove the eye piece before
installing into the housing
attach the camera tray by tightening
the tray screw into the tripod socket
of the camera
place the actuator on the camera
tray in place and make sure it is
engaged with the camera
*lift up the Mode dial as well as the
ON/OFF lever before installing the
camera into housing
slide the camera tray back into the
housing along the tray rail
* drawings as illustrations only
