GETTING STARTED GUIDE

NI ELVIS RIO Control Module

This document describes how to begin using the NI ELVIS RIO Control Module.

Safety Guidelines

Operate the NI ELVIS RIO CM only as described in the user documentation.

Caution Do not operate the NI ELVIS RIO CM in a manner not specified in this

document. Product misuse can result in a hazard. You can compromise the safety

protection built into the product if the product is damaged in any way. If the product

is damaged, return it to NI for repair.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and accessories.

Caution To ensure the specified EMC performance, the length of the cable

connected to the USB device port must be no longer than 3m (10ft) and cable

connected to USB host port must be no longer than 30 m (100 ft).

Caution To ensure the specified EMC performance, only use direct board-to-board

connections to connect myRIO Expansion Port (MXP) connectors.

Preparing the Environment

Caution Clean the NI ELVIS RIO CM with a soft, nonmetallic brush. Make sure

that the device is completely dry and free from contaminants before returning it to

service.

Ensure that the environment in which you are using the NI ELVIS RIO CM meets the

following specifications.

Operating temperature 10 °C to 35 °C

Storage temperature

(IEC 60068-2-1, IEC 60068-2-2)

-20 °C to 70 °C

Operating humidity (IEC 60068-2-78) 10% RH to 90% RH, noncondensing

Storage humidity (IEC 60068-2-78) 10% RH to 90% RH, noncondensing

Maximum altitude 2,000 m

Pollution Degree (IEC 60664) 2

Indoor use only.

Note Refer to the NI ELVIS RIO Control Module Specifications on ni.com/manuals

for complete specifications.

Unpacking the Kit

Caution To prevent electrostatic discharge (ESD) from damaging the device,

ground yourself using a grounding strap or by holding a grounded object, such as

your computer chassis.

2| ni.com | NI ELVIS RIO CM Getting Started Guide

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Caution Never touch the exposed pins of connectors.

Note Do not install a device if it appears damaged in any way.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

Verifying the Kit Contents

Verify that the following items are included in the NI ELVIS RIO CM kit.

Figure 1. NI ELVIS RIO CM Kit Contents

32 4 5

1. NI ELVIS RIO CM Device

2. NI LabVIEW 2016 ELVIS RIO Control Software

Bundle

3. Getting Started Guide

4. M4 Mounting Screw (x4)

5. USB 2.0 A-to-B (Angled) Cable

Installing the NI ELVIS RIO CM

What to Use

• Hardware

– NI ELVIS II Series Workstation

– NI ELVIS II Series AC/DC power supply

– USB 2.0 A-to-B (Angled) Cable

– M4 mounting screws

– Computer

• Software

– NI LabVIEW 2016 ELVIS RIO Control Software Bundle

• Tools

– Screwdriver, Phillips #1

NI ELVIS RIO CM Getting Started Guide | © National Instruments | 3

What to Do

Note Refer to the NI ELVIS RIO Control Module User Manual and the NI ELVIS II

Series User Manual on ni.com/manuals to identify ports and connectors.

1. Position the NI ELVIS RIO CM on the NI ELVIS II Series Workstation.

2. Slide the Workstation Interface Connector of the NI ELVIS RIO CM into the Prototyping

Board Connector on the workstation and ease it into place.

3. Secure the NI ELVIS RIO CM to the workstation using two M4 mounting screws.

4| ni.com | NI ELVIS RIO CM Getting Started Guide

Powering Up the NI ELVIS RIO CM

1. Install required software from the NI LabVIEW 2016 ELVIS RIO Control Software

Bundle DVD.

2. Connect the NI ELVIS RIO CM to the NI ELVIS II Series Workstation. Refer to the

Installing the NI ELVIS RIO CM section for more information.

3. Connect the USB Device Port on the NI ELVIS RIO CM to the computer with the USB

cable.

4. Turn on the Workstation Power Switch to power up the NI ELVIS II Series Workstation.

NI ELVIS RIO CM Getting Started Guide | © National Instruments | 5

5. Turn on the Prototyping Board Power Switch to power up the NI ELVIS RIO CM.

6. Launch the Getting Started Wizard from the USB Monitor.

Note The Getting Started Wizard can also be launched through the LabVIEW

Getting Started Window or LabVIEW Project right-click menu.

Tip The USB Monitor pop-up window appears once the NI ELVIS RIO CM is

connected to the computer and powered up.

7. Test the onboard devices with the test panel at the end of the Getting Started Wizard.

Connecting MXP Plants to the NI ELVIS RIO CM

Caution To prevent damage to the MXP plant and MXP connectors, secure the

NI ELVIS RIO CM to the NI ELVIS II Series Workstation using two M4 mounting

screws.

Caution To prevent damage to the NI ELVIS RIO CM and MXP plant, ensure that

the NI ELVIS RIO CM power is turned off before connecting the MXP plant.

1. Position the opening in the MXP plant over the prototyping board mounting bracket on

the NI ELVIS II Series Workstation.

Note For smaller MXP plants that are clear of the prototyping board mounting

bracket, position the MXP plant so that the MXP connectors are aligned.

2. Slide the MXP plant into the MXP connectors on the NI ELVIS RIO CM.

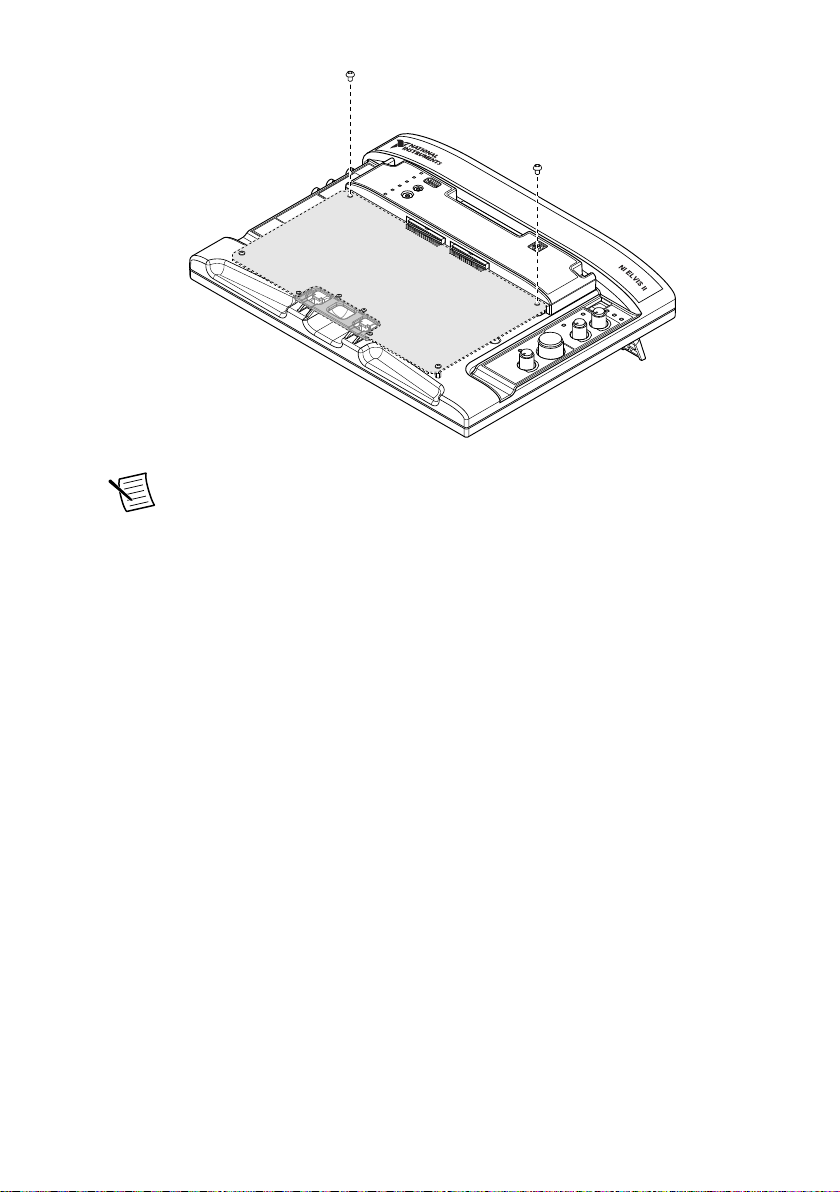

3. Secure the MXP plant to the NI ELVIS RIO CM using two M4 mounting screws.

6| ni.com | NI ELVIS RIO CM Getting Started Guide

Note For information about MXP plant design requirements, visit ni.com/info

and enter the Info Code mxpplanttemplates.

NI ELVIS RIO CM Getting Started Guide | © National Instruments | 7

Where to Go Next

*This item is also installed with the NI ELVIS RIO Control Toolkit

EXPLORE LEARN CREATE

DISCOVER

Located online at ni.com/manuals

Learn LabVIEW Basics

the application development

environment (ADE)

for your application.

about hardware features

or review device

specifications.

custom applications with

an application programming

interface (API).

NI ELVIS RIO Control

Module User Manual

NI ELVIS RIO Control

Module Specifications

NI ELVIS RIO Control

Module Setup*

NI ELVIS RIO Control

Toolkit Tutorial*

NI ELVIS RIO Control

Module Examples*

Located using the NI Example Finder

Located in the hardware kit

more about your products through ni.com.

Services

ni.com/services

NI Community

ni.com/community

Support

ni.com/support

Software Support

ni.com/info ex8g43

Worldwide Support and Services

The NI website is your complete resource for technical support. At ni.com/support, you have

access to everything from troubleshooting and application development self-help resources to

email and phone assistance from NI Application Engineers.

Visit ni.com/services for NI Factory Installation Services, repairs, extended warranty, and

other services.

Visit ni.com/register to register your NI product. Product registration facilitates technical

support and ensures that you receive important information updates from NI.

NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas,

78759-3504. NI also has offices located around the world. For telephone support in the United

States, create your service request at ni.com/support or dial 1 866 ASK MYNI (275 6964). For

telephone support outside the United States, visit the Worldwide Offices section of ni.com/

niglobal to access the branch office websites, which provide up-to-date contact information,

support phone numbers, email addresses, and current events.

8| ni.com | NI ELVIS RIO CM Getting Started Guide

Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for information on NI trademarks. Other product and

company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI

products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the

National Instruments Patent Notice at ni.com/patents. You can find information about end-user license agreements (EULAs)

and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/

legal/export-compliance for the NI global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other

import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION

CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in

this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth

in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.

378012B-01 Sep16
