Thank you for purchasing the NACON

REVOLUTION Unlimited Pro Controller

This product has been designed to enhance your video gaming

experience. Please keep this instruction manual for future reference.

I Warranty

This product, bearing the NACON trademark, is guaranteed by the manufacturer

for a period of 2 years from the date of purchase, and will, during this period be

replaced with the same or a similar model, at our option, free of charge, if there is

a defect due to faulty material, or workmanship.

For any warranty request or claim, please keep your proof of purchase for the

duration of the warranty. Without this document, we will not be able to process

your request. The original packaging must be kept for all distance purchases

(mail order & Internet).

This guarantee does not cover defects arising from accidental damage,

misuse or wear and tear. This guarantee does not cover the loss of the parts

(dongle / cable / stick heads / stick shafts / weights / storage case). This does not

affect your statutory rights.

To access the declaration of conformity, please visit:

www.nacongaming.com/support/

I Content

1 x REVOLUTION Unlimited Pro Controller

1 x 3m connection cable

1 x instruction manual

2 x 10g weights

2 x 14g weights

2 x 16g weights

1 x USB Bluetooth® receiver

2 x extra convex stick heads

1 x set of metal shafts (30°)

1 x set of metal shafts (38°)

1 x set of metal shafts (46°) - already fitted on the controller

1 x storage case

1 x cleaning cloth

EN /

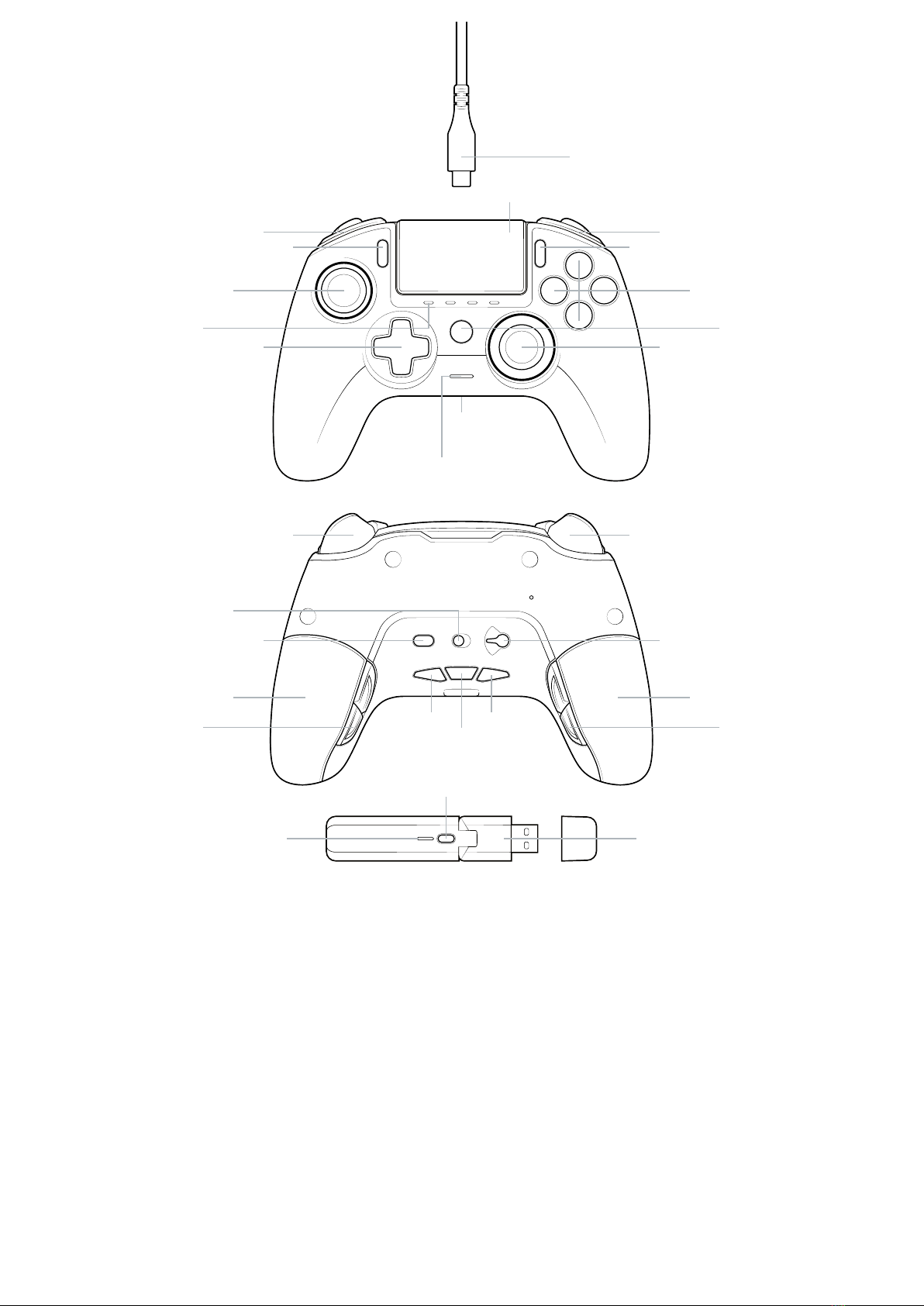

I Description of elements

14 13

16 17

511

18 18

1920

24 23

27 25

1/ 3m Braided cable with USB-A

to USB-C connector

2/ Touch pad

3/ SHARE button

4/ OPTIONS button

5/ PS button

6/ Action buttons

7/ Left stick with L3 button

and 46° of amplitude

8/ Right stick with R3 button

and 46° of amplitude

9/ Directional pad

10/ LED player status indicator

11/ 4x Profile LEDs / Microphone,

Mute and Battery level indicator

12/ Headset connector (3.5mm jack)

13/ R1 Shoulder button

14/ L1 Shoulder button

15/ 2x Weight compartments

16/ R2 Analogue trigger

17/ L2 Analogue trigger

18/ Rear shortcut buttons

S1/S2/S3/S4

19/ Mode selection:

1. PS4™ Normal mode

2. PS4™ Advanced Mode

3. PC Advanced Mode*

20/ Profile selection button

21/ Communication Mode

1. Wired

2. Wireless

22/ Microphone mute button/

Battery level (hold)

23/ Volume DOWN

24/ Volume UP

25/ USB Plug & Play

Wireless receiver

26/ Sync button

27/ Sync LED

EN /

I Features

The REVOLUTION Unlimited Pro controller can be used in wired and wireless

modes (see section 1).

This controller has 3 x modes:

Mode 1 = PS4™ Normal Mode (see section 2).

Mode 2 = PS4™ Advanced Mode (see section 3).

Mode 3 = PC Advanced Mode* (see section 4).

Built-in 1300mAh Li-Polymer rechargeable battery.

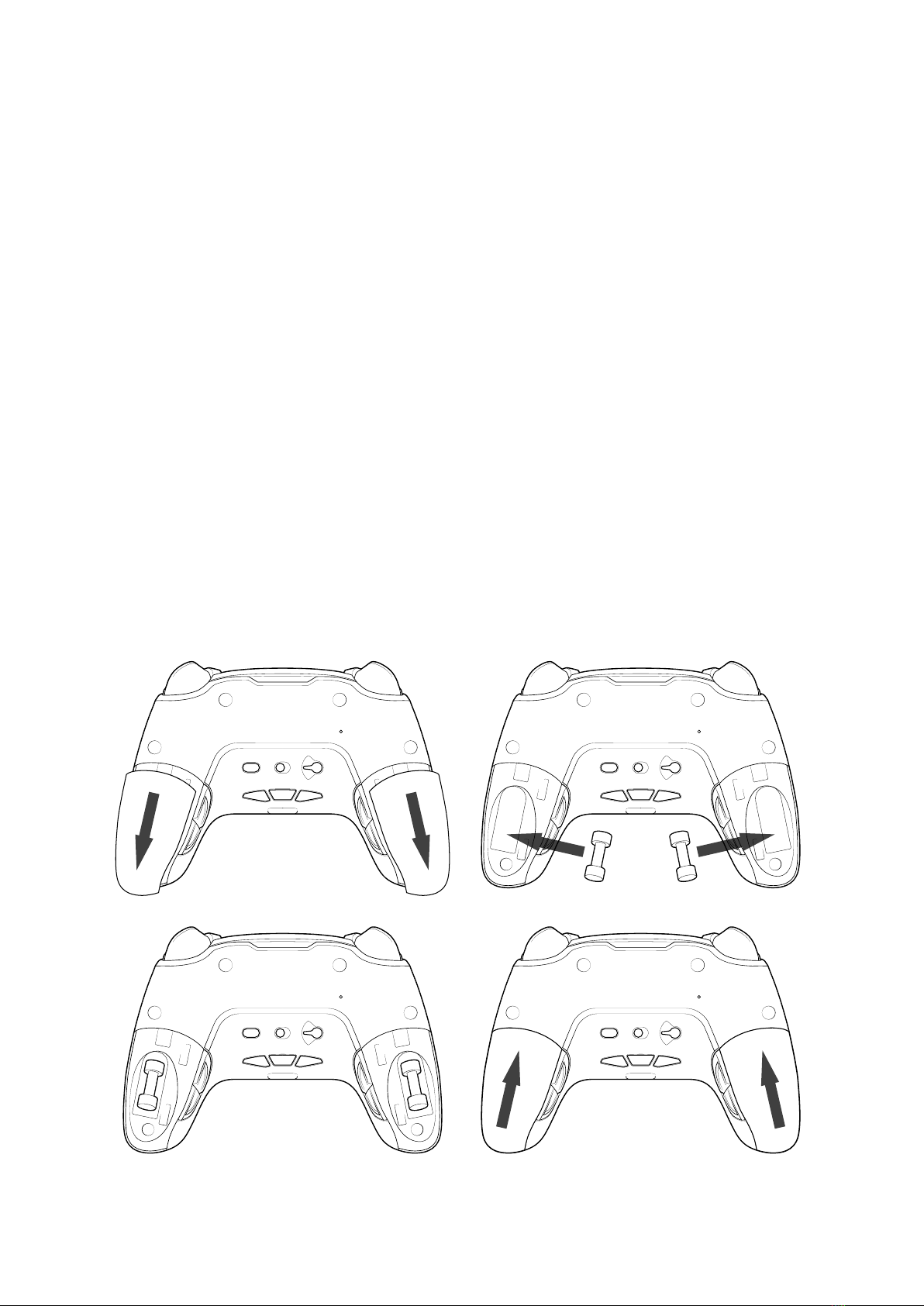

I Weight management

To modify the weight of your controller you need to:

1. Carefully slide down the weight compartment to open it.

2. Insert the weight as desired.

3. Carefully slide up the weight compartment to close it.

*PC Advanced Mode not tested nor endorsed by Sony Interactive Entertainment Europe.

EN /

1/ How to use the REVOLUTION Unlimited Pro Controller

You have the choice to use the controller in wired mode (via the cable

provided), or wirelessly via the USB Bluetooth® receiver.

Note: do not touch the sticks or triggers when you connect your controller to any PS4™ system.

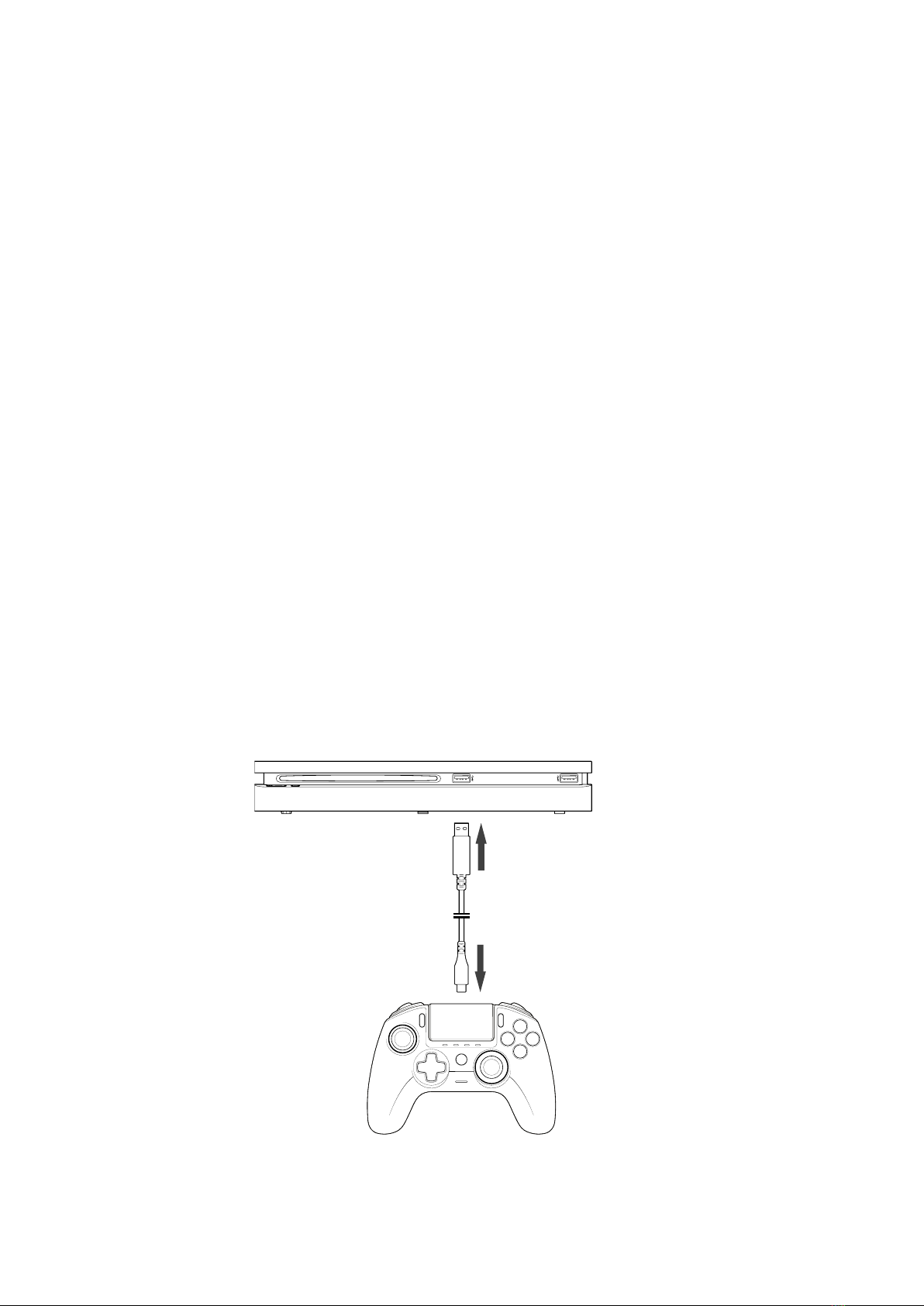

a. Wired communication

Ensure that the wired mode is selected on the 'Communication Mode' switch,

located on the underside of the controller ('wired' mode is on the left and 'wireless'

mode on the right):

Connect the cable to the back of the controller and ensure it is securely faste-

ned.

- Plug the cable connector into a free USB port on your PS4™ system, ensuring

that you do not touch the sticks or triggers.

Press the PS button. The LED player status indicator will light up. Please note

the player status indicator can react to in-game action, if supported by the

software.

- You are now ready to play.

- The controller will power off as soon as it is disconnected from the cable or

PS4™ system.

Note: in the wired mode, the communication of the controller is only made through the USB cable.

EN /

NOTES:

- The 'Mode Selection' switch on the back determines if the controller is working

in PS4™ Normal Mode (Position 1) or PS4™ Advanced Mode (Position 2).

- The PC Advanced Mode (Position 3) allows to switch your controller into the

X-Input Mode for PC* use.

b. Wireless communication

Ensure that the wireless communication mode is selected and follow these

steps:

- Connect the USB Bluetooth® receiver into a free USB port on PS4™ system.

- The receiver LED will flash to show that it is searching for a controller.

- Press the PS button on your controller. The LED player status indicator will

light up. Please note the player status indicator can react to in-game action, if

supported by the software.

- The receiver LED will stop flashing when connected to the controller and will

display the same colour as the LED player status indicator on the controller.

- You are now ready to play.

I Multi player mode

When playing with 2 controllers there can be some interference between them.

If you experience some problems, during your gaming session, we recommend

you to check these different points:

- Ensure that you are at least 60 cm apart from the next player.

- Ensure than you are not too far away from your wireless receiver. We

recommend you to be at less than 5 meters for your multi player session.

- Ensure than the antenna of each wireless receiver is angled in a different

direction.

Note: In rare situations the signal can affect, or be affected by, other wireless devices such as WiFi

routers, WiFi repeaters or other Bluetooth products.

EN /

NOTES:

- If the controller is not connecting, to the USB Bluetooth® receiver, you may

have to synchronise the controller to the receiver. The process is:

• ensure that the controller is OFF or turn it OFF,

• press and hold 'Share' + 'PS' buttons, on your controller, until the LED player

status indicator starts to flash,

•

press the SYNC button on the USB Bluetooth® receiver (the sync LED will

flash).

- If you are connecting a 2nd controller, to a free USB socket, then connect 1x

controller and 1x USB Bluetooth® receiver first followed by the 2nd.

- To switch off your controller, press and hold the 'PS' button, for 6 seconds,

until the controller powers OFF.

- When switching from Wireless mode to Wired mode you will see the on-screen

message: 'Controller was disconnected'. Press the 'PS' button to re-connect.

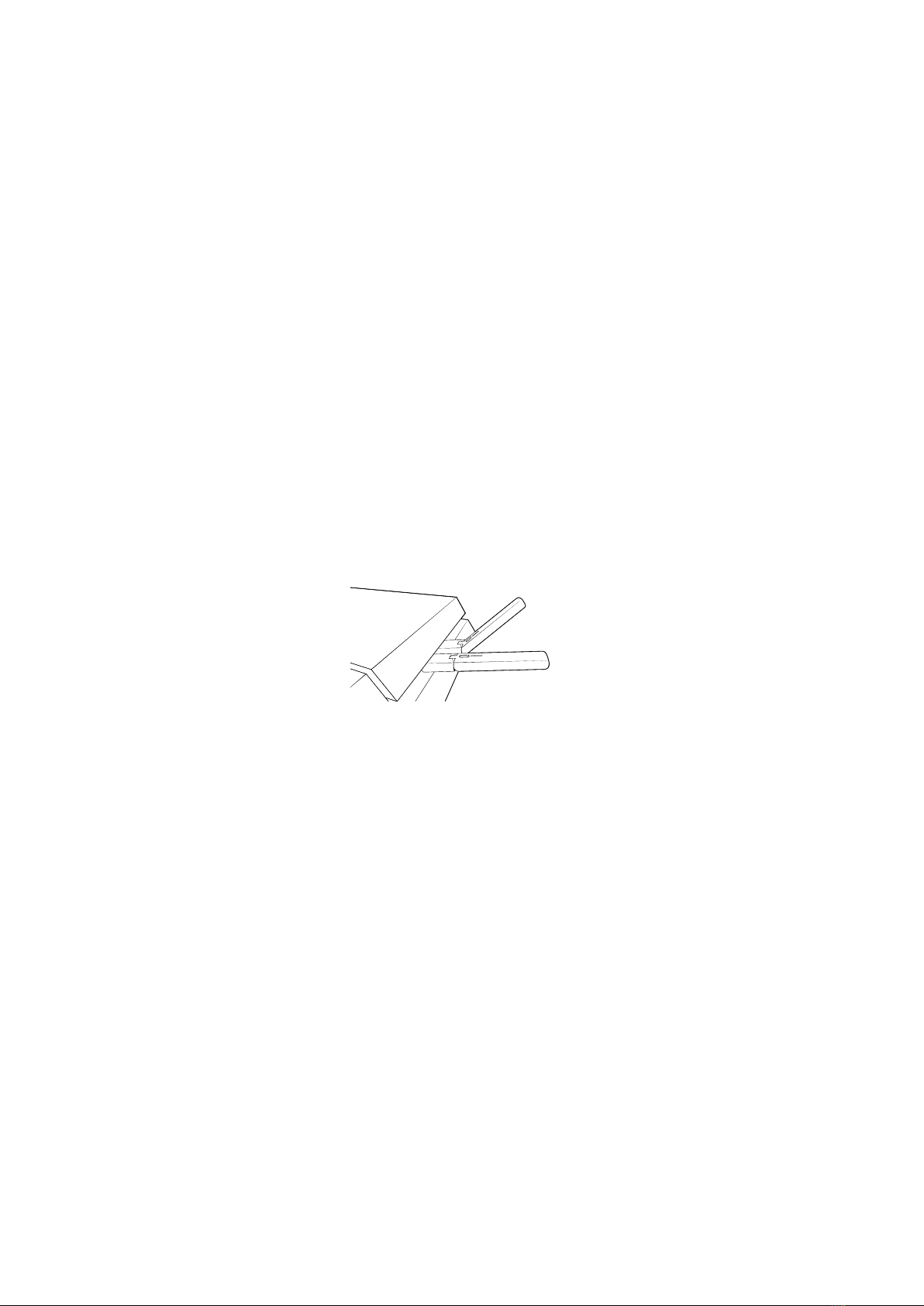

- If, during gameplay, you experience any latency or deactivation then please

adjust your USB receivers in the way shown below:

- The 'Mode Selection' switch on the back determines if the controller is working

in PS4™ Normal Mode (Position 1) or PS4™ Advanced Mode (Position 2).

- The PC Advanced Mode (Position 3) allows you to switch your controller into

the X-Input Mode for PC* use.

c. How to charge your controller

Your controller will charge the internal battery, in the following ways:

1/ When connected to the PS4™ system as a wired controller

2/ When being used as a wireless controller and the cable is connected to the

PS4™ system. In this option the internal battery will 'trickle' charge as the

battery is still being used to power the controller ;

3/ When connected to the PS4™ system, with the cable, as a wired or wireless

controller but the controller is in 'Sleep' mode or 'Powered' off.

To check the battery level, in any mode simply press and hold the 'Mic mute'

button on the underside of the controller (for more than 1 second). The profile

LEDs will then light up, as described above. You can now release the mic mute

button.

*PC Advanced Mode not tested nor endorsed by Sony Interactive Entertainment Europe.

EN /

The profile LEDs will show you the battery level as below :

 

 

 

 

 

To preserve battery life please Power Off your controller after use. To do this

press the 'PS' button until the Player LED turns off. To wake up the controller

press the 'PS' button.

To preserve battery integrity, we recommend that you always re-charge when the



Note: ensure that your USB ports, of your PS4™ system, are still activated even when the system is in

sleep mode. This way you can charge the controller.

d. How to use the headset controls of your controller?

On the underside of your controller you have 3x buttons that will function when a

headset is connected to the controller:

- Volume UP: increase the sound volume of your headset.

- MUTE: Press to switch on the microphone mute. The profile LEDs will turn Red

to show that the Mute is activated. Press the Mute button again to switch off

the Mute feature.

- Volume DOWN: decrease the sound volume of your headset.

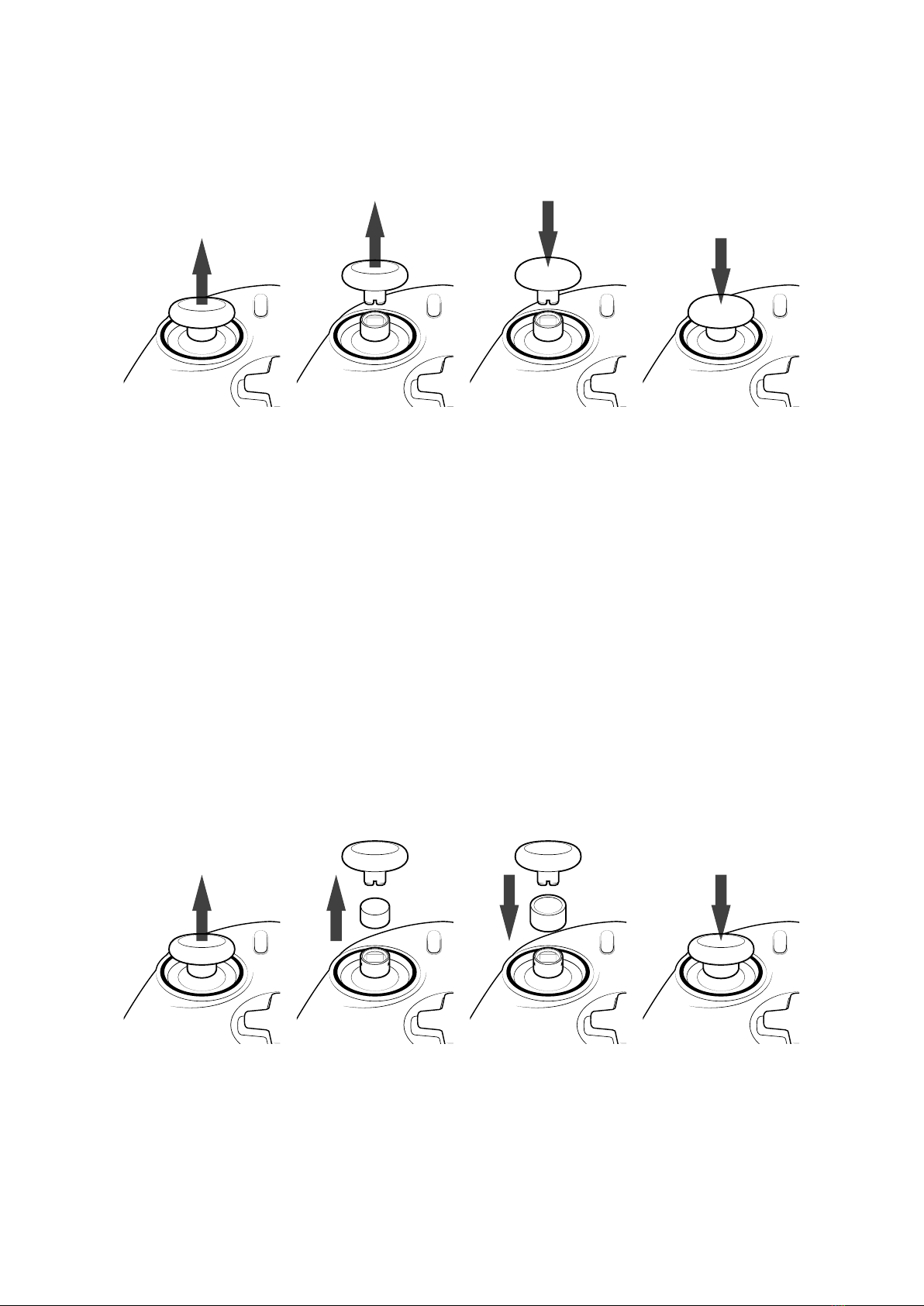

e. How to change the Joystick heads?

You have the possibility to change your joystick head and choose a concave or a

convex shape. Take care when removing and replacing the joystick heads. Do not

use too much force or they could become damaged.

To change the joystick head, you must:

- Remove the joystick head by pulling on it gently ;

- Select your desired joystick head;

Check the underside of the joystick head and match the shape with the shape in

the top of the shaft. Press gently until you feel the joystick head 'click' in to posi-

tion.

EN /

Now you are able to use your controller with the new joystick head.

f. How to change the joystick shaft?

Changing the shaft on your left or right joystick allows you to get a more reactive

or precise response on certain games. To change the joystick shaft, you must:

- Remove the joystick head by pulling on it gently;

- Remove the joystick shaft by pulling it;

- Put the desired joystick shaft in place;

- Fit the underside of the joystick head and match the shape with the shape in

the top of the shaft. Press gently until you feel the joystick head 'click' in to

position.

EN /

2/ Mode 1: PS4™ Normal mode

PS4™ Normal mode is selected by moving the 'Mode' switch to

position 1.

I In this mode the controller supports the following features:

- Motion sensors

- Touch pad

- Dual vibrations

- 3.5mm headset jack

- PS, SHARE and OPTIONS buttons

- L1 and R1 shoulder buttons

- L2 and R2 analogue triggers

- Left stick with L3 button

- Right stick with R3 button

- 8-way directional pad

- Action buttons

- Shortcut buttons

I Shortcut buttons

You can remap any button (excluding PS, SHARE, OPTIONS and touch pad

buttons) to the shortcut buttons as follows:

- Press and hold the Profile button for 3 seconds. The Blue halo around the right

stick will pulse

- Press on the shortcut button you want to assign. The corresponding LED will

turn ON. LED1 for S1 / LED2 for S2 / LED3 for S3 / LED4 for S4

- Then press on the button that you want to assign to the Shortcut button.

The LED will flash 3 times to confirm the mapping is successful

- Press and hold the Profile button for 3 seconds to confirm and quit the

remapping function

NOTE: The REVOLUTION Unlimited Pro Controller does not feature a built-in speaker or light bar.

Otros manuales para REVOLUTION Unlimited Pro Controller

Tabla de contenidos

Idiomas:

Otros manuales de Controladores de videojuegos de Nacon

Nacon

Nacon GC-400ES Manual de usuario

Nacon

Nacon Revolution Pro Manual de usuario

Nacon

Nacon Revolution Pro Manual de usuario

Nacon

Nacon Revolution Pro Manual de usuario

Nacon

Nacon REVOLUTION 5 PRO Guía de instalación

Nacon

Nacon REVOLUTION X PRO Manual de usuario

Nacon

Nacon REVOLUTION X Manual de usuario

Nacon

Nacon MG-XA Manual de usuario

Nacon

Nacon GC-100XF Manual de usuario

Nacon

Nacon REVOLUTION UNLIMITED Manual de usuario

Nacon

Nacon DAIJA ARCADE STICK Manual de usuario

Nacon

Nacon REVOLUTION Pro Controller 3 Manual de usuario

Nacon

Nacon GC-200WL Manual de usuario

Nacon

Nacon GC-200WL Manual de usuario

Nacon

Nacon REVOLUTION Unlimited Pro Controller Manual de usuario

Nacon

Nacon DAIJA Manual de usuario

Nacon

Nacon REVOLUTION Pro Controller 2 Manual de usuario

Nacon

Nacon BB4469 Manual de usuario

Nacon

Nacon GC-100XF Manual de usuario

Nacon

Nacon REVOLUTION Pro Controller 2 Manual de usuario

Nacon

Nacon BB4470 Manual de usuario

Nacon

Nacon MG-X Manual de usuario

Nacon

Nacon Cloud Gaming Controller Manual de usuario

Nacon

Nacon MG-X Manual de usuario

Manuales populares de Controladores de videojuegos de otras marcas

Wasp

Wasp SL-6610 Manual de usuario

JKG

JKG JKG2022A Manual de usuario

Marvo

Marvo MG08 Manual de usuario

Belkin

Belkin F8GBPC001 Manual de usuario

GameSir

GameSir Z2 Manual de usuario

Laser

Laser PCO-AGAMEC-BK Manual de usuario

Cortex

Cortex VEXnet Manual de usuario

Gioteck

Gioteck HF-1 Manual de usuario

Thrustmaster

Thrustmaster dual trigger Manual de usuario

SHAKS

SHAKS S1+ Manual de usuario

YCCTEAM

YCCTEAM Joy Con Manual de usuario

Hyperkin

Hyperkin Smartboy Manual de usuario

Nerf

Nerf DuraGrip Manual de usuario

MoveMaster

MoveMaster MoveMaster Manual de usuario

WinWing

WinWing Super Libra J1 Manual de usuario

ECCI

ECCI Trackstar 6000 Series Manual de usuario

Logitech

Logitech 963291-0403 - Attack 3 Joystick Manual de usuario

Pelican

Pelican Afterglow PL-678 Manual de usuario
