VJ-1204

User

Maintenance

and Cleaning

Guide

Page 1 of 9

ATTENTION: This is a supplementary document and is to be

used in conjunction with the ValueJet 1204 User Operations Manual.

Please refer to Section 4: Daily Maintenance of the Quick Reference

Guide or Section 6: Maintenance of the Operation Manual CD, for

complete step by step instructions for performing these items.

Section 1: Intervals

User Level Maintenance Intervals VJ-1204

1-2 times per week Once a week Every 1-2 Months

□Clean Wiper

□Clean around cap

□Clean Around Print

Head

□Replace Flushing Box

Sponge

Section 2: Supplies

1. Supplies for cleaning the VJ-1604 can purchased as a kit P/N: 11608-0001

6

5

4

3

2

1

Item # Description Qty

1 Tweezers 1

2 Foam Swabs 25

3 250ml bottle eco-cleaning 36

4 Flushing Box Insert w/ Pad 1

5 Rubber Gloves 5 pair

6 Lint Free Cloth 36

Please Note: If item #6 is not present please use Isopropyl Alcohol only.

Page 2 of 9

Section 3: Cleaning Procedures

** Clean Wiper

Do not touch Wiper. Oil from your hands may prevent the wiper from cleaning the

head properly.

1. The wiper can be cleaned using either the foam swabs or the lint free cloth. Either Eco-

cleaning solution or Isopropyl Alcohol may be used in conjunction with the cleaning

utensil of choice..

2. Wipe the front of the wiper in a horizontal motion.

Page 3 of 9

3. Wipe the back of the wiper in a vertical motion.

** Clean around cap

Do not touch the Rubber Cap. Oil from your hands may prevent the cap from

sealing properly.

1. Using either a foam swab or a lint free cloth soaked in Eco-cleaning solution or Isopropyl

Alcohol, wipe around the edges of the rubber cap. This ensures a good seal is maintained

during head cleaning process.

Page 4 of 9

** Clean around Print Head

CAUTION

•When cleaning around Print Heads

Do Not Touch the Bottom of the heads.

Do Not Clean the Nozzle Surface with the cleaning device.

Do not use water to clean the head. Nozzle clogging may occur

Do Not Re-use dirty foam swabs or lint free cloths

1. Using a foam swab or lint free cloth clean the following areas under the carriage.

•Stainless steel ring around the head

•Space between the print head and the guide ramps

•Bottom sides of the guide ramps

•Any other areas under the print head carriage that appears to have ink or dirt build-up.

Page 5 of 9

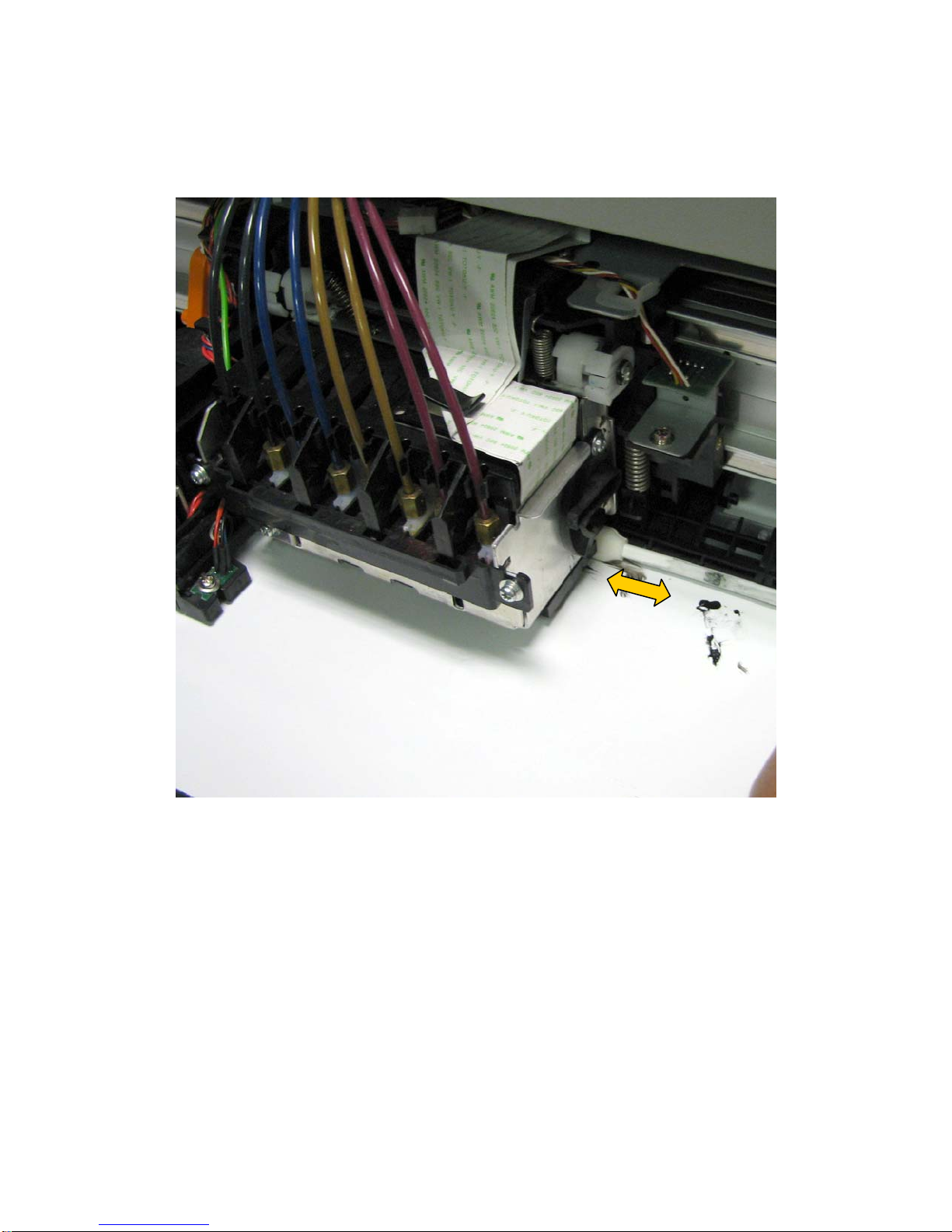

2. To clean behind the print head, position the foam swab parallel to the pressure roller and

slide the swab behind the carriage. To clean either move the swab in a horizontal motion

or move the carriage back and forth.

Page 6 of 9

3. Clean the front of the head in a horizontal motion.

Page 7 of 9

4. To clean the area between the head an the guide ramps, position the carriage such that it

is just off the right side of the platen. Work the swab under the head, being especially

careful not to touch the nozzle surface area.

Guide RampPrint Head

Clean the space between the

head and the guide ramps

Page 8 of 9
