MultiModem®rCell

Intelligent Wireless Router

Quick Start Guide

2 Multi-Tech Systems, Inc. Quick Start Guide

Quick Start Guide

MultiModem® rCell

MTCBA-X-EN2

82100401L, Revision B

This publication may not be reproduced, in whole or in part, without prior

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability

or fitness for any particular purpose.

Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication

and to make changes from time to time in the content hereof without obligation of

Multi-Tech Systems, Inc. to notify any person or organization of such revisions or

changes. Check Multi-Tech’s Web site for current versions of our product

documentation.

Record of Revisions

Revision Date Description

A 05/12/09 Initial release.

B 03/15/10 This release documents firmware version 2.5.

Trademarks

Trademarks and registered trademarks of Multi-Tech Systems, Inc. include

MultiModem, the Multi-Tech logo, and Multi-Tech. All products or technologies are

the trademarks or registered trademarks of their respective holders.

Online Web Portal https://support.multitech.com/support/login.html

Knowledge Base and Support Services www.multitech.com/en US/SUPPORT

Technical Support

Business Hours: M-F 9am to 5pm CST

Country By Email By Phone

Europe, Middle East, Africa: [email protected] +(44) 118 959 7774

U.S., Canada, all others: [email protected] 800 972-2439 or

763-717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

763-785-3500 or 800-328-9717

Fax 763-785-9874

MultiModem rCell Intelligent Wireless Router

Multi-Tech Systems, Inc. Quick Start Guide 3

Introduction

The purpose of this guide is to cover safety concepts, the basic

connections, and general setup of the MultiModem rCell Intelligent

Wireless Router. For detailed information refer to the User Guide which

is available on your MultiModem CD accompanying your router product

and on the Multi-Tech Web site.

Check Multi-Tech’s Web site for current versions of our product

documentation.

Safety

Ethernet Ports Caution

The Ethernet ports are not designed to be connected to a Public

Telecommunication Network or used outside the building.

Handling Precautions

All devices must be handled with certain precautions to avoid damage

due to the accumulation of static charge. Although input protection

circuitry has been incorporated into the devices to minimize the effect

of this static build up, proper precautions should be taken to avoid

exposure to electrostatic discharge during handling and mounting.

Caution: Maintain a separation distance of at least 20 cm (8

inches) between the transmitter’s antenna and the body of the

user or nearby persons. The modem is not designed for, nor

intended to be, used in applications within 20 cm (8 inches) of

the body of the user.

Vehicle Safety

●Do not use your Wireless MultiModem while driving, unless

equipped with a correctly installed vehicle kit allowing ‘Hands-

Free’ Operation.

●Respect national regulations on the use of cellular telephones in

vehicles. Road safety always comes first.

●If incorrectly installed in a vehicle, the operation of Wireless

MultiModem telephone could interfere with the correct functioning

of vehicle electronics. To avoid such problems, be sure that

qualified personnel have performed the installation. Verification of

MultiModem rCell Intelligent Wireless Router

4 Multi-Tech Systems, Inc. Quick Start Guide

the protection of vehicle electronics should be part of the

installation.

●The use of an alert device to operate a vehicle’s lights or horn on

public roads is not permitted.

Internal Lithium Battery

●A lithium battery located within product provides backup power for

the timekeeping capability. The battery has an estimated life

expectancy of ten years.

●When the battery starts to weaken, the date and time may be

incorrect. If the battery fails, the board must be sent back to Multi-

Tech Systems for battery replacement.

●Lithium cells and batteries are subject to the Provisions for

International Transportation. Multi-tech Systems Inc. confirms that

the Lithium batteries used in the Multi-Tech product(s) referenced

in this manual comply with Special Provision 188 of the UN

Model Regulations, Special Provision A45 of the ICAO-

TI/IATA-DGR (Air), Special Provision 310 of the IMDG Code,

and Special Provision 188 of the ADR and RID (Road and Rail

Europe).

Warning! There is danger of explosion if the battery is incorrectly

replaced!

Ship Kit Contents

Unbundled Package with

no Accessories

Bundle Package

With Accessories

1 router

1 Quick Start Guide

1 MultiModem CD

Note: You must supply

mounting screws, AC or DC

power supply, and an

antenna.

1 router

1 antenna

1 Ethernet cable

1 RS-232 cable

1 power supply

1 Quick Start Guide

1 MultiModem CD

Note: You must supply mounting

screws

Note: Refer to the User Guide for antenna specifications.

MultiModem rCell Intelligent Wireless Router

Multi-Tech Systems, Inc. Quick Start Guide 5

Activate your Wireless Account

Please refer to the wireless account Activation Notice included with

your product and located on the MultiModem CD. Follow the directions

on the Activation Notice to activate your account.

Note: If you need remote access to your MultiModem over the

Internet for remote configuration, you need to ensure that your

wireless network provider has provisioned mobile terminated data

and fixed or dynamic public IP address in which they can configure

the network to redirect any incoming connection to that predefined

IP.

Insert the SIM Card into Holder, If required

The MultiModem requires the power supply connection to begin

operation. It also requires a SIM card (Subscriber Identity Module) to

operate on a GSM network. To install the SIM, do the following:

1. Using a small Phillips screwdriver, remove the two SIM door

screws and remove the SIM door.

Note: When changing a SIM, ensure that power is removed from

the unit.

2. Insert the SIM card into the card holder. The above graphic

illustrates the correct SIM card orientation.

3. Verify that the SIM card fits into the holder properly and then

replace the cover.

MultiModem rCell Intelligent Wireless Router

6 Multi-Tech Systems, Inc. Quick Start Guide

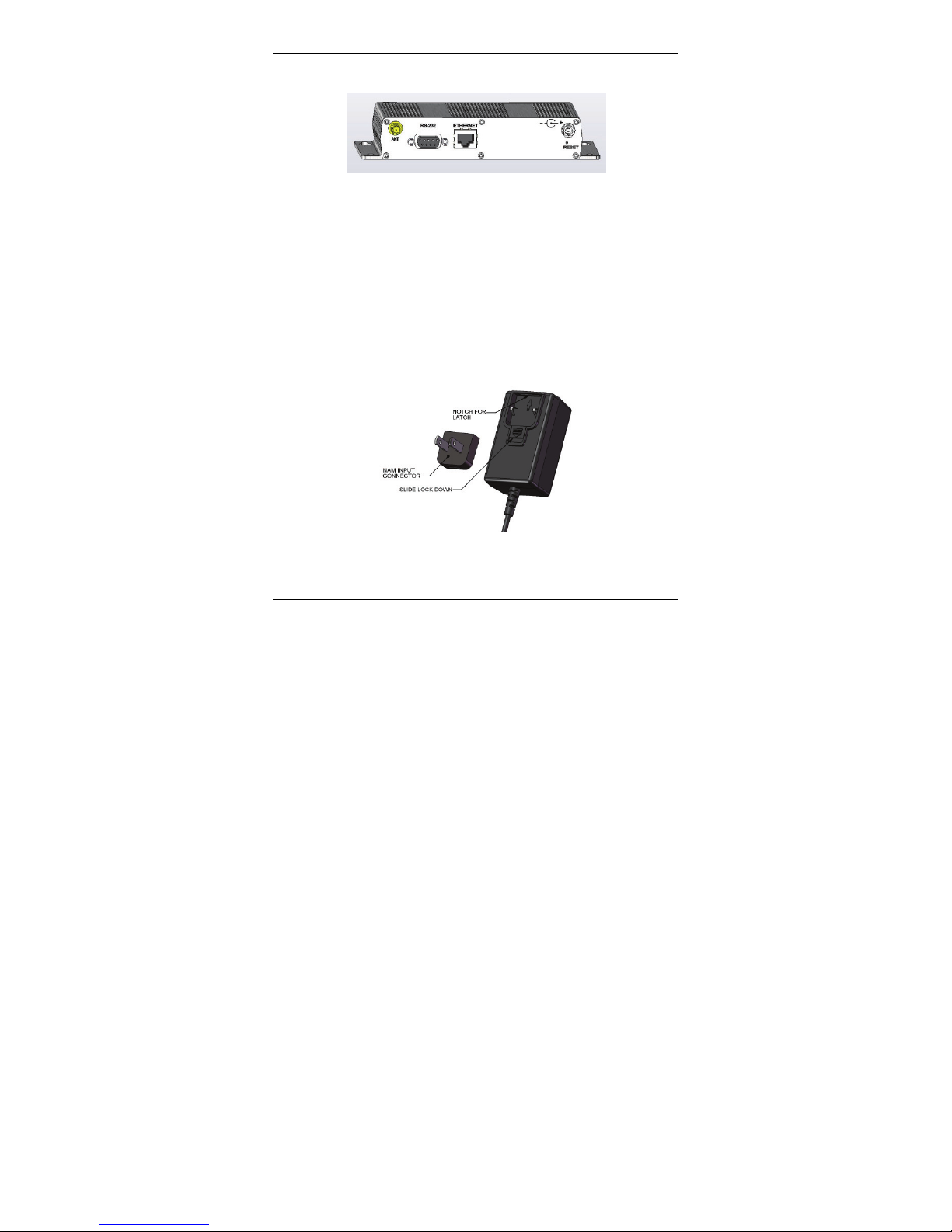

Connect the Antenna and Power

1. Connect a suitable antenna to the SMA connector (see antenna

specifications in the User Guide).

2. Using an Ethernet cable, connect one end of the cable to the

ETHERNET connector on the back of the router and the other end

to your pc either directly or via a switch or hub.

3. If you are connecting a customer’s legacy device to the router,

connect the serial, RS232 cable from the customer’s device to the

RS232 connector on the back of the router.

4. Depending on the power source, connect either the power supply

module with the appropriate blade or the optional DC power cable.

If you are using the power supply module, remove the protective

shipping cover. Attach the appropriate interchangeable blade

piece to the power supply module.

Screw-on the power lead from the power supply module to the

power connection on the router. Now, plug the power supply into

your power source.

MultiModem rCell Intelligent Wireless Router

Multi-Tech Systems, Inc. Quick Start Guide 7

For Optional Direct DC Power

●Screw-on the DC power cable to the power connector on the

router.

●Then attach the two wires at the other end of the DC power cable

to a DC fuse/terminal block on a vehicle in which you are mounting

the MultiRouter.

●Connect red wire to the "+" (positive) terminal and black wire to

the "–" (negative) terminal. Be sure the GND connection is correct.

Warning: Over-voltage protection is provided on the device. To

ensure complete protection, you may want to add additional

filtering to the DC input.

Note: For an application involving a battery: you can use permanent

“+” or key-switched “+” source. Connect the power supply to its

source (for example, in a mobile situation, to the DC fuse/terminal

block).

Notes

●The POWER LED. The POWER LED lights after power-up.

●The Status LED is a solid ON when the router is booting up,

saving a configuration, or updating firmware. When the Status

LED begins to blink, the router is ready.

●The Reset Button. Pressing and holding the Reset button for 5

seconds will restore all factory default settings. It also will set the

username and password back to admin and admin as well as

setting the IP address to the default of 192.168.2.1.

Set Your PC’s TCP/IP Address for

Ethernet Functionality

The following directions establish a TCP/IP connection at the pc so the

PC can communicate with the router. The following directions were

written using a Windows XP/ 2003+ operating system.

MultiModem rCell Intelligent Wireless Router

8 Multi-Tech Systems, Inc. Quick Start Guide

1. Click Start | Settings | Control Panel. Double-click the Network

Connections icon.

2. The Network Connections screen displays. Right-click the Local

Area Connection icon and choose Properties from the drop down

list.

MultiModem rCell Intelligent Wireless Router

Multi-Tech Systems, Inc. Quick Start Guide 9

3. The Local Area Connection Properties dialog box displays.

●Select Internet Protocol [TCP/IP].

●Click the Properties button. The Internet Protocol

(TCP/IP) Properties screen displays.

4. The Internet Protocol (TCP/IP) Properties screen.

Important Note:

If this screen opens and displays your current IP configuration, we

suggest you record this information for future reference (i.e., after

the router is configured, you may wish to return this PC to its

original settings).

●To set a Fixed IP Address for the pc, select Use the following

IP address.

●Enter the pc IP Address. Example: 192.168.2.x.

Note: The x in the address stands for numbers 101 and up.

●Enter the pc Subnet Mask. Example: 255.255.255.0

●Enter the pc Default Gateway. Example: 192.168.2.1

MultiModem rCell Intelligent Wireless Router

10 Multi-Tech Systems, Inc. Quick Start Guide

Note: The pc settings must be in the same subnet range as

the router.

The factory default settings for the router are:

IP Address: 192.168.2.1

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.2.2

●Select Use the following DNS server addresses.

●Enter the IP Address for the Preferred DNS Server.

Example: 205.171.3.65

●Click OK.

●Close the Local Area Properties screen by clicking OK.

●Close the Control Panel.

●Repeat these steps for each PC on your network.

AT Command for Verifying Signal Strength

To communicate directly with the cellular modem to verify signal

strength, network registeration, and roaming status, telnet to the modem.

Note: Ensure that the Status LED is blinking, indicating that the router is

ready.

1. To Telnet to the modem. You can access the modem thru the Run

icon or from the Command Prompt:

Click Start I Run icon. In the Open window, enter cmd and then

press ENTER.

Click Start I All Programs I Accessories I Command Prompt

●In the command window, type telnet 192.168.2.1 5000

●At the Login prompt, type the default user name: admin (all

lower-case). Press ENTER

●At the Password prompt, type the default pass word: admin

(all lower-case). Press ENTER

2. In the command window, type AT+CSQ

Tabla de contenidos

Otros manuales de Enrutador inalámbrico de Multitech

Multitech

Multitech RoteFinder RF500S Manual de usuario

Multitech

Multitech MultiModem rCell MTCBA-Xx-EN2 Series Manual de usuario

Multitech

Multitech MultiModem rCell Manual de usuario

Multitech

Multitech RouteFinder RF802EW Manual de usuario

Multitech

Multitech MultiModem rCell MTCBA-H-EN2 Manual de usuario

Multitech

Multitech MultiModem rCell MTCBA-H3-EN3-P1 Manual de usuario

Multitech

Multitech MultiModem rCell Manual de usuario

Multitech

Multitech RoteFinder RF500S Manual de usuario

Multitech

Multitech MultiModem rCell Manual de usuario

Multitech

Multitech MultiModem rCell Manual de usuario

Multitech

Multitech MultiModem MTCBA-G2-EN2 Manual de usuario

Multitech

Multitech RouteFinder RF802EW Manual de usuario

Multitech

Multitech RouteFinder RF802EW Manual de usuario

Multitech

Multitech MultiModem rCell Manual de usuario

Multitech

Multitech MultiModem rCell MTCBA-H-EN2 Manual de usuario

Multitech

Multitech MultiModem rCell MTCBA-H3-EN3-P1 Manual de usuario

Manuales populares de Enrutador inalámbrico de otras marcas

Milesight

Milesight UG67 Manual de usuario

Airlogic

Airlogic AirSync Class 1 Manual del propietario

Samsung

Samsung WCH730B Manual de usuario

TELEFONICA

TELEFONICA USB Adapter Manual de usuario

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manual de usuario

Askey

Askey RAC2V1K Manual de usuario

Alloy

Alloy WLF2454AP-S Manual de usuario

TP-Link

TP-Link TL-WR542G Manual de usuario

NETGEAR

NETGEAR WNR2000v4 Manual de usuario

Hama

Hama 53120 Manual de usuario

Intellinet

Intellinet 524582 Manual de usuario

Asus

Asus RT-N10P Manual de usuario

D-Link

D-Link DIR-506L Manual de usuario

Sapido

Sapido GR297n Manual de usuario

Asus

Asus DSL-N55U Manual de usuario

AMTC

AMTC WR7502 Manual de usuario

Compaq

Compaq CP-2W - iPAQ Connection Point Manual de usuario

SMC Networks

SMC Networks WBR14-N2 FICHE Manual de usuario
