Multitech MT9234MU-CDC-XR Manual de usuario

MultiMobile™USB

V.92 Portable USB Modem

MT9234MU-CDC-XR

User Guide

2 MT9234MU-CDC-XR User Guide

MultiMobile USB User Guide

V.92 Portable USB Modem

MT9234MU-CDC-XR

S000525C Rev. C

This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All

rights reserved.

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the contents hereof and specifically disclaims any implied

warranty of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this

publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes. Check Multi-Tech’s Web site or product CD for current versions of our product

documentation.

Revision

Date

Description

02/01/12

Initial release.

04/26/12

Updated power values.

01/03/13

Updated Brazil cable, RoHS, and other regulatory information.

Patents

This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567;

5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030;

5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470;

5,463,616; 5,453,986; 5,452,289; 5,450,425; D353,598; 5,355,365; 5,309,562; 5,301,274. Other patents pending.

Trademarks

Multi-Tech and the Multi-Tech logo are registered trademarks of Multi-Tech Systems, Inc. MultiMobile is a trademark of Multi-Tech. All

other brand and product names mentioned in this publication are trademarks or registered trademarks of their respective companies.

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

Phone: 763-785-3500 or 800-328-9717

Fax: 763-785-9874

Internet Address: HUhttp://www.multitech.com

Contacting Multi-Tech Support

To better serve our customers, manage support requests and shorten resolution times, we have created the online web portal that lets

you submit questions regarding Multi-Tech products directly to our technical support team. Get answers to your most complex questions,

ranging from implementation, troubleshooting, product configuration, firmware upgrades and much more.

To create an account and submit a Support Case on the Portal, visit support.multitech.com

Online Web Portal https://support.multitech.com/

The Knowledge Base provides immediate answers to your questions and gives you access to support resolutions for all Multi-Tech

products. Visit our support area on the website for other support services.

Knowledge Base and Support Services www.multitech.com/en_US/SUPPORT

Technical Support

Business Hours: M-F, 9am to 5pm CST

51BCountry

By Email

By Phone

Europe, Middle East, Africa:

[email protected]

+(44) 118 959 7774

U.S., Canada, all others:

[email protected]

(800) 972-2439 or (763) 717-5863

Warranty

To read the warranty statement for your product, please visit: HUhttp://www.multitech.com/en_US/COMPANY/Policies/warranty/UH

Multi-Tech Systems, Inc. MT9234MU User Guide 3

Contents

Chapter 1 –Product Overview........................................................................................................................4

Features........................................................................................................................................................................4

Telecom Safety Warnings .............................................................................................................................................4

Shipping Package Contents ...........................................................................................................................................5

Technical Specifications ................................................................................................................................................5

AT Commands...............................................................................................................................................................5

Chapter 2 –Installing the Modem...................................................................................................................6

Connecting the Modem to Your System........................................................................................................................6

Installing the Modem Driver .........................................................................................................................................6

Configuring the Modem for Your Country...................................................................................................................14

Chapter 3 –Operating the Modem ...............................................................................................................16

Front Panel .................................................................................................................................................................16

Connecting to the Internet..........................................................................................................................................16

Chapter 4 –Remotely Configuring Modems..................................................................................................17

Changing the Setup Password.....................................................................................................................................17

Changing the Remote Escape Character......................................................................................................................17

Appendix A –Regulatory Information...........................................................................................................18

FCC Part 15 Class B Statements...................................................................................................................................18

FCC Part 68 Telecom ...................................................................................................................................................18

Canadian Limitations Notice .......................................................................................................................................20

EMC, Safety, and R&TTE Directive Compliance ........................................................................................................... 20

Waste Electrical and Electronic Equipment Statement................................................................................................22

Restriction of the Use of Hazardous Substances (RoHS)..............................................................................................23

Information on HS/TS Substances According to Chinese Standards ............................................................................24

Information on HS/TS Substances According to Chinese Standards (in Chinese)......................................................... 25

Appendix B –ASCII Conversion.....................................................................................................................26

ASCII Conversion Chart ...............................................................................................................................................26

Index ...........................................................................................................................................................27

4 MT9234MU-CDC-XR User Guide

Chapter 1 Product Overview

The MultiMobile USB V.92 Portable USB modem MT9234MU-CDC-XR provides V.92/56K data rates, fax and file transfer

capabilities and a hot-swappable USB interface. This modem, weighing only 2 ounces, is ideal for mobile users who want

email and Internet access on the road. The MT9234MU-CDC-XR modem can also serve as the mobile user’s home office

desktop modem.

This user’s guide explains how to install, configure, test and use your modem.

Features

Command Buffer

40 characters

Diagnostics

Power-on self test, local analog and local digital loop, remote digital loop.

LED Indicators

LEDs for Data, Carrier Detect, Off Hook, Terminal Ready

Intelligent Features

Fully AT command compatible; autodial, redial, repeat dial; pulse or tone dial; dial pauses;

auto answer; caller ID; EIA extended automode; adaptive line probing; automatic symbol

and carrier frequency during start-up, retrain, and rate renegotiation; call status display,

auto-parity and data rate selections; keyboard-controlled modem options; non-volatile

memory; on-screen displays for modem option parameters; command lines of up to 40

characters each; help menus; remote configuration.

Telecom Safety Warnings

●Never install telephone wiring during a lightning storm.

●Never install a telephone jack in wet locations unless the jack is specifically designed for wet locations.

●Use this product with UL and cUL listed computers.

●Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network

interface.

●Use caution when installing or modifying telephone lines.

●Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical

shock from lightning.

●Do not use a telephone in the vicinity of a gas leak.

●To reduce the risk of fire, use only 26 AWG or larger telecommunication line cord.

●This product must be disconnected from the telephone network interface when servicing.

Chapter 1 –Product Overview

MT9234MU-CDC-XR User Guide 5

Shipping Package Contents

●MT9234MU-CDC-XR modem

●One RJ-11 cable

Inspect the contents for signs of any shipping damage. If damage is observed, do not power up the unit. Contact Multi-

Tech’s Technical Support for advice.

Technical Specifications

Trade Name

MultiMobile™ USB

Model

MT9234MU-CDC-XR

Data Rates

56K download speeds from digital V.92/V.90 servers;

33.6K upload and download speeds from non-V.92/V.90 servers and other client modems

Fax Rates

33.6K and below

Standards:

Data

V.92, V.90 enhanced, V.34 and below

Error Correction

V.42

Data Compression

V.44, V.42bis, MNP Class 5

Fax

V.34, Class 2.1 & 1.0, V.17, Group 3; Class 1 & 2, Error Correction Mode

Cables

1 USB series A

1 RJ-11

Operation

USB Port: 12M bps

Line Type: Dial-up

Physical Description

1.3” w x 1.0” h x 3.1” d; 2 oz

3.0 cm w x 2.5 cm h x 8.0 cm d; 62 g

Operating

Environment

Operating Temperature: -31° to +167° F (-35° to 75° C)

UL listed at 60° C

Humidity Range: 25–85% non-condensing

Approvals

CE Mark

EMC: FCC Part 15 Class B, EN55024, EN55022 Class B, ICES-003 Class B

Safety: UL/cUL 60950-1, IEC 60950-1

Telecom: 47CFR Part 68, CS03, TBR21, other countries also included

Power*

Sleep Mode Typical Maximum

Measured Volts 5.01 5.01 5.01

Current (AMPS) 0.099 0.133 0.178

Watts 0.494 0.665 0.890

Limited Warranty

2 years

* Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into their power source when determining

product load.

AT Commands

AT Commands for this product are published in a separate document. You can download this document from the Multi-

Tech website.

6 MT9234MU-CDC-XR User Guide

Chapter 2 Installing the Modem

This chapter explains how to install your modem. Before you begin, go to the Multi-Tech website and download the driver

for your modem.

Connecting the Modem to Your System

Connect the MT9234MU to your computer’s USB port and connect the telephone line to your MT9234MU and a telephone

wall jack.

Connecting the USB Cable

Plug the USB cable connector on the modem into a USB port connector on your computer.

Connecting the Phone Line

Plug one end of the phone cable into the modem’s jack, and the other end into a phone line wall jack.

Note: The Federal Communications Commission (FCC), and Industry Canada impose certain restrictions on

equipment connected to public telephone systems. See Appendix A for more information.

Installing the Modem Driver

Installing the MT9234MU-CDC-XR in Windows Vista

1. Power up your computer.

2. If you have not already done so, connect the modem’s USB cable to a USB port on the computer and connect the

phone line between the modem and a telephone wall jack.

3. Windows detects that the new modem is present. The Found New Hardware window opens. Click Locate and install

driver software.

Chapter 2 –Installing the Modem

MT9234MU-CDC-XR User Guide 7

4. The window, User Account Control Windows needs your permission to continue, opens. Click Continue.

5. The window, Allow Windows to search online for driver software for your unknown device, opens. Click Don’t Search

Online.

6. The window, Windows couldn’t find driver software for your device, window opens. Click Browse my computer for

driver software (advanced).

7. The Browse for driver software on your computer window opens. Click Browse.

Chapter 2 –Installing the Modem

8 MT9234MU-CDC-XR User Guide

In the window that opens, navigate to location where you stored the driver that you downloaded from the Multi-Tech

website. Click OK.

8. You return to the window, Windows couldn’t find driver software for your device. Click Next.

9. When the window, Windows can’t verify the publisher of this driver software, opens click Install this driver anyway.

10. A progress window appears while the driver is being installed.

Chapter 2 –Installing the Modem

MT9234MU-CDC-XR User Guide 9

11. After the driver is installed the window, The software for this device has been successfully installed, opens. Click Close.

After you install the driver, test the operation of the modem. To do so, register the modem by going to the following

website:

http://www.multitech.com/register

Installing the MT9234MU-CDC-XR in Windows Server 2008, XP, 2003

These instructions describe how to install the modem to operate with the following operating systems: Windows Server

2008, XP, or 2003.

The procedure in this section uses Windows XP as the operating system; the other operating systems have similar windows.

1. Connect the USB cable of the modem into a USB port on the PC.

2. In some situations the operating system might display a wizard pane with the message: Can Windows connect to

Windows Update to search for software? Select No, not this time. Click Next.

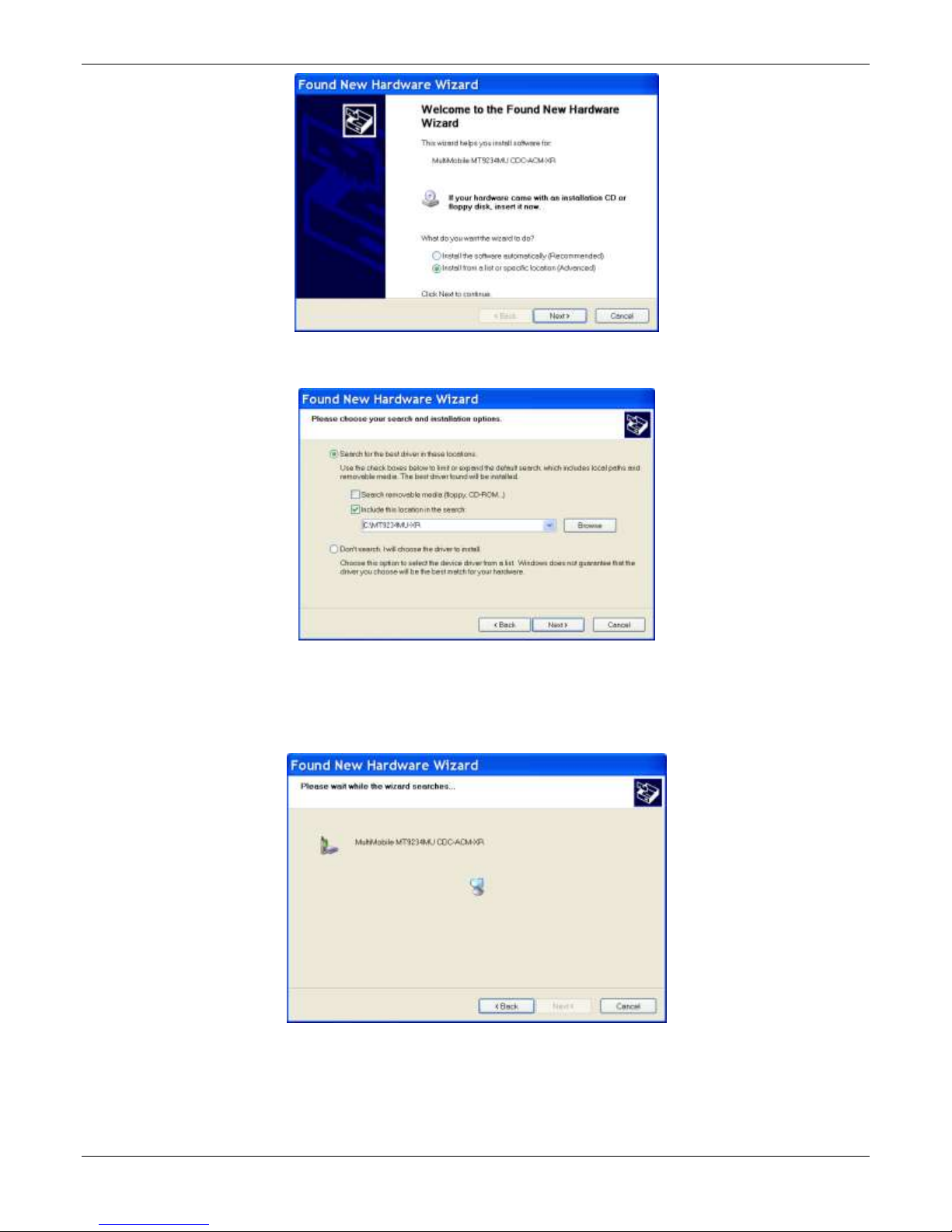

3. The Welcome to Found New Hardware Wizard pane opens. Click Install from a list or specific location (Advanced),and

then click Next.

Chapter 2 –Installing the Modem

10 MT9234MU-CDC-XR User Guide

4. The pane Please choose your search and installation options opens. Select the Search for the best driver in these

locations radio button. Then check the Include this location in the search checkbox.

5. Select Include this location in the search. Then click Browse and navigate to the area where you stored the driver that

you downloaded from the Multi-Tech website.

6. When the proper location appears in the field on this pane, click Next.

7. The pane Please wait while the wizard searches… appears.

8. If a warning appears for Windows logo testing, click Continue Anyway.

Tabla de contenidos

Otros manuales de Módem de Multitech

Multitech

Multitech MultiMobile MT9234MU Manual de usuario

Multitech

Multitech MultiModem ZBA USB MT5634ZBA-USB Manual de usuario

Multitech

Multitech MultiModemII MT5600BR-V92 Manual de usuario

Multitech

Multitech Multimodem MTCBA-G-F2 Manual de usuario

Multitech

Multitech MultiConnect microCell MTCM2 Manual de usuario

Multitech

Multitech MultiModem ZPX MT9234ZPX-PCIE-NV-CP Manual de usuario

Multitech

Multitech MultiModem DID Manual de usuario

Multitech

Multitech MultiModem MT2834ZDX Series Manual de usuario

Multitech

Multitech MultiModem MT9234ZPX-UPCI Manual de usuario

Multitech

Multitech MTCBA-E Manual de usuario

Multitech

Multitech MTCBA-E-U Manual de usuario

Multitech

Multitech SocketModem EN301489-1 Manual de usuario

Multitech

Multitech MultiConnect Series 100 Manual de usuario

Multitech

Multitech MT5634MU Manual de usuario

Multitech

Multitech MultiModem Cell MTCBA-E1 Manual de usuario

Multitech

Multitech MultiConnect rCell 100 Series Manual de usuario

Multitech

Multitech Dragonfly MTQ-LNA7 Manual de usuario

Multitech

Multitech Dragonfly MTQ-L4G1 Manual de usuario

Multitech

Multitech MultiModem MT9234ZPX-PCIE Manual de usuario

Multitech

Multitech MultiModem ISIHP-2S Manual de usuario

Multitech

Multitech MultiConnect Cell MTC-G3 Manual de usuario

Multitech

Multitech MT9234ZBA-USB Manual de usuario

Multitech

Multitech MultiModem ZPX MT5634ZPX-PCI Series Manual de usuario

Multitech

Multitech MultiModem MT9234ZPX-UPCI Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
