CallFinder®GSM

Cellular Gateway

CF100FX2-G

Quick Start Guide

2 Multi-Tech Systems, Inc.

Quick Start Guide

82100193L, Revision D

CallFinder®GSM Cellular Gateway

Model: CF100FX2-G

This publication may not be reproduced, in whole or in part, without prior expressed written

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for any particular purpose.

Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to

make changes from time to time in the content hereof without obligation of Multi-Tech

Systems, Inc. to notify any person or organization of such revisions or changes. Check

Multi-Tech’s web site for current versions of our product documentation.

Record of Revisions

Revision Date Description

A 10/31/06 Initial release.

B 11/09/06 Revise description of Voice/Data switch.

C 04/24/07 Add AT commands, revise Tech Support listing,

revise warranty statement, and add items to Safety

Warnings Telecom.

D 04/11/08 Removed CDMA version, add power supply info.

Trademarks

Registered trademarks of Multi-Tech Systems, Inc. include CallFinder, CallFinder GSM,

Multi-Tech, and the Multi-Tech logo.

Windows is a registered trademark of Microsoft Corporation in the United States and

other countries. All products or technologies referenced in this manual are the trademarks

or registered trademarks of their respective holders.

TECHNICAL SUPPORT

Country By E-mail By Phone

Europe,

Middle East,

Africa support@multitech.co.uk

(+44)118 959 7774

Multi-Tech

Systems, Inc.

2205 Woodale Dr.

Mounds View, MN

55112, USA

(763) 785-3500

(800) 328-9717

Fax: 763-785-9874

www.multitech.com

U.S.,

Canada,

All Others support@multitech.com

(800) 972-2439;

(763) 717-5863

Multi-Tech Systems, Inc. 3

Introduction

The CallFinder Cellular Gateway connects to a PBX trunk line, PBX

extension line, or to a single PSTN (POTS) line and routes incoming and

outgoing calls through the wireless network. This Quick Start Guide will

detail the physical connections needed for the CallFinder as well as a

few basic setup examples and usage precautions.

Safety Warnings

Handling Precautions

All devices must be handled with certain precautions to avoid damage

due to the accumulation of static charge. Although input protection

circuitry has been incorporated into the devices to minimize the effect

of this static build up, proper precautions should be taken to avoid

exposure to electrostatic discharge during handling and mounting.

Caution: Maintain a separation distance of at least 20 cm (8 inches)

between the transmitter’s antenna and the body of the user or

nearby persons. The modem is not designed for, nor intended to be,

used in applications within 20 cm (8 inches) of the body of the user.

4 Multi-Tech Systems, Inc.

Safety Recommendations for Rack Installations

•Ensure proper installation in a closed or multi-unit enclosure by

following the recommended installation as defined by the

enclosure manufacturer.

•If installing the wireless CallFinder in a closed or multi-unit

enclosure, ensure adequate airflow so that the maximum

recommended ambient temperature is not exceeded.

•Do not place the device directly on top of other equipment or

place other equipment directly on top of this device.

•Ensure that the device is properly connected to earth ground via

a grounded power cord. If a power strip is used, ensure that the

power strip also provides adequate grounding.

•Ensure that the main supply circuit is capable of handling the

load. See the power label on the device for requirements.

•Maximum ambient temperature is 50 degrees Celsius.

•This device should be installed by qualified personnel.

•Only connect like circuits; e.g., connect SELV (Secondary Extra

Low Voltage) circuits to SELV circuits and TN

(Telecommunications Network) circuits to TN circuits.

Multi-Tech Systems, Inc. 5

Safety Warnings Telecom

•Never install telephone wiring during a lightning storm.

•This product must be disconnected from power source and

telephone network interface when servicing.

•This product is to be used with UL and cUL listed computers.

•Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

•Avoid using a telephone (other than a cordless type) during an

electrical storm. There may be a remote risk of electrical shock

from lightning.

•Do not use the telephone to report a gas leak in the vicinity of the

leak.

•To reduce the risk of fire, use only 26 AWG or larger

telecommunication line cord.

•Never install a telephone jack in wet locations unless the jack is

specifically designed for wet locations.

•Do not connect the FXS port to an outside line (PSTN).

•Connect this product only to an indoor antenna.

•This product is not intended for use on a cable distribution

system.

6 Multi-Tech Systems, Inc.

RF Interference Issues

It is important to follow any special regulations regarding the use of radio

equipment due in particular to the possibility of radio frequency, RF,

interference. Please follow the safety advice given below carefully.

•Switch OFF your Wireless CallFinder when in an aircraft. The

use of cellular telephones in an aircraft may endanger the

operation of the aircraft, disrupt the cellular network and is

illegal. Failure to observe this instruction may lead to suspension

or denial of cellular telephone services to the offender, or legal

action or both.

•Switch OFF your Wireless CallFinder when around gasoline or

diesel-fuel pumps and before filling your vehicle with fuel.

•Switch OFF your Wireless CallFinder in hospitals and any other

place where medical equipment may be in use.

•Respect restrictions on the use of radio equipment in fuel

depots, chemical plants or where blasting operations are in

progress.

•There may be a hazard associated with the operation of your

Wireless CallFinder close to inadequately protected personal

medical devices such as hearing aids and pacemakers. Consult

the manufacturers of the medical device to determine if it is

adequately protected.

•Operation of your Wireless CallFinder close to other electronic

equipment may also cause interference if the equipment is

inadequately protected. Observe any warning signs and

manufacturers’ recommendations.

Ship Kit Contents

The wireless CallFinder is shipped with the following:

•One CallFinder Cellular Gateway unit.

•A two-piece DC power supply.

•Four rubber feet for desktop placement.

•One printed Quick Start Guide.

•One CallFinder Cellular Gateway product CD.

•One RJ11 phone cable.

•One serial cable.

•One antenna.

Front Panel

The front panel view shows the LEDs and the SIM compartment of the

CallFinder Cellular Gateways.

LEDs

PWR POWER - This LED lights up when the CallFinder unit has

operating power.

RI RING - The ring LED lights up with an incoming ring from the

CallFinder’s cellular modem.

CD CARRIER DETECT - This LED is not used at this time.

LS LINK STATUS - This LED blinks when there is a valid wireless

signal. When it is on or off, the wireless strength is low.

OH OFF HOOK - This LED lights up when a telephony interface

port (either FXO or FXS) is active.

Signal SIGNAL STRENGTH - Three LEDs. If at least one LED is lit,

there is enough signal to maintain the wireless connection.

Multi-Tech Systems, Inc. 7

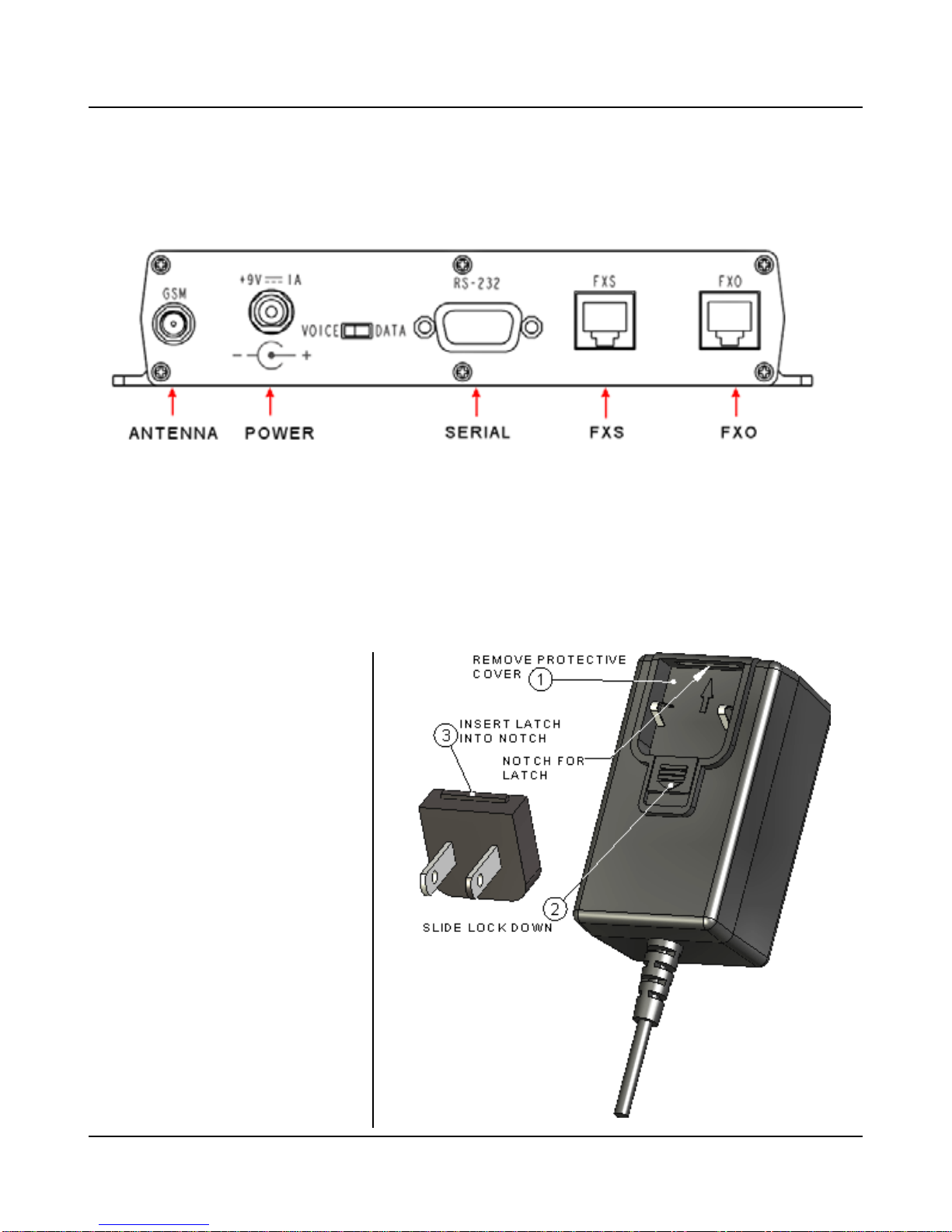

Connections

The back panel view shows the connectors and switches of the

CallFinder Cellular Gateways.

Voice/Data Switch

The Voice/Data switch present on the CallFinder unit is for future

expandability. For the GSM CallFinder, it should always be left in the

“Voice” position.

Power Supply

Remove the

protection frame and

attach the provided

blade piece to the

power unit as shown.

8 Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. 9

Establishing a Wireless Account

Obtain a wireless account through a Wireless Service Provider. When

you establish a GSM account, you will receive from the provider, a SIM

card, pre-programmed for your use. You will need to insert the SIM into

your CallFinder.

Setup for Wireless CallFinders

Wireless CallFinder Applications. There are four common setups for

the CF100FX2-G unit, as shown in the table below.

CallFinder connects to... Interface Purpose

Situation 1 an analog

telephone FXS Cellular service to kiosk or

remote location lacking land

lines.

Situation 2 a PBX

trunk port

(also

referred to

as a CO

port)

FXS Cellular access through PBX

trunk port (to enjoy

free/reduced cellular rates),

as well as emergency phone

service in case of PSTN

failure.

Situation 3 a PBX

station

port

FXO Cellular access through PBX

station port (to enjoy

free/reduced cellular rates),

as well as emergency phone

service in case of PSTN

failure.

Situation 4 a telco

POTS line FXO Free or reduced-rate access

to a local PSTN from distant

cell phones.

Scope of Manual. This Quick Start Guide describes the basic setup for

most situations. See the User Guide on your product CD for the specific

instructions you need to setup the situations mentioned above.

General Setup

Prerequisites:

•You must have the SIM chip from your wireless service provider.

•A small, needle-nose pliers is helpful for inserting the SIM into

its receptacle.

1. Remove the CF100 CallFinder unit from its shipping box.

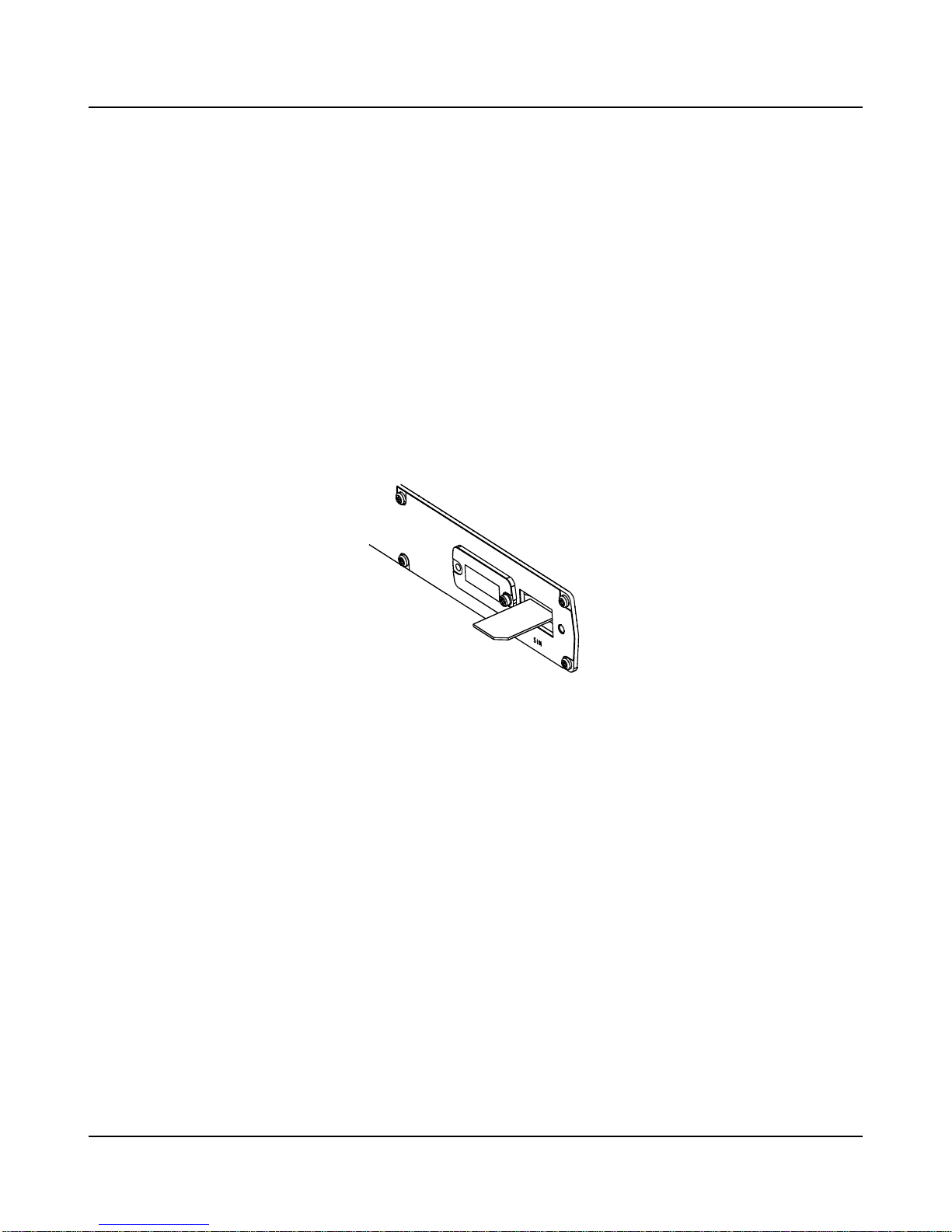

2. Use a small Phillips screwdriver to remove the SIM cover screw that is

closest to the edge of the chassis. Loosen the second SIM screw

slightly, rotate the cover 180 degrees, and then re-tighten the second

SIM screw slightly to keep the SIM compartment open.

3. Orient the SIM to match the marking in the SIM compartment (the

notched part of the SIM should be near the outer edge of the

CallFinder unit). Insert the SIM into its receptacle (a small needle-

nosed pliers can be helpful for this). Loosen the SIM cover screw

slightly, rotate the SIM cover 180 degrees to its closed position, and

tighten both SIM cover screws.

4. Attach the antenna to the CallFinder.

5. Be sure that the “VOICE/DATA” switch is in the VOICE position.

6. Connect power to the CallFinder.

7. Connect the RJ-11 cable to the appropriate receptacle on the rear of

the CallFinder.

10 Multi-Tech Systems, Inc.

Tabla de contenidos

Otros manuales de Puerta de Multitech

Multitech

Multitech MultiConnect Conduit MTCDT Instrucciones de instalación

Multitech

Multitech MultiConnect Conduit IP67 Base Station Manual

Multitech

Multitech Conduit Instrucciones de montaje

Multitech

Multitech MULTIVOIP MVP-210 Manual de usuario

Multitech

Multitech CallFinder CF100FX2-G Manual de usuario

Multitech

Multitech MultiConnect Conduit IP67 Base Station Manual de usuario

Multitech

Multitech MultiVOIP GSM SIP-to-Cellular Gateways... Manual de usuario

Multitech

Multitech RouteFinder RF550VPN Manual de usuario

Multitech

Multitech MultiVOIP GSM SIP-to-Cellular Gateways... Manual de usuario

Multitech

Multitech MULTIVOIP MVP-210 Manual

Multitech

Multitech CallFinder CF100FX2 Manual de usuario

Multitech

Multitech Conduit MTCDT-L4E1 Instrucciones de instalación

Multitech

Multitech Conduit AP Manual de usuario

Multitech

Multitech MultiVOIP MVPFX2-8 Manual de usuario

Multitech

Multitech MultiVOIP MVP210-FX Manual de usuario

Multitech

Multitech Conduit 300 Series Instrucciones de instalación

Multitech

Multitech MultiVOIP 100 (MVP110 Manual de usuario

Multitech

Multitech RouteFinder RF550VPN Manual de usuario

Multitech

Multitech MultiVOIP MVP130-AV-FXS Manual de usuario

Multitech

Multitech MultiVOIP MVP100GK Gatekeeper Manual de usuario

Multitech

Multitech MULTIVOIP MVP-210 Manual de usuario

Multitech

Multitech OneBox Smart Building Manual de usuario

Multitech

Multitech MultiVOIP MVP400 Manual de usuario

Multitech

Multitech RF600 Manual de usuario

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
