Multimo A 502 Manual de usuario

Assembly Instructions

VIDEO

link

40 min.

70 min.

Technical Service

End User

A 502- ROYAL BOOKCASE 100

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

Page 1 Page 2

MNG - 01

12 / piece

VDA - 01 ( 6,5x50 ) mm

16 / piece

VTB - 01 (4,8x16) mm

8 / piece

Accessories List

MNX 02

12 / piece

KVL 01

42 / piece

VD - 03 ( 3,5x18 ) mm

TS - 01

2 / piece

CT - 02 ( 6x30 ) mm

2 / piece

TAP - 01

12 / piece

F-R

F-L

18 / piece

AMR - 01 ( 120N )

2 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A11,18 89,76 39,37 118mm 2280 1000

B40,71 39,37 9,84 430mm 1000 250

C11,18 16,54 9,65 118mm 420 245

D11,18 23,62 9,65 118mm 600 245

E11,18 9,84 9,65 118mm 250 245

F21,18 24,02 15,35 218mm 610 390

G11,18 37,87 14,65 118mm 962 372

H11,18 37,87 24,02 118mm 962 610

L11,18 39,37 24,02 118mm 1000 610

M11,18 39,21 16,50 118mm 996 419

Track Title

(inch) (mm)

BRK- 01

2 / piece

All manuals and user guides at all-guidesbox.com

Page 1 Page 2

MNG - 01

12 / piece

VDA - 01 ( 6,5x50 ) mm

16 / piece

VTB - 01 (4,8x16) mm

8 / piece

Accessories List

MNX 02

12 / piece

KVL 01

42 / piece

VD - 03 ( 3,5x18 ) mm

TS - 01

2 / piece

CT - 02 ( 6x30 ) mm

2 / piece

TAP - 01

12 / piece

F-R

F-L

18 / piece

AMR - 01 ( 120N )

2 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A11,18 89,76 39,37 118mm 2280 1000

B40,71 39,37 9,84 430mm 1000 250

C11,18 16,54 9,65 118mm 420 245

D11,18 23,62 9,65 118mm 600 245

E11,18 9,84 9,65 118mm 250 245

F21,18 24,02 15,35 218mm 610 390

G11,18 37,87 14,65 118mm 962 372

H11,18 37,87 24,02 118mm 962 610

L11,18 39,37 24,02 118mm 1000 610

M11,18 39,21 16,50 118mm 996 419

Track Title

(inch) (mm)

BRK- 01

2 / piece

All manuals and user guides at all-guidesbox.com

Page 3 Page 4

STEP 1 STEP 2

VIDEO

link

VIDEO

link

STEP 1

MNX - 02

KVL 01

MNX - 02 X 4

KVL - 01 X 4

MNX - 02 X 4

KVL - 01 X 2

F LEFT / F RIGHT

KVL - 01 X 4 E

KVL - 01 X 4

C / D

KVL - 01 X 10

GKVL - 01 X 3

STEP 3

210°

MNG - 01 x 8

F-R

F-L G

MNG - 01

210°

MNG - 01 x 4

All manuals and user guides at all-guidesbox.com

Page 3 Page 4

STEP 1 STEP 2

VIDEO

link

VIDEO

link

STEP 1

MNX - 02

KVL 01

MNX - 02 X 4

KVL - 01 X 4

MNX - 02 X 4

KVL - 01 X 2

F LEFT / F RIGHT

KVL - 01 X 4 E

KVL - 01 X 4

C / D

KVL - 01 X 10

GKVL - 01 X 3

STEP 3

210°

MNG - 01 x 8

F-R

F-L G

MNG - 01

210°

MNG - 01 x 4

All manuals and user guides at all-guidesbox.com

Page 5 Page 6

STEP 4 STEP 6

VIDEO

link

VIDEO

link

VDA - 01 X 4

AL - 01

STEP 5

VD - 03 X 4

CT - 02 X 2

AL - 01

VD - 03 X 4

STEP 7

TS- 01 x 2

VD - 03 X 2

VD - 03 X 3

AMR - 01 (120N)

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

Page 5 Page 6

STEP 4 STEP 6

VIDEO

link

VIDEO

link

VDA - 01 X 4

AL - 01

STEP 5

VD - 03 X 4

CT - 02 X 2

AL - 01

VD - 03 X 4

STEP 7

TS- 01 x 2

VD - 03 X 2

VD - 03 X 3

AMR - 01 (120N)

All manuals and user guides at all-guidesbox.com

Page 7 Page 8

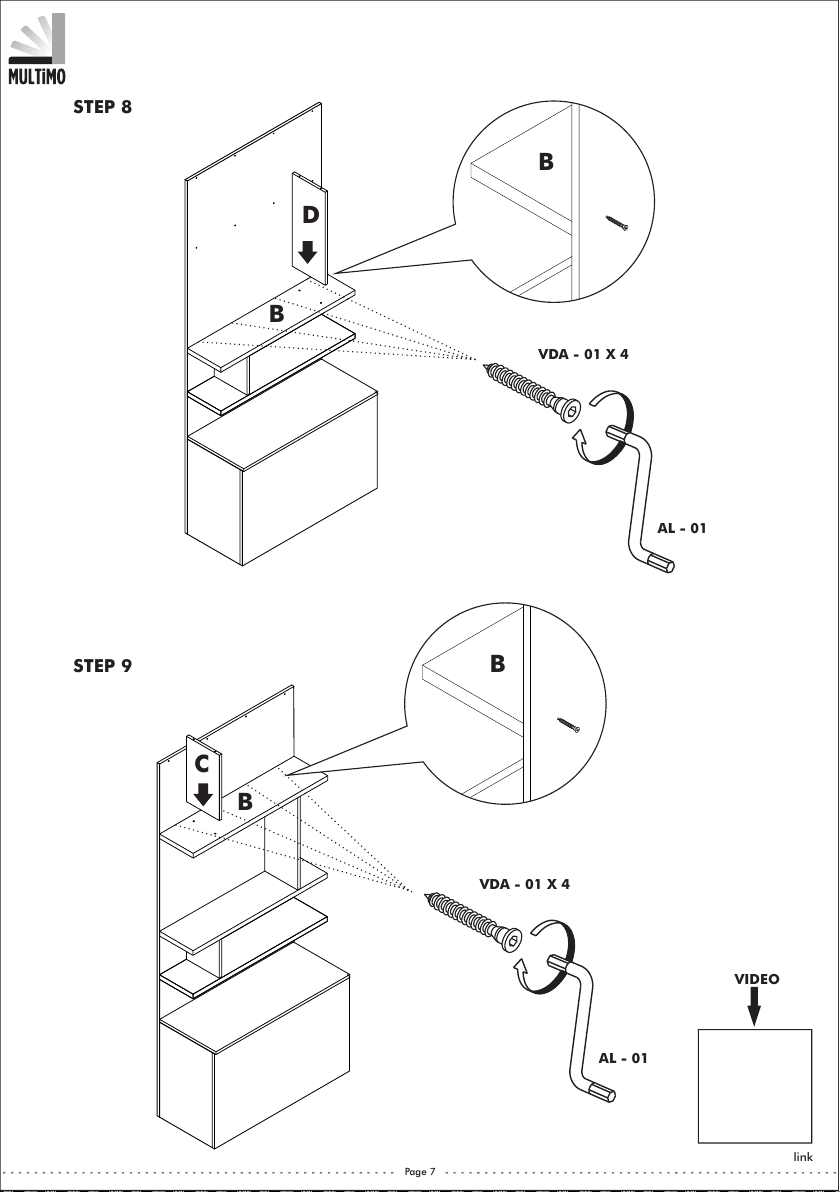

STEP 8 STEP 10

VIDEO

link

VIDEO

link

STEP 9

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

All manuals and user guides at all-guidesbox.com

Page 7 Page 8

STEP 8 STEP 10

VIDEO

link

VIDEO

link

STEP 9

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

VDA - 01 X 4

AL - 01

All manuals and user guides at all-guidesbox.com

Page 9 Page 10

ATTENTION / HOW TO / READ ME / OWNER'S GUIDE

1. When mountng on a regular drywall, furnture must be fastened to wood or

metal studs. Sold walls made of brck, concrete or smlar strong materal are

also accaptable. Do not mount furnture to paper-mache or sheet rock lke

materal wthout properly aaxng to stud.

2. For safety and product longevty you must perodcally nspect the mountng

and mechancal connectons for ntegrty and tghtness. Confrm hardware

remans properly affxed and connectons snug.

3. Wall Bed mattress thckness may not exceed 8 nch. Take care to remove

pllows and excess blankets before closng. Dong so keeps mechansm free of

obstructon and unnecessary stress.

4. Do not lean or rest heavy objects on sde or top of furnture. Ths may cause

balance ssues and compromse the ntegrty of your mountng connectons.

5. Please use the furnture's beds, desks and shelvng as ntended. Not desgned

to be sat, stood, leaned, jumped (etc) on. Improper use may cause personal njury

and damage to property.

6. Wth seasonal humdty change you must nspect nteror and exteror of

furnture.

7. Sngle, Twn, Twn XL beds accommodate the weght of one person.

Improperly sleepng more than one person rsks njury to person and damage to

property.

8. Before any un-mountng or dsassembly please contact Multmo for techncal

support and nstructon. Falure to properly detach rsks njury to person and

damage to property.

9. For Bunk Beds:

a. Always use provded ladder when accessng top bunk.

b. Be slow, careful and aware of surroundngs when openng top bunk.

c. Do not horseplay. Beds are to be slept on only.

d. Some have legs that fully extend when open- be aware of where the leg s and

wll be.

STEP 11

VIDEO

link

BRK - 01 X 2

VTB - 01X 8
