Multibrackets M Pull Down Full Motion Flexarm Manual de usuario

EAN: 7350073736744

M Pull Down Full Motion Flexarm

PACKAGE CONTENTS

Mount your television conveniently above your fireplace using this Above Fireplace Mount.

INTRODUCTION

FEATURES

It is capable of supporting televisions with VESA patterns from 100x100 and 600x500

and weighing between 11~62 lbs

(5~28

kg). The mount allows you to keep the

TV safely up and out of the way when not in use, then you can pull it down to eye level

for comfortable viewing.

Designed for flat screen televisions from 42" ~65"

Supports televisions weighing between 11~62 lbs(5~28kg)

Supports VESA mounting patterns between 100x100 and 600x500

Designed to mount to wood stud frame wall above the fireplace mantle

Television can be pulled down to eye level for comfortable viewing

Full motion mount allows for ±30° swivel, ±5° rotation, and +10°/-5°tilt

AA.

X 4

X 1

X 2

X 1

X 2

X 1

CC.

EE. GG.

HH. II.

FF.

BB.

DD.

Required Tools

Portable

Phillips Sc

rill

ewdrive

ctronic St

d Finde

Pencil

1/4" Drill

1/2" Soc

Bit

tective Ey

rpenter's L

ocket Wre

wea

evel

You will need the following tools for installation.

F: M8 x 35 mm

E: M8 x 20 mm

D: M6 x30 mm

B: M5 x 30 mm

C: M6 x 15 mm

A: M5 x 15 mm

H: M5 / M6

I: 5 mm

J: 13 mm

G: M8 x 50 mm

L: M8

K: M8 x 70mm

M: Concrete Anchor

N: M8 x 60 mm

O: M6 x 15 mm

x2 x2

P: M6

Q: M6 S: M4 x 25 mm

R: M6 x 8 mm

T: M5 x 8 mm

X: 5 mm

W: M6 Y: 8 mm Z: 8 mm

U: Cable Ties V: Arm Lock Pin

INSTALLATION CONSIDERATIONS

Warning Ensure that the mounting surface can safely support the combined weight of

of the assembled mount and installed.

1. The temperature at the front of the fireplace mantle must never exceed 110°F (43°C).

2. The wall to which this mount will be attached must be a wood stud type, with studs

spaced no more than 24"(609mm) apart. These studs should be symmetrically

positioned or the installation will not be symmetrical to the fireplace mantle. The

wall must be no more than 5/8" (16mm) thick.

3. The fireplace mantle must extend no more than 24" (60.9 cm) from the surface of

the wall.

Form 42”~65”

Weight:

11~62 lbs

(5~28kg)

INSTALLATION

Mantle size

Less than 8” Wallboard height +5”

8”~11” Wallboard height +9”

11”~13” Wallboard height +11”

13”~16” Wallboard height +14”

Space height

4. This mount is intended for flat screen televisions (LCD, LED, Plasma) only. The

mounted television should be between 42 ~ 65" and weigh between 11~62 lbs.

5. The vertical space above the mantle must be greater

than the height of the wallboard .The required vertical

space depends on how far the mantle extends out

from the wall.

Use a tape measure to determine the center point of the mantle. Mark the

centerline with a pencil or tape.

WOOD

Reference the step 5

at the page 6

2BRICK OR CONCRETE

10mm

Reference the step 5

at the page 6

5mm

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rack y soporte de Multibrackets

Multibrackets

Multibrackets 7350073739585 Manual de usuario

Multibrackets

Multibrackets M Projector Mount Pro HD Manual de usuario

Multibrackets

Multibrackets 7350022734500 Manual de usuario

Multibrackets

Multibrackets 7350073739585 Manual de usuario

Multibrackets

Multibrackets 7350073736058 Manual de usuario

Multibrackets

Multibrackets M Public Video Wall Mount Push HD Manual de usuario

Multibrackets

Multibrackets 7350073738748 Manual de usuario

Multibrackets

Multibrackets M VESA 7 350 073 734 269 Manual de usuario

Multibrackets

Multibrackets 6096 Manual de usuario

Multibrackets

Multibrackets M VESA Tablestand TurnLarge Manual de usuario

Multibrackets

Multibrackets Pro Series Manual de usuario

Multibrackets

Multibrackets M Public Video Wall Mount Push SD 150Kg Max Manual de usuario

Multibrackets

Multibrackets M Motorized Turn Mount Manual de usuario

Multibrackets

Multibrackets M Universal Projector Ceiling Mount 900-1600 with Fine... Manual de usuario

Multibrackets

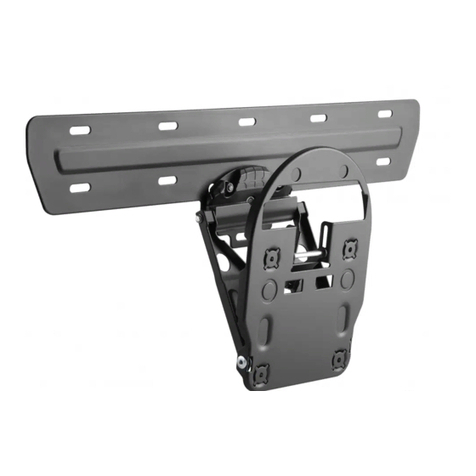

Multibrackets M QLED Wallmount 7 Series Manual de usuario
