MSI MS-6555 Manual de usuario

Getting Started

1-1

Chapter 1. Getting Started 1

Getting Started

Thank you for purchasing the MS-6555 v1.X Micro ATX mainboard. The

MS-6555 is based on Intel®Brookdale-G & ICH4 chipsets for optimal system

efficiency. Designed to fit the advanced Intel®Pentium®4 processors in the

478 pin package, the MS-6555 delivers a high performance and professional

desktop platform solution.

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

MSI Special Features 1-6

Chapter 1

1-2

CPU

Supports Intel®Pentium®4 processor in 478-pin package.

Supports 1.5GHz, 1.6GHz, 1.7GHz, 1.8GHz, 1.9GH z, 2GHz and up.

Chipset

Intel®Brookdale-G/GL chipset

- Integrated video accelerator.

- AGP 4x universal slot (G).

- Support 100/133 MHz FSB.

- Support 400/533 MHz Intel NetBurst micro-architecture bus.

Intel®ICH4 chipset

- 2 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master 2.2.

- I/O APIC.

- AC’97 2.2 interface.

- 3 UHCI Host controllers and 1 EHCI Host controller.

MainMemory

Supports four memory banks using two 184-pin DDR DIMM.

Supports up to 2GB PC2100/PC1600 DDR SDRAMs.

Supports 2.5v DDR SDRAM.

Slots

One AGP(Accelerated Graphics Port) 4x slot (1.5V only).

Three PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI bus interface).

On-BoardIDE

An IDE controller on the ICH4 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA66/100 operation modes.

Can connect up to four IDE devices.

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.

88Mbytes.

- 2 serial ports (COMA / COMB)

- 1 parallel port supports SPP/EPP/ECP mode

Mainboard Specification

Getting Started

1-3

- 6 USB 2.0 ports (Rear * 2 / Front * 4)

- PS2 K/B connector

- 1 Line-In/Line-Out/Mic-In/Game port

- 1 RJ45 connector (optional)

Audio

AC97 2.2 interface provided by ICH4

2 channel S/W audio codec

- AC'97 2.2 Compliant

- Meet PC2001 audio performance requirement

LAN(optional)

RealTek RTL8100BL.

BIOS

PnP (Plug & Play) BIOS to detect peripheral devices and expansion cards

automatically.

DMI (Desktop Management Interface) function to record motherboard

specification.

Provide WOL, chassis intrusion and SMBus for system management.

Dimension

Micro-ATX Form Factor (9.6" x 8.82").

Mounting

6 mounting holes.

Others

Modem (External/Internal) Ring Wake Up Function.

LAN Wake Up Function.

Suspend to RAM/Disk.

PC2001 Compliant.

Chapter 1

1-4

AGP Slot

BATT

Intel

Brookdale-G/GL

chipset

ICH4

WOM

(optional)

ATX_POWER

PANE L1

(optional)

CLR_CMOS

BIOS

PCI Slot 3

PCI Slot 2

PCI Slot 1

IDE1

IDE2

WOL

(optional)

JAUDIO1

IR1

F_AUDIO

(optional)

T:LAN Jack

B:USB ports

Top :

Parallel Port

Bottom:

COM A

VGA Port

Top : mouse

Bottom: keyboard

JCASE

(optional)

Codec

RTL8100BL

Winbond

83627HF-AW

CD_IN2

(optional)

CD_IN1

ATX12V

PWR_FAN

CPU_FAN

PWRSW1

(optional)

SYS_FAN

Top :

Game port

Bottom:

Line-Out

Line-In

Mic

FDD1

COM 2

DIMM1

DIMM2

JFP1

USB3

(optional)

USB4

(optional)

USB1 USB2

LAN_EN

(optional)

BIOS_WP

(optional)

CNR

Mainboard Layout

MS-6555 v1.X Micro ATX Mainboard

Getting Started

1-5

Quick Components Guide

Component Function Reference

Socket 478 Installing CPU See p. 2-2

DDR1~2 Installing DDR modules See p. 2-5

ATX Power Connector Installing power supply See p. 2-7

USB Connectors Connecting to USB devices See p. 2-9

COM A & COM 2 Serial port connector See p. 2-10

VGA DB15 Connector Connecting to VGA monitor See p. 2-10

RJ-45 LAN Jack Connecting to LAN devices See p. 2-11

LPT1 Parallel port connector See p. 2-12

FDD1 Floppy disk drive connector See p. 2-13

PWRSW1 Independent power switch See p. 2-13

IDE1~ IDE2 Hard disk connectors See p. 2-14

CDIN1/CDIN2 CD-in connector See p. 2-15

MDM_IN1 Modem-in connector See p. 2-15

CPUFAN1/PWR/SYS_FAN Fan power connectors See p. 2-16

JCASE Chassis intrusion switch See p. 2-17

IR1 IrDA infrared module connector See p. 2-17

WOM1 Wake On Ring connector See p. 2-18

WOL1 Wake On LAN connector See p. 2-18

JFP1 or PANEL1 Front panel connector See p. 2-19

JAUDIO1 or F_AUDIO Front panel audio connector See p. 2-20

USB1/2 or USB3/4 Front USB connector See p. 2-22

CLR_CMOS Clear CMOS jumper See p. 2-23

LAN_EN LAN enable/disable jumper See p. 2-24

AGP Slot Connecting to AGP cards See p. 2-25

PCI Slots Connecting to expansion cards See p. 2-25

Chapter 1

1-6

MSI Special Features

PC Alert™ III

The PC AlertTM III is a utility you can find in the CD-ROM disk. The

utility is just like your PC doctor that can de-

tect the following PC hardware status during

real time operation:

* monitor CPU & system temperatures

* monitor fan speed(s)

* monitor system voltage

* monitor chassis intrusion

If one of the items above is abnormal,

the program main screen will be immediately

shown on the screen, with the abnormal item

highlighted in red. This will continue to be

shown until users disable the warning.

Note: Items shown on PC Alert III vary depending on your system’s

status.

Hardware Setup

2-1

Chapter 2. Hardware Setup

TOPICS

Central Processing Unit: CPU 2-2

Memory 2-5

Power Supply 2-7

Back Panel 2-8

Connectors 2-13

Jumpers 2-23

Slots 2-25

Hardware Setup

This chapter provides you with the information about hardware setup

procedures. While doing the installation, be careful in holding the components

and follow the installation procedures. For some components, if you install in

the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static

electricity may damage the components.

Chapter 2

2-2

Central Processing Unit: CPU

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

2. Look for the dot/cut edge. The

dot/cut edge should point to-

wards the lever pivot. The

CPU will only fit in the correct

orientation.

3. Press the CPU down firmly

into the socket and close the

lever. As the CPU is likely to

move while the lever is being

closed, always close the lever

with your finger pressing

tightly on top of the CPU to

make sure the CPU is properly

& completely embedded into

the socket.

CPUInstallationProcedures

Open Lever

Dot / Cut edge

Sliding

Plate

Lever

The mainboard supports Intel®Pentium®4 processor in the 478 pin

package. The mainboard uses a CPU socket called PGA478 for easy CPU

installation. When you are installing the CPU, make sure the CPU has a heat

sinkandacoolingfanattachedonthetoptopreventoverheating. Ifyoudonot

find the heat sink and cooling fan, contact your dealer to purchase and install

them before turning on the computer.

Overheating will seriously damage the CPU and system,

always make sure the cooling fan can work properly to

protect the CPU from overheating.

WARNING!

Hardware Setup

2-3

InstallingtheCPU Fan

As processor technology pushes to faster speeds and higher

performance, thermal management becomes increasingly important. To dissi-

pate heat, you need to attach the CPU cooling fan and heatsink on top of the

CPU. Follow the instructions below to install the Heatsink/Fan:

2. Position the heatsink onto the reten-

tion mechanism.

1. Locate the CPU and its retention

mechanism on the motherboard.

3. Mount the fan on top of the heatsink.

Press down the fan until its four clips

get wedged in the holes of the reten-

tion mechanism.

4. Press the two levers down to fasten

the fan. Each lever can be pressed

down in only ONE direction.

retention mechanism

levers

Chapter 2

2-4

CPU Core Speed Derivation Procedure

If CPUClock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHzx14

= 1.4GHz

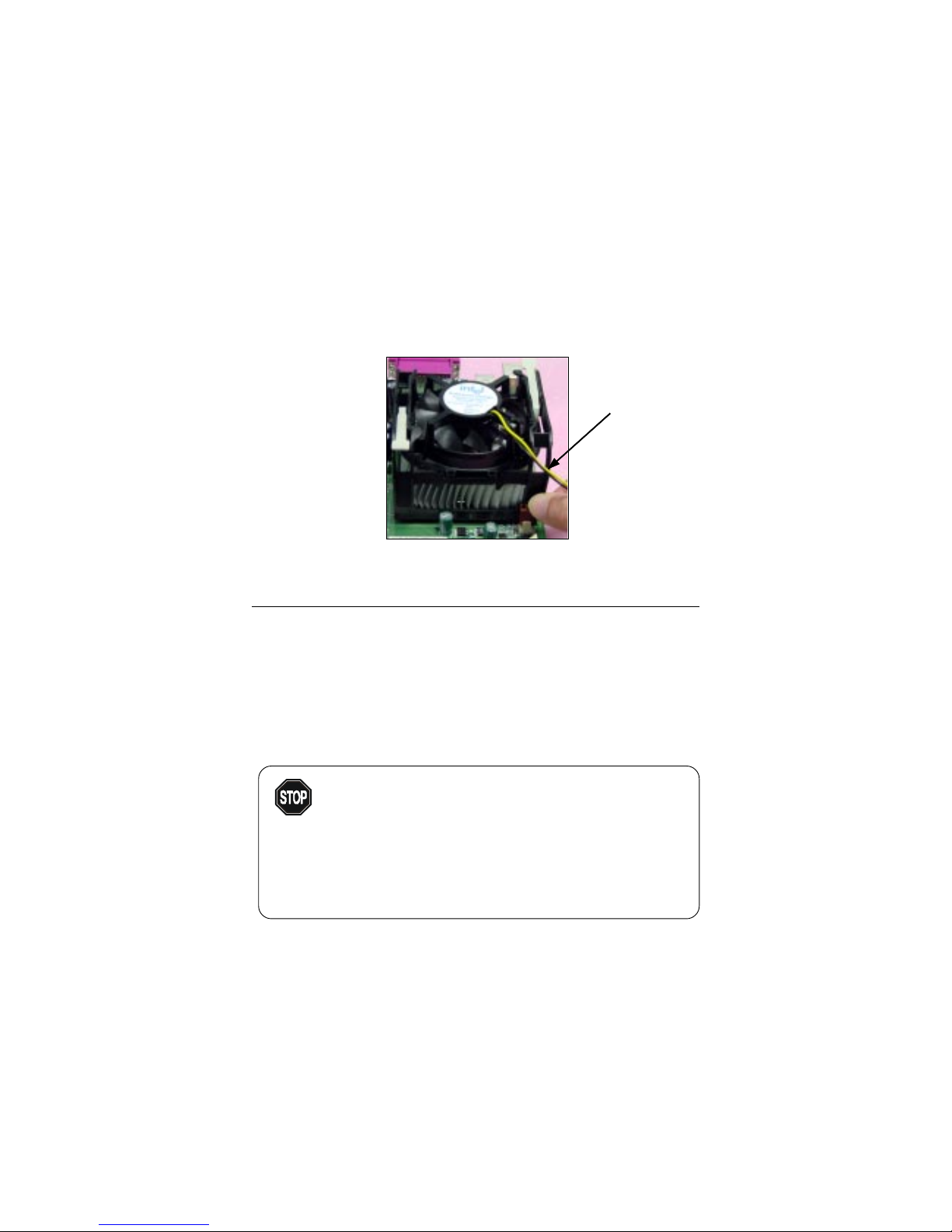

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector

on the board.

fan power cable

Overclocking

This motherboard is designed to support overclocking.

However, please make sure your components are able to

tolerate such abnormal setting, while doing overclocking.

Any attempt to operate beyond product specifications is not

recommended. We do not guarantee the damages or risks

caused by inadequate operation or beyond product

specifications.

WARNING!
