MSI MS-6132 Manual de usuario

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-1

The MICRO ATX EX6 mainboard is a high-performance personal computer

mainboard based on the Intel®

Pentium®

II processor. This mainboard

combines leading edge AGP ATI®

3D RAGE PRO technology in graphics

and YAMAHA®

YMF740 technology in audio. The Intel®

Pentium®

processor supports MMXTM(Multimedia Extension) technology.

The mainboard uses the highly integrated Intel®

82440EX chipset to support

the PCI/ISA and Green standards, and to provide the Host/AGP bridge. The

82371EB chipset integrates all system control functions such as ACPI

(Advanced Configuration and Power Interface). The ACPI provides more

Energy Saving Features for the OSPM(OS Direct Power Management)

function. The Intel®

82371EB chipset also improves the IDE transfer rate by

supporting Ultra DMA/33 IDE that transfers data at the rate of 33MB/s.

The mainboard also supports the System Hardware Monitor Controller as an

optional function. This function includes: CPU /power supply/chassis fan

revolution detect, CPU/system voltage monitor, and system temperature

monitor.

Chapter 1

INTRODUCTION

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1.1 Mainboard Features

1-2

CPU

lSlot 1 for Intel®

Pentium®

II processor.

lSupports233MHz,266MHz,300MHz,and333MHz.

Chipset

lIntel®

82440EX chipset.

ClockGenerator

l66.6MHz clock is supported.

MainMemory

lSupports four memory banks using two 168-pin unbuffered DIMM

sockets .

lSupportsamaximummemorysizeof 256MB for EDO/SDRAM.

lSupports 3.3v Extended Data Output (EDO) and SDRAM DIMM.

Slots

lTwo 32-bit Master PCI Bus slots and one 16-bit ISA bus slots

lSupports 3.3v/5v PCI bus Interface.

On-BoardIDE

lAn IDE controller on the Intel®

82371EB PCI Chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.

lCan connect up to four IDE devices.

On-BoardPeripherals

lOn-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

-2 serial ports(COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports

- 1 IrDA connector for SIR.

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-3

VGA

lATI®

Rage PRO/RAGE IIC

-RunningonAGP BUS 2x for RAGE PRO/1XforRAGEIIC.

-Onboard 2MB SGRAM (optional4MB).

- 3D Acceleration.

Sound

lYAMAHA®

YMF740

-PCI2.1compliant

-AC97/98 specification compliant

- 3D audio effects.

- 32-voice XG wavetable synthesizer

- Direct Sound Hardware Accelerator

- Direct Music Hardware Accelerator

-Full-Duplex stereo

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

lMICROATXFormFactor: 24.4cm(L)x 19cm(W) x 4 layers PCB

Mounting

l7 mounting holes.

SystemHardwareMonitor(optional)

lCPU/Power Supply/Chassis Fan Revolution Detect

lCPU Fan Control (the fan will automatically stop when the system enters

suspend mode)

lSystem Voltage Detect

lDisplay Actual Current Voltage

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1.2 Mainboard Layout

MS-6132

1-4

PCI SLOT 2

PCI SLOT 1

ISA SLOT 1

ATX

Power Supply

FW82443EX

SLOT 1

DIMM 1

Top: mouse

Bottom:

keyboard

Top:Port1

USB

DIMM 2

IDE2

Bottom:

Port2

IDE1

FDD

ATI3D

RAGEPRO

FW82371AB

JMODEM1

YAMAYA

YMF740

SFAN1

JFP1

JGS1

JGL1

JBAT1

JWOL1

BIOS

JCD1

COM 2

CFAN1

JSW1

JP1

JFAN1

PSFAN1

IR1 BATT

Top: LPT

Bottom:

COMA

VGAPort

Top: Midi/

GamePort

Bottom:

Line-In

Line-Out

Mic

JAUX

CHAPTER 2 HARDWARE INSTALLATION

2-1

Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

The mainboard operates with Intel®

Pentium®

II processor. The mainboard

uses a CPU Slot called Slot 1 for easy CPU installation and a jumper switch

(JP1) to set the proper speed for the CPU. The CPU should always have a

Heat Sink and a cooling fan attached to prevent overheating.

CHAPTER 2 HARDWARE INSTALLATION

2-2

2.1-1 CPU Installation Procedures

A. OEM Pentium®

II Processor Installation Procedures

Different kinds of Pentium®

II processor that is currently used: the OEM

version, the Boxed version, and CeleronTM. OEM Pentium®

II Processor has

no Heat Sink, Fan and Heat Sink Support, the Boxed Pentium®

II Processor

is provided with Heat Sink w/ fan and Heat Sink Support, while the

CeleronTM processor is a plain processor card without cover or heatsink..

Required Things:

Pentium®

II processor- Processor.

*RetentionMechanism(RM)- Plastic Guide thatholds the S.E.C. Catridge

in the Slot 1 connector.

*RetentionMechanismAttachMount(RMAM)-Bolt/Bridgeassemblies

inserted up through the bottom of the

motherboard. RM secures to RMAM ( 2

RMAM required per RM ).

*Heat Sink SupportBase (HSSBASE) - Plastic support bar mounted to

the mainboard under the ATX heatsink.

(One leg is always bigger than the other one)

Processor

Lock

Retention

Mechanism

Pentium®

Processor

Heat Sink

W/Fan

Notch Hole

Heat Sink

Support Base Heat Sink

Support Pin

Heat Sink

Support

Top Bar

CHAPTER 2 HARDWARE INSTALLATION

2-3

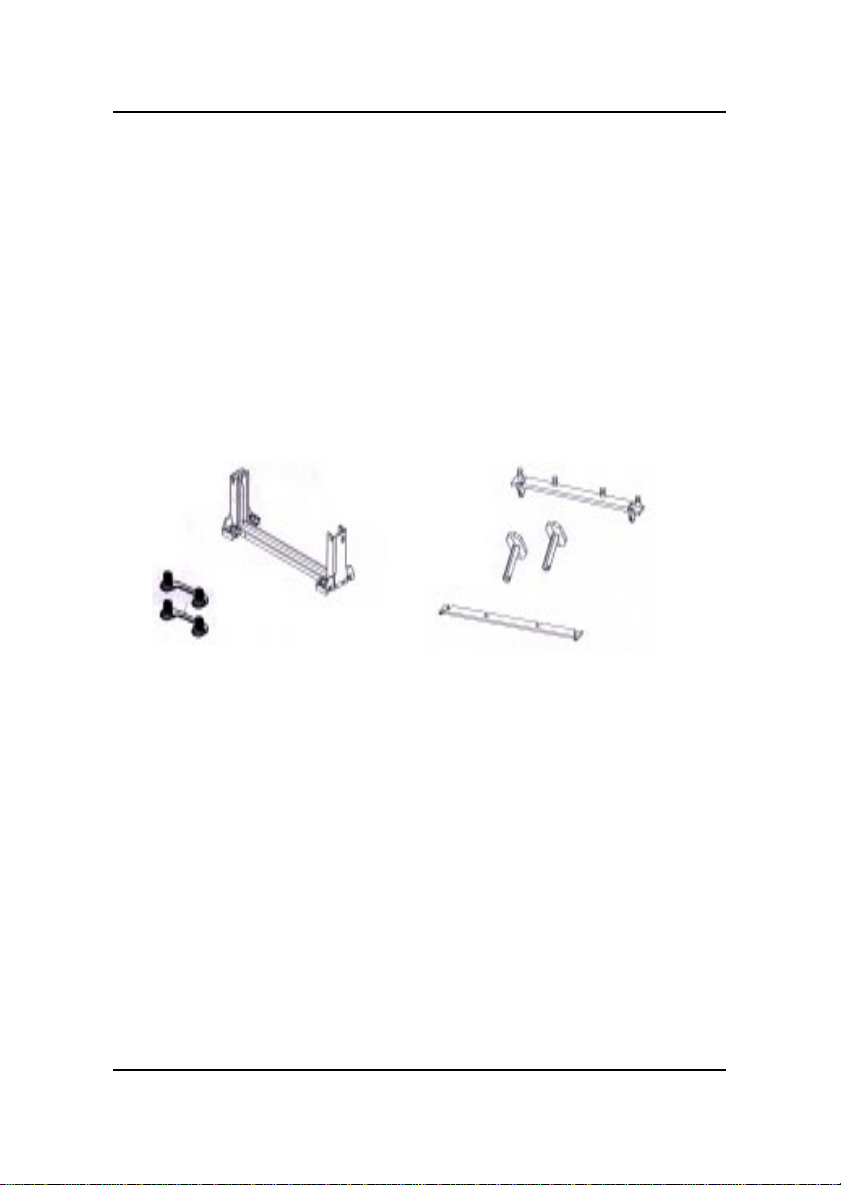

*HeatSink Support Pin (HSSPIN) - Plastic pins inserted through the

HSSBASE to secure it to the mainboard (2

required per Assembly).

*Heat Sink Support Top Bar (HSSTOP) - Plastic bar that clips onto the

HSSBASE through the fins on the ATX

heatsink.

**Heat Sink w/ fan - Heat Sink that can be attached to the Pentium®II

processorwith metal clip.

Note:* Provided by MSI mainboard.

** Provided by Special request.

HSSPIN

HSSTOP

HSSBASE

RMAM

CHAPTER 2 HARDWARE INSTALLATION

2-4

SLOT1

Retention

Mechanism

êê

Key

êê

Retention

Mechanism

Attach Mount

Notch

Key

Step 1: Insert the Retention Mechanism Attach Mount at the bottom

of the mainboard.

Step 2: Install the Retention Mechanism.

Look for the key on Slot 1, and match it with the Notch Key on the

Retention Mechanism for proper direction. Then, attach the

Retention Mechanism to the Retention Mechanism Attach Mount.

Use a Screwdriver to secure the Retention Mechanism.

CHAPTER 2 HARDWARE INSTALLATION

2-5

Step 3: Install the Heat Sink Support Base.

Look for the Two holes across Slot 1, and match it with the Two legs

of the Heat Sink Support Base for the proper direction. Take note

that one hole/leg is bigger than the other. The Four top pins of the

Heat Sink Support Base should also be oriented towards Slot 1.

Push the Heat Sink Support Base onto the mainboard, until you hear

a click sound. Check for a perfect fit.

Step 4: Install the Heat Sink Support Pin.

Push the Heat Sink Support Pins onto the two holes of the Heat Sink

Support Base. Check for a perfect fit. These pins are used to secure

the Heat Sink Support Base.

Heat Sink

Support Base

Heat Sink

Support Pin

Leg

pins

CHAPTER 2 HARDWARE INSTALLATION

2-6

S.E.C. Cartridge - Thermal

Isometric View

Step 5: Install the Heat Sink with Fan to the Processor.

Push down the metal clips, so that they are in line with the back of

the Heat Sink. Be careful, so as not detach the metal clips from the

HeatSink.

In case the metal clips are detached from the Heat Sink, re-attach

them. Look for the arrow on the metal clip. This arrow should be

pointing down and aligned with the Heat Sink Support Base Holder.

Attach the Heat Sink to the processor.

- Look at the back of the Heat Sink and take note of the 2 secure

posts. Insert these 2 Secure posts to the 2 secure holes on the

back of the processor.

- Align the ears of the metal clips with the clip holders on the back of

the processor. Use a screw driver to push the metal clips onto the

clip holders. Check for a perfect fit.

Pentium®

II Processor (Back)

Thearrow

shouldbe

pointing

down.

Metal Clips

Heat Sink w/ Fan

Metal Clips Ear

Secure

Posts

Heat Sink w/ Fan(Back)

HeatSink

BaseHolder

Secure

holes

Clip Holder
