MSI Trident B922 Manual de usuario

MEG Trident Series

Personal Computer

Trident B922

User Guide

2Contents

Contents

Getting Started.............................................................................................................. 3

Package Contents................................................................................................... 3

Safety & Comfort Tips ............................................................................................ 3

System Overview..................................................................................................... 4

Hardware Setup...................................................................................................... 8

Windows 11 System Operations................................................................................ 10

Power Management ............................................................................................. 10

Network Connections........................................................................................... 14

System Recovery .................................................................................................. 22

F3 Hotkey Recovery (Optional) .................................................................................. 24

Safety Instructions...................................................................................................... 25

Regulatory Notices..................................................................................................... 27

Revision

V1.0, 2022/08

Getting Started

This chapter provides you with the information on hardware setup procedures. While

connecting devices, be careful in holding the devices and use a grounded wrist strap

to avoid static electricity.

Package Contents

Personal Computer Trident B922

Documentation

User Guide (Optional)

Quick Start Guide (Optional)

Warranty Book (Optional)

Accessories

Mouse (Optional)

Keyboard (Optional)

Power Cord

⚠

Important

∙

Contact your place of purchase or local distributor if any of the items is damaged or

missing.

∙

Package contents may vary by country.

∙

The included power cord is exclusively for this personal computer and should not be

used with other products.

Safety & Comfort Tips

∙Choosing a good workspace is important if you have to work with your PC for a long

period of time.

∙Your work area should have enough illumination.

∙Choose the proper desk and chair and adjust their height to fit your posture when

operating.

∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s

back (if available) to support your back comfortably.

∙Place you feet flat and naturally on the floor, so that your knees and elbows have the

proper position (about 90-degree) when operating.

∙Put your hands on the desk naturally to support your wrists.

∙Avoid using your PC in a place where discomfort may occur (such as on the bed).

∙The PC is an electrical device. Please treat it with great care to avoid personal

injury.

4Getting Started

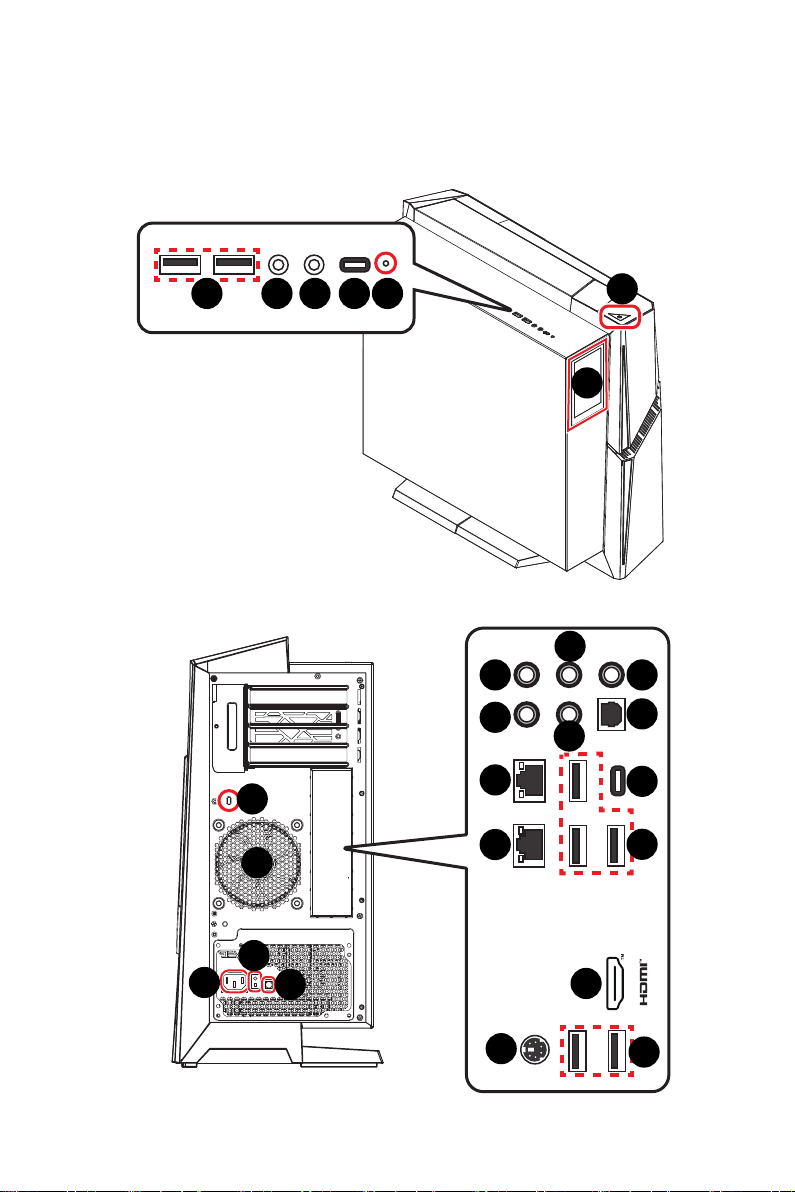

System Overview

MEG Trident X2 13

11 12

14 16

3 4 5 6 7

Getting Started

1Power Button/ Power LED

Press the power button to turn the system on and off.

The power LED glows when the system is turned on and goes off when

the system is shut down. In terms of power saving, the LED blinks in S3

(Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode.

2HMI 2.0

HMI (Human Machine Interface) 2.0 features a touch

panel for easy, smart human-machine interaction and

communication. For detailed instructions, please refer

to the following documentation.

MSI Center:

http://download.msi.com/manual/mb/

MSICENTER.pdf

HMI 2.0:

https://download.msi.com/archive/mnu_exe/

mb/HMI2.pdf

MSI Center

HMI 2.0

3USB 3.2 Gen 1 Port

This connector is provided for USB peripheral devices. (Speed up to 5

Gbps)

4Headphone Jack

This connector is provided for headphones or speakers.

5Microphone Jack

This connector is provided for microphones.

6USB 3.2 Gen 2 Port (Type-C)

This connector is provided for USB peripheral devices. This connector can

provide up to 5V/3A of power. (Speed up to 10 Gbps)

7Hard Disk Drive LED

This indicator shows the activity status of the HDD. It flashes when the

system is accessing data on the HDD and remains off when no disk activity

is detected.

8Line-In Jack

This connector is provided for external audio output devices.

9Line-Out Jack

This connector is provided for headphones or speakers.

10 Mic-In Jack

This connector is provided for microphones.

6Getting Started

11 CS-Out Jack

Center/ subwoofer line out in 5.1/ 7.1 channel mode.

12 RS-Out Jack

Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.

13 S/PDIF-Out Connector

This S/PDIF (Sony & Philips Digital Interconnect Format) connector is

provided for digital audio transmission to external speakers through an

optical fiber cable.

14 2.5 Gbps LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Green 100/1000 Mbps

Orange 2.5 Gbps

15 1 Gbps LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Green 100 Mbps

Orange 1 Gbps

16 USB 3.2 Gen 2x2 Port (Type-C)

This connector is provided for USB peripheral devices. This connector can

provide up to 5V/3A of power. (Speed up to 20 Gbps)

17 USB 3.2 Gen 2 Port

This connector is provided for USB peripheral devices. (Speed up to 10

Gbps)

Getting Started

18 HDMI™ Connector

Supports 4K@30Hz as specified in HDMI™ 1.4b.

⚠

Important

∙

Graphics specifications may vary depending on the installed CPU.

∙

For processors without integrated graphics, connect your monitor to the

discrete graphics card.

19 PS/2® Keyboard/ Mouse Port

The PS/2® keyboard/ mouse DIN connector for PS/2® keyboard/ mouse.

20 USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480

Mbps)

⚠

Important

High-speed devices are recommended for USB 3.2 ports whereas low-

speed devices, such as mouse or keyboard, are suggested to be plugged

into the USB 2.0 ports.

21 Kensington Lock Port

This PC provides a Kensington lock port, which allows users to secure

the PC in place with a key or some mechanical PIN device and attached

through a rubberised metal cable. The end of the cable has a small loop

which allows the whole cable to be looped around a permanent object,

such as a heavy table or other similar equipment, thus securing the PC in

place.

22 Ventilator

The ventilator on the enclosure is used for air convection and to prevent

the equipment from overheating. Do not cover the ventilator.

23 Power Jack

Power supplied through this jack supplies power to your system.

24 Power Supply Switch

Switch this switch to I can turn on the power supply. Switch it to 0 to cut off

the power circulation.

25 Zero Fan Button

Push the button to turn Zero Fan ON or OFF.

Zero Fan Description

ON System

Load

Below 40% The power supply fan stops.

Above 40% The power supply fan starts.

OFF The power supply fan runs constantly.

8Getting Started

Hardware Setup

Connect your peripheral devices to suitable ports.

⚠

Important

For detailed instructions on how to connect, please refer to the manuals of your

peripheral devices.

Connect the power cord to the system and electrical outlet.

Power Rating

•1000W: 100-240V~, 50-60Hz, 13A

⚠

Important

When unplugging the AC power cord, always hold the connector part of the cord.

Never pull the cord directly.

Getting Started

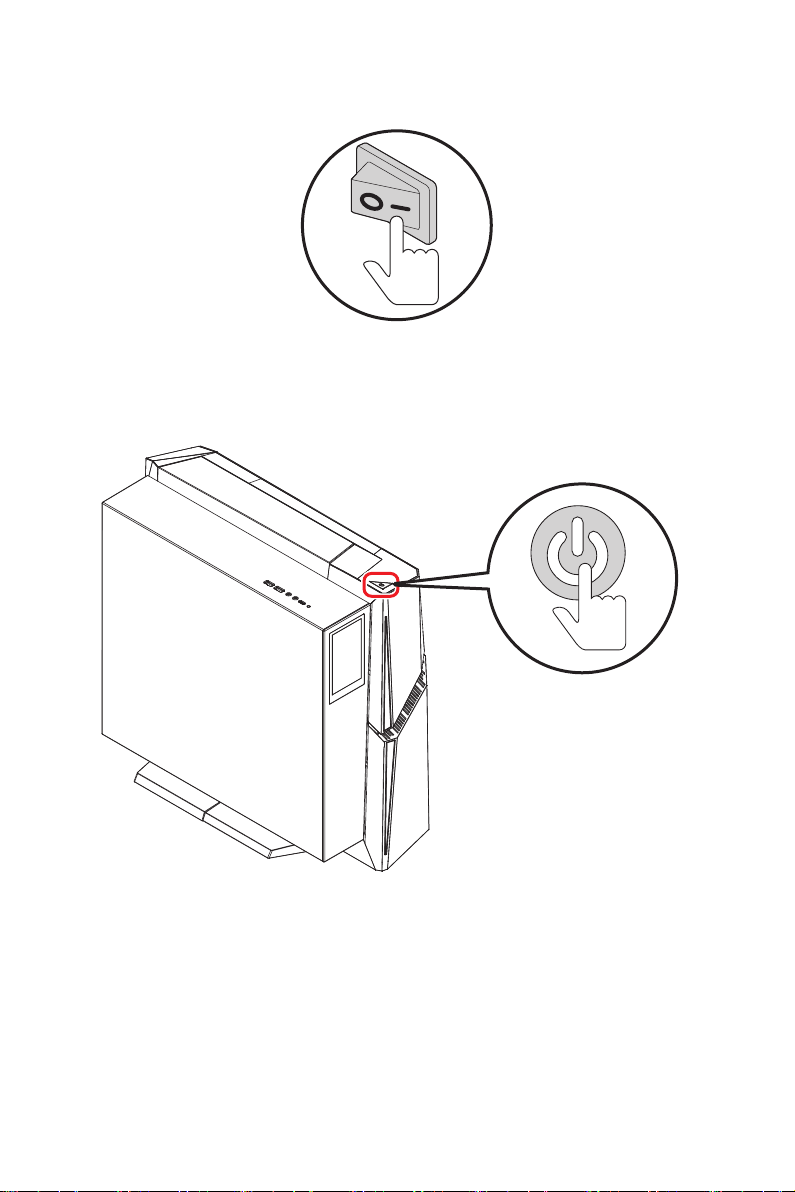

Switch the power supply switch to I.

Press the power button to power on the system.

10 Windows 11 System Operations

Windows 11 System Operations

⚠

Important

All information and Windows screenshots are subject to change without prior notice.

Power Management

Power management of personal computers (PCs) and monitors has the potential to

save significant amounts of electricity as well as deliver environmental benefits.

To be energy efficient, turn off your display or set your PC to sleep mode after a period

of user inactivity.

1. Right-click [Start] and select [Power Options] from the list.

2. Adjust [Screen and sleep] settings and select a power mode from the list.

3. To choose or customize a power plan, type control panel in the search box and

select [Control Panel].

4. Open up [All Control Panel Items] window. Select [Large icons] under [View by]

drop-down menu.

5. Select [Power Options] to continue.

6. Select a power plan and fine-tune the settings by clicking [Change plan settings].

7. To create your own power plan, select (Create a power plan).

8. Select an existing plan and give it a new name.

9. Adjust settings for your new power plan.

10.The [Shut down or sign out] menu also presents power saving options for rapid and

easy management of your system power.

Energy Savings

The power management feature allows the computer to initiate a low-power or

“Sleep” mode after a period of user inactivity. To take advantage of these potential

energy savings, the power management feature has been preset to behave in the

following ways when the system is operating on AC power:

∙Turn off the display after 10 minutes

∙Initiate Sleep after 30 minutes

Waking the System Up

The computer shall be able to wake up from power saving mode in response to a

command from any of the following:

∙the power button,

∙the network (Wake On LAN),

∙the mouse,

∙the keyboard.

Energy Saving Tips:

∙Turn off the monitor by pressing the monitor power button after a period of user

inactivity.
