How to Use this Service Guide
How to Use this Service Guide
This Service Guide is designed for MSI-authorized dealers or service centers. It
provides in-depth illustration of disassembling/assembling the system. Since the
topics in this guide may be related, it is recommended that you read it from cover to
cover first. After that, you may go directly to any specific topic that most meets your
immediate needs.
⚠
Important
All information is subject to change without prior notice. The system photos are
provided for demonstration of system disassembly only. The internal view of your
system may vary depending on the model you purchased.
Necessary Tools
Screwdriver Pliers Tweezers Anti-Static Gloves
Safety Precautions
The following precautions should be observed while handling the system:
∙Place the system on a flat and stable surface.
∙Do not place the system in environments subject to mist, smoke, vibration,
excessive dust, salty or greasy air, or other corrosive gases and fumes.
∙Do not drop or jolt the system.
∙Do not bump or knock the LCD screen as it is fragile and could break.
∙Do not use another power adapter other than the one enclosed with the system.
∙Disconnect the AC/DC adapter before performing any installation procedures on the
system.
∙Do not perform any maintenance with wet hands.
∙Prevent foreign substances, such as water, other liquids or chemicals, from
entering the system while performing installation procedures on the system.
∙Use a grounded wrist strap before handling system components such as CPU,
Memory, HDD, mini PCI-E card, etc.
∙Place system components on a grounded antistatic pad or on the bed that came with
the components whenever the components are separated from the system.
∙If there are any difficulties installing hardware devices, please contact MSI for
further information.
4Other Notice
Other Notice
The peripheral devices contained herein may vary depending on your actual system
configuration.
Third-party trademarks and names are the properties of their respective owners.
The information contained herein relevant to software and hardware are for reference
only and in accordance with actual system configuration. All information is subject to
change without notice.
Upgrade and Warranty
Please note that certain components preinstalled in the product users purchased
may be upgradable or replaceable by user’s request. To learn more about upgrade
limitation, please refer to the specification in the User Guide. For any further
information about the product users purchased, please contact the local dealer. It is
strongly recommended that you contact the authorized dealer or service center for
any upgrade or replace service.
Acquisition of Replaceable Parts
Please be noticed that the acquisition of replaceable parts (or compatible ones) of
the product users purchased in certain countries or territories may be fulfilled by
the manufacturer within 2 years at most since the product has been discontinued,
depending on the official regulations declared at the time. Please contact the
manufacturer via https://www.msi.com/support/ for the detailed information about
the acquisition of spare parts.
5
Removing Side Cover
Removing Side Cover
⚠
Important
Before you remove or install any components, make sure the system is not turned on
or connected to the power.
1. Place the system on a flat and steady surface. Unlock the screws and keep the
screws for later use.
Right Side Left Side
2. Pull to open the cover carefully. Remove it, and set it aside for later use.
Right Side Left Side
12
12
∙
Follow the above procedures in reverse order to replace the cover.
6Right Side View
Right Side View
2.5” HDD
CPU & CPU Cooler
Memory Module
Left Side View
Graphics Card
M.2 SSD
⚠
Important
Reference image only. Appearance will vary.
7
Removing CPU Cooler
Removing CPU Cooler
1. Unlock screws of the CPU fan
module.
2. Remove screws on the CPU thermal
module.
3. Unplug the power cable and the RGB
LED cable
∙
Follow the above procedures in
reversed order to replace the CPU
cooler if needed.

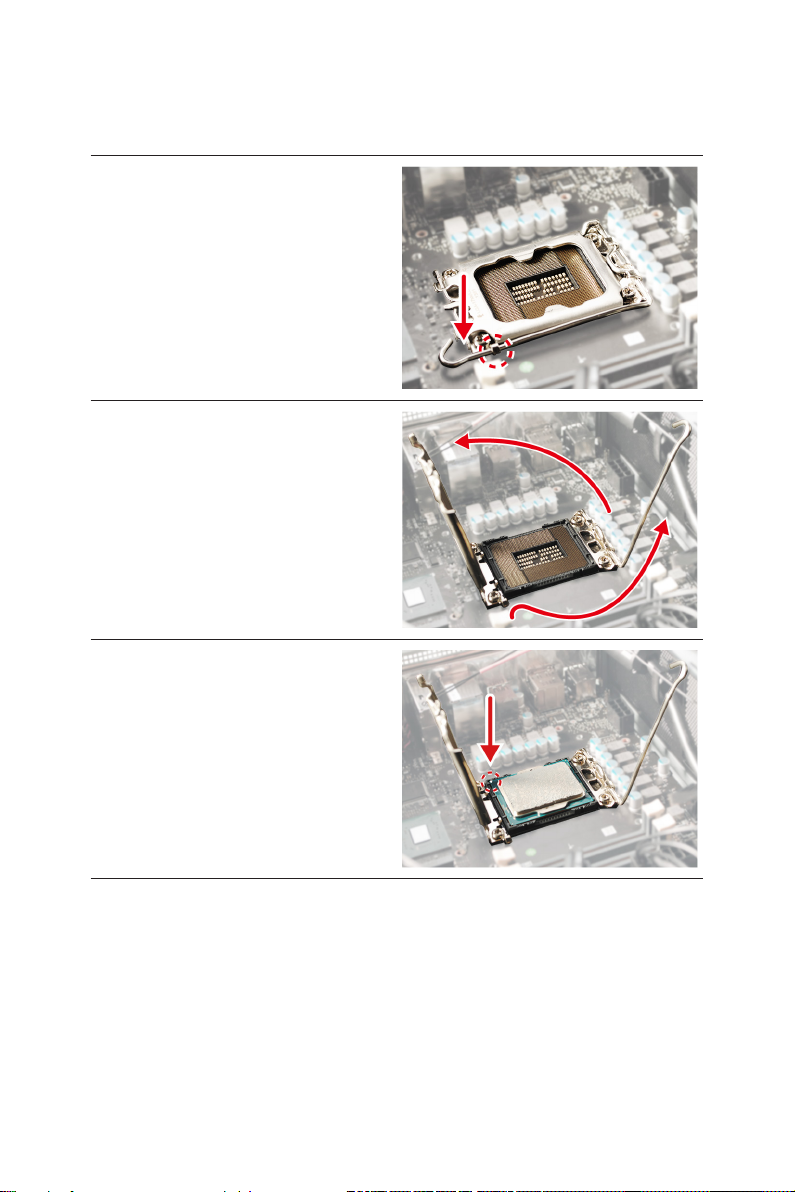

8Installing CPU
Installing CPU
1. Open the load lever.
2. Lift the load lever and load plate up
to fully open position.
3. After confirming the CPU direction
for correct mating, lower the CPU
straight down without tilting or
sliding the CPU in the socket. Inspect
the CPU to check if it is properly
seated in the socket.
9
Installing CPU
4. Close and slide the load plate under
the retention knob.
5. Close the load lever.
6. Secure the load lever with the hook
under the retention tab.
∙
Follow the above procedures in
reverse order to replace the CPU if
needed.
10 Installing Memory
Installing Memory
1. Flip the slot clips outwards.
2. Align the notch on the memory with
the key on the slot and insert the
memory into the slot with correct
orientation. Push the memory
module gently downwards until the
slot clips click and lock the memory
in place.
∙
Follow the above procedures in
reverse order to replace the memory
module if needed.
