Getting Started

This chapter provides you with the information on hardware setup procedures. While

connecting devices, be careful in holding the devices and use a grounded wrist strap

to avoid static electricity.

Package Contents

All-in-one PC Modern AM241, Modern AM241T, Modern AM241P,

Modern AM241TP, Modern AM271, Modern AM271P

Documentation

User Manual (Optional)

Quick Guide (Optional)

Warranty Card & Warranty Book

Accessories

Mouse (Optional)

Keyboard (Optional)

AC/DC Adapter

Power Cord

⚠

Important

∙

Contact your place of purchase or local distributor if any of the items is damaged or

missing.

∙

Package contents may vary by country.

∙

The included power cord is exclusively for this personal computer and should not be

used with other products.

Safety & Comfort Tips

∙Choosing a good workspace is important if you have to work with your PC for a long

period of time.

∙Your work area should have enough illumination.

∙Choose the proper desk and chair and adjust their height to fit your posture when

operating.

∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s

back (if available) to support your back comfortably.

∙Place you feet flat and naturally on the floor, so that your knees and elbows have the

proper position (about 90-degree) when operating.

∙Put your hands on the desk naturally to support your wrists.

∙Avoid using your PC in a place where discomfort may occur (such as on the bed).

∙The PC is an electrical device. Please treat it with great care to avoid personal

injury.

4Getting Started

System Overview

Front View

1Touch Screen (For Modern AM241T / Modern AM241TP)

Getting Started

Rear View

1 2

4 6 7 85

1Navi Key

The AIO PC comes with a Navi Key, a multi-directional control that helps

navigate the On-Screen Display (OSD) menu.

2Power Jack

Power supplied through this jack supplies power to your system.

3Kensington Lock

4HDMI-In Port (with MSI Instant Display Technology)

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video

interface capable of transmitting uncompressed streams. HDMI supports

all TV format, including standard, enhanced, or high-definition video, plus

multi-channel digital audio on a single cable.

With MSI Instant Display Technology, when you connect power to the AIO PC

successfully, the monitor will automatically enter “standby” mode without

pressing the power button. When devices are connected to the HDMI-in

port, the monitor will be turned on immediately. You can also switch the

modes through the Monitor Power/ Mode Button on the side panel if you

have already turned on your AIO PC. This technology helps to save more

energy for your system.

6Getting Started

5HDMI-Out Port

The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video

interface capable of transmitting uncompressed streams. HDMI supports

all TV format, including standard, enhanced, or high-definition video, plus

multi-channel digital audio on a single cable.

6USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480

Mbps)

⚠

Important

High-speed devices are recommended for USB 3.2 ports whereas low-

speed devices, such as mouse or keyboard, are suggested to be plugged

into the USB 2.0 ports.

7LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

Green/ OrangeYellow

LED Color LED State Condition

Yellow Off LAN link is not established.

On (steady state) LAN link is established.

On (blinking) The computer is communicating with

another computer on the LAN.

Green Off 10 Mbit/sec data rate is selected.

On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

8Power Button

Press the power button to turn the system on and off.

Getting Started

Side View

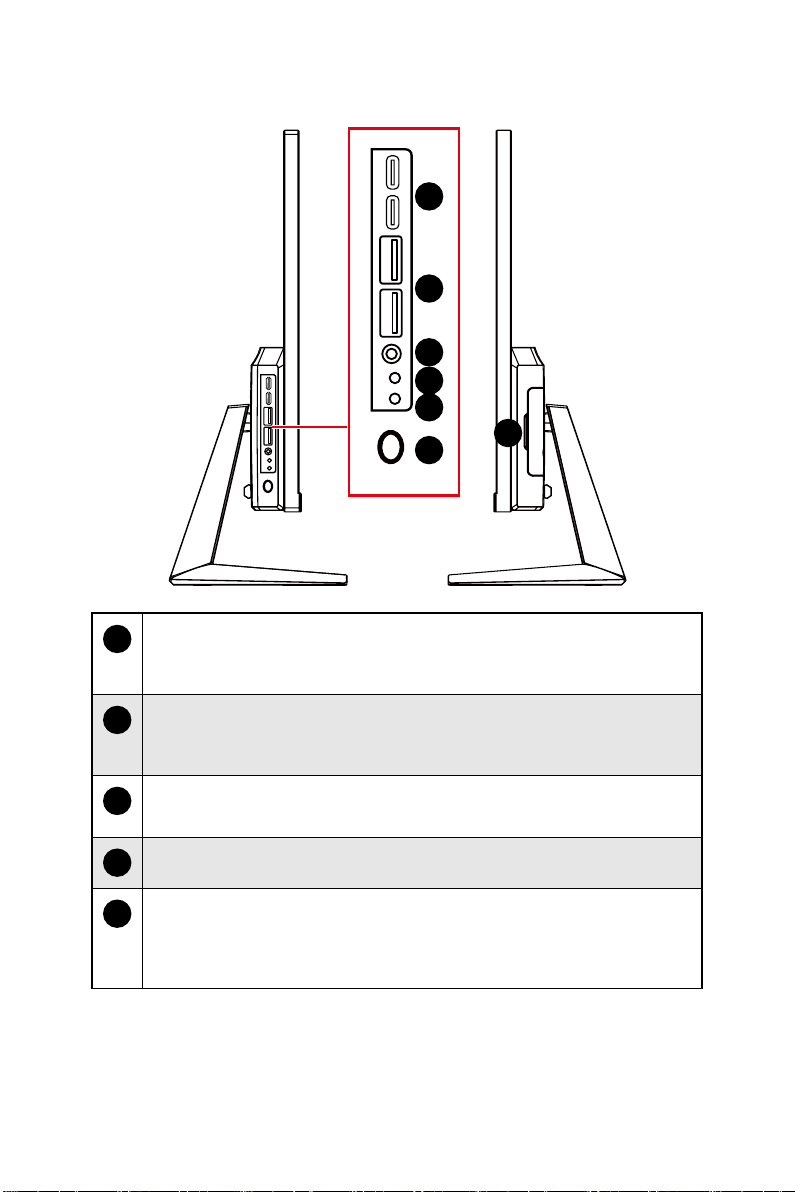

1USB 3.2 Gen 2 Port (Type-C)

This connector is provided for USB peripheral devices. This connector can

provide up to 5V 3A of power. (Speed up to 10 Gbps)

2USB 3.2 Gen 2 Port

This connector is provided for USB peripheral devices. (Speed up to 10

Gbps)

3Combo Audio Jack

This connector is provided for headphones or speakers or microphones.

4Monitor LED

5Hard Disk Drive LED

This indicator shows the activity status of the HDD. It flashes when the

system is accessing data on the HDD and remains off when no disk activity

is detected.

8Getting Started

6System Power Button/ LED

Press the system power button to turn the system on or off.The power LED

glows when the system is turned on and goes offwhen the system is shut

down. In terms of power saving, the LED blinks in S3 (Suspend to RAM)

mode and goes off in S4 (Suspend to Disk) mode.

72.5” HDD Bay

Top & Bottom View

1 1

3 3

1Ventilator

The ventilator on the enclosure is used for air convection and to prevent the

equipment from overheating. Do not cover the ventilator.

2USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480

Mbps)

⚠

Important

High-speed devices are recommended for USB 3.2 ports whereas low-

speed devices, such as mouse or keyboard, are suggested to be plugged

into the USB 2.0 ports.

3Stereo Speakers

The built-in stereo speakers deliver high quality sound with stereo system.

Getting Started

Connecting the Power

Connect the adapter to the AIO PC and plug in the power cord.

•(Option 1) 100-240V, 19.5V 6.15A

•(Option 2) 100-240V, 19V 4.74A

Press the power button to power on the AIO PC.

10 Getting Started

Adjusting the Monitor

This AIO PC is designed to maximize your viewing comfort with its adjustment

capabilities.

⚠

Important

∙

The illustrations are for reference only. Your AIO PC may vary in appearance.

∙

Please make sure the AIO PC has been grounded to earth through the AC power

cord and the electrical outlet before powering on the AIO PC.

∙

Do not use any sharp objects on the display panel.

∙

Avoid pressing the display panel when adjusting.

Modern AM241 / Modern AM241T / Modern AM271

-4

Modern AM241P / Modern AM241TP / Modern AM271P

-4

130mm
