S2201 (2U24)

MS-S258

Server System

User Guide

2Contents

Revision

V2.0, 2023/10

Contents

Regulatory Notices....................................................................................................... 4

Safety Information........................................................................................................ 6

System Specifications .................................................................................................. 7

System Overview .......................................................................................................... 8

System LED Indicators............................................................................................... 11

Motherboard Overview............................................................................................... 12

Motherboard Connectors .......................................................................................... 13

Power Connectors ................................................................................................ 13

Storage Connectors.............................................................................................. 15

FPC Connectors.................................................................................................... 18

Fan Connectors .................................................................................................... 20

Other Connectors and Headers............................................................................ 21

Motherboard Expansion Slots................................................................................... 26

Motherboard Jumpers............................................................................................... 27

Onboard LEDs............................................................................................................. 28

Getting Started............................................................................................................ 29

Necessary Tools ................................................................................................... 29

Safety Precautions................................................................................................ 29

System Setup.............................................................................................................. 30

Drive Bay ..................................................................................................................... 30

System Cover.............................................................................................................. 31

Removing System Cover....................................................................................... 31

CPU & Heatsink.......................................................................................................... 32

Installing CPU & Heatsink.................................................................................... 33

Contents

Memory ....................................................................................................................... 34

Mixing of DIMM Types within a Channel .............................................................. 35

Recommended Memory Population..................................................................... 36

Installing Memory Modules.................................................................................. 38

M.2 M Key.................................................................................................................... 39

Installing M.2 SSD ................................................................................................ 39

PCIe Add-in Card........................................................................................................ 40

Installing PCIe Add-in Card.................................................................................. 40

Installing Riser Card Assembly............................................................................ 41

System Fan ................................................................................................................. 42

Installing 2U Fan................................................................................................... 42

Installing 2U Fan Cage ......................................................................................... 43

Air Duct........................................................................................................................ 44

Installing Air Duct................................................................................................. 44

Power Supply Unit (PSU) ........................................................................................... 45

Installing PSU....................................................................................................... 45

Cable Routing ............................................................................................................. 46

8-pin to 8-pin Power Cable................................................................................... 46

I2C Cable............................................................................................................... 46

SlimlineSAS 4i to SlimlineSAS 4i Cable (for SATA).............................................. 47

SlimlineSAS 4i to SlimlineSAS 4i Cable (for NVMe)............................................. 47

SlimlineSAS 8i to SlimlineSAS 4i Cable (for NVMe)............................................. 48

Slide Rail ..................................................................................................................... 50

Disassembling Slide Rail...................................................................................... 50

Installing Inner Rail to System............................................................................. 51

Retracting Outer Rail Bracket.............................................................................. 52

Attaching Outer Rail Bracket to Rack Frame ...................................................... 52

Installing System into Rack.................................................................................. 53

Detaching Outer Rail Bracket from Rack Frame................................................. 54

Detaching Inner Rail from System....................................................................... 54

4Regulatory Notices

Regulatory Notices

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2012/19/EU, products of “electrical and

electronic equipment” cannot be discarded as municipal waste anymore

and manufacturers of covered electronic equipment will be obligated to

take back such products at the end of their useful life.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH

Regulation (Regulation EC No. 1907/2006 of the European Parliament and the

Council), MSI provides the information of chemical substances in products at:

https://csr.msi.com/global/index

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in

compliance with the essential safety requirements and other relevant

provisions set out in the European Directive.

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case

the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply

with the emission limits.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

∙This device may not cause harmful interference, and

∙This device must accept any interference received, including interference that may

cause undesired operation.

Regulatory Notices

Battery Information

Please take special precautions if this product comes with a battery.

∙Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer.

∙Avoid disposal of a battery into fire or a hot oven, or mechanically crushing or

cutting of a battery, which can result in an explosion.

∙Avoid leaving a battery in an extremely high temperature or extremely low air

pressure environment that can result in an explosion or the leakage of flammable

liquid or gas.

∙Do not ingest battery. If the coin/button cell battery is swallowed, it can cause

severe internal burns and can lead to death. Keep new and used batteries away

from children.

European Union:

Batteries, battery packs, and accumulators should not be disposed of as

unsorted household waste. Please use the public collection system to

return, recycle, or treat them in compliance with the local regulations.

BSMI:

廢電池請回收

For better environmental protection, waste batteries should be collected

separately for recycling or special disposal.

California, USA:

The button cell battery may contain perchlorate material and requires

special handling when recycled or disposed of in California.

For further information please visit:

http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names

mentioned may be trademarks of their respective owners. No warranty as to accuracy

or completeness is expressed or implied. MSI reserves the right to make changes to

this document without prior notice.

Technical Support

If a problem arises with your product and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor. Alternatively,

please visit https://eps.msi.com/support for further guidance.

6Safety Information

Safety Information

∙Always read the safety instructions carefully.

∙Keep this User’s Manual for future reference.

∙Keep this equipment away from humidity.

∙Lay this equipment on a reliable flat surface before setting it up.

∙The openings on the enclosure are for air convection hence protects the equipment

from overheating. Do not cover the openings.

∙Make sure the voltage of the power source and adjust properly before connecting

the equipment to the power inlet.

∙Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

∙Always unplug the power cord before inserting any add-on card or module.

∙All cautions and warnings on the equipment should be noted.

∙Never pour any liquid into the opening that could damage or cause electrical shock.

∙If any of the following situations arises, get the equipment checked by service

personnel:

∙The power cord or plug is damaged.

∙Liquid has penetrated into the equipment.

∙The equipment has been exposed to moisture.

∙The equipment does not work well or you can not get it work according to User’s

Manual.

∙The equipment has dropped and damaged.

∙The equipment has obvious sign of breakage.

∙Do not leave this equipment in an environment unconditioned, storage

temperature above 60°C (140°F), it may damage the equipment.

System Specifications

Model S2201b S2201b-HE

Form Factor 2U

Dimensions 17.2”W (438mm) x 3.4”H (87mm) x 30.3”D (770mm)

Processor

∙2 x 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)

-Dual Socket P+ (LGA 4189)

-up to 40C, TDP 250W (270W is condition)

Memory ∙32 x DDR4 DIMM slots (8 channels DDR4 per CPU)

-Supports RDIMM/ LRDIMM/ BPS up to 6TB, 2933/3200 MT/s

Internal Storage ∙2 x M.2 M-key slots (2280/ 22110)

∙1 x MicroSD (internal)

Drive Bays

∙24 x 2.5” Hybrid hot-swap drive bays

-Supports NVMe/ SAS/ SATA signals

∙2 x 2.5” Hybrid drive bays (internal rear option)

-Supports SAS/ SATA signals

Expansion Slots

∙2 x PCIe slots

-RISER3: 2 x HH Gen 3 (x8/x8)

∙1 x OCP 3.0 mezzanine card slot

∙2 x PCIe slots

-RISER3: 2 x HH Gen 4 (x8/x8)

∙1 x OCP 3.0 mezzanine card slot

Security

∙TPM 2.0

∙PFR (Optional)

∙Case intrusion switch

Server

Management Aspeed AST2600 IPMI 2.0 with iKVM support

Cooling ∙2 x Passive CPU heatsink with air duct @250W

∙6 x 60mmx 60mm x 38mm PWM hot-swap fans

Environment

∙System Operating Temperature: 0°C ~ 35°C

∙Non-operating Temperature: -20°C ~ 70°C

∙Non-operating Relative Humidity: 5% ~ 85% (non-condensing)

Certifications CE, FCC (Class A)

8System Overview

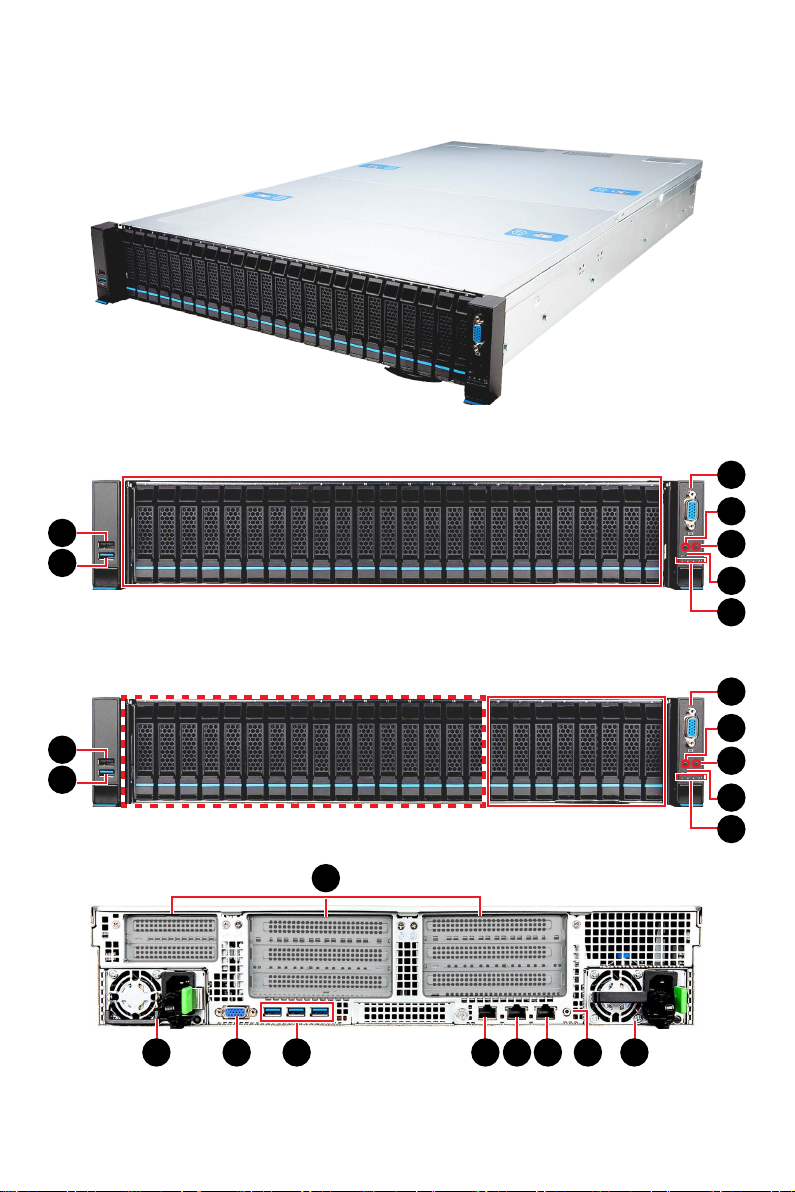

System Overview

Option 1

24 x 2.5” NVMe

Hybrid Hot-swap Drive Bays 77

Option 2

16 x 2.5” NVMe

Hybrid Hot-swap Drive Bays

8 x 2.5” SAS/ SATA

Hybrid Hot-swap Drive Bays 77

888899101033221111

Riser #2Riser #2 Riser #1Riser #1

Riser #3Riser #3

1313

1212

System Overview

11USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480 Mbps)

22USB 3.2 Gen 1 Port

This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

33VGA Port

44System Power Button/ LED

55UID Button/ LED

66System Reset Button

System Status LED

NIC Link LEDs

M.2 Activity LED

88Power Supply Unit

99RJ45 Serial Console Port

1010

GbE RJ45 LAN Port

The standard RJ45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Green Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Orange 100 Mbps

Green 1 Gbps

Continued on next column

10 System Overview

1111

GbE RJ45 LAN Port (for Mgmt.)

The standard RJ45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Green Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Orange 100 Mbps

Green 1 Gbps

1212 UID LED Button (or BMC Reset Button, configured using jumper: J1_5)

1313 PCIe Add-in Card Area

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de MSI

MSI

MSI KT6M-ILS Manual de usuario

MSI

MSI MS-CF05-SKU1 Manual de usuario

MSI

MSI 945GT Speedster Manual de usuario

MSI

MSI MAG CORELIQUID M360 Manual de usuario

MSI

MSI TV@nywhere A/D Manual de usuario

MSI

MSI MS-9856 Manual de usuario

MSI

MSI MS-98N1 Manual de usuario

MSI

MSI CB11B Manual de usuario

MSI

MSI MPG SEKIRA 500X Manual de usuario

MSI

MSI TV@nywhere Satellite Manual de usuario

MSI

MSI LIQUID COOLING Series Manual de usuario

MSI

MSI P6N SLI Platinum series Manual de usuario

MSI

MSI ThunderboltM3 Manual de usuario

MSI

MSI 919-98H2-001 Manual de usuario

MSI

MSI MN54G Manual de usuario

MSI

MSI MEG CORELIQUID S360 Manual de usuario

MSI

MSI CB54G2 Manual de usuario

MSI

MSI MS-7846 Manual de usuario

MSI

MSI MS-6593 ATX Manual de usuario

MSI

MSI MS-9A95 WindBOX IV Advanced Manual de usuario

MSI

MSI HMI 2.0 Manual de usuario

MSI

MSI MS-6970A Manual de usuario

MSI

MSI MPG CORELIQUID K360 V2 Manual de usuario

MSI

MSI TV Series Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
