MSI EC14H Manual de usuario

Version: 1.1

G52-C6821X2

1. ENGLISH......................................................3

2. DEUTSCH.................................................13

3. FRANCAIS.................................................23

4. ESPAÑOL...................................................33

5. ITALIANO.................................................43

6. NEDERLANDS.........................................53

7. PORTUGUÊS...........................................63

8. ČESKY.....................................................73

9. 简体中文..................................................83

10. 繁體中文..................................................93

ENGLISH

EthernettoPowerlineHomePlugAdapter

Before You Begin

Thank you for purchasing MSI Ethernet to Powerline HomePlug

Adapter EC14H. No complex installation. No extra wiring. All you

have to do is to plug the EC14H into a wall outlet and connect it to your

PC or other Ethernet-enabled devices through Ethernet cable. You can

build up an electrical wiring network just in minutes.

This Quick Start Guide is designed to assist with the installation and

utilization of MSI Ethernet to Powerline HomePlug Adapter. Please

note that all figures in this guide are for reference only; the actual setup

screenshots might be vary on different systems. For more information,

please refer to the User’s Guide provided in the CD-ROM, or visit our

website http://www.msi.com.tw to obtain the latest on-line documentation.

How to Use This Guide

If you want to... refer to...

know your HomePlug Adapter page 5

install your HomePlug Adapter page 6 ~ 9

test your network page 10

troubleshoot your network page 11 ~ 12

You will need at least two HomePlug adapters to establish a

poweline communications network.

NOTE

ENGLISH

QuickStartGuide

Unit Description

LEDs

- LINK (PLC Link)

- ACT (PLC Activity)

- LAN (LAN Link/Activity)

Plug

MAC Address

Device Password

Ethernet Port (RJ-45)

Front View Back View

Bottom View

EthernettoPowerlineHomePlugAdapter

Installation - Software

Installing the Software

You are recommended to install the software provided in the Software

CD before connecting the device to take full advantage of your EC14H,

including changing the configuration or password of device.

To install the configuration utility:

1. Insert the Software CD into

your CD-ROM drive, and the

Setup program should launch

automatically. Click the Install

Software button on the

installation screen.

2. Click Next in the welcome screen of InstallShield Wizard.

3. A copyright notice window

appears. Select “I accept the

terms in the license

agreement” and click Next

after you read and accept

the License Agreement.

If the Autorun program does not launch automatically,

you can click Start at the taskbar and select Run; then, type

E:\setup.exe (Eis your CD-ROM drive) in the Open box and

click OK.

TIP

ENGLISH

QuickStartGuide

Installation (2) - Software

4. Enter your User Name and

Organization; then, click

Next.

5. Click Install in the following

window, and the program

starts to install the software

to the system. The progress

indicator can show you the

installation status.

6. When the installation is completed, click Finish.

7. Click Yes to restart your computer when prompted.

8. After rebooting, the HomePlug Converter Utility

icon will appear on your Windows desktop.

For each Ethernet-enabled device added onto the network,

just repeat the above procedures.

If connecting to a non-PC based device, no further soft-

ware installation is needed.

NOTE1

NOTE2

EthernettoPowerlineHomePlugAdapter

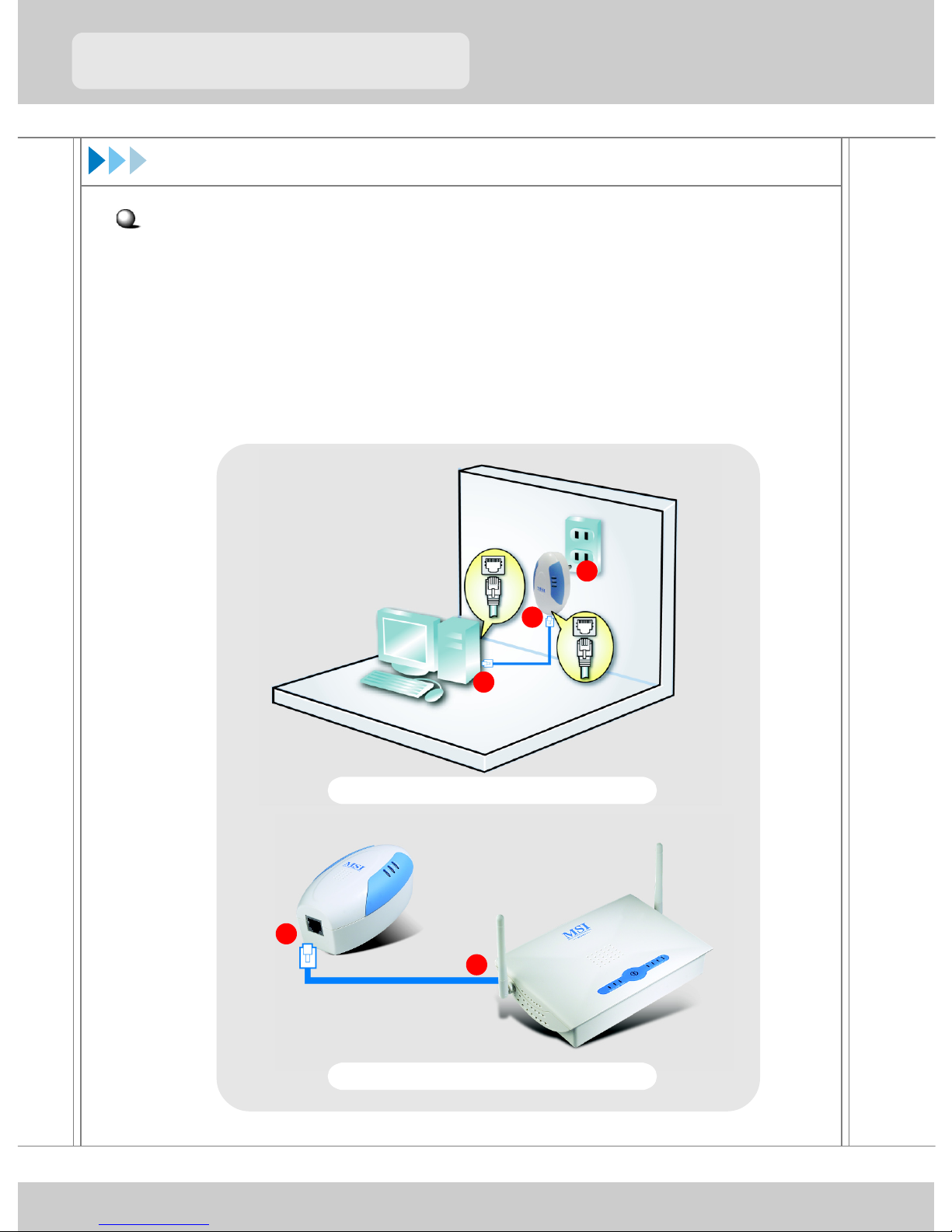

Connecting EC14H

1. Find the EC14H HomePlug Adapter and Ethernet cable from

the package.

2. Connect one end of Ethernet cable to the RJ-45 connector on

the bottom of EC14H (n), and the other end to the Ethernet

port of your computer or network device (o).

3. Plug the adapter into the wall outlet directly (p).

Installation (3) - Hardware

Connecting to your computer

Connecting to network device

ENGLISH

QuickStartGuide

4. Verify the LEDs on the adapter to indicate proper connection

by:

- LINK LED should light solid to show electrical wiring

connection.

- LAN LED should light solid to indicate that the Ethernet

connection is established.

Installation (4) - Hardware

Building Your Network

Once you have built up a powerline network in your location, EC14H

will automatically attempt to connect to the network; generally, EC14H

can access to your network successfully without further configuration.

Alternately, you can set up the Network Password of your EC14H.

MSI EC14H provides you with the convenient utility to customize the

network settings after you installed its software. Whenever you want to

configure the respective settings, double-click the HomePlug Converter

Utility icon on your desktop. For more instructions on configuring your

EC14H, please refer to the User’s Guide in the provided Software CD.

You are advised to plug the HomePlug Adapter into a

power outlet directly. DO NOT plug the device into a power

strip or UPS with surge protection. MSI EC14H has its own

filter to protect from surges.

NOTE

EthernettoPowerlineHomePlugAdapter

Testing the Connection

You can use Windows standard Ping utility to verify if your powerline

connection is set up properly.

1. Click Start at the taskbar and select Run; then, type command

in the Open box and click OK.

3. It will display the IP address of your PC to which MSI EC14H

is attached, along with Subnet Mask and Gateway address.

4. Enter the command “ping IPADDRESS” and press [Enter],

where IPADDRESS is the one found in preceding step.

If the Ping succeeds, it shows the set

up is correctly done. Then, repeat the

same process with other powerline

devices on the network. If this Ping

fails, it means there is a problem with

the set-up.

2. Type ipconfig in the

prompted DOS command

window and and press

[Enter].
