MshOt TP R200 Guía
Thermal plate TP R200
Using guide
Step 1. Take of CX43 slide clip, but
save screws 1 and 2.
Step 2. Put thermal plate on the
stage.
Note: To prevent the thermal plate slipping from the stage, you can install 'Clips' comes with the
package to the position 1 and 2 in above image. And clamp the thermal plate by clips.
Put ring between the
screws and clips and
tighten install.
Step 3. Connect thermal plate to control box by power line.
Power line USB cable port - thermal plate
Power line airline port - control box
Then connet control box power line to electricity.
Step 4. Self-tuning setting
(Only need to do before the first time using, do not set it again in next
times use)
a. Power on the control box (power button is on back of
the of the box).
b. Long pressing to start.
c. Press botton unitl 'PV' screen show 800.
d. Short press , till 'SV' screen show 'AT OFF'.
e. Press till 'SV' screen turn to
'ON', it will flash for seconds then stable.
f. Press to exit. The 'SV' will
show 37℃，meas self-tunning setting
finished.
Step 5. Adjust heating temperature you needed( ), and waiting for
thermal plate actual temeprature gets to it.
Note: If surrounding temperature is too low, while you need to set temprature above 30℃，please do not set it
immedidately, but take 5℃ as a unit step by step.
Take an example
Surrounding temperature is 20℃,
Target heating temperature is 37℃
1. Set temperature to 30℃ first, waiting actual temperature gets to 30℃
2. Then set 35℃，waiting actual temperature gets to 35℃
3. Final set 37℃
Tabla de contenidos
Otros manuales de Microscopio de MshOt
MshOt
MshOt MF43-N Manual de usuario
MshOt

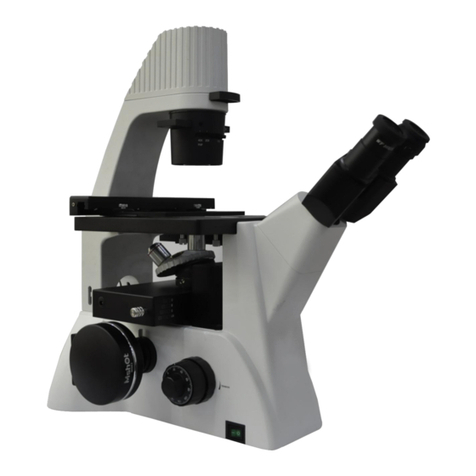

MshOt MF52-N Manual de usuario
