MSA HUB Manual de usuario

Operating Manual

MSA HUB

SCBA Telemetry Version

Order No.: 10204590/02

MSAsafety.com

The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC.

MSA is a registered trademark of MSA Technology, LLC in the US, Europe and other Countries. For all other trademarks

visit https://us.msasafety.com/Trademarks.

This product incorporates Bluetooth® wireless technology. The Bluetooth word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc., and any use of such marks by MSA is under license. Other trademarks and

trade names are those of their respective owners.

MSA Europe GmbH

Schlüsselstrasse 12

8645 Rapperswil-Jona

Switzerland

For your local MSA contacts, please go to our website www.MSAsafety.com

Contents

1 Safety Regulations 4

1.1 Correct Use 4

1.2 Liability Information 4

1.3 Warranty 4

2 Description 5

2.1 Scope of Delivery 5

2.2 Overview 6

2.2.1 MSA HUB Fireservice for Truck Installation 6

2.2.2 MSA HUB Fireservice Standard 7

3 Assembly and Installation 8

3.1 Assembly 8

3.1.1 MSA HUB Fireservice for Truck Installation with Wall Brackets 8

3.1.2 MSA HUB Fireservice for Truck Installation without Wall Brackets 10

3.1.3 MSA HUB Fireservice Standard 12

3.2 Antenna Installation (for Truck Installation only) 14

3.2.1 Multi Antenna 14

3.2.2 LRR Antenna 15

3.3 Ethernet Kit Installation (MSA HUBFireservice Standard only) 17

4 Connectivity 19

5 Operation 21

5.1 LED Status Description 21

5.2 Firmware Update 21

5.3 Error Cases 22

5.4 Factory Reset 22

6 Decommission and Disposal 24

6.1 Decommission 24

6.1.1 MSA HUB Fireservice for Truck Installation with Wall Brackets 24

6.1.2 MSA HUB Fireservice for Truck Installation without Wall Brackets 25

6.1.3 MSA HUB Fireservice Standard with Wall Brackets 27

6.1.4 MSA HUB Fireservice Standard without Wall Brackets 28

6.2 Disposal 29

7 Maintenance 30

7.1 Cleaning 30

8 Certification 31

9 Technical Data 32

10 Ordering Information 33

10.1 Spare Parts 33

10.2 Accessories 33

MSA HUB 3

1 Safety Regulations

1.1 Correct Use

The MSA HUB – hereafter referred to as device – is an industrial router that wirelessly connects MSAdevices to the

Internet or intranet. It is a stand-alone device with Long Range Radio (LRR) connectivity and a gateway connection that

connects local MSA networks with MSA CloudServices.

It is imperative that this operating manual be read and observed when using the device. In particular, the safety

instructions, as well as the information for the use and operation of the device, must be carefully read and observed.

Furthermore, the national regulations applicable in the user's country must be taken into account for a safe use.

WARNING!

Read this manual carefully before using the device. The device will perform as designed only if it is used and maintained

in accordance with the manufacturer's instructions. Otherwise, it could fail to perform as designed and persons who rely

on this device could sustain serious personal injury or death.

Before use the product operability must be verified. The product must not be used if the function test is unsuccessful, it is

damaged, a competent servicing/maintenance has not been made, genuine MSA spare parts have not been used.

Failure to follow this warning can result in serious personal injury or death.

Alternative use, or use outside this specification will be considered as non-compliance. This also applies especially to

unauthorized alterations to the product and to commissioning work that has not been carried out by MSA or authorized

persons.

1.2 Liability Information

MSA accepts no liability in cases where the device has been used inappropriately or not as intended. The selection and

use of the device are the exclusive responsibility of the individual operator.

Product liability claims, warranties and guarantees made by MSA with respect to the device are voided, if it is not used,

serviced or maintained in accordance with the instructions in this manual.

1.3 Warranty

Local rules apply.

For any additional information relative to use or repair, call 1-877-MSA-FIRE (1-877-672-3473) during regular working

hours or write an e-mail to [email protected].

For additional contact information refer to the MSA website at www.MSAsafety.com.

MSA HUB 4

GB 1 Safety Regulations

2 Description

2.1 Scope of Delivery

This package includes:

MSA HUB Fireservice

• MSA HUB Fireservice device

• Wall power supply

• Power cable for truck installation (25m / 82 ft)

• Multi antenna with cable for truck installation (3m / 9.8 ft)

• LRR antenna for truck installation

• Antenna cable for LRR antenna (3m / 9.8 ft)

• Quick Start Guide: Truck Version

MSA HUB Fireservice Standard

• MSA HUB Fireservice Standard device

• Industrial power supply

• Main power cable (5m / 16.4 ft)

• Additional power cable (25m / 82 ft)

• LRR antenna

• Quick Start Guide: Standard Version

The A2 Software can be downloaded via the MSA Software Product website at www.MSAsafety.com.

MSA HUB 5

GB 2 Description

2.2 Overview

2.2.1 MSA HUB Fireservice for Truck Installation

Figure 1 Fireservice for Truck Installation

1 WiFi connector 6 LRR connector

2 LTE 2 connector 7 Housing

3 LTE 1 connector 8 Ethernet connector

4 Status LEDs 9 Power connector

5 GPS connector (for future use) 10 Grounding terminal

The device consists of a compact housing with five antenna connectors (Wi-Fi, GPS, LRR, LTE 1, LTE 2), one Ethernet

connector and one power connector. A SIM card holder is included inside the housing lid.

When the device is installed and configured, it can connect MSA devices to the Internet or intranet and transfer data.

The status LEDs show the respective connection status.

The device is intended to be used in a vehicle with top mounted antennas.

MSA HUB 6

GB 2 Description

2.2.2 MSA HUB Fireservice Standard

Figure 2 Fireservice

1 LRR antenna 6 Wall brackets

2 Multi antenna (WiFi, Mobile, GPS) with dust cover 7 Sealing plug (Ethernet connector)

3 Housing 8 Power connector

4 LTEdiversity antenna (not shown) 9 Grounding terminal

5 Status LEDs

The device consists of a compact housing with three antennas and two connections – Ethernet and power. The Ethernet

connector kit is available separately (Part Number 10195741). A SIM card holder is included inside the housing lid.

When the device is installed and configured, it can connect MSA devices to the Internet or intranet and transfer data.

The status LEDs show the respective connection status.

MSA HUB 7

GB 2 Description

3 Assembly and Installation

WARNING!

Do not assemble or operate damaged components.

Failure to follow this warning can result in serious personal injury or death.

CAUTION!

Maintain at least 20cm (8 in) between the user’s body and the device when powered on due to emissions.

Failure to follow this caution can result in minor or moderate injury.

NOTICE

• Do not open the device when it is operated or connected to an external power supply. Otherwise, the device may be

damaged.

• Do not open the device while powered. Otherwise, the device may be damaged.

• Do not connect or disconnect the device when energized. Otherwise, the device may be damaged. Always plug in

power cable and then connect to the local power supply afterwards.

• Do not use the device without antenna(s). Otherwise, the device may be damaged.

• The device contains electrostatically sensitive components. Adopt precautionary measures against electrostatic

discharge during assembly. Otherwise, the device may be damaged.

The device must only be used with approved antennas.

The device must be disconnected from the power supply prior to assembly. The power supply may be activated only

after the device is fully assembled and connected.

To ensure the IP degree of protection:

• all seals must be undamaged and correctly fitted

• all housing/housing cover screws must be tightened with the appropriate torque

• only cables of the appropriate size must be used in the connectors

• all connectors must be tightened with the appropriate torque

• all empty panel connectors must be sealed with sealing plugs

3.1 Assembly

3.1.1 MSA HUB Fireservice for Truck Installation with Wall Brackets

(1) Open housing by opening the right joints and unscrew the lid screws using a

TorxT20.

MSA HUB 8

GB 3 Assembly and Installation

(2) Optional: Insert SIM card.

Place the SIM card into the SIM card holder.

NOTE: Do not touch the circuit board assembly. Observe electrostatic

procedures.

(3) Use four M6screws with a torque of 1.8Nm (1.3 ft-lbf) to fasten the wall

brackets (PartNumber 10203364) at the back of the housing.

(4) Install device at the desired space.

When installing the device on a solid plain surface, use four appropriate

screws and apply a torque of 5Nm (3 ft-lbf).

(5) Close housing lid by tightening the lid screws with a torque of 1.5Nm (1 ft-lbf).

(6) Close right joints.

MSA HUB 9

GB 3 Assembly and Installation

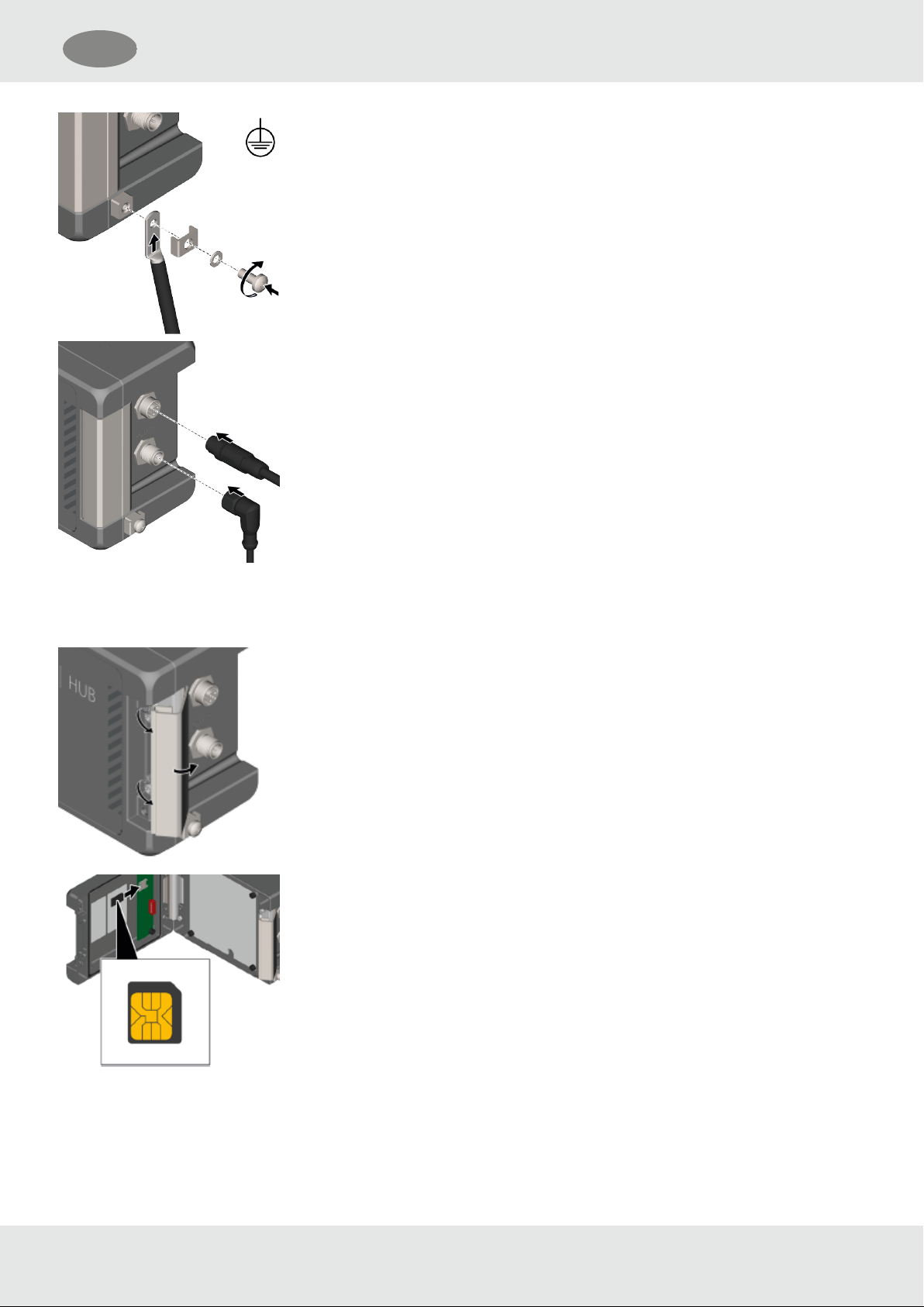

(7) Optional:

Loosen grounding clamp.

a) Insert grounding cable and re-tighten grounding clamp with a torque of 2Nm

(1.5 ft-lbf).

(8) If needed, plug in and screw Ethernet plug with a torque of 0.4Nm (0.3 ft-lbf).

(9) Plug in power plug and screw union nut with a torque of 1.2-1.5Nm (0.9 - 1 ft-

lbf) using a wrench SW14.

The device is assembled.

3.1.2 MSA HUB Fireservice for Truck Installation without Wall Brackets

(1) Open housing by opening the right joints and unscrew the lid screws using a

TorxT20.

(2) Optional: Insert SIM card.

Place the SIM card into the SIM card holder.

NOTE: Do not touch the circuit board assembly. Observe electrostatic

procedures.

MSA HUB 10

GB 3 Assembly and Installation
