MRHANDSFREE BC6000 Manual de usuario

BC m

CZ SK

EST

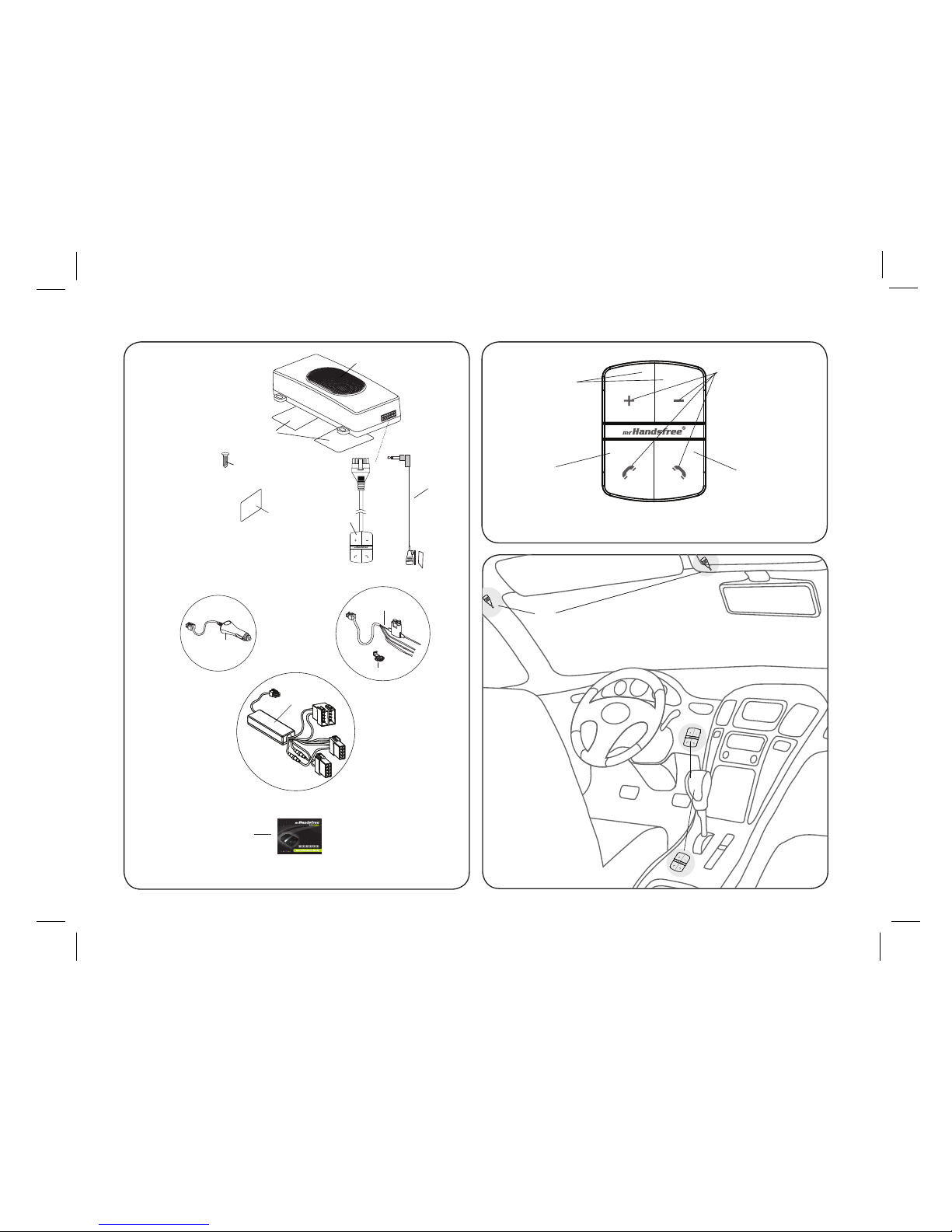

Illustration I

Illustration II

3 x 4

8.1

8.2

7.1

7. Option1

8.Option 2

Illustration III

SM3

9.1

9.Option3

PACKAGE CONTENTS

SEE ILLUSTRATION I

1. Speaker unit

2. Velcro for xation of the speaker unit

3. Set of screws for xation of the speaker unit – 4 pcs

4. Button unit

5. Double-sided tape for xation of the button unit

6. Microphone with mounting parts and double-sided tape

7. Cable set – Option 1 – For BC 6000m Quick Installation (Optional)

7.1. Adapter for connecting the speaker unit to the car via the cigarette lighter. It includes a changeable

fuse and cord.

7.2. Power cable for connecting the speaker unit to the power supply of the car, the ignition system

and for muting the radio (small mute cable). It includes a changeable fuse.

7.3. Contact clips for connecting the small mute cable to the car circuitries – 4 pcs.

8. Cable set – Option 2 – For BC 6000m Pro (Optional)

8.1. Mute box (ISO cable) with ISO sockets for radio connections.

9. Quick Reference Guide

INSTALLATION OF THE BC 6000m

The BC 6000m is available in 2 versions:

1. BC 6000m QUICK INSTALLATION

A. When you want to use the cigarette plug:

Connect the adapter for the cigarette lighter to the car and the other end of the cable to the speaker unit.

B. When you want to use the small mute cable:

SEE SEPARATE SHEET ‘INSTALLATION SCHEME’.

Immediately to the car’s electronic system via the small mute cable.

The wires of the small mute cable are listed in below table in column A and each wire should be

connected to the corresponding item listed in column B.

GB A B

Red wire The + voltage of the car’s power supply

Blue wire Ignition

Black wire The negative GND connection (-)

Brown wire Used for Car Radio Muting (CRM) and has to be connected to the car radio (Mute)

2. BC 6000m PRO: for professional installation with sound of carkit over the car speakers

SEE SEPARATE SHEET ‘INSTALLATION SCHEME’.

a. Connect the 6-pin plug and mono jack plug to the speaker unit.

b. Connect the yellow separate wire to the car radio (optional). (Used for Car Radio Muting (CRM) and

has to be connected to the car radio (Mute))

c. Connect the ISO plugs to the car and the radio (maybe you will need conversion leads, which are

not included)

SEE ILLUSTRATION III

The button unit (a) needs to be mounted on the dashboard.

The microphone (b) needs to be mounted close to the user’s head (30 cm is optimal) and directed towards

the mouth.

Installation tips:

- Make sure that the dashboard is clean and free of dust or grease before sticking the double-sided tape!

- Make sure that the unit is clean and free of dust or grease before sticking the double-sided tape!

- For optimal performance, the microphone should be located at a maximum distance of 50 cm from the

driver’s mouth.

- Please also carefully check the separate sheet that is included with this product.

PARTS & FUNCTIONS

SEE ILLUSTRATION II

1. GREEN BUTTON

(Pairing / Make a call / Answer a call / Redial / answer a 2nd call / Switch between 2 phone calls /

Muting/un-muting the microphone)

- Pairing:

You are required to pair the BC 6000m with your mobile once before using it. Each BC 6000m has a default

PIN-code 0000 for pairing, which is stored in its internal memory.

→ Press and hold the Green button for 5 seconds until the LED indicators start ashing.

→ The carkit is now ready for pairing.

→ Make sure that the Bluetooth® function of your mobile phone is turned on and let your phone search for

Bluetooth® devices. (Refer to the manual of your mobile phone.)

→ Select BC 6000 out of the list with found devices on your mobile phone.

→ You may be asked to enter the PIN-code to complete pairing, enter 0000 and conrm it.

Attention!

• To ensure automatic reconnection between the phone and the BC 6000m, we recommend setting the BC

6000m as “Authorized” in the Bluetooth® menu of your phone! Please refer to the manual of your mobile

phone for more detailed information.

• If the Bluetooth® connection is not restored automatically after disconnection, press the (+) button for 5

seconds to restore the connection manually.

- Make a call:

o Using your mobile phone’s keypad

Enter and dial the number on the mobile phone as you normally do. Once the call has been set

up, the sound will be transmitted to your carkit automatically.

o Using voice dialing:

Press the Green button 1x and you will hear a tone that indicates that you can pronounce the desired

name (=’voice tag’). → Say the voice tag. → The phone will now play the voice tag and start dialing

the related phone number.

Note: Your mobile phone needs to support voice dialing.

- Answer a call: Press the Green button to answer a call.

- Redial: Press the Green button twice. → The phone will dial the last dialed number.

- Answer a 2nd call: When you receive a second call, press the Green button once to hold the rst call and

to answer the second call.

- Switch between 2 phone calls: When having 2 calls on the line, press and hold the Green button for 3

seconds to switch between these 2 phone calls.

Note: This function only works when your mobile phone service provider provides this service (check with

your network provider).

- Muting / Un-muting the microphone:

Press and hold the Green button for 3 seconds to mute the microphone. The white LED indicators will ash

5 times and you will hear ‘DONG-DONG’ tones.

Press the Green button again for 3 seconds to un-mute the microphone again.

Attention!

- When you receive a call, please always use the green button of the BC6000m (as described above)

instead of your mobile phone’s green button to answer the call.

If you do press the green button of your mobile phone, some phones (e.g. iPhone 3GS) will transmit the

conversation through the phone. In this case you need to perform extra actions to transfer the conversation

to the carkit (= Not handsfree calling).

- When you turn off the carkit, it can take about 20 to 40 seconds to break the connection with your mobile

phone. This is due to the fact that the BC6000m is capable of pairing with 8 different mobile phones and of

making a connection with 2 phones simultaneously. This last feature is called ‘Multipoint’ and is explained

in detail on the separate sheet ‘Multipoint Bluetooth’.

2. RED BUTTON

( End a call / Reject a call / Reject a 2nd call / End one of the 2 phone calls)

- End a call: Press the Red button to end the current call.

- Reject a call: Press the Red button to reject the call.

Reject a 2nd call: When you receive a 2nd call, press and hold the Red button for 3 sec. to end the 2nd call.

- End one of the 2 phone calls: When having 2 calls on the line, press the Red button once to end the

current call and to switch to the other call.

3. (+) AND (-) VOLUME BUTTONS

Press (+) to increase the volume level. Press (-) to decrease the volume level.

4. LED INDICATORS

Mode LED indicators

Red / Green Button LED indicators

+/- Volume button

Pairing mode Flash Flash

Standby mode (connected) ON OFF

Standby mode (disconnected) OFF ON

Talk mode ON ON

Mute mode ON FLASH 5 times (In Mute mode, you will hear

‘DONG – DONG’ tones)

GUARANTEE

Mr Handsfree is a registered trademark of TE-Group NV.

The mr Handsfree brand stands for superior product quality and outstanding customer service. That is why mr

Handsfree warrants this product against all defects in material and workmanship for a period of two (2) years

from the date of original purchase of the product.

The conditions of this guarantee and the extent of responsibility of mr Handsfree under this guarantee can be

downloaded from our website: www.mrhandsfree.com

IMPORTANT NOTE FOR BLACKBERRY USERS!

If your Blackberry phone has an automatic echo suppression function, we advise you to switch off the echo

suppression function in our BC6000m to maintain optimal sound quality.

How?

Select ‘BC6000’ In your paired devices list --> Properties --> Echo Suppression --> OFF’

Q.R.G./BC 6000m/02-12/V06
