MrCool Oasis 9k Manual de usuario

Please read this manual carefully before installation and keep it for future reference.

Wiring Control

User Manual

Please keep this manual where the operator can easily ﬁnd it.

Inside you will ﬁnd helpful hints on how to use and maintain your

unit properly.

Olympus Series

Mid-Static Duct Air Handler

(9K, 12K, 18K, 24K & 48K Models)

For more info visit www.mrcool.com

● This manual gives detailed description of the precautions

that should be brought to your attention during operation.

● In order to ensure correct service of the wired controller

please read this manual carefully before using the unit.

● For convenience of future reference, keep this manual

after reading it.

● The wired controller will reset to factory setting with auto

mode, auto fan and 76°F(24°C) setting temperature when

the air conditioner restarts after power failure.

And this may cause inconsistent displays on the wired

controller and on the air conditioner. You need to readjust

the running status through the wired controller.

For more info visit www.mrcool.com

CONTENTS

1. SAFETY PRECAUTION......................................................................................

2. SUMMARIZE......................................................................................................

3. FUNCTION SUMMARY......................................................................................

4. NAME & FUNCTION OF INDICATORS ON THE WIRE CONTROLLER...........

5. INSTALLATION METHOD..................................................................................

6. NAME & OPERATION OF THE BUTTON ON THE WIRE CONTROLLER........

7. USING METHOD ...............................................................................................

AUTOMATIC OPERATION.................................................................................

COOLING/HEATING/FAN ONLY OPERATION..................................................

DRY OPERATION..............................................................................................

TIMER SETTING................................................................................................

TIMER ON AND TIMER OFF BOTH..................................................................

CHANGE TIMER................................................................................................

8.TECHNICAL INDICATION AND REQUIREMENT ..............................................

For more info visit www.mrcool.com

1. SAFETY PRECAUTIONS

The following contents are stated on the product and the operation manual,

including usage, precautions against personal harm and property loss, and the

methods of using the product correctly and safely. After fully understanding the

following contents (identifiers and icons), read the text body and observe the

following rules.

 Identifier description

Identifier Meaning

Means improper handling may lead to personal death or

severe injury.

Means improper handling may lead to personal injury or

property loss.

[Note]: 1. “Harm” means injury, burn and electric shock which need

long-term treatment but need no hospitalization

2. “Property loss” means loss of properties and materials.

Warning

Caution

 Icon description

Meaninglcon

It indicates forbidding. The forbidden subject-matter is indicated in the

icon or by images or characters aside.

It indicates compulsory implementation. The compulsory subject-matter

is indicated in the icon or by images or characters aside.

For more info visit www.mrcool.com

Warning

Please entrust the distributor or professionals to install

the unit. The installers must have the relevant know-how.

Improper installation performed by the user without perm

ission may cause fire, electric, shock, personal injury or

water leakage.

Delegate

installation

Forbid

Usage

Warning

Do not spray flammable aerosol to the wire

controller directly. Otherwise, fire may occur.

Do not operate with wet hands or let water enter the wire

controller. Otherwise, electric shock may occur.

2. SUMMARIZE 3. FUNCTION SUMMARY

Usage condition: Main function:

1. Power supply: 5V DC.

2. Operation temperature:

-15°C(-5°F)~ +43°C(+109°F).

3. Operation humidity: 40%-90%, RH.

1. Connecting to indoor unit by A, B, C,

D, E terminal.

2. Button setting action mode.

3. LCD display.

4. Timer for rest time.

For more info visit www.mrcool.com

4. NAME AND FUCTION OF INDICATORS ON THE

CONTROLLER

When adjust setting off time or only off

time is set , the "OFF" is lighted. If on

and off timer are both set, the"ON" and

"OFF"are both lighted.

③ Follow me function:

There is a temperature sensor inside the

wire controller, after setting temperature,

it will compare the two temperatures,

and the space of wire controller will be

① Operation mode indication:

When press "MODE" button, the follow-

ing mode can be selected in circle. Auto

→Cool→Dry→Heat→Fan-only→Auto.

For cooling only model, heat mode is

skipped.

② Timer:

When adjust setting on time or only on

time is set, the "ON" is lighted.

1 121 12

1Operation mode indication 3Follow me function

4ON/OFF indication

2Timer ON/OFF 7Temperature display zone

6Lock

5Fan speed indication

For more info visit www.mrcool.com

the same as setting temperature. It is

available under cooling, heating, auto

mode.

④ ON/OFF indication :

When it is on, the icon display, otherwise

it is extinguished.

⑤ Fan speed indication:

There are four fan modes: low, middle,

high, auto. For some models, no middle

fan then the middle fan is seen as high

speed.

⑥ Lock:

When the "LOCK" button is pressed, the

icon appear and other buttons is unable,

press again, the icon disappear.

⑦ Temperature display zone:

Generally it displays setting tempera-

ture, it can be adjusted by press

temperature button ▲ and ▼. But in fan

mode, no display here.

5. INSTALLATION METHOD

5-Core Shield Cable

5-way terminal Emitter tube

Indoor Unit

RUN GND

+5V

Indoor switch board

Wire Controller

For more info visit www.mrcool.com

6. NAME AND OPERATION OF THE BUTTON ON THE

WIRE CONTROLLER

When a wire controller is needed, a small 5-way terminal should be added, fix an

infrared emitter with gumwater near the receiver on the switch board. Connect its anode

and cathode to A and B,and +5V, GND, RUN to C, D, E on the switch board.

MODE BUTTON

TIMER ON BUTTON

FOLLOW ME BUTTON

TIMER OFF BUTTON

ELECTRICAL

HEATER BUTTON

RESETBUTTON

ON / OFF BUTTON

ADJUST BUTTON ▲

ADJUST BUTTON ▼

SWING BUTTON

ECONOMY BUTTON

FAN SPEED BUTTON

LOCK BUTTON

TIMER

OFF

AUXIL

HEATERMODE

RESETLOCK

FANSPEED

ECO

SWING TEMP

①

②

③

④

⑤

⑥

⑦

⑧

⑨

⑩

All the pictures in this manual are for explanation purpose only. There may be

slightly different from the wire controller you purchased(depend on model). The

actual shape shall prevail.

NOTE

For more info visit www.mrcool.com

① Mode botton:

When press this botton, the operation

mode change as the following

sequence:

Remark: For the cooling only model, the

heating mode is skipped.

② Timer on button:

Press this button, timer on function is

active. Then every press, the time

increase 0.5h, after 10h, 1h increase-

ment after each press. If cancel this

Function, just set it to "0.0" .

③ Timer off button:

Press this button, timer off function is

active. Then every press, the time

increase 0.5h, after 10h, 1h increase-

ment after each press. If cancel this

function, just set it to "0.0".

④ Follow me button:

When under cool, heat and auto mode,

press this button, follow me function is

active. Pressing the ON/OFF button or

MODE button will not cancel the Follow

me feature. This function is disable

when the unit is off or under DRY or FAN

mode. Pressing the FOLLOW ME button

again will cancel the follow me feature.

⑤Electrical heater button:

If press this button in heat mode, electri-

cal heater function become ineffective.

⑥ Reset button(hidden):

Use a 1mm stick to press in the little hole,

then the current setting is canceled. The

wire controller enter into original state.

⑦ON/OFF button:

When in off state, press this button, the

indicator is on, the wire controller enter

into on state, and send setting information

to the indoor PCB. When in on state,press

this button, the indicator is off, and send

instruction. If timer on or timer off has

been set, it concel this setting then send

instruction to stop the machine.

⑧ Adjust button ▲:

Set indoor temperature up. If press and

hold on, it will increase at 1°F(1°C) per

0.5 second.

⑨ Adjust button ▼ :

Set indoor temperature down. if press and

hold on, it will decrease at 1°F(1°C) per

0.5 second.

→AUTO → COOL→DRY→HEAT→FAN

For more info visit www.mrcool.com

AUTOMATIC OPERATION

Connect to power,indoor operation lamp

flash.

1. Press "MODE" button, select " AUTO "

;

2. Press the button "▲" and "▼", set

temperature you want, generally it is

among 62°F(17°C)~86°F(30°C);

3. Press "ON/OFF" button, operation

lamp is on, the air-conditioner work in

auto mode, indoor fan is auto, and can

not be changed. Auto is displayed on

LCD. Press ON/OFF button again to stop.

4. Economy operation is valid in auto

mode.

5. In event of power interruption such as

a blackout, the air conditioner stops once.

But it restarts automatically and performs

previous operation when the power

supply is resumed. 7

7. USING METHOD

NOTE: Press and hold UP and DOWN

buttons together will alternate the

temperature display between the °C & °F

scale.

⑩ Swing button:

Used to set the airflow direction. Hold

down this button for 2 seconds to

activate auto swing feature.

11 Economy operation button :

press this button, the indoor unit

operates in economy mode, press again,

exit this mode (it may be ineffective for

some models)

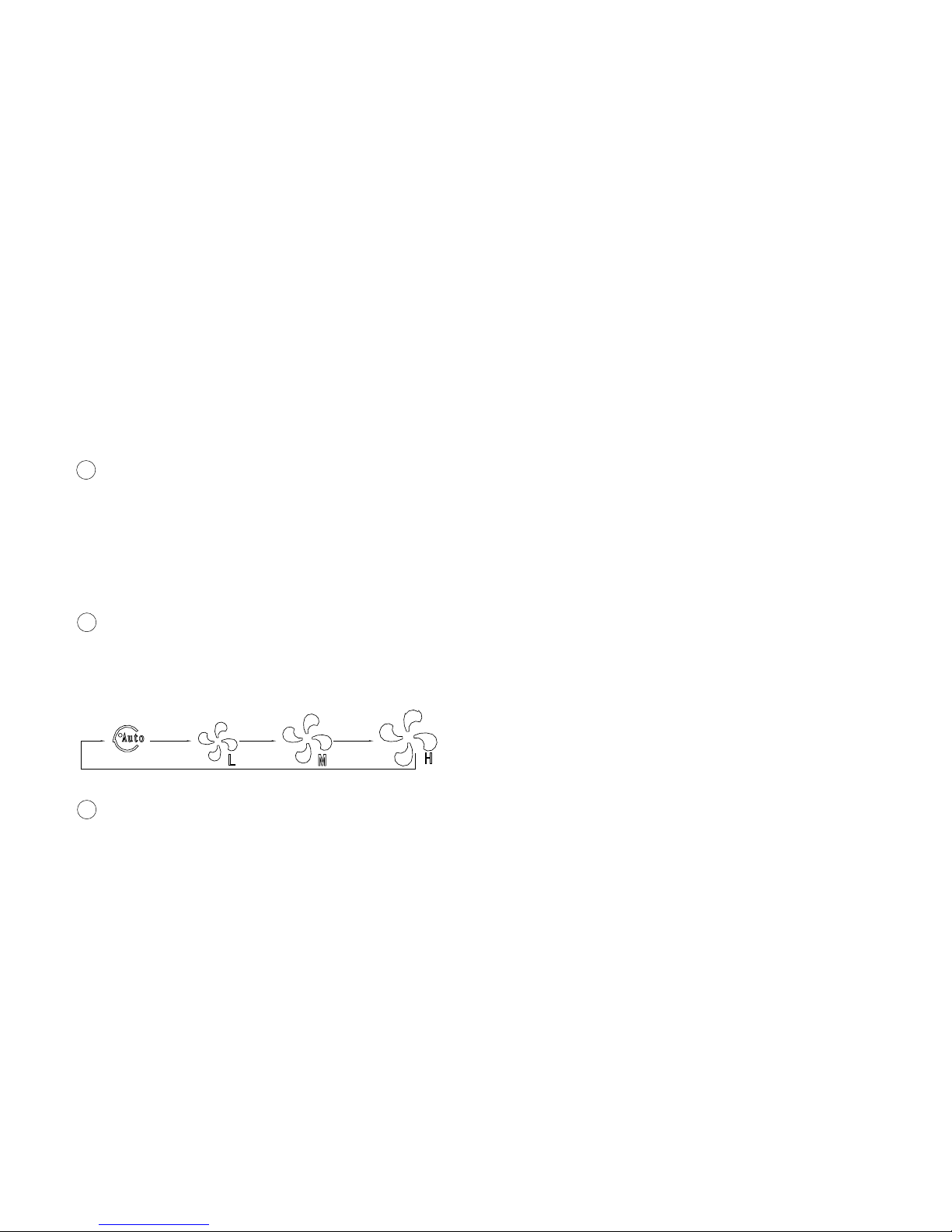

12 Fan speed button:

press this button consecutively, the fan

speed will circle as follow:

13 Lock button(hidden):

When you push the LOCK button, all

current settings are locked in and the

wire controller does not accept any

operation except that of the LOCK

button. Use the lock mode when you

want to prevent setting from being

changed accidentally or play fully. Push

the LOCK button again when you want

to cancel the LOCK mode.

For more info visit www.mrcool.com

Otros manuales para Oasis 9k

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Manejador de aire de MrCool

MrCool

MrCool PRODIRECT Series Instrucciones de funcionamiento

MrCool

MrCool Signature Series Guía de inicio rápido

MrCool

MrCool DIY Instrucciones de funcionamiento

MrCool

MrCool Universal Series Manual de usuario

MrCool

MrCool Olympus Series Manual de usuario

MrCool

MrCool Universal MDUI18024 Manual de usuario

MrCool

MrCool Universal MDUI180 E Series Manual de usuario

MrCool

MrCool U-match MDUI18060 Manual de usuario

MrCool

MrCool Olympus Series Manual de usuario

MrCool

MrCool Universal Series Manual de usuario

MrCool

MrCool Olympus Series Manual de usuario

MrCool

MrCool PHK-H Series Guía de inicio rápido

MrCool

MrCool Olympus Series Instrucciones de funcionamiento

MrCool

MrCool Signature Series Guía de inicio rápido

MrCool

MrCool Olympus Series Manual de usuario

MrCool

MrCool Signature MAHM CTA Series Guía de inicio rápido

Manuales populares de Manejador de aire de otras marcas

Klimor

Klimor EVO-S Manual de usuario

Salda

Salda SMARTY XP Guía

BLAUBERG

BLAUBERG KOMFORT Roto EC S400 Manual de usuario

Trenton

Trenton TPLP Series Manual de usuario

Kemper

Kemper CleanAirTower Manual de usuario

Daikin

Daikin DV PTC 14 Series Manual de usuario

Haier

Haier HB2400VA1M20 Manual de usuario

Webasto

Webasto BlueCool A-Series Manual de usuario

RDZ

RDZ DA 701 Documento técnico

Carrier

Carrier 39T Dimensiones y guía de instalación

Armstrong Air

Armstrong Air BCE5V Series Manual de usuario

ActronAir

ActronAir CAY500T Manual de usuario

Carrier

Carrier 40MBDAQ Manual de usuario

Allied

Allied A93UH1E Manual de usuario

Nortek

Nortek B6VMAI Manual de usuario

TemperZone

TemperZone Econex Pro OPA 1410RLTM4FPQD Guía de mantenimiento y servicio

RDZ

RDZ WHR 200 Documento técnico

AAON

AAON H3 Series Manual del propietario
