MP-Man MPQC109 Manual de usuario

EN USER MANUAL

For Model No.:

MPQC109

Attention:

This handbook contains important security measures and the correct use

of the product information, in order to avoid accidents. Please make sure

to reading the manual carefully before use the device.

1. Please don’t be in high temperature, moisture or very dust place

2. Please don’t be in high temperature, Especially in summer don't put

the device in the car when Windows closed.

Avoid fall or Violent collision of the device, don’t make the TFT

display screen were violent tremor, This could cause TFT display

screen abnormal or damage.

Please choose the appropriate volume, Use headphones should not

be too big volume, If feel tinnitus, Lower the volume or stop using it.

please charge In the following condition.

3. The battery power ICONS shows have no power.

4. The system automatically shut off, start up after power off soon.

5. Operation buttons no response.

6. The machine that the top right corner show red icons.

1. When the device in the format or ongoing upload and downloa

d file, please don't suddenly disconnect, This could cause appli

cation error.

2. For those who because of damage to the product, repair, or other

causes of erased the memory, The company shall not be liable for

any responsibility, please follow the user manual for the

standardized operation to use the device.

3. Don’t disassemble the product, don’t use alcohol、Thinner or

benzene to scrubbing products.

4. Don't use the device one of the place of prohibit to use electronic

equipment in regional (such as the plane).

5. Please don't using the Tablet PC when you in driving or walking

down the street.

6. USB just only be used for data transmission.

Tablet Part

Name

function

①Power

Keep pressed to turn on/off the tablet; shortly

press to activate standby

②RESET

press RESET button,Tablet will force to

shutdown

③Earphone jack

Connect earphone to this standard 3.5mm jack

④USB OTG Port

PC connection/peripheral connection through

OTG cable (for example keyboard, USB

device)

⑤DC Jack

Battery charge through the supplied adaptor

⑥Exit/return

Exit from the current function/return to the

Micro SD input

Insert a micro SD card (up to 32GB)

Getting Started

Battery Charging

The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the USB jack on the

right side of the tablet.

2. The battery icon shows the battery status and charging status

3. The tablet can be used even if the battery is being charged.

the above icons indicate the different level of electricity left in the battery

4. no replacement of battery without authorization, or the explosion

hazard might happen.

5. Recharge it for at least half hour if it has been idle for long time and

fails to start itself.

6. Regularly recharge it at least one time monthly

7. 40°—5°is the optimum temperature for the battery recharging or

the battery performance might deteriorate slightly

Disposal

the battery might contain the polluting material, please give it to the

official recycling-station before disposing the tablet pc, and don’t litter.

Power ON/OFF

ON:

press the button for continuous 5 seconds until the tablet turns

“ON”.

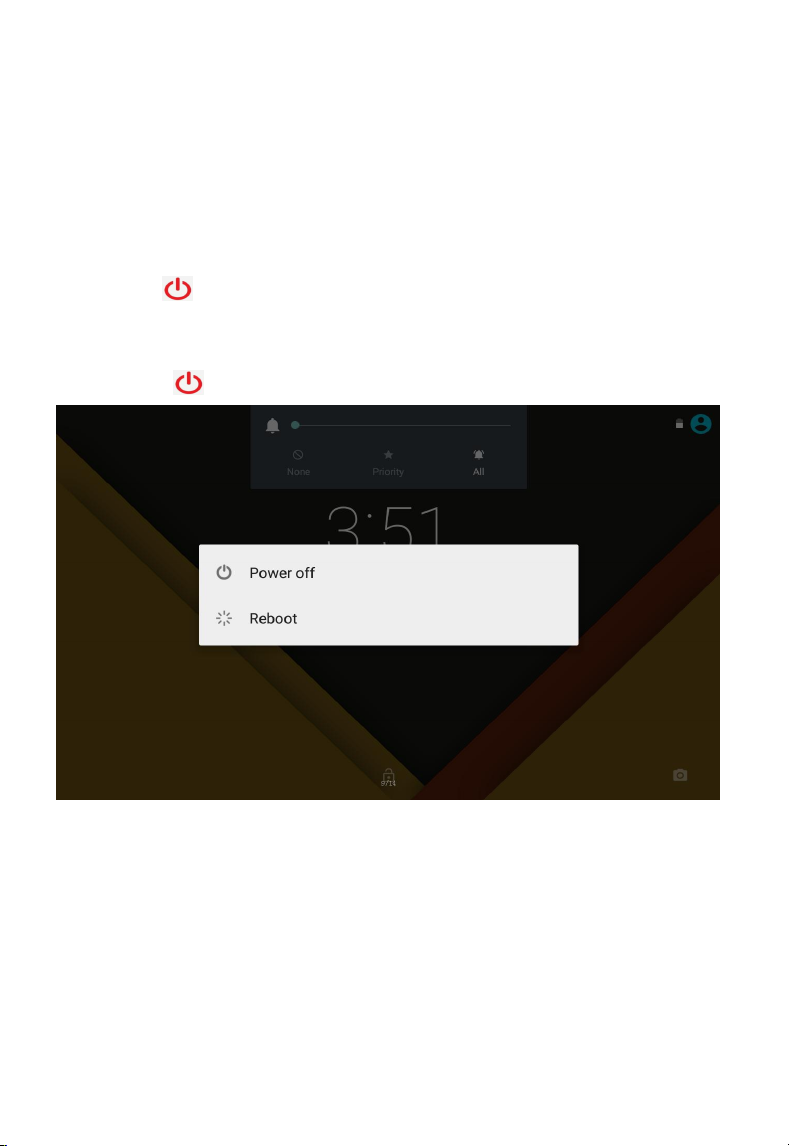

OFF:

1.Press the button for continuous 5 seconds and it will appear

2.Click Power off to power off the tablet

Screen Lock

This feature locks the screen, at the same time turn OFF the screen’s

backlight after a few seconds.

Screen locks when:

1. System is idle.

2. Manually activated by pressing the Power button once.

Screen unlock :

Home screen

The Home screen will look similar to the picture below. It is actually five

screens, each of which can have a different layout of icons. To switch

between screens, simply slide your finger left or right across the display.

The status bar and navigation buttons are always visible, no matter

which Home screen you can currently viewing.

The Desktop cn contains shortcuts to your most-used applications and widgets

Touch the screen icon to quickly search the World Wide Web using Google.

The icon will launch the Application menu.

The status bar displays system information, such as current time and battery.

Touch to Expand the status bar for more detailed information.

The button moves back one step to the previous menu/page.

The buttons returns immediately to the Android desktop.

The button display a menu of recently opened applications.

The button decrease the volume.

The button increase the volume,

Settings Menu

The settings menu allows you to adjust Tablet system configuration.

To change settings:

1. Touch the "Settings" menu icon on the Application menu.The

Settings menu will open.

2. Guide your finger up or down the left side of the screen to scroll through the

list of available categories.

3. Touch a category title to view further options on the right side of the screen.

Wi-Fi - Connect to /disconnect from wireless networks, view connection status

Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note:

this function is available only on devices supplied with 3G card)

Sound - Change volume, touch sound, screen lock sounds etc

Display - Change brightness, wallpaper, sleep settings, font size etc

Storage - Manage NAND and Micro SD card, view available capacity etc

Battery - See battery status and powered-on time

Apps - Manage applications, running services etc

Accounts & sync - Switch synchronization on /off, manage accounts etc

Location services - Change approximate location detection, improve search results

Security - Change screen lock type, encryption, password, credential storage etc

Language & input Select language, add to the dictionary, edit on-screen keyboard settings,

vocal search, etc

Backup & reset - Backup & restore data, perform factory reset, etc

Date & time - Set date, time zone, time, clock format etc

Accessibility - Set up large text, auto-rotate screen, speak password etc

Developer options - Advanced functions for Android developers - debugging, HDCP check

etc

About tablet - Information about your Android device

How to Use TF card

1. Insert the TF card into the TF card slot. Gently push TF card into slot

until it clicks into place.

2. A prompt will be seen on the screen saying “ Preparing SD card “

Removing TF card

1. Close all applications and documents which have been opened from

the TF card.

2. Select “Setting” and find “ Storage” then click “Unmount SD card”.

3. A prompt will be seen on the screen saying “ SD card safe to remove”

4. Gently press the TF card to remove and pull out the TF card.

Note: Insert the TF card in correct position, otherwise it will damage the

card and the slot.

Software Keyboard

The tablet has a software keyboard which automatically show up

when you tap the place on screen where text or number are to be

entered.

Touch Screen

The touch screen responds to finger touch.

Note: don’t place any object on the touch screen for it may damage or

crush the screen.

Single Click: single click one icon to choose the icon or option you want.

Long Press: press and hold one icon to make appear a menu related to

the executed function (if available).

Drag: drag on the screen and you can move between magic cube sides

or drag the application icons into the shortcut bar.

How to connect with computer

Note: Turn on your Tablet before connect the Tablet to PC by USB cable.

1. Use USB cable to connect MID with computer. System will notice

USB connected on bottom of screen.

2. Press USB connected to pop up, then click Turn on USB storage, click

OK.

3. Then the USB connection has been successfully.

Connection to Internet

Wireless:

1. Select “ Settings”

2. Select “Wi-Fi” and slide OFF to ON status.

3. All detected wireless networks in the area will be listed, Click to

select desired wireless connection.

4. Enter WEP key or network key if necessary.

5. Once connected to a wireless network, settings will be saved

6. Wireless icon will appear on the taskbar when connected

successfully.

Note: when the tablet detects the same wireless network in the future,

the device will connect to the network automatically with same password

record.

Web Browsing

Connect to the internet and launch the browser.
