AWK-1127

Quick Installation Guide

Moxa AirWorks

Edition 2.0, July 2016

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

Moxa’s AWK-1127 WLAN client is ideal for applications that are hard to

wire, too expensive to wire, or use mobile equipment that connects over

a TCP/IP network. The AWK-1127 is rated to operate at temperatures

ranging from 0 to 60°C for standard models and -40 to 75°C for extended

temperature models, and is rugged enough for any harsh industrial

environment. Installation is easy, with either DIN-rail mounting or

distribution boxes. The DIN-rail mounting ability, wide operating

temperature range, and IP30 housing with LED indicators make the

AWK-1127 a convenient yet reliable solution for any industrial wireless

application.

Package Checklist

Moxa’s AWK-1127 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•1 AWK-1127

•2 dBi dual band antenna

•Console protective cap

•Resistive Terminator

•Document and software CD

•Quick Installation Guide (printed)

•Warranty card

- 3 -

Panel Layout of the AWK-1127

Top Panel View

Front Panel View

Rear Panel View

1. Grounding screw (M3)

2. Terminal block for PWR1 and

PWR2

3. RS-232 console port

4. AUX antenna port

System LEDs: PWR, FAULT, and

STATE LEDs

6. LEDs for signal strength

7. WLAN and LAN LEDs

8. 10/100BaseT(X) RJ45 Port

9. MAIN antenna port

10.

RS-232/422/485 Serial port

11.

Screw hole for wall-

mounting kit

12.

DIN-rail mounting kit

13.

Reset button

- 4 -

Mounting Dimensions (unit = mm)

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should be fixed to the back panel

of the AWK-1127 when you take it out of the box. If you need to reattach

the DIN-rail attachment plate to the AWK-1127, make sure the stiff metal

spring is situated towards the top, as shown in the figures below.

STEP 1: Insert the top of the

DIN

rail into the slot just below

the stiff metal spring.

STEP 2: The DIN-rail attachment

unit will snap into place as shown

below.

To remove the AWK-1127 from the DIN rail, simply reverse Steps 1 and 2.

- 5 -

Wall Mounting (optional)

For some applications, it may be more convenient to mount the

AWK-1127 to a wall, as illustrated below:

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from the

AWK-1127, and

then attach the

wall mount

plates with M3 screws, as

shown in the adjacent

diagrams.

STEP 2:

Mounting the

AWK-1127 to a wall requires 4 screws.

Use the

AWK-1127 device, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the

shafts should be less

than 3.5 mm in diameter, as shown in the figure at the

right.

Do not drive the screws in all the way into the wall—leave a space of about

2 mm to allow room for sliding the wall-mount panel between the wall and

the screws.

NOTE

Test the screw head and shank size by inserting the screws into

one of the keyhole shaped apertures of the

wall-mounting p

lates

before attaching the plate to the wall.

STEP 3:

Once the screws are fixed into the

wall, insert the four screw heads

through the large opening of the

keyhole

-shaped apertures, and

then slide the

AWK-1127

downwards, as indicated to the

right. Tighten the four screws for

added stability.

- 6 -

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa AWK-1127.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowed for each wire size.

If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE

Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately. note content

here.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring with similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

ATTENTION

This product is intended to be supplied by a Listed Power Unit

marked

“Class 2” or “LPS” and rated O/P:

12 to 48 VDC, 0.16 to

0.55 A

ATTENTION

Make sure

the external power adapto

r (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

- 7 -

Grounding the Moxa AWK-1127

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to

be mounted to a well-grounded

mounting surface, such as a metal panel.

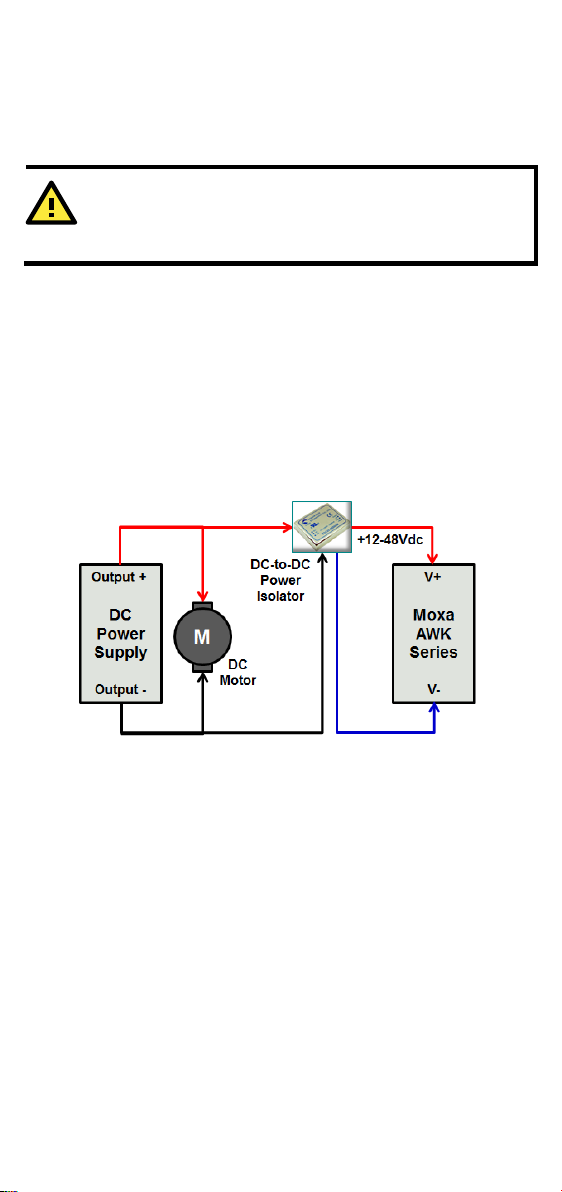

Installations with Unstable Power Inputs

There are cases where the device has to be wired to the same power

source as other equipment. In such cases if equipment such as motors

that are connected in the circuit draw a large amount of current during

operation, the transient voltage drop could potentially cause the AWK to

become unstable. Installing a DC/DC power isolator in between the two

equipment is recommended to isolate the transient effect and to ensure a

stable power input for the AWK.

Installations with Cable Extended Antennas for Outdoor

Applications

If the antenna or the AWK device is installed outdoors or in an open-air

setting, proper lightning protection is required to prevent direct lightning

strikes on the AWK device. In order to prevent coupling currents from

nearby lightning strikes, a lightning arrester should be installed as part of

your antenna system. Ground the device, antenna, as well as the arrester

properly to provide maximum outdoor protection for the device.

- 8 -

Arrester Accessories

•SA-NMNF-01: Surge arrester, N-type (male) to N-type (female)

•SA-NFNF-01: Surge arrester, N-type (female) to N-type (female)

Wiring the Redundant Power Inputs

The 4-contact terminal block connector on the AWK-1127’s top panel is

used for the AWK-1127’s two DC inputs. The top and front views of the

terminal block connector are shown here.

Top View

Front View

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor,

which is located on the AWK-1127’s t

panel.

ATTENTION

Before connecting the

AWK-1127

to the DC power inputs, make

sure the DC power source voltage is stable.

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-1127’s front panel are

used to connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports.

- 9 -

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Rx+

Tx-

Rx-

Rx+

Tx+

Rx-

Tx-

RS-232/422/485 Serial Port

The AWK-1127 has 1 RS-232/422/485 serial port with DB9 connector for

serial to WLAN connectivity. Below are the pin assignments are the serial

port.

Pin RS-232

RS-422/485

(4W)

RS-485

(2W)

DCD

TxD-(A)

–

RxD

TxD+(B)

–

TxD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

–

RTS

–

CTS

–

RS-232 Console Connection

The AWK-1127 has one RS-232 (8-pin RJ45) console port located on the

top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect

the Moxa AWK-1127’s console port to your PC’s COM port. You may then

use a console terminal program to access the AWK-1127 for console

configuration.

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin

Description

8-Pin

–

DSR

RTS

GND

TxD

RxD

DCD

CTS

DTR

–

NOTE

The pin numbers for male DB9 and DB25 connectors, and

hole numbers for female DB9 and DB25 connectors are

labeled on the connector. However, the numbers are

typically quite small, so you may need to use a magnifying

glass to see the numbers clearly.

2. The pin numbers for both 8-pin and 10-

pin RJ45 connectors

(and ports) are typically not labeled on the connector (or

port). Refer to the pinout diagram above for details.

- 10 -

LED Indicators

The front panel of the Moxa AWK-1127 contains several LED indicators.

The function of each LED is described in the table below.

LED

Color

State

Description

PWR Green

Power is on.

Off

Power is not being supplied

FAULT Red

System is booting up

Blinking

(slow at

1-second

intervals)

Cannot get an IP address from the

DHCP server.

Blinking

(fast at

0.5-second

interval)

IP address conflict.

Off

Status is normal.

STATE Green/

Red

Green

System startup is complete and the

system is in operation.

Green

(Blinking at

1-second

intervals)

The device has been located by the

Wireless Search Utility.

Red

System is booting up.

SIGNAL

(5 LEDs)

Green

Signal level

Off

Reserved

WLAN Green

WLAN has been established.

Blinking

WLAN is transmitting data.

Off

WLAN is not working properly.

LAN Green

100/10 Mbps LAN port is active.

Blinking

Data is being transmitted.

Off

100/10 Mbps LAN port is inactive.

TX/RX

Green

Serial port is transmitting data.

Off

No data is being received through the

serial port.

Amber

Serial port is receiving data.

Off

No data is being transmitted through

the serial port.

Specifications

WLAN Interface

Standards

IEEE 802.11a/b/g for Wireless LAN

IEEE 802.11i for Wireless Security

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X)

IEEE 802.3af for Power-over-Ethernet (PoE models

Only)

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid STP

Otros manuales para AirWorks AWK-1127

Tabla de contenidos

Otros manuales de Servidor de Moxa Technologies

Moxa Technologies

Moxa Technologies NPort 5200A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 6150 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manual de usuario

Moxa Technologies

Moxa Technologies NPort P5250A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort W2250 Plus Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 6250 Series Manual de usuario

Moxa Technologies

Moxa Technologies CN2510-16 Manual de usuario

Moxa Technologies

Moxa Technologies NPort P5150A Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 6600 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5450A Manual de usuario

Moxa Technologies

Moxa Technologies NPort 6450 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort Express DE-211 Manual

Moxa Technologies

Moxa Technologies NPort S9000 Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort IAW5000A-I/O Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort W2150A Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik R2140 Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5150 series Manual de usuario

Moxa Technologies

Moxa Technologies CN2610-8 Manual de usuario

Moxa Technologies

Moxa Technologies NPort W2150Plus Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice Manual

Moxa Technologies

Moxa Technologies NPort W2150 Plus Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5210 Manual de usuario

Moxa Technologies

Moxa Technologies NPort IA5000A-I/O series Manual de usuario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
